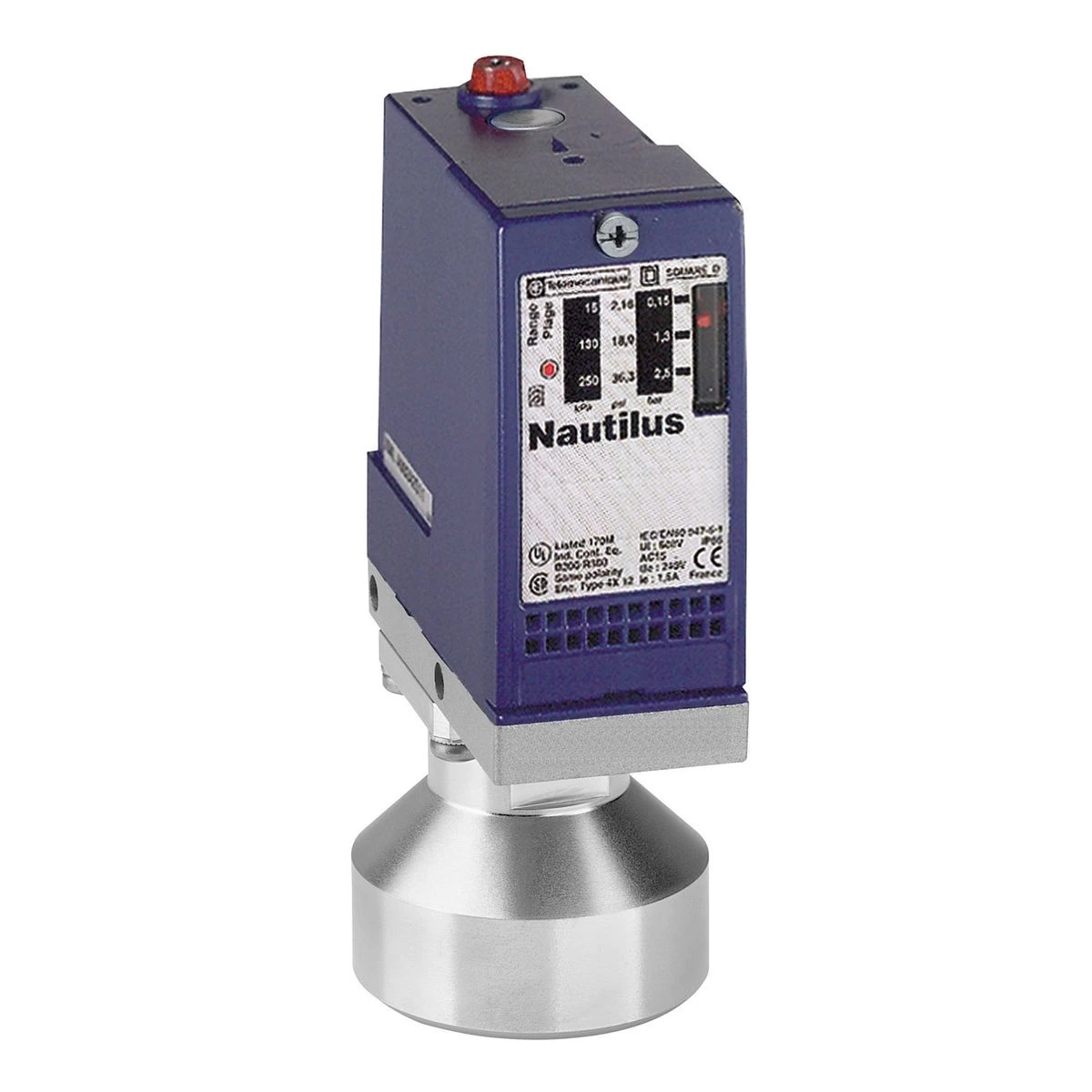

XMLA035P2S11 - Pressure switch XMLA 35 bar fixed scale 1 threshold 1 C/O - Schneider Electric

Expected in 2-4 weeks

192,93 €

Text About:

Pressure switch XMLA 35 bar fixed scale 1 threshold 1 C/O - Schneider Electric

In cart

192,93 €

SPECIFICATIONS

Main

Device short name XMLA

pressure actuator Diaphragm

Fluid connection type G 1 1/4 (female) conforming to ISO 228

product specific application -

[ui] rated insulation voltage 300 V conforming to UL 508
500 V conforming to EN/IEC 60947-1
300 V conforming to CSA C22.2 No 14

controlled fluid Viscous product (0…160 °C)

Pressure switch type of operation Detection of 1 single threshold

pressure rating 35 bar

pressure sensor type Electromechanical pressure sensor

Complementary

[in] rated current 3 A, B300, AC-15 (Ue = 120 V) conforming to EN/IEC 60947-5-1
1.5 A, B300, AC-15 (Ue = 240 V) conforming to EN/IEC 60947-5-1
0.1 A, R300, DC-13 (Ue = 250 V) conforming to EN/IEC 60947-5-1

local display With

Product certifications LROS (Lloyds register of shipping)
BV
EAC
CSA
UL
CCC

Adjustable range of switching point on falling pressure 0.25…33.75 bar

Auxiliary contacts operation Snap action

Handle front plate colour 130 mm

Product or component type Electromechanical pressure sensor

[uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-1

Adjustable range of switching point on rising pressure 1.5…35 bar

awg gauge AWG 20...AWG 14

cable entry Cable gland 9…13 mm

Contacts material Silver contacts

Enclosure material Zinc alloy

Contacts type and composition 1 C/O

Electrical shock protection class Class I conforming to IEC 1140
Class I conforming to IEC 536
Class I conforming to NF C 20-030

width (w) 50 mm

Destruction pressure 160 bar

Electrical circuit type Control circuit

Net weight 0.695 kg

setting External

Operating position Any position

terminal block type 4 terminals

depth 76 mm

mechanical durability 5000000 cycles

repeat accuracy 2 %

Materials in contact with fluid Steel
FPM, FKM

electrical connection Screw-clamps terminals, 1 x 0.5...2 x 2.5 mm²

Maximum operating rate 120 cyc/mn

Maximum resistance across terminals 25 mOhm conforming to IEC 255-7 category 3
25 mOhm conforming to NF C 93-050 method A

Maximum permissible accidental pressure 80 bar

Maximum permissible pressure - per cycle 45 bar

Natural differential at high setting 1.25 bar (+/- 0.25 bar)

Natural differential at low setting 1.25 bar (+/- 0.25 bar)

Shock resistance 50 gn conforming to IEC 60068-2-27

Scale type Fixed differential

Short-circuit protection 10 A cartridge fuse, type gG (gl)

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP66 conforming to EN/IEC 60529

Range of product Telemecanique Pressure sensors XM

ambient air temperature for operation -25…70 °C

standards CE
EN/IEC 60947-5-1
CSA C22.2 No 14
UL 508

vibration resistance 4 gn conforming to IEC 60068-2-6 (f = 30…500 Hz)

protective treatment TC standard version
