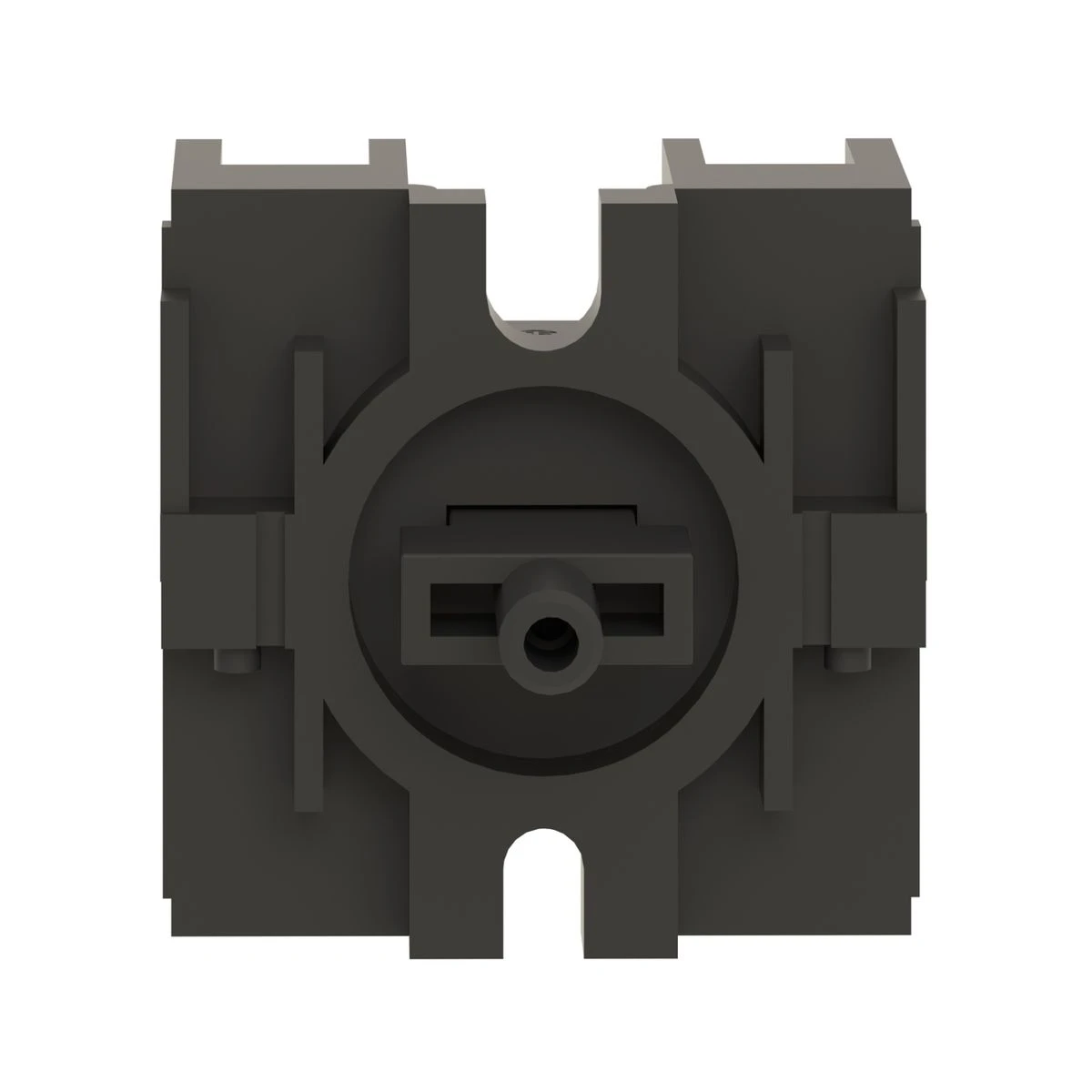

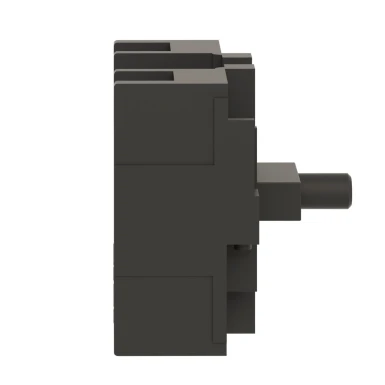

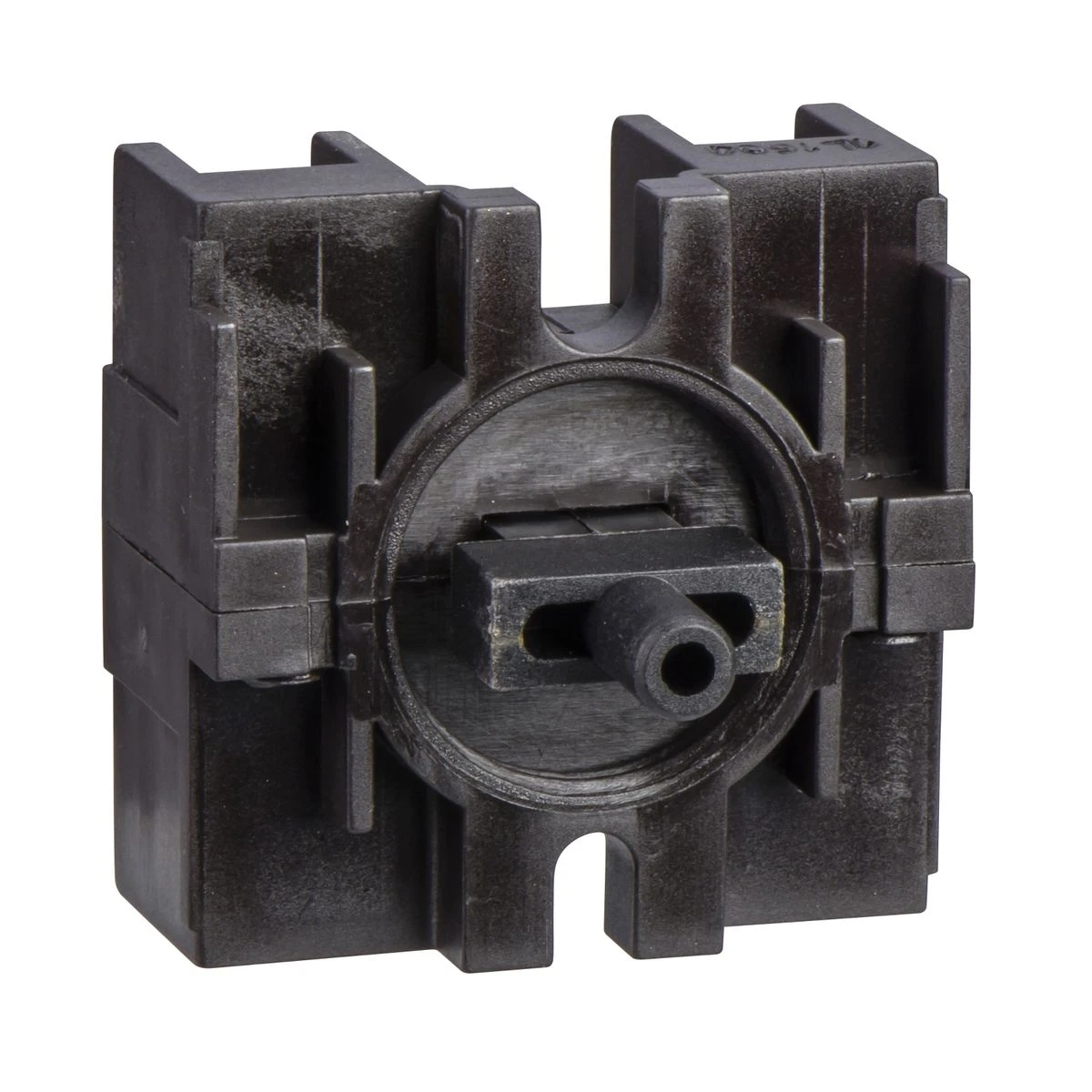

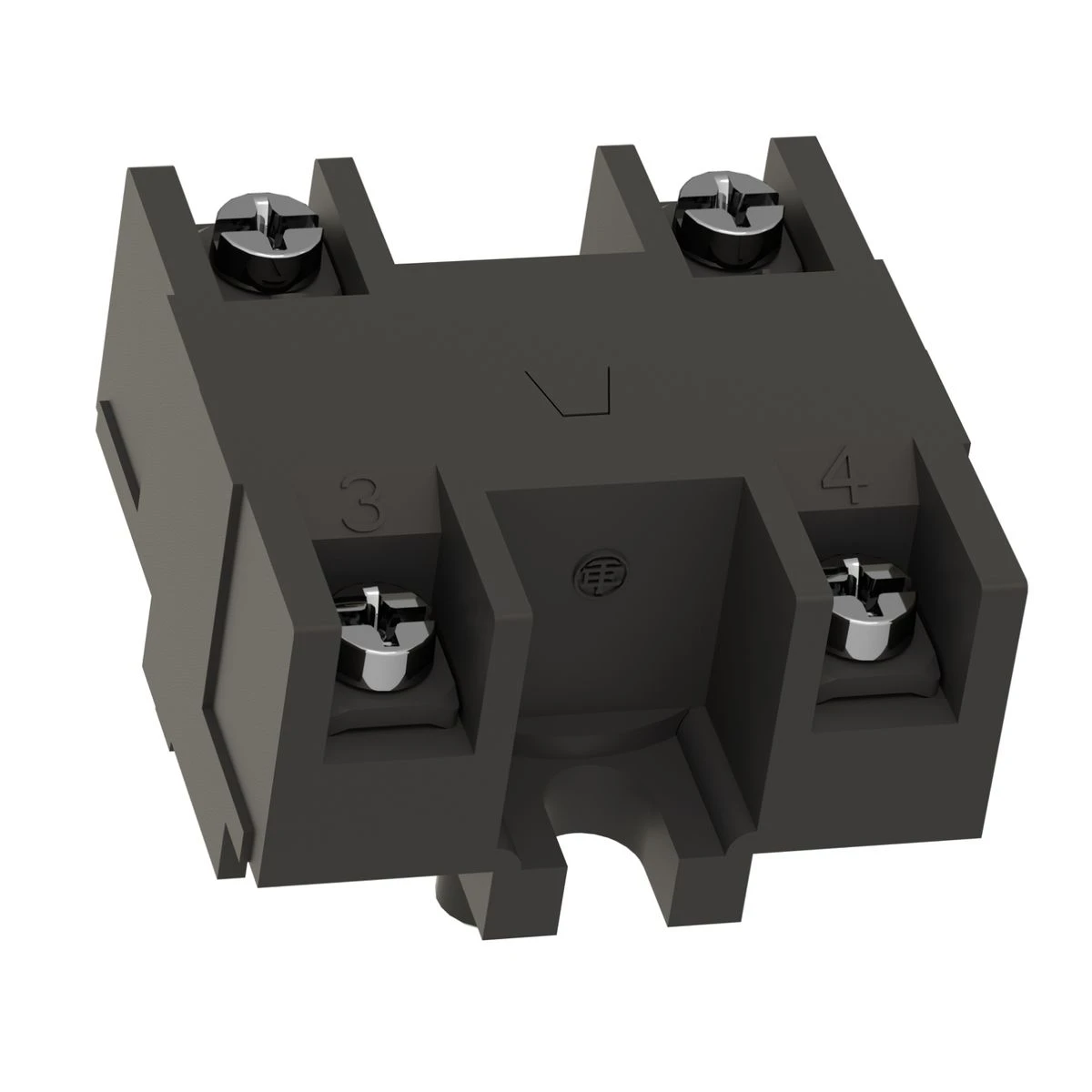

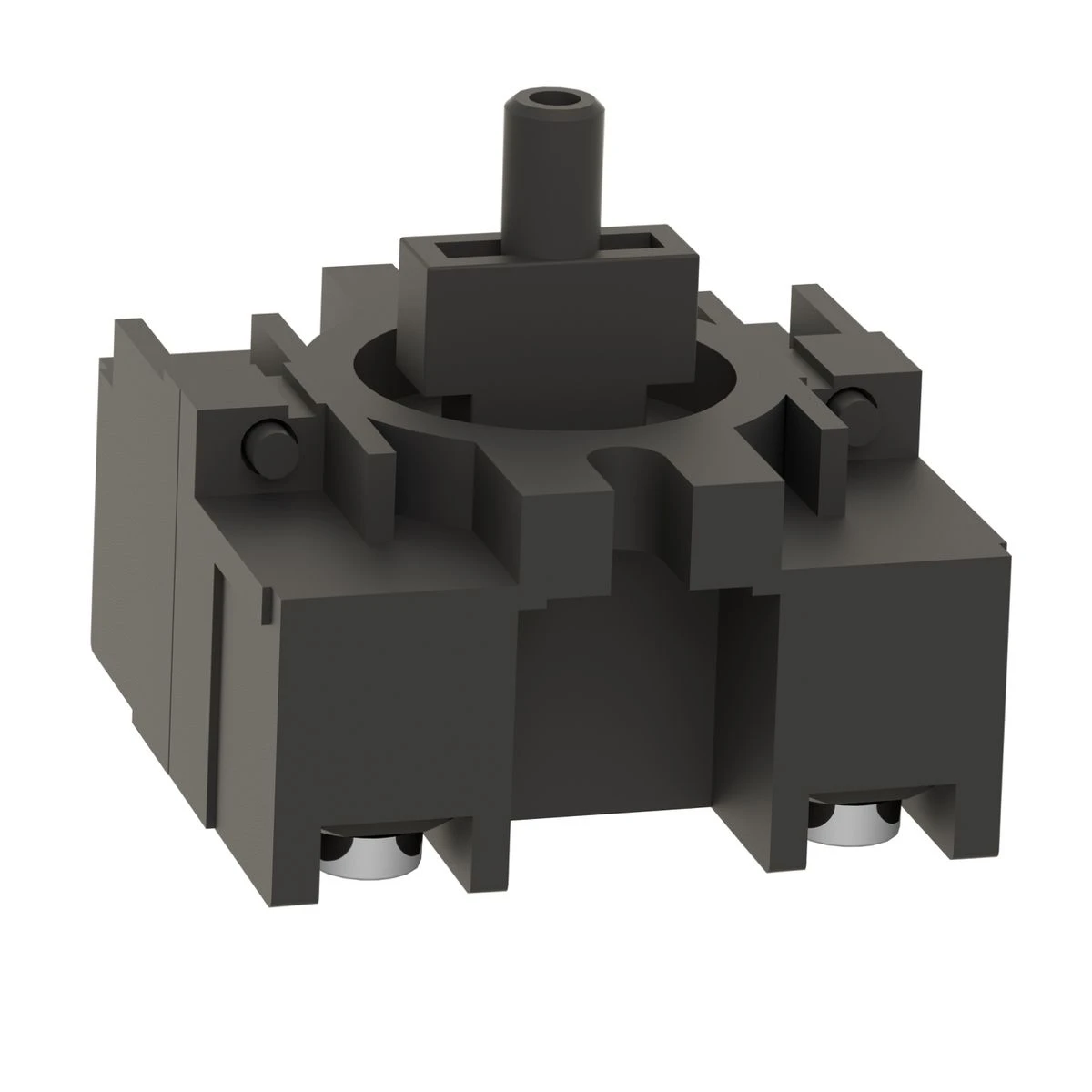

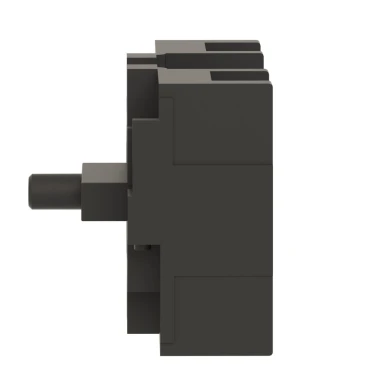

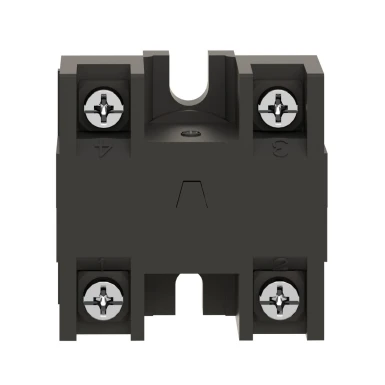

XESB2011 - Harmony XAC, Single contact block, spring return, front mounting, single speed C/O for XACB91** oper - Schneider Electric
Expected in 2-4 weeks
16,12 € excl. VAT
19,66 € incl. VAT
Text About:
Harmony XAC, Single contact block, spring return, front mounting, single speed C/O for XACB91** oper - Schneider Electric
SPECIFICATIONS
Main
[ithe] thermal current under enclosure
10 A
contact block application
Single speed
[ui] rated insulation voltage
500 V (pollution degree 3) conforming to IEC 60947-1
component name
XESB
contact block type
Single
Complementary
product compatibility
XACM
XACB
XAB91...
XACB
XAB91...
Product or component type
Contact block
[uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947-1
Connections - terminals
Screw clamp terminals, 1 x 2.5 mm² with or without cable end
Screw clamp terminals, 2 x 1.5 mm² with or without cable end
Screw clamp terminals, 2 x 1.5 mm² with or without cable end
contact operation
Snap action
Electrical shock protection class
Class II conforming to IEC 61140
rated operational power in w
140 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
140 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
95 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
140 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
95 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
Type of operator
Spring return
Electrical circuit type
Control circuit
rated operational power in va
100 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 48 V 50/60 Hz, load factor = 0.5 (inductive load)
450 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 127 V 50/60 Hz, load factor = 0.5 (inductive load)
50 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 24 V 50/60 Hz, load factor = 0.5 (inductive load)
750 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 230 V 50/60 Hz, load factor = 0.5 (inductive load)
450 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 127 V 50/60 Hz, load factor = 0.5 (inductive load)
50 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 24 V 50/60 Hz, load factor = 0.5 (inductive load)
750 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 230 V 50/60 Hz, load factor = 0.5 (inductive load)
contact code designation
A300 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
Q300 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Q300 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Mounting of block
Front mounting
mechanical durability
1000000 cycles
Maximum resistance across terminals
25 MOhm
Mechanical interlocking
Without mechanical interlock
Operating force
25 N
15 N
15 N
Shock resistance
100 gn conforming to IEC 60068-2-27
Terminal identifier
(13-14)NON !@ !(11-12)NC
Short-circuit protection
10 A fuse protection by cartridge fuse type gG
Terminals description iso n°1
(3-4-1-2)DE
Environment
Ambient air temp for storage/transportation
-40…70 °C
Range of product
Harmony XAC
ambient air temperature for operation
-25…70 °C
standards
EN 60947-5-1
CSA C22.2 No 14
IEC 60947-5-1
CSA C22.2 No 14
IEC 60947-5-1
vibration resistance
15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
