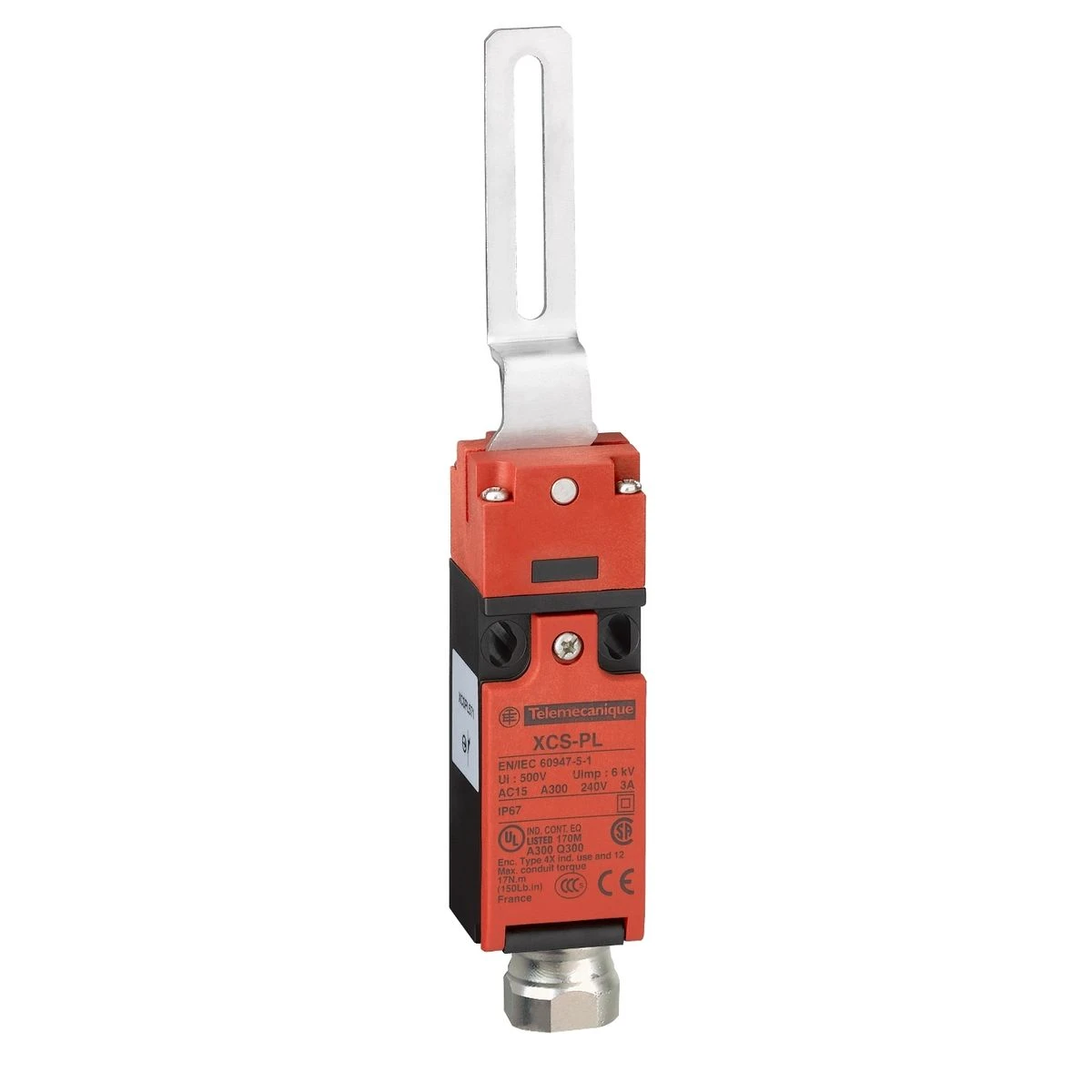

XCSPL783 - Guard switch, Telemecanique Safety switches XCS, XCSPL, elbowed flush lever, centred, 2NC -1/2"NPT - Schneider Electric

Expected in 2-4 weeks
XCSPL783 - Guard switch, Telemecanique Safety switches XCS, XCSPL, elbowed flush lever, centred, 2NC -1/2
XCSPL783 - Guard switch, Telemecanique Safety switches XCS, XCSPL, elbowed flush lever, centred, 2NC -1/2"NPT - Schneider Electric
71,27 € excl. VAT
86,95 € incl. VAT
Text About:
Guard switch, Telemecanique Safety switches XCS, XCSPL, elbowed flush lever, centred, 2NC -1/2"NPT - Schneider Electric
86,95 €
SPECIFICATIONS
Main
[ithe] thermal current under enclosure 10 A
Operator direction information Centred
[ui] rated insulation voltage 300 V conforming to UL 508
300 V conforming to CSA C22.2 No 14
500 V (pollution degree 3) conforming to EN/IEC 60947-1
component name XCSPL
head type Turret head rotary lever
Complementary
Product certifications CSA
UL
BG
Handle front plate colour 161 mm
Product or component type Guard switch
[uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-5-1
cable entry 1 entry tapped for 1/2" NPT
cable outer diameter 7…10 mm
Enclosure material Polyamide PA66 fibre glass impregnated
Clamping connection capacity 1 x 0.5...2 x 1.5 mm² with or without cable end
contact operation Slow-break
Contacts type and composition 1 NC + 1 NC
Electrical shock protection class Class II conforming to EN/IEC 61140
safety reliability data B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear
Material Plastic
width (w) 30 mm
Type of operator Elbowed flush lever
contact code designation A300, AC-15 (Ue = 120 V, Ie = 6 A) conforming to EN/IEC 60947-5-1
A300, AC-15 (Ue = 240 V, Ie = 3 A) conforming to EN/IEC 60947-5-1
Q300, DC-13 (Ue = 125 V, Ie = 0.55 A) conforming to EN/IEC 60947-5-1
Q300, DC-13 (Ue = 250 V, Ie = 0.27 A) conforming to EN/IEC 60947-5-1
Net weight 0.095 kg
Lever material Stainless steel
depth 30 mm
mechanical durability 1000000 cycles
Positive opening With NC contact
electrical connection Terminal
Maximum resistance across terminals 30 mOhm conforming to EN/IEC 60947-5-4
Minimum torque for tripping 0.1 N.m
Insulation Double insulated
Positive opening minimum torque 0.25 N.m
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
Poles description 2
Safety level Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508
Short-circuit protection 10 A cartridge fuse type gG (gl)
Tripping angle 5 °
Environment
Ambient air temp for storage/transportation -40…70 °C
ip degree of protection IP67 conforming to IEC 60529
Range of product Telemecanique Safety switches XCS
ambient air temperature for operation -25…70 °C
standards EN/ISO 12100
UL 508
EN/IEC 60947-5-1
EN/IEC 60947-5-4
EN/IEC 60204-1
CSA C22.2 No 14
EN 1088/ISO 14119
vibration resistance 50 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
protective treatment TH
TC
About this product

The XCSPL783 - Guard switch, Telemecanique Safety switches XCS, XCSPL, elbowed flush lever, centred, 2NC -1/2"NPT is engineered to cater to the demands of trade professionals, such as circuit designers, circuit experts, management services, and industry fabricators. XCSPL783 grants impressive efficiency and value for consultants in the automation and control industry. This Guard switch, Telemecanique Safety switches XCS, XCSPL, elbowed flush lever, centred, 2NC -1/2"NPT and other Preventa XCS from Schneider Electric can be obtained at the unbeatable price and shipment duration through BALTELEC, a dependable vendor fulfilling the needs of technicians in their acquisition needs.

Engineers who have bought Schneider Electric Preventa XCS have frequently lauded the producer's robustness. It has been highlighted that the unmatched effectiveness of XCSPL783 - Guard switch, Telemecanique Safety switches XCS, XCSPL, elbowed flush lever, centred, 2NC -1/2"NPT extends to a variety of operations. Its high-end attributes make it well-suited solution for different applications, assuring the success of your industrial, tertiary, and automation ventures.

Our professionals dedicates in addressing industrial and tertiary professionals’ needs. We recognize the particular expectations and standards of our consumers in the realm. By teaming up with our specialists, your organization obtain access to the optimal rates and supply timeline of premium products like XCSPL783 - Guard switch, Telemecanique Safety switches XCS, XCSPL, elbowed flush lever, centred, 2NC -1/2"NPT from Schneider Electric at a reasonable price. Registered users enjoy added discounts and top-tier service.

Do not hesitate and purchase XCSPL783 - Guard switch, Telemecanique Safety switches XCS, XCSPL, elbowed flush lever, centred, 2NC -1/2"NPT at our trusted and efficient digital marketplace. Don't delay in making this shrewd investment that ensures the utmost quality and meets the unique necessities of clients like your group.

If you face any doubts or concerns about XCSPL783 - Guard switch, Telemecanique Safety switches XCS, XCSPL, elbowed flush lever, centred, 2NC -1/2"NPT or any other Schneider Electric products, email us or refer to our FAQs section below. We have assembled answers to popular issues to facilitate you further in making an considered decision about industrial and tertiary electrical components.

Remember, XCSPL783 - Guard switch, Telemecanique Safety switches XCS, XCSPL, elbowed flush lever, centred, 2NC -1/2"NPT from Schneider Electric is steady, wallet-friendly, and outstanding to its counterparts in the Preventa XCS category. Don't hesitate to make it a part of your configuration today. Order at Baltelec e-shop, your steady distributor for all your professional electrical equipment and automation needs.

In our Baltelec.eu dot-com store you will uncover Guard switch, Telemecanique Safety switches XCS, XCSPL, elbowed flush lever, centred, 2NC -1/2"NPT - XCSPL783 worth 86.95 €, which will be a trustworthy and innovative solution for your demands. This thing is constructed by the Schneider Electric brand using the current technologies and follows the uppermost standards of defense and efficiency. We give merchandise from the Preventa XCS category that integrate longevity and usefulness, which is an fine possibility for various tasks. In spite of whether you need machinery for small construction or for professional industrial operation, Guard switch, Telemecanique Safety switches XCS, XCSPL, elbowed flush lever, centred, 2NC -1/2"NPT will be a secure facilitator in your job.

Baltelec attempts to make the securing process as easy and fast as viable for our shoppers. We offer detailed accounts and high-quality photographs of Guard switch, Telemecanique Safety switches XCS, XCSPL, elbowed flush lever, centred, 2NC -1/2"NPT so that you can make an well-informed choice. A team of pros is always ready to help you with any enquiries in the Preventa XCS section referencing to the picking and use of supplies. We are positive that Guard switch, Telemecanique Safety switches XCS, XCSPL, elbowed flush lever, centred, 2NC -1/2"NPT will meet your criteria and become an imperative element of your inventory for just 86.95 €.
