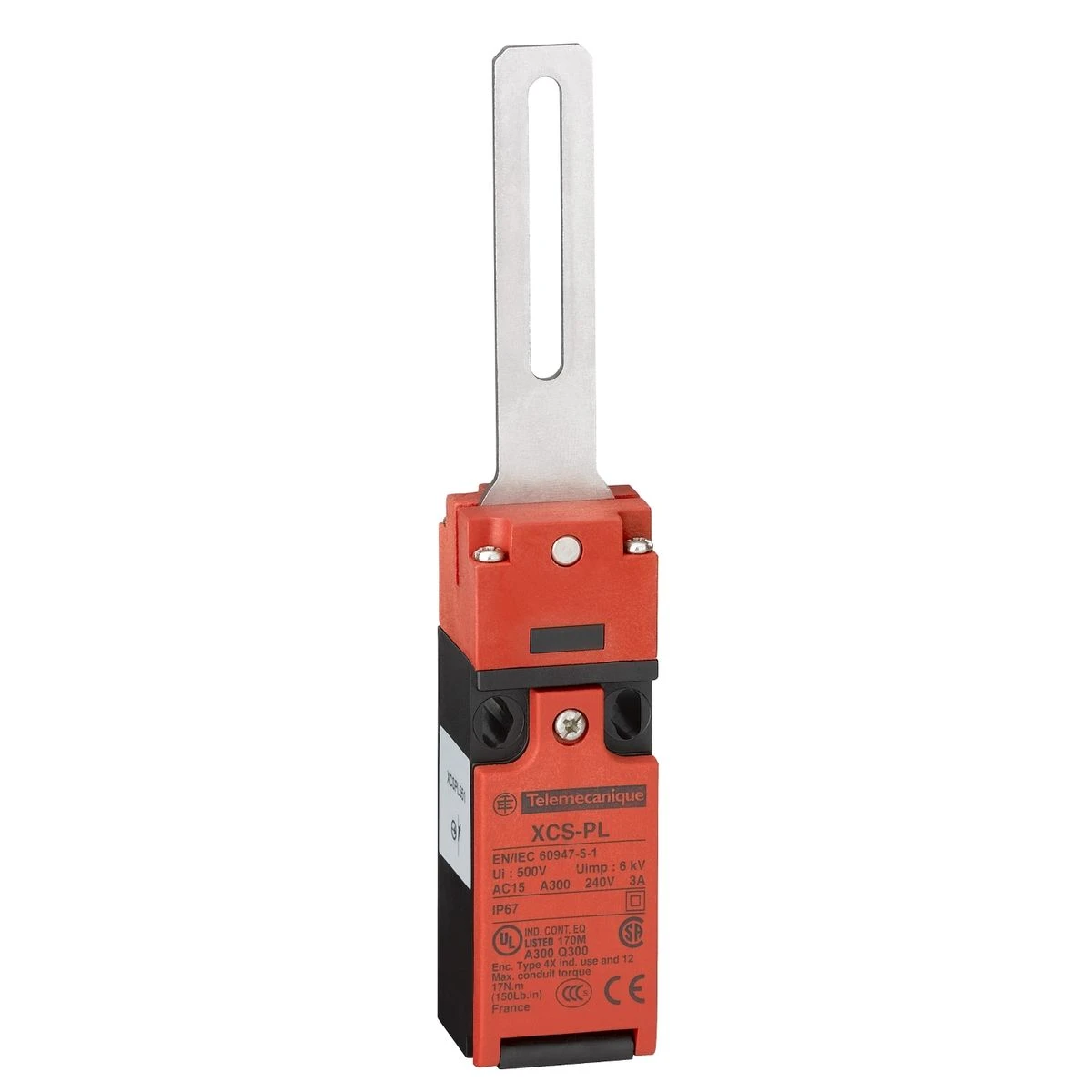

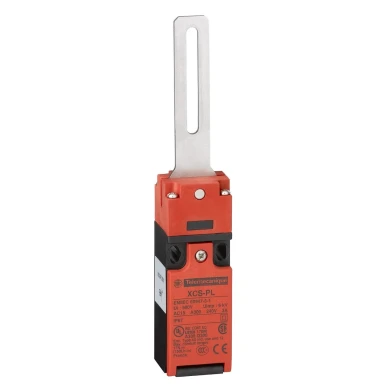

XCSPL552 - Guard switch, Telemecanique Safety switches XCS, XCSPL, straight lever, centred, 1NC+1 NO, M16 - Schneider Electric

Expected in 2-4 weeks

46,01 €

Text About:

Guard switch, Telemecanique Safety switches XCS, XCSPL, straight lever, centred, 1NC+1 NO, M16 - Schneider Electric

In cart

46,01 €

SPECIFICATIONS

Main

[ithe] thermal current under enclosure 10 A

Operator direction information Centred

[ui] rated insulation voltage 300 V conforming to UL 508
300 V conforming to CSA C22.2 No 14
500 V (pollution degree 3) conforming to EN/IEC 60947-1

component name XCSPL

head type Turret head rotary lever

Complementary

Product certifications CSA
BG
UL

Handle front plate colour 161 mm

Product or component type Guard switch

[uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-5-1

cable entry 1 entry tapped for M16 x 1.5

cable outer diameter 7…10 mm

Enclosure material Polyamide PA66 fibre glass impregnated

Clamping connection capacity 1 x 0.5...2 x 1.5 mm² with or without cable end

contact operation Slow-break, break before make

Contacts type and composition 1 NC + 1 NO

Electrical shock protection class Class II conforming to EN/IEC 61140

safety reliability data B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear

Material Plastic

width (w) 30 mm

Type of operator Straight lever

contact code designation A300, AC-15 (Ue = 120 V, Ie = 6 A) conforming to EN/IEC 60947-5-1
A300, AC-15 (Ue = 240 V, Ie = 3 A) conforming to EN/IEC 60947-5-1
Q300, DC-13 (Ue = 125 V, Ie = 0.55 A) conforming to EN/IEC 60947-5-1
Q300, DC-13 (Ue = 250 V, Ie = 0.27 A) conforming to EN/IEC 60947-5-1

Net weight 0.095 kg

Lever material Stainless steel

depth 30 mm

mechanical durability 1000000 cycles

Positive opening With NC contact

electrical connection Terminal

Maximum resistance across terminals 30 mOhm conforming to EN/IEC 60947-5-4

Minimum torque for tripping 0.1 N.m

Insulation Double insulated

Positive opening minimum torque 0.25 N.m

Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27

Poles description 2

Safety level Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508

Short-circuit protection 10 A cartridge fuse type gG (gl)

Tripping angle 5 °

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP67 conforming to IEC 60529

Range of product Telemecanique Safety switches XCS

ambient air temperature for operation -25…70 °C

standards CSA C22.2 No 14
EN/ISO 12100
UL 508
EN 1088/ISO 14119
EN/IEC 60947-5-4
EN/IEC 60947-5-1
EN/IEC 60204-1

vibration resistance 50 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

protective treatment TC
TH
