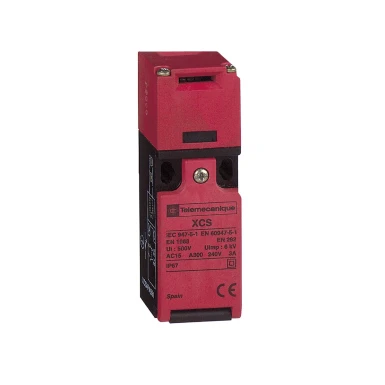

XCSPA691 - Safety switch, Telemecanique Safety switches XCS, plastic XCSPA, 1 NC + 1 NO, slow break, 1 entry tapped Pg 11 - Schneider Electric

Expected in 2-4 weeks

53,89 € excl. VAT

65,74 € incl. VAT

Text About:

Safety switch, Telemecanique Safety switches XCS, plastic XCSPA, 1 NC + 1 NO, slow break, 1 entry tapped Pg 11 - Schneider Electric

In cart

65,74 €

SPECIFICATIONS

Main

design Compact

[ithe] thermal current under enclosure 10 A

[ui] rated insulation voltage 300 V conforming to UL 508
500 V conforming to EN/IEC 60947-1
300 V conforming to CSA C22.2 No 14

component name XCSPA

head type Key operated turret head

Complementary

[ie] rated operational current 6 A at 120 V, AC-15, A300 conforming to EN/IEC 60947-5-1
3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1
0.55 A at 125 V, DC-13, Q300 conforming to EN/IEC 60947-5-1
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1

Product certifications UL
CSA

Handle front plate colour 94 mm

Product or component type Safety switch

[uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-5-1

Actuator forcible withdrawal rtc 10 N

cable entry 1 entry tapped for Pg 11

Locking options description Without locking of actuator

cable outer diameter 7…10 mm

contact operation Slow-break, make before break

Contacts type and composition 1 NC + 1 NO

Electrical shock protection class Class II conforming to EN/IEC 61140

safety reliability data B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear

body material PA (polyamide)

Material Plastic

width (w) 30 mm

Net weight 0.11 kg

head material PA (polyamide)

depth 30 mm

mechanical durability 1000000 cycles

Maximum actuation speed 0.5 m/s

Positive opening With NC contact

electrical connection Terminal, clamping capacity: 1 x 0.5...2 x 1.5 mm² with or without cable end

Maximum operating rate 10 cyc/mn for maximum durability

Minimum actuation speed 0.01 m/s

Insulation Double insulated

Positive opening minimum force 15 N

Shock resistance 10 gn for 11 ms conforming to IEC 60068-2-27

Poles description 2

Safety level Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508

Short-circuit protection 10 A cartridge fuse type gG (gl)

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1

Range of product Telemecanique Safety switches XCS

ambient air temperature for operation -25…70 °C

standards EN 1088/ISO 14119
EN/IEC 60204-1
UL 508
EN/ISO 12100
EN/IEC 60947-5-1
CSA C22.2 No 14

vibration resistance 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

protective treatment TC
