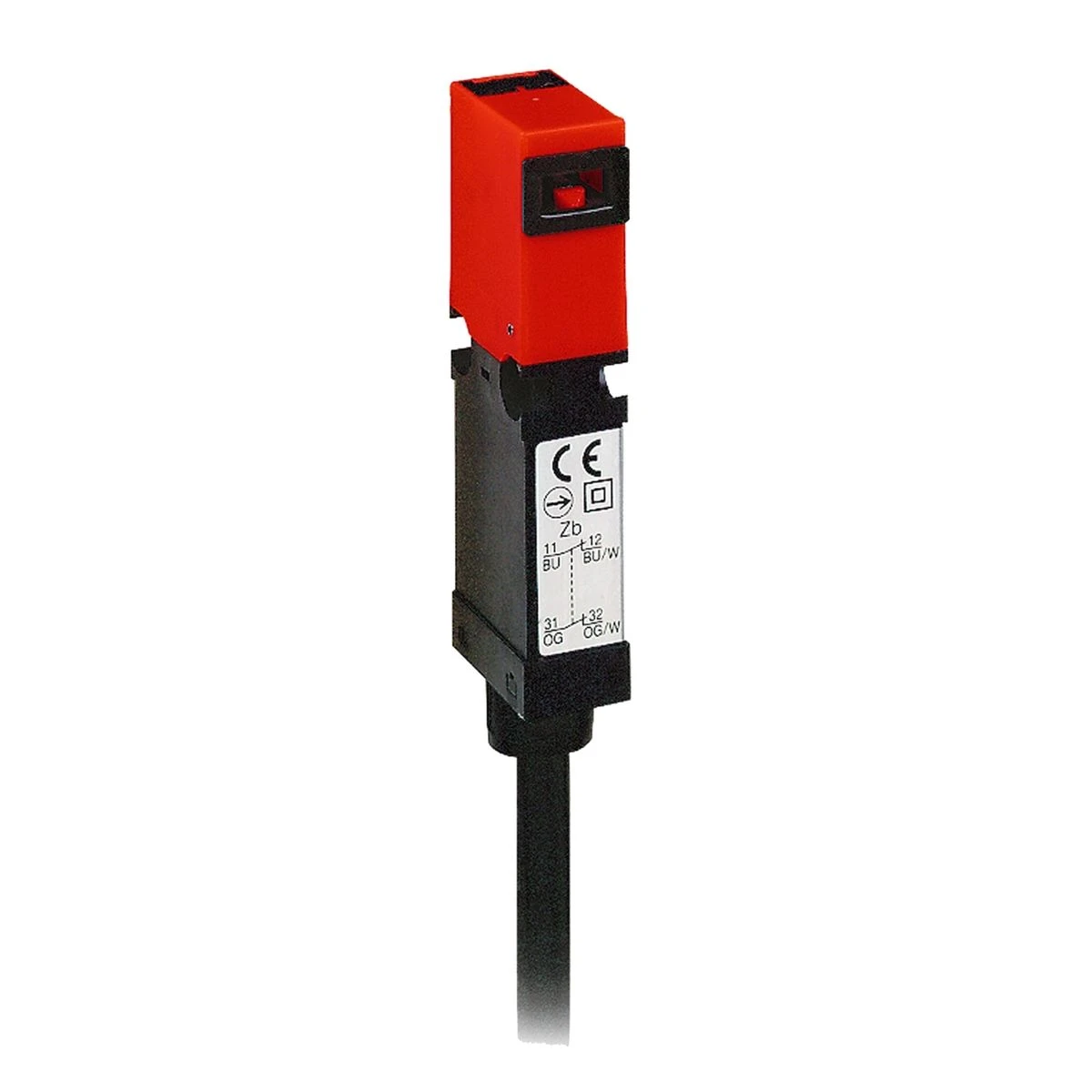

XCSMP70L10 - Safety switch, Telemecanique Safety switches XCS, plastic XCSMP, 1 NC + 1 NC + 1 NO, slow break, pre cabled 10 m - Schneider Electric

Expected in 2-4 weeks

120,89 € excl. VAT

147,48 € incl. VAT

Text About:

Safety switch, Telemecanique Safety switches XCS, plastic XCSMP, 1 NC + 1 NC + 1 NO, slow break, pre cabled 10 m - Schneider Electric

In cart

147,48 €

SPECIFICATIONS

Main

design Miniature

[ithe] thermal current under enclosure 2.5 A

cable length 10 m

[ui] rated insulation voltage 300 V conforming to UL 508
500 V conforming to EN/IEC 60947-1
300 V conforming to CSA C22.2 No 14

component name XCSMP

head type Key operated fixed head

Complementary

[ie] rated operational current 0.55 A at 125 V, DC-13, Q300 conforming to EN/IEC 60947-5-1
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1
0.75 A at 240 V, AC-15, C300 conforming to EN/IEC 60947-5-1
1.5 A at 120 V, AC-15, C300 conforming to EN/IEC 60947-5-1

cable composition 6 x 0.5 mm²

Product certifications UL
cUL
CSA

Handle front plate colour 87 mm

Product or component type Safety switch

[uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-5-1

Actuator forcible withdrawal rtc 8 N

Locking options description Without locking of actuator

contact operation Slow-break, break before make

Contacts type and composition 2 NC + 1 NO

Electrical shock protection class Class II conforming to EN/IEC 61140

safety reliability data B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear

body material PA (polyamide)

Material Plastic

width (w) 15 mm

Net weight 0.11 kg

head material PA (polyamide)

depth 30 mm

mechanical durability 1000000 cycles

Maximum actuation speed 1.5 m/s

electrical connection Pre-cabled

Maximum operating rate 20 cyc/mn for maximum durability

Minimum actuation speed 0.05 m/s

Insulation Double insulated

Minimum actuator force for extraction 8 N

Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27

Poles description 3

Safety level Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508

Short-circuit protection 10 A cartridge fuse type gG (gl)

Environment

Ambient air temp for storage/transportation -25…80 °C

ip degree of protection IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1

Range of product Telemecanique Safety switches XCS

ambient air temperature for operation -25…70 °C

standards EN/ISO 12100
EN 1088/ISO 14119
CSA C22.2 No 14
EN/IEC 60947-5-1
EN/IEC 60204-1
UL 508

vibration resistance 6 gn (f= 10…55 Hz) conforming to IEC 60068-2-6

protective treatment TC
