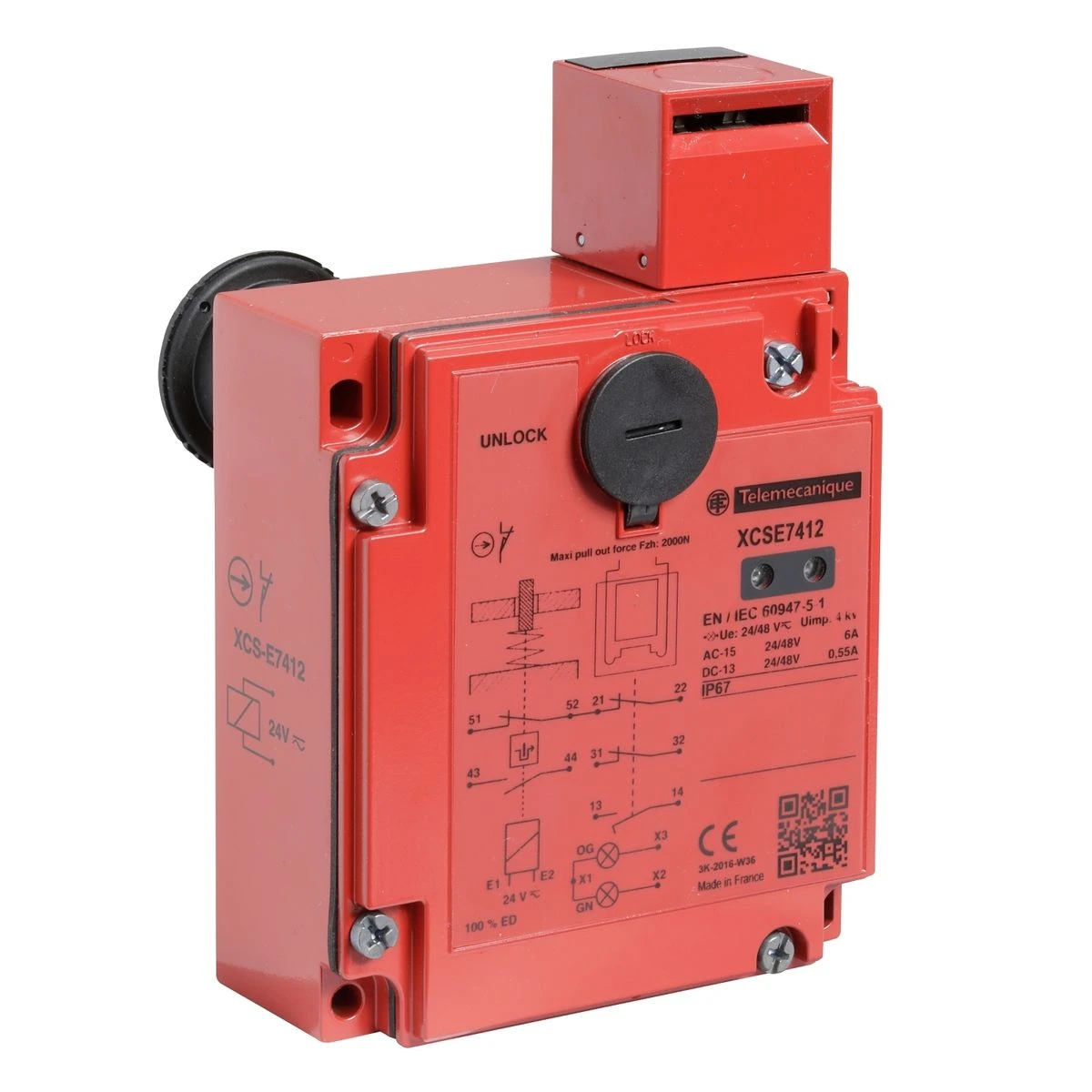

XCSE7412 - Safety switch, Telemecanique Safety switches XCS, metal 2NC + 1 NO, slow break, 2 entries tapped M20, 24 V - Schneider Electric

Expected in 2-4 weeks
XCSE7412 - Safety switch, Telemecanique Safety switches XCS, metal 2NC + 1 NO, slow break, 2 entries tapped M20, 24 V - Schneider Electric - Safety switch, Telemecanique Safety switches XCS, metal 2NC + 1 NO, slow break, 2 entries tapped M20, 24 V - Schneider Electric - 0
XCSE7412 - Safety switch, Telemecanique Safety switches XCS, metal 2NC + 1 NO, slow break, 2 entries tapped M20, 24 V - Schneider Electric
699,95 € excl. VAT
853,94 € incl. VAT
Text About:
Safety switch, Telemecanique Safety switches XCS, metal 2NC + 1 NO, slow break, 2 entries tapped M20, 24 V - Schneider Electric
853,94 €
SPECIFICATIONS
Main
design Rectangular
[ithe] thermal current under enclosure 6 A
Signalling circuit voltage 24/48 V (voltage limits: 20...52 V)
Solenoid contacts type and composition 1 NC + 1 NO (slow-break, simultaneous)
[ui] rated insulation voltage 50 V conforming to EN/IEC 60947-1 for signalling circuit
component name XCSE
head type Key operated turret head
Complementary
[ie] rated operational current 0.55 A at 125 V, DC-13, Q300 conforming to EN/IEC 60947-5-1
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1
3 A at 120 V, AC-15, B300 conforming to EN/IEC 60947-5-1
1.5 A at 240 V, AC-15, B300 conforming to EN/IEC 60947-5-1
[un] rated nominal voltage 24 V - 20...10 %
Product certifications UL
CSA
Handle front plate colour 146 mm
Product or component type Safety switch
[uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-5-1
Actuator forcible withdrawal rtc 2000 N
Load factor 1
cable entry 2 entries tapped for M20 x 1.5
Locking options description With interlocking, locking by solenoid
cable outer diameter 9…12 mm
contact operation Slow-break, break before make
Contacts type and composition 2 NC + 1 NO
Electrical shock protection class Class I conforming to EN/IEC 61140
safety reliability data B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear
body material Zamak
Material Metal
width (w) 98 mm
Local signalling 2 LEDs (green or orange) for guard open/guard closed and locked
Net weight 1.14 kg
head material Zamak
depth 44 mm
mechanical durability 1000000 cycles
Maximum actuation speed 0.5 m/s
Positive opening With NC contact
Power consumption in va 10 VA inrush
10 VA sealed
electrical connection Terminal, clamping capacity: 1 x 0.5...2 x 1.5 mm² with or without cable end
Maximum operating rate 10 cyc/mn for maximum durability
Minimum actuation speed 0.01 m/s
Minimum actuator force for extraction 20 N
Shock resistance 10 gn for 11 ms conforming to IEC 60068-2-27
Poles description 3
Safety level Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
Supply frequency 50/60 Hz
Signalling circuit type AC/DC
Short-circuit protection 10 A cartridge fuse type gG (gl)
Protection type Overvoltage protection for signalling circuit
Signalling circuit consumption 7 mA
Supply voltage type AC/DC
Environment
Ambient air temp for storage/transportation -40…70 °C
ip degree of protection IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
Range of product Telemecanique Safety switches XCS
ambient air temperature for operation -25…40 °C
standards CSA C22.2 No 14
EN/ISO 12100
EN/IEC 60947-5-1
EN/IEC 60204-1
UL 508
EN 1088/ISO 14119
vibration resistance 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
protective treatment TC
About this product

The XCSE7412 - Safety switch, Telemecanique Safety switches XCS, metal 2NC + 1 NO, slow break, 2 entries tapped M20, 24 V is devised to serve the conditions of trade buyers, such as panel manufacturers, electrical installers, maintenance companies, and industry fabricators. XCSE7412 yields remarkable durability and benefits for engineers in the electrical and automation industry. This Safety switch, Telemecanique Safety switches XCS, metal 2NC + 1 NO, slow break, 2 entries tapped M20, 24 V and other Preventa XCS from Schneider Electric are available at the finest pricing and lead time through BALTELEC online store, a distinguished reseller assisting practitioners in their procurement needs.

Clients who have secured Schneider Electric Preventa XCS have consistently complimented the maker's robustness. It has been highlighted that the remarkable productivity of XCSE7412 - Safety switch, Telemecanique Safety switches XCS, metal 2NC + 1 NO, slow break, 2 entries tapped M20, 24 V extends to a assortment of purposes. Its superior characteristics make it right choice to cater to varied requirements, ensuring your industrial, tertiary and automation projects success.

BaltElec specializes in addressing industrial and tertiary professionals’ needs. We comprehend the customized criteria and standards of our partners in the niche. By teaming up with Baltelec team, you obtain access to the top fees and delivery period of high-quality products like XCSE7412 - Safety switch, Telemecanique Safety switches XCS, metal 2NC + 1 NO, slow break, 2 entries tapped M20, 24 V from Schneider Electric at an affordable price. Professional buyers with Baltelec account benefit from exclusive discounts and top-tier service.

Do not hesitate and get XCSE7412 - Safety switch, Telemecanique Safety switches XCS, metal 2NC + 1 NO, slow break, 2 entries tapped M20, 24 V at our certified and simple website. Don't delay in making this savvy investment that affirms the paramount quality and caters to the targeted expectations of vendors like your outfit.

If you face any problems or concerns about XCSE7412 - Safety switch, Telemecanique Safety switches XCS, metal 2NC + 1 NO, slow break, 2 entries tapped M20, 24 V or any other Schneider Electric products, get in touch with us or refer to our FAQs section below. We have put together answers to regular matters to assist you further in making an informed decision about industrial and tertiary electrical components.

Remember, XCSE7412 - Safety switch, Telemecanique Safety switches XCS, metal 2NC + 1 NO, slow break, 2 entries tapped M20, 24 V from Schneider Electric is reliable, reasonable, and outstanding to alternative suppliers in the Preventa XCS category. Don't hesitate to make it a part of your infrastructure at once. Obtain at BaltElec, your trusted partner for all your Schneider Electric.

In our Baltelec.eu digital store you will locate Safety switch, Telemecanique Safety switches XCS, metal 2NC + 1 NO, slow break, 2 entries tapped M20, 24 V - XCSE7412 worth 853.94 €, which will be a faithful and cutting-edge solution for your wants. This commodity is fabricated by the Schneider Electric brand using the current technologies and aligns with the peak standards of assurance and capacity. We provide articles from the Preventa XCS category that mix resilience and effectiveness, which is an exceptional option for various applications. Not minding of whether you require devices for small creation or for experienced industrial utilization, Safety switch, Telemecanique Safety switches XCS, metal 2NC + 1 NO, slow break, 2 entries tapped M20, 24 V will be a sure associate in your job.

Baltelec aims to make the obtaining process as comfortable and fast as viable for our clients. We offer detailed depictions and high-quality visuals of Safety switch, Telemecanique Safety switches XCS, metal 2NC + 1 NO, slow break, 2 entries tapped M20, 24 V so that you can make an advised choice. A team of authorities is always ready to help you with any issues in the Preventa XCS section linked to the picking and use of items. We are positive that Safety switch, Telemecanique Safety switches XCS, metal 2NC + 1 NO, slow break, 2 entries tapped M20, 24 V will meet your needs and become an important element of your equipment for just 853.94 €.
