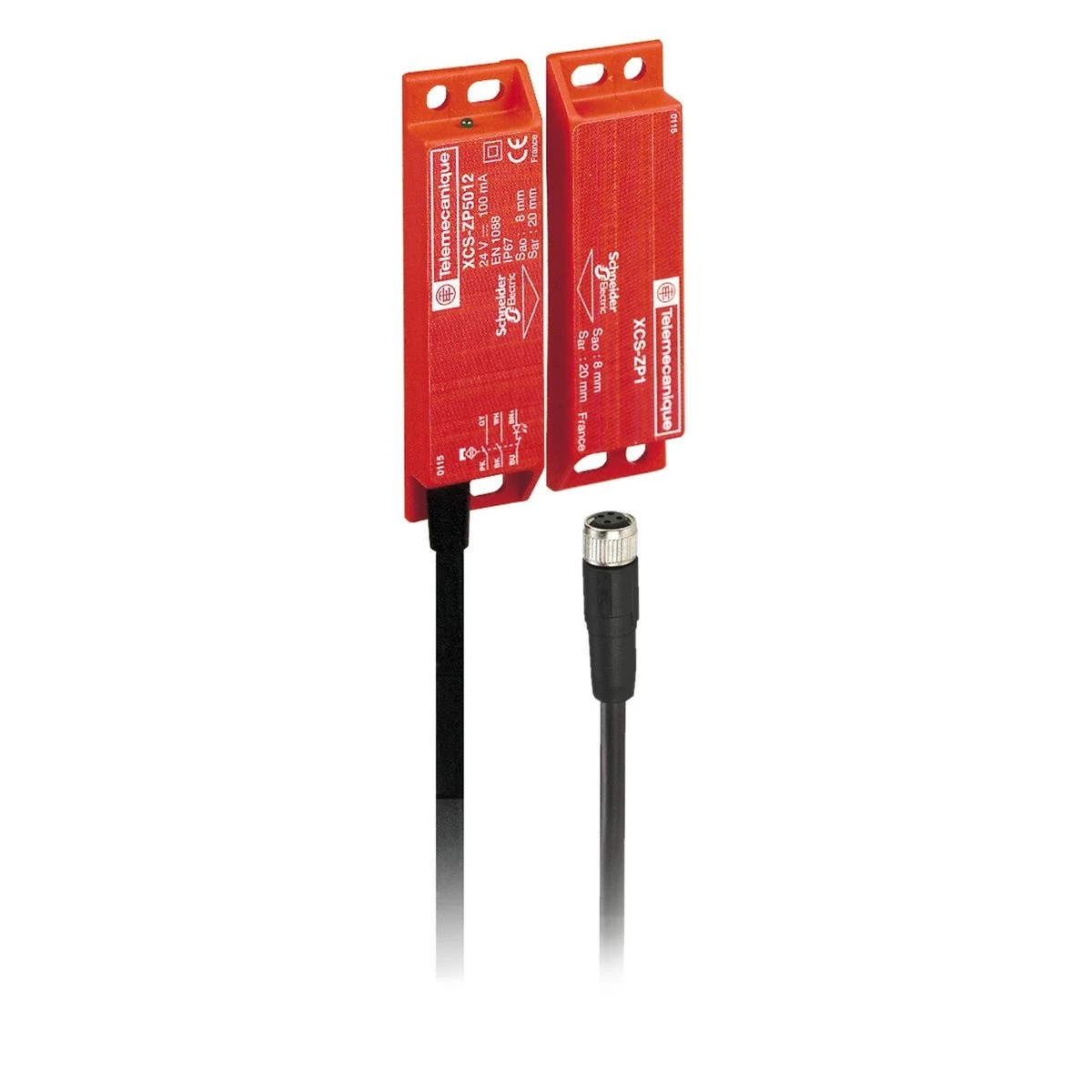

XCSDMP590L01M12 - Coded magnetic switch, Telemecanique Safety switches XCS, XCSDMP, 1 NC + 1 NO, staggered, M12 0.15 m - Schneider Electric

Expected in 2-4 weeks

53,46 € excl. VAT

65,22 € incl. VAT

Text About:

Coded magnetic switch, Telemecanique Safety switches XCS, XCSDMP, 1 NC + 1 NO, staggered, M12 0.15 m - Schneider Electric

In cart

65,22 €

SPECIFICATIONS

Main

design Rectangular, standard

cable length 0.15 m

[ui] rated insulation voltage 100 V DC

approach directions 3 directions

component name XCSDMP

Complementary

[sa] assured operating distance 8 mm

[ue] rated operational voltage 24 V DC

[ics] rated service breaking capacity 10 VA

Product certifications CSA
UL

[sar] trigger distance 20 mm

Handle front plate colour 88 mm

Product or component type Coded magnetic switch

[uimp] rated impulse withstand voltage 2.5 kV conforming to EN/IEC 60947-5-1

Contacts material Rhodium

Enclosure material Thermoplastic PBT

contact operation Staggered

Contacts type and composition 1 NC + 1 NO

Electrical shock protection class Class II conforming to EN/IEC 61140

safety reliability data B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear

Material Plastic

width (w) 25 mm

switching frequency 150 Hz

cable material PVC

Net weight 0.18 kg

switching capacity in ma 0.1...100 mA

connector type M12

depth 13 mm

electrical durability 1200000 cycles

electrical connection Connector on flying lead

Maximum switching voltage 100 V DC

Maximum [ie] rated operational current 100 mA

Shock resistance 30 gn for 11 ms conforming to IEC 60068-2-27

Poles description 2

Resistance across terminals 10 Ohm

Safety level Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508

Size 88 x 25 x 13 mm

Short-circuit protection 500 mA external cartridge fuse type gG (gl)

Environment

Ambient air temp for storage/transportation -40…85 °C

ip degree of protection IP67 conforming to IEC 60529

Maximum sensitivity to magnetic fields 0.3 mT

Range of product Telemecanique Safety switches XCS

ambient air temperature for operation -25…85 °C

standards EN/ISO 12100
EN/IEC 60204-1
EN/IEC 60947-5-1
CSA C22.2 No 14
ISO 14119
UL 508

vibration resistance 10 gn (f= 10…150 Hz) conforming to IEC 60068-2-6

protective treatment TH

insulation resistance 1000 MOhm
