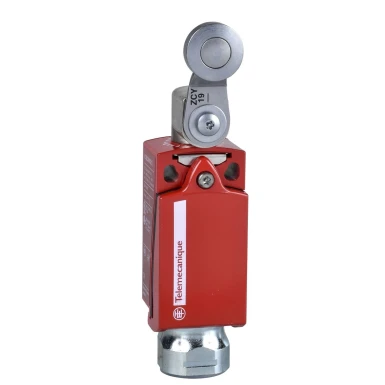

XCSD3719G13 - Safety limit switch, Telemecanique Safety switches XCS, metal, rotary lever, 2 NC + 1 NO, 1entry tapped Pg 13.5 - Telemecanique

Pending restock

Text About:

Safety limit switch, Telemecanique Safety switches XCS, metal, rotary lever, 2 NC + 1 NO, 1entry tapped Pg 13.5 - Telemecanique

SPECIFICATIONS

Main

design Compact

[ithe] thermal current under enclosure 6 A

Protection technology Plastic protective cover, secured by 5-lobe socket head safety screw

[ui] rated insulation voltage 300 V conforming to UL 508
400 V (pollution degree 3) conforming to EN/IEC 60947-1
300 V conforming to CSA C22.2 No 14

component name XCSD

head type Rotary head

Complementary

Product certifications UL
CSA

Handle front plate colour 122 mm

Product or component type Safety limit switch

[uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 60947-1
4 kV conforming to IEC 60664

cable entry 1 entry tapped for Pg 13.5

Enclosure material Plastic

Clamping connection capacity 1 x 0.34...2 x 0.75 mm²

contact operation Slow-break, break before make

Contacts type and composition 1 NC + 1 NC + 1 NO

Electrical shock protection class Class I conforming to NF C 20-030
Class I conforming to EN/IEC 61140

safety reliability data B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear

body material Zamak

Material Metal

width (w) 34 mm

Type of operator Steel roller lever

Ik degree of protection IK06 conforming to EN 50102

contact code designation B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to EN/IEC 60947-5-1 appendix A
R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN/IEC 60947-5-1 appendix A

Net weight 0.22 kg

head material Zamak

depth 35 mm

mechanical durability 10000000 cycles

repeat accuracy 0.1 mm on tripping points, 1 million operating cycles for head with end plunger

Maximum actuation speed 1.5 m/s

Positive opening With NC contact

electrical connection Terminal

Maximum resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3

Minimum torque for tripping 0.1 N.m

Switch actuation By 30° cam

Positive opening minimum torque 0.25 N.m

Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27

Poles description 3

Safety level Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508

Short-circuit protection 6 A cartridge fuse type gG (gl)

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP66 conforming to IEC 60529
IP67 conforming to IEC 60529

Range of product Telemecanique Safety switches XCS

ambient air temperature for operation -25…70 °C

standards CSA C22.2 No 14
EN/IEC 60204-1
EN/IEC 60947-5-1
UL 508
EN 1088/ISO 14119

vibration resistance 25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

protective treatment TC
