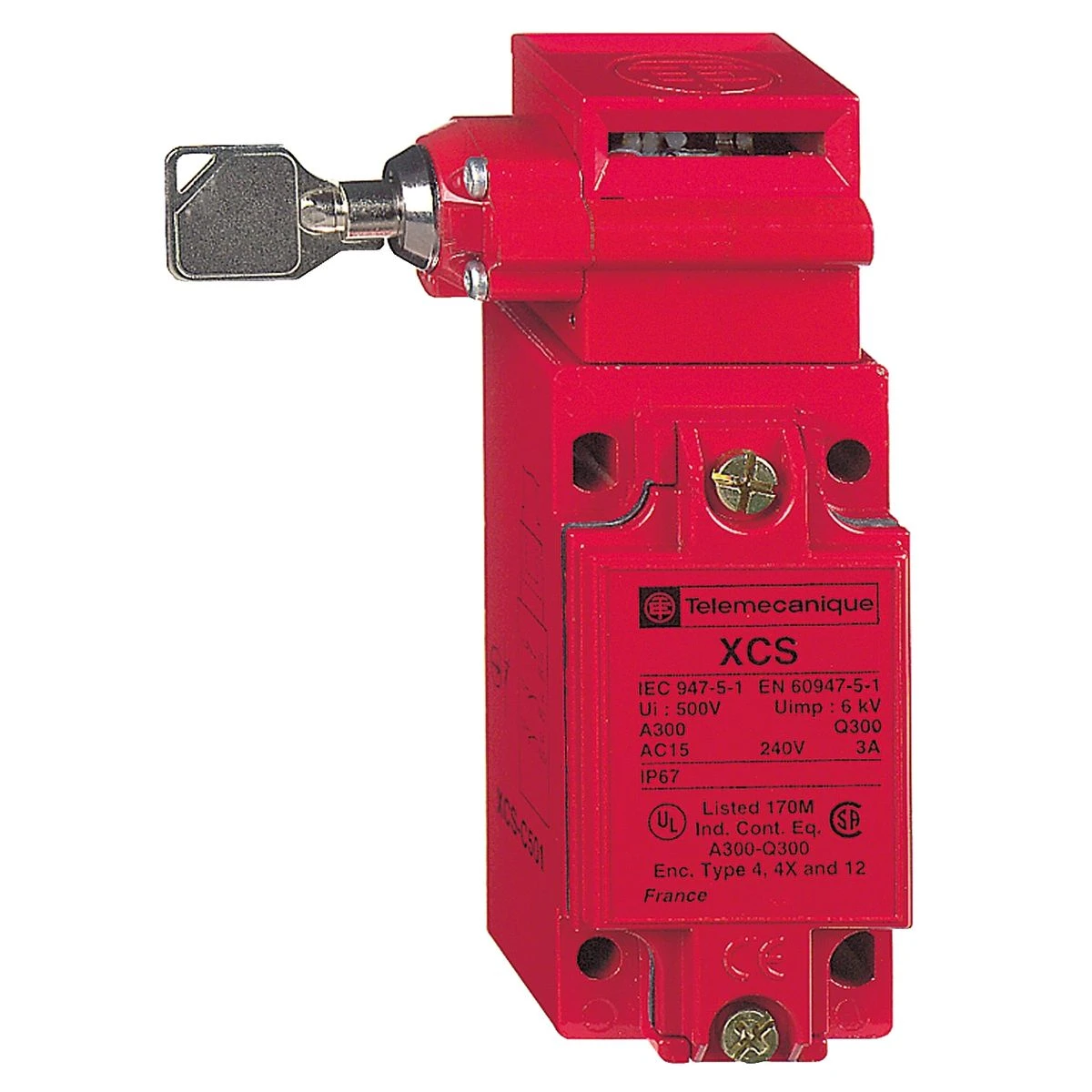

XCSC801 - Safety switch, Telemecanique Safety switches XCS, metal XCSC, 3 NC, slow break, 1 entry tapped Pg 13 - Schneider Electric

Expected in 2-4 weeks

128,19 € excl. VAT

156,40 € incl. VAT

Text About:

Safety switch, Telemecanique Safety switches XCS, metal XCSC, 3 NC, slow break, 1 entry tapped Pg 13 - Schneider Electric

In cart

156,40 €

SPECIFICATIONS

Main

design Industrial

[ithe] thermal current under enclosure 10 A

[ui] rated insulation voltage 300 V conforming to UL 508
500 V conforming to EN/IEC 60947-1
300 V conforming to CSA C22.2 No 14

component name XCSC

head type Key operated turret head

Complementary

[ie] rated operational current 6 A at 120 V, AC-15, A300 conforming to EN/IEC 60947-5-1
3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1
0.55 A at 125 V, DC-13, Q300 conforming to EN/IEC 60947-5-1
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1

Product certifications CSA
UL

Handle front plate colour 114 mm

Product or component type Safety switch

[uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-5-1

Actuator forcible withdrawal rtc 1500 N

cable entry 1 entry tapped for Pg 13.5

Locking options description With locking of actuator, unlocking by key operated lock

cable outer diameter 9…12 mm

contact operation Slow-break, simultaneous

Contacts type and composition 3 NC

Electrical shock protection class Class I conforming to EN/IEC 61140

safety reliability data B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear

body material Zamak

Material Metal

width (w) 52 mm

Local signalling Without

Net weight 0.48 kg

head material Zamak

depth 44 mm

mechanical durability 600000 cycles

Maximum actuation speed 0.5 m/s

Positive opening With NC contact

electrical connection Terminal, clamping capacity: 1 x 0.5...2 x 1.5 mm² with or without cable end

Maximum operating rate 10 cyc/mn for maximum durability

Minimum actuation speed 0.01 m/s

Minimum actuator force for extraction 20 N

Shock resistance 10 gn for 11 ms conforming to IEC 60068-2-27

Poles description 3

Safety level Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508

Short-circuit protection 10 A cartridge fuse type gG (gl)

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1

Range of product Telemecanique Safety switches XCS

ambient air temperature for operation -25…70 °C

standards EN/ISO 12100
EN 1088/ISO 14119
UL 508
EN/IEC 60947-5-1
EN/IEC 60204-1
CSA C22.2 No 14

vibration resistance 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

protective treatment TC
