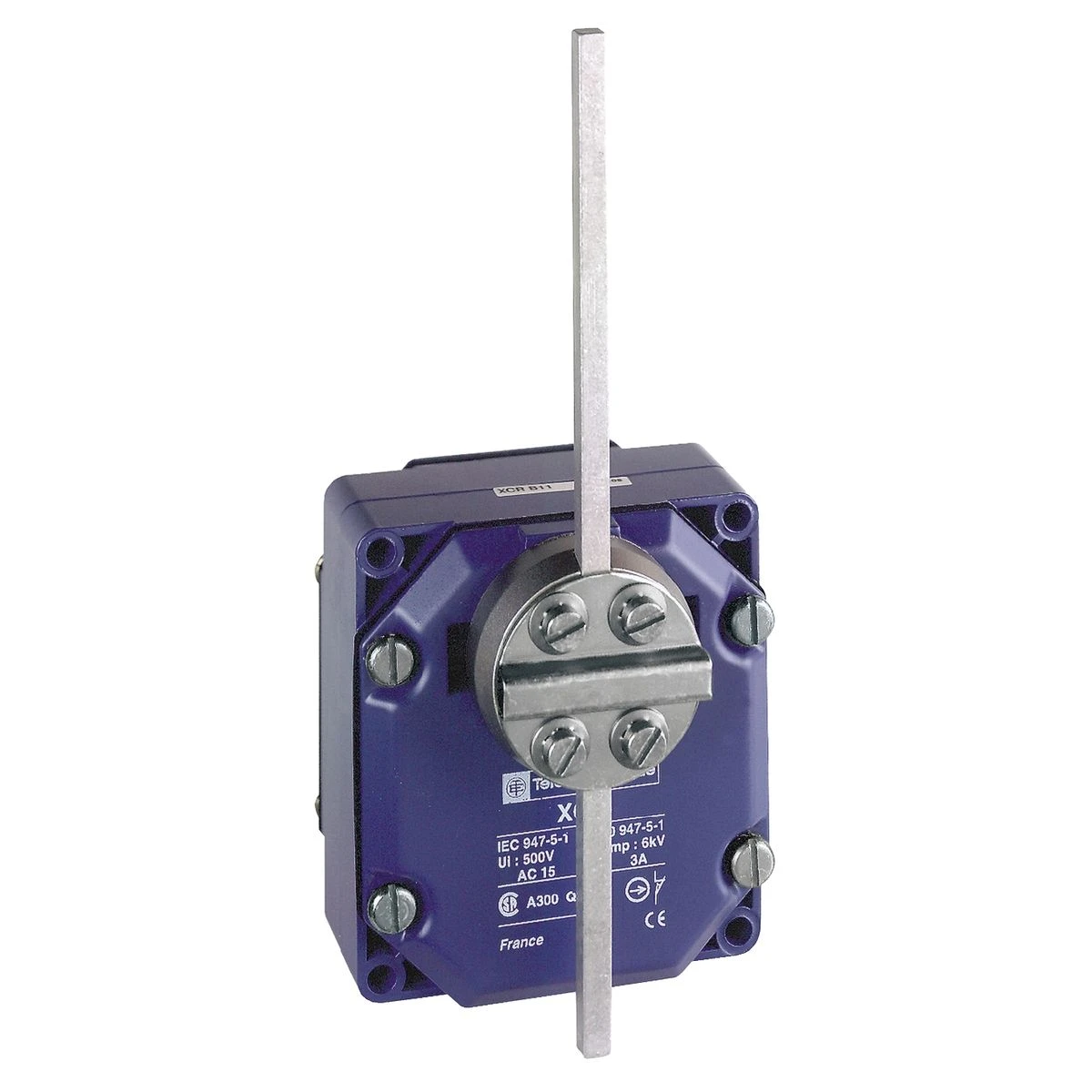

XCRB11 - Limit switch, Limit switches XC Standard, XCR, metal spring return rod lever square rod 6 mm, 2X(1NC+NO) - Schneider Electric

Expected in 2-4 weeks

225,35 € excl. VAT

274,93 € incl. VAT

Text About:

Limit switch, Limit switches XC Standard, XCR, metal spring return rod lever square rod 6 mm, 2X(1NC+NO) - Schneider Electric

In cart

274,93 €

SPECIFICATIONS

Main

Body type Fixed

Device short name XCR

product specific application For hoisting and mechanical handling applications

[ui] rated insulation voltage 300 V conforming to UL 508
500 V (pollution degree 3) conforming to IEC 60947-1
500 V (pollution degree 3) conforming to VDE 0110
300 V conforming to CSA C22.2 No 14

Series name Special format

head type Rotary head

Complementary

Product certifications CCC
CSA

Handle front plate colour 95 mm

Product or component type Limit switch

[uimp] rated impulse withstand voltage 6 kV conforming to IEC 60664
6 kV conforming to IEC 60947-1

cable entry 1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9…12 mm conforming to NF C 68-300

Contact block per direction [control circuit] 1 per direction

Contacts insulation form Zb

contact operation Snap action

Contacts type and composition 2 x (1 NC + 1 NO)

Fixing mode By the body

body material Zinc alloy

Material Metal

width (w) 85 mm

Type of operator Spring return rod lever metal square rod 6 mm

contact code designation A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to EN/IEC 60947-5-1 appendix A
Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A

Net weight 1.11 kg

depth 75 mm

mechanical durability 10000000 cycles

electrical durability 5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, inductive load type, 24 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, inductive load type, 48 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Maximum actuation speed 1.5 m/s

Number of steps 1

Positive opening With

electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²

Maximum resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3

Minimum actuation speed 0.01 m/min

Maximum displacement angle 55 °
-55 °

Minimum torque for tripping 0.45 N.m

Movement of operating head Rotary

Switch actuation By any moving part

Positive opening minimum torque 0.75 N.m

Type of approach Lateral approach, 2 directions

Shock resistance 68 gn conforming to IEC 60068-2-27

Poles description 4

Sensor design -

Short-circuit protection 10 A cartridge fuse, type gG

Terminals description iso n°1 (21-22)NC
(13-14)NON

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP54 conforming to IEC 60529

Range of product OsiSense XC

ambient air temperature for operation -25…70 °C

overvoltage category Class I conforming to IEC 61140
Class I conforming to NF C 20-030

standards IEC 60204-1
NF C 79-130
EN 60947-5-1
IEC 60947-5-1
EN 60204-1
CSA C22.2 No 14

vibration resistance 9 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

protective treatment TC
