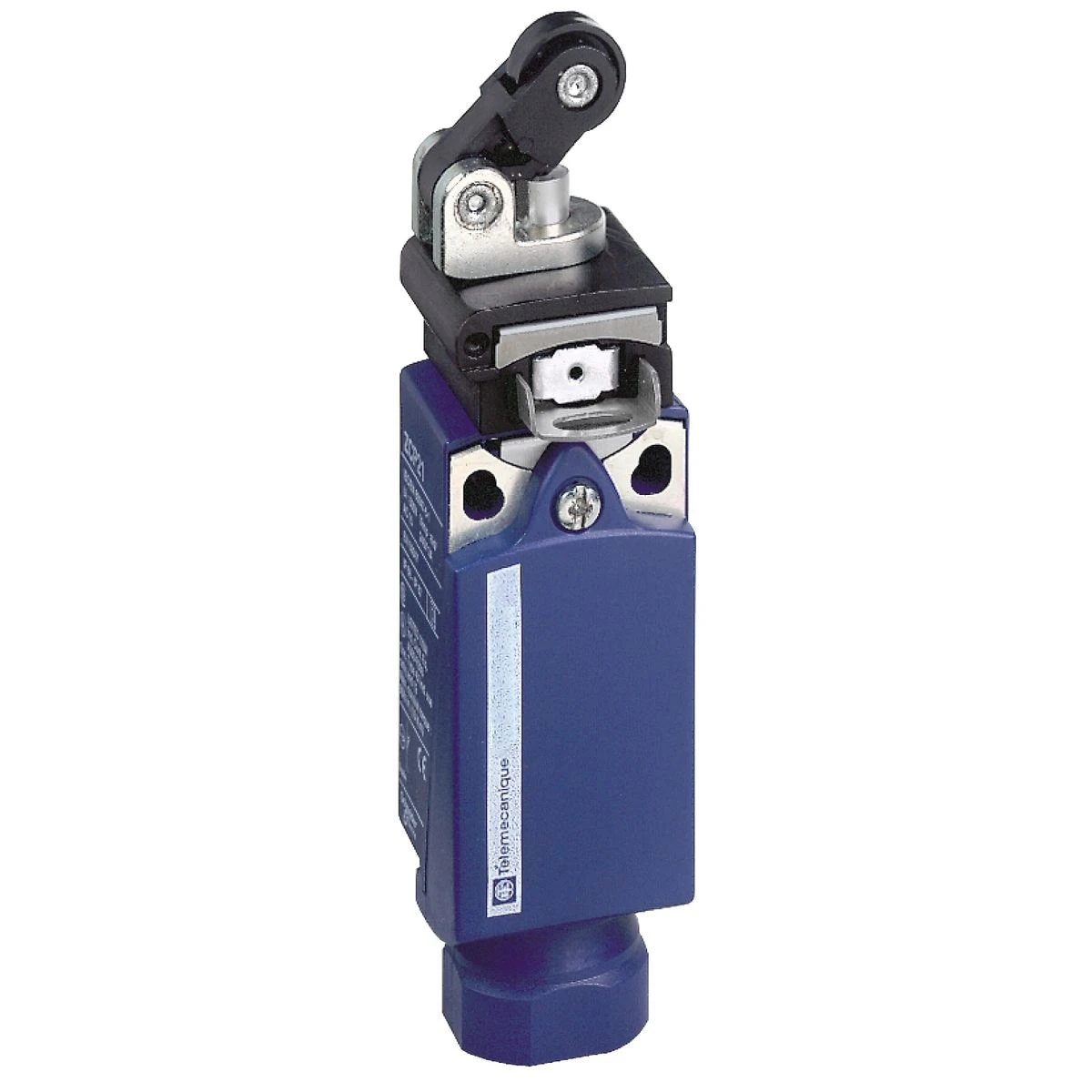

XCPR2521G13 - Limit switch, Limit switches XC Standard, XCPR, thermoplastic plastic roller lever plung. Hor, 1NC+1 NO, slow, Pg13 - Schneider Electric

Expected in 2-4 weeks

76,17 € excl. VAT

92,92 € incl. VAT

Text About:

Limit switch, Limit switches XC Standard, XCPR, thermoplastic plastic roller lever plung. Hor, 1NC+1 NO, slow, Pg13 - Schneider Electric

In cart

92,92 €

SPECIFICATIONS

Main

Body type Fixed

Device short name XCPR

[ui] rated insulation voltage 300 V conforming to UL 508
500 V (pollution degree 3) conforming to EN 60947-1
500 V (pollution degree 3) conforming to IEC 60947-1
300 V conforming to CSA C22.2 No 14

Series name Standard format

reset With

head type Plunger head

Complementary

Product certifications CSA
UL

Handle front plate colour 65 mm

Product or component type Limit switch

[uimp] rated impulse withstand voltage 6 kV conforming to IEC 60664
6 kV conforming to IEC 60947-1

cable entry 1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9…12 mm

Contacts insulation form Zb

contact operation Slow-break, break before make

Contacts type and composition 1 NC + 1 NO

Fixing mode By the body

body material Plastic

Material Plastic

width (w) 31 mm

Type of operator Spring return roller lever plunger thermoplastic

Ik degree of protection IK04 conforming to EN 50102

contact code designation A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A
Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A

Net weight 0.125 kg

head material Zamak

depth 30 mm

electrical durability 5000000 cycles, DC-13, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Maximum actuation speed 1 m/s

Positive opening With

electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²

Maximum resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3

Minimum force for tripping 6 N

Movement of operating head Linear

Switch actuation By 30° cam

Positive opening minimum force 18 N

Type of approach Lateral approach, 1 direction

Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27

Poles description 2

Sensor design Compact

Short-circuit protection 10 A cartridge fuse, type gG

Terminals description iso n°1 (21-22)NC
(13-14)NON

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP66 conforming to IEC 60529
IP67 conforming to IEC 60529

Range of product Telemecanique Limit switches XC Standard

ambient air temperature for operation -25…70 °C

overvoltage category Class II conforming to IEC 61140
Class II conforming to NF C 20-030

standards EN 60947-5-1
CSA C22.2 No 14
EN 60204-1
IEC 60947-5-1
IEC 60204-1
UL 508

vibration resistance 25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

protective treatment TC
