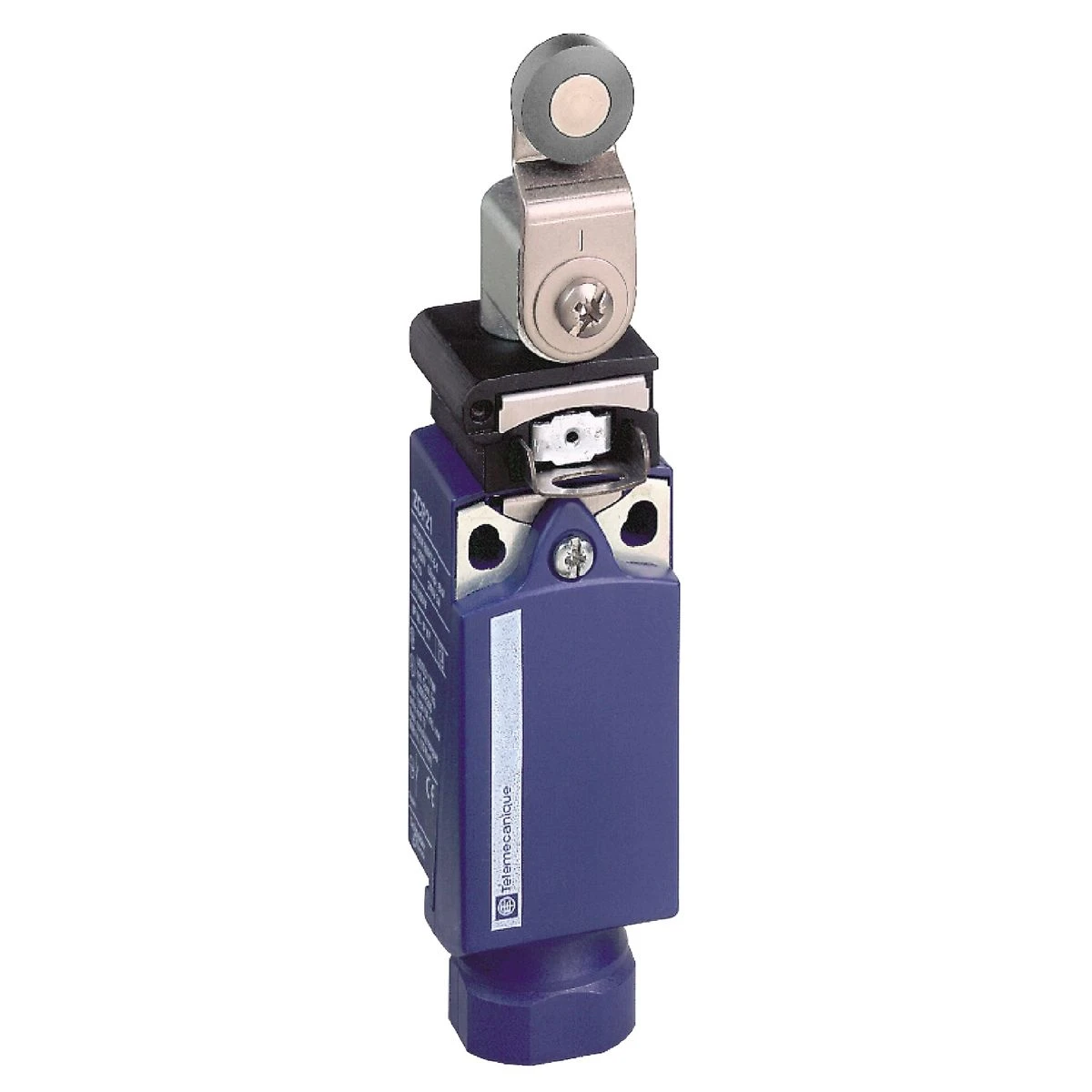

XCPR2519P20 - Limit switch, Limit switches XC Standard, XCPR, steel roller lever, 1NC+1 NO, slow, M20 - Schneider Electric

Expected in 2-4 weeks
XCPR2519P20 - Limit switch, Limit switches XC Standard, XCPR, steel roller lever, 1NC+1 NO, slow, M20 - Schneider Electric - Limit switch, Limit switches XC Standard, XCPR, steel roller lever, 1NC+1 NO, slow, M20 - Schneider Electric - 0
XCPR2519P20 - Limit switch, Limit switches XC Standard, XCPR, steel roller lever, 1NC+1 NO, slow, M20 - Schneider Electric
84,46 € excl. VAT
104,73 € incl. VAT
Text About:
Limit switch, Limit switches XC Standard, XCPR, steel roller lever, 1NC+1 NO, slow, M20 - Schneider Electric
104,73 €
SPECIFICATIONS
Main
Body type Fixed
Device short name XCPR
[ui] rated insulation voltage 300 V conforming to UL 508
500 V (pollution degree 3) conforming to EN 60947-1
500 V (pollution degree 3) conforming to IEC 60947-1
300 V conforming to CSA C22.2 No 14
Series name Standard format
reset With
head type Rotary head
Complementary
Product certifications CSA
UL
Handle front plate colour 65 mm
Product or component type Limit switch
[uimp] rated impulse withstand voltage 6 kV conforming to IEC 60664
6 kV conforming to IEC 60947-1
cable entry 1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7…13 mm
Contacts insulation form Zb
contact operation Slow-break, break before make
Contacts type and composition 1 NC + 1 NO
Fixing mode By the body
body material Plastic
Material Plastic
width (w) 31 mm
Type of operator Spring return roller lever metal
Ik degree of protection IK04 conforming to EN 50102
contact code designation A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A
Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A
Net weight 0.155 kg
head material Zamak
depth 30 mm
electrical durability 5000000 cycles, DC-13, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Maximum actuation speed 1.5 m/s
Positive opening With
electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Maximum resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3
Minimum torque for tripping 0.1 N.m
Movement of operating head Rotary
Switch actuation By 30° cam
Positive opening minimum torque 0.25 N.m
Type of approach Lateral approach, 2 directions
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
Poles description 2
Sensor design Compact
Short-circuit protection 10 A cartridge fuse, type gG
Tracks 24/40 mm
Terminals description iso n°1 (21-22)NC
(13-14)NON
Environment
Ambient air temp for storage/transportation -40…70 °C
ip degree of protection IP66 conforming to IEC 60529
IP67 conforming to IEC 60529
Range of product Telemecanique Limit switches XC Standard
ambient air temperature for operation -25…70 °C
overvoltage category Class II conforming to IEC 61140
Class II conforming to NF C 20-030
standards UL 508
CSA C22.2 No 14
EN 60947-5-1
EN 60204-1
IEC 60204-1
IEC 60947-5-1
vibration resistance 25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
protective treatment TC
About this product

The XCPR2519P20 - Limit switch, Limit switches XC Standard, XCPR, steel roller lever, 1NC+1 NO, slow, M20 is created to accommodate the conditions of business buyers, such as installers, electric engineers, maintenance companies, and primary equipment suppliers. XCPR2519P20 yields outstanding performance and profit for engineers in the power management industry. This Limit switch, Limit switches XC Standard, XCPR, steel roller lever, 1NC+1 NO, slow, M20 and other Limit Switches XC from Schneider Electric are procurable at the most competitive price and shipment duration through BALTELEC, a well-regarded reseller helping engineers in their sourcing needs.

Consumers who have acquired Schneider Electric Limit Switches XC have continuously admired the manufacturer’s durability. It has been specified that the excellent capability of XCPR2519P20 - Limit switch, Limit switches XC Standard, XCPR, steel roller lever, 1NC+1 NO, slow, M20 extends to a diverse range of applications. Its first-rate features make it right choice to suit a variety of needs, guaranteeing the success of your industrial, tertiary, and automation contracts.

Our experts commits in accommodating industrial and tertiary professionals’ needs. We know the individual standards and desires of our partners in the domain. By aligning with Baltelec.eu, our partners access access to the optimal price lists and supply timeline of high-quality products like XCPR2519P20 - Limit switch, Limit switches XC Standard, XCPR, steel roller lever, 1NC+1 NO, slow, M20 from Schneider Electric at a budget-friendly price. Registered customers take pleasure in exclusive discounts and first-class attention.

Take action and obtain XCPR2519P20 - Limit switch, Limit switches XC Standard, XCPR, steel roller lever, 1NC+1 NO, slow, M20 at our safe and simple webshop. Don't delay in making this wise resolution that confirms the best quality and adheres to the customized criteria of users like your outfit.

In the event of any queries or concerns about XCPR2519P20 - Limit switch, Limit switches XC Standard, XCPR, steel roller lever, 1NC+1 NO, slow, M20 or any other Schneider Electric products, connect with us or refer to our Help section section below. We have gathered answers to usual matters to help you further in making an thoughtful decision about industrial and tertiary electrical components.

Remember, XCPR2519P20 - Limit switch, Limit switches XC Standard, XCPR, steel roller lever, 1NC+1 NO, slow, M20 from Schneider Electric is steady, affordable, and exceptional to its rivals in the Limit Switches XC category. Don't hesitate to make it a part of your network promptly. Procure at baltele.eu, your respected merchant for all your professional electrical equipment and automation needs.

In our Baltelec.eu cyber store you will encounter Limit switch, Limit switches XC Standard, XCPR, steel roller lever, 1NC+1 NO, slow, M20 - XCPR2519P20 worth 103.04 €, which will be a trustworthy and innovative solution for your necessities. This object is formulated by the Schneider Electric brand using the latest technologies and fulfills the uppermost standards of safety and efficacy. We propose things from the Limit Switches XC category that integrate robustness and usefulness, which is an fine pick for various intents. Notwithstanding of whether you call for tools for small construction or for experienced industrial purpose, Limit switch, Limit switches XC Standard, XCPR, steel roller lever, 1NC+1 NO, slow, M20 will be a sure companion in your project.

Baltelec strives to make the buying process as straightforward and fast as attainable for our customers. We offer detailed explanations and high-quality images of Limit switch, Limit switches XC Standard, XCPR, steel roller lever, 1NC+1 NO, slow, M20 so that you can make an well-informed choice. A team of maestros is always ready to help you with any concerns in the Limit Switches XC section pertaining to the nomination and use of articles. We are sure that Limit switch, Limit switches XC Standard, XCPR, steel roller lever, 1NC+1 NO, slow, M20 will meet your anticipations and become an vital element of your equipment for just 103.04 €.

Common Questions about Schneider Electric XCPR2519P20:
