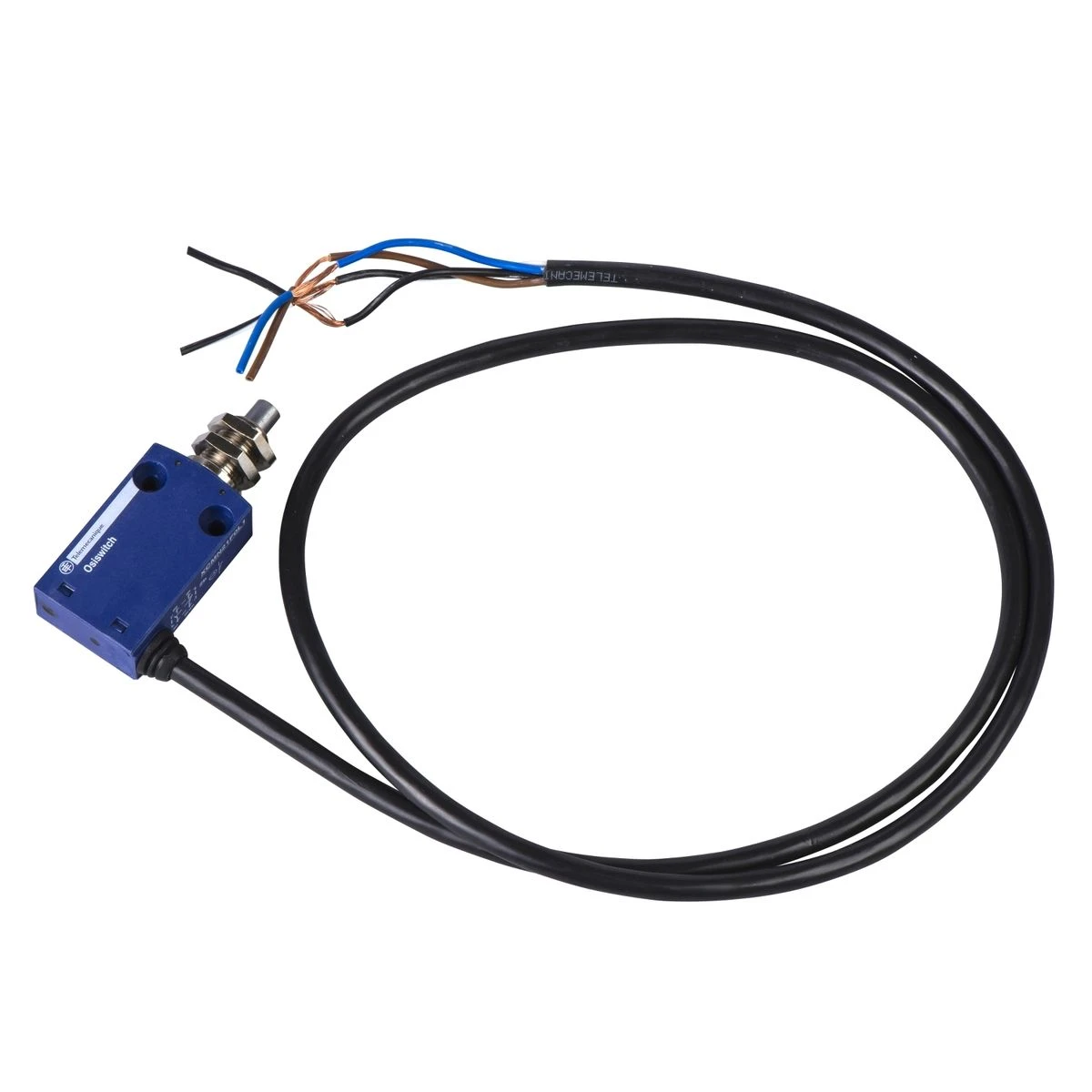

XCMN21F0L1 - Limit switch, Limit switches XC Standard, XCMN, M12 metal end plunger, 1NC+1 NO, snap, 1 m - Schneider Electric

Expected in 2-4 weeks

38,00 € excl. VAT

46,36 € incl. VAT

Text About:

Limit switch, Limit switches XC Standard, XCMN, M12 metal end plunger, 1NC+1 NO, snap, 1 m - Schneider Electric

In cart

46,36 €

SPECIFICATIONS

Main

Body type Fixed

Device short name XCMN

cable length 1 m

[ui] rated insulation voltage 300 V (pollution degree 3) conforming to UL 508
400 V (pollution degree 3) conforming to IEC 60947-5-1
300 V (pollution degree 3) conforming to CSA C22.2 No 14

Series name Standard format

head type M12 plunger head

Complementary

cable composition 4 x 0.75 mm²

Product certifications CCC
UL
CSA

Handle front plate colour 76 mm

Product or component type Limit switch

[uimp] rated impulse withstand voltage 4 kV conforming to IEC 60664
4 kV conforming to IEC 60947-1

Contacts insulation form Zb

contact operation Snap action

Contacts type and composition 1 NC + 1 NO

Electrical shock protection class Class II conforming to IEC 61140
Class II conforming to NF C 20-030

Fixing mode By the head

body material Plastic

Material Plastic

width (w) 30 mm

Type of operator Spring return plunger metal

Ik degree of protection IK04 conforming to EN 50102

contact code designation B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to EN/IEC 60947-5-1 appendix A
R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to EN/IEC 60947-5-1 appendix A

Net weight 0.065 kg

head material Zamak

depth 16 mm

mechanical durability 5000000 cycles

electrical durability 5000000 cycles, DC-13, 120 V, 1 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 24 V, 3 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 48 V, 2 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Maximum actuation speed 0.5 m/s

Positive opening With

electrical connection Fixed cable

Maximum resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3

Minimum actuation speed 0.01 m/min

Minimum force for tripping 8.5 N

Movement of operating head Linear

Switch actuation On end

Positive opening minimum force 42.5 N

Type of approach Vertical approach, 1 direction

Shock resistance 25 gn for 18 ms conforming to IEC 60068-2-27

Poles description 2

Sensor design Miniature

Short-circuit protection 6 A cartridge fuse, type gG

Wire insulation material PvR

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP65 conforming to IEC 60529

Range of product Telemecanique Limit switches XC Standard

ambient air temperature for operation -25…70 °C

standards CSA C22.2 No 14
EN/IEC 60947-5-1
UL 508
EN/IEC 60204-1

vibration resistance 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

protective treatment TC
