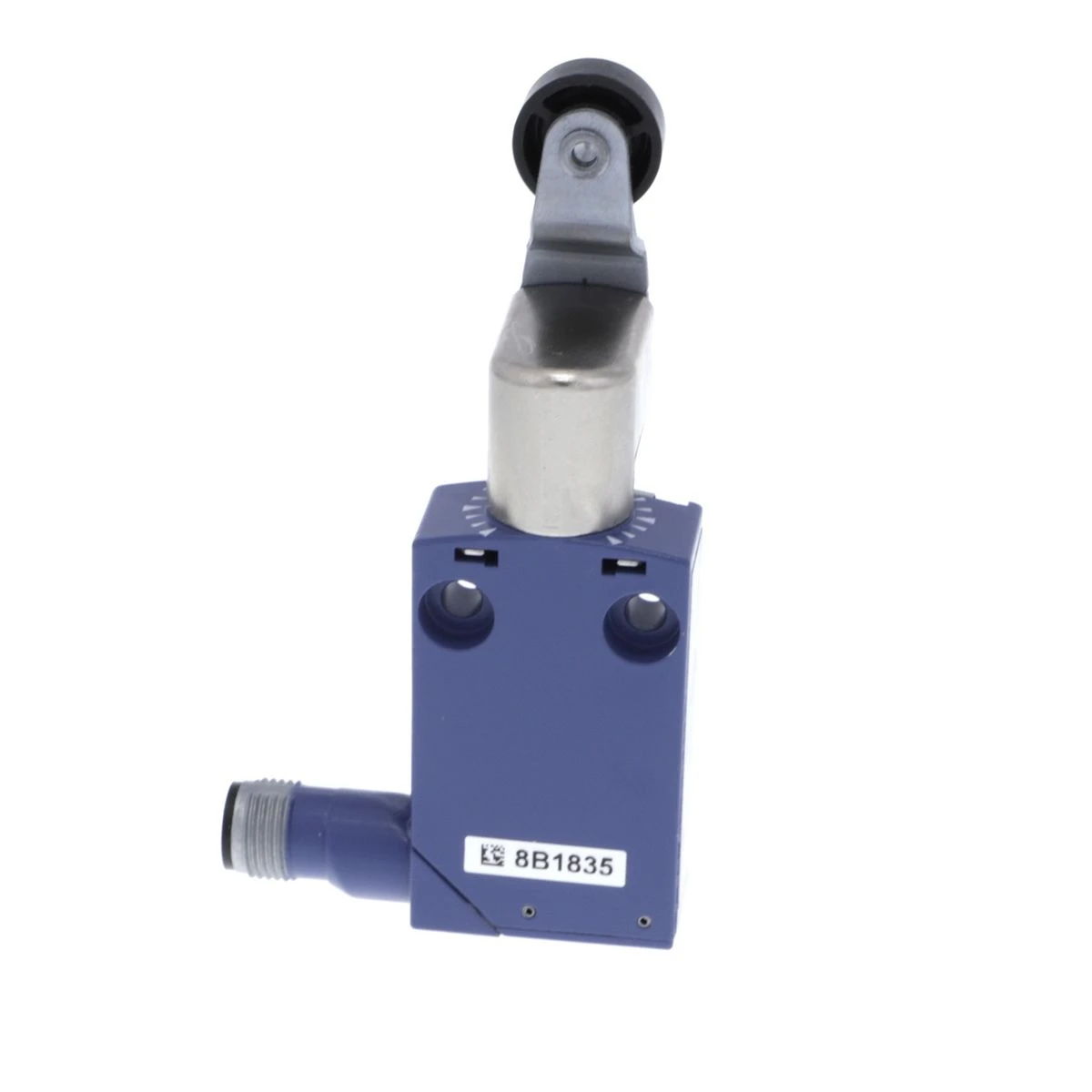

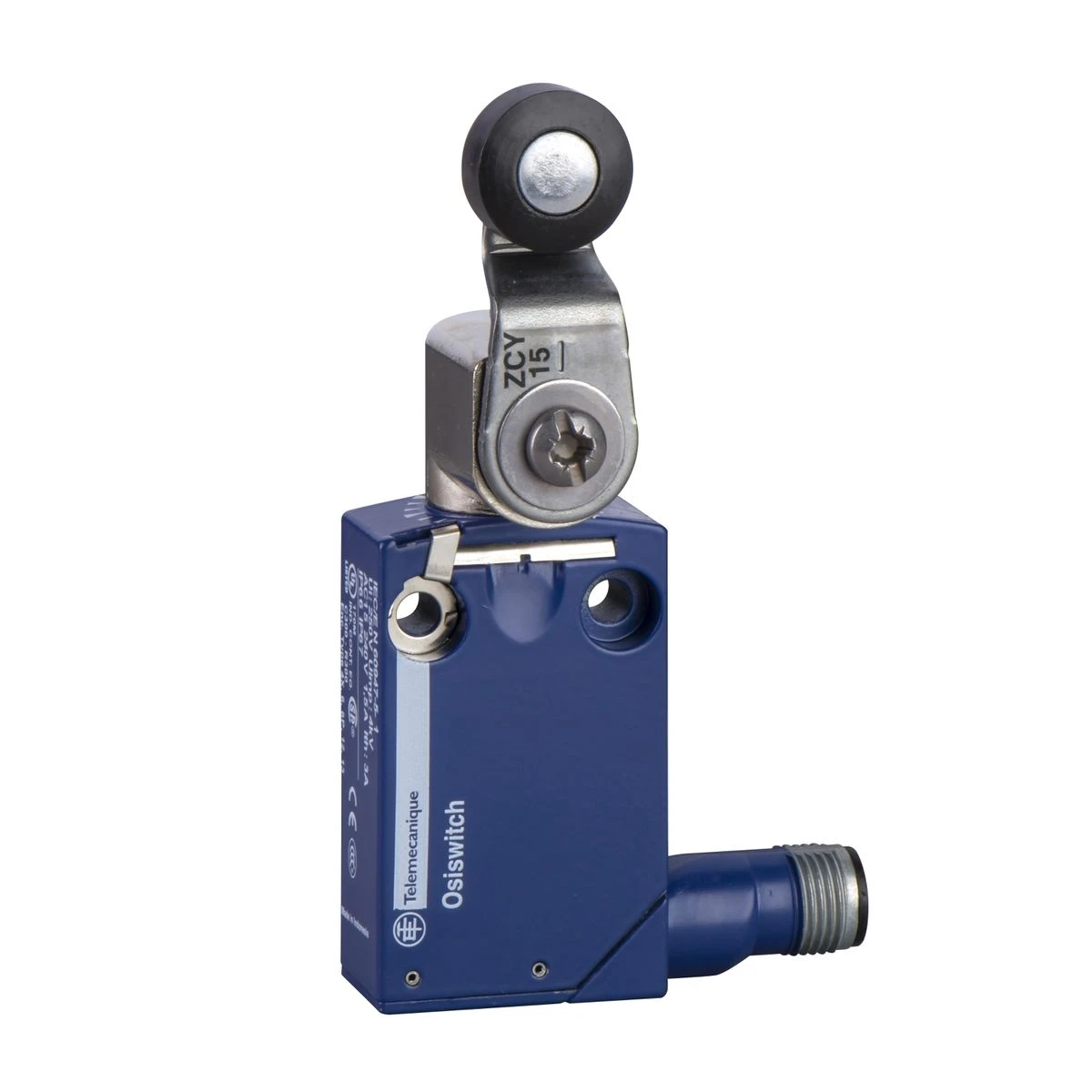

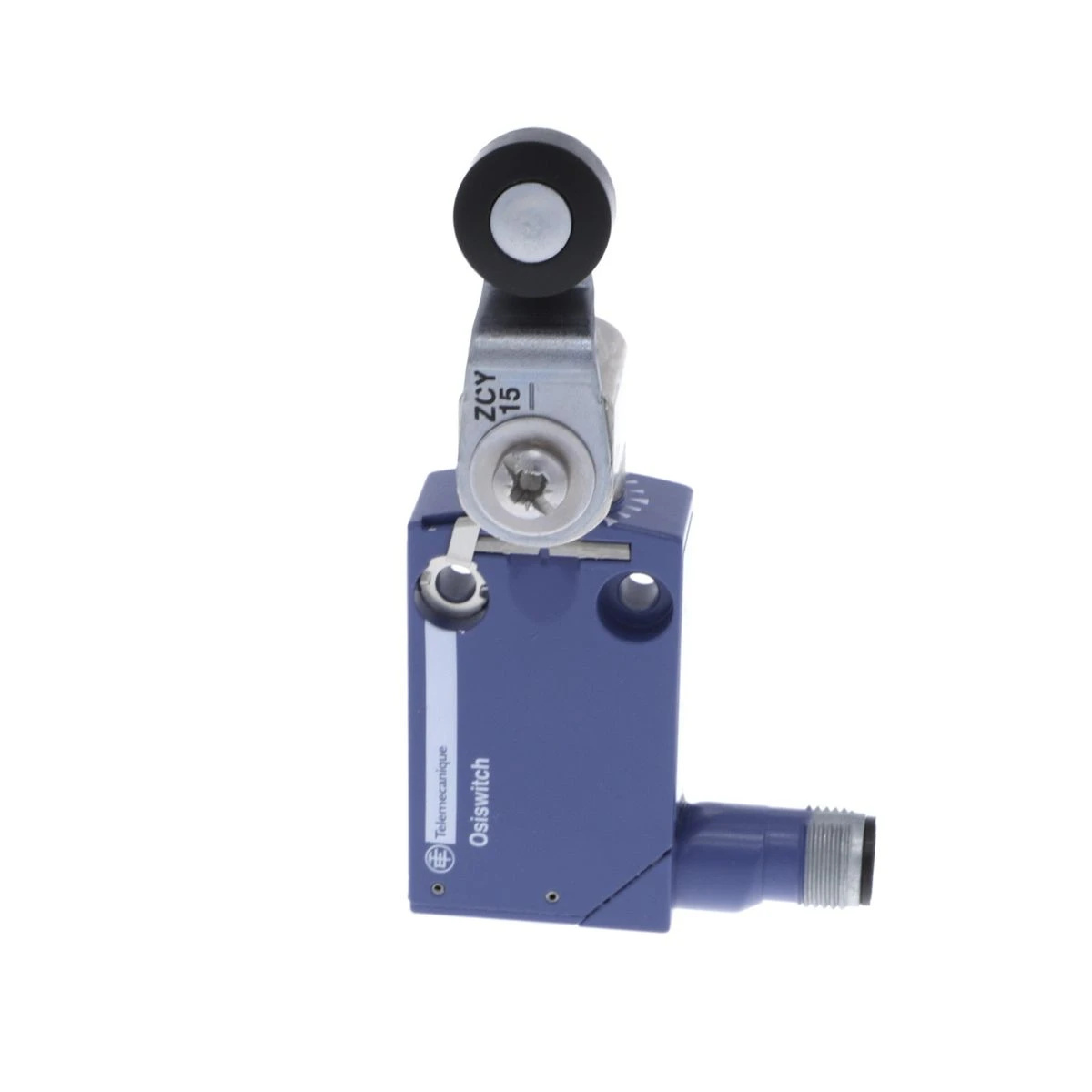

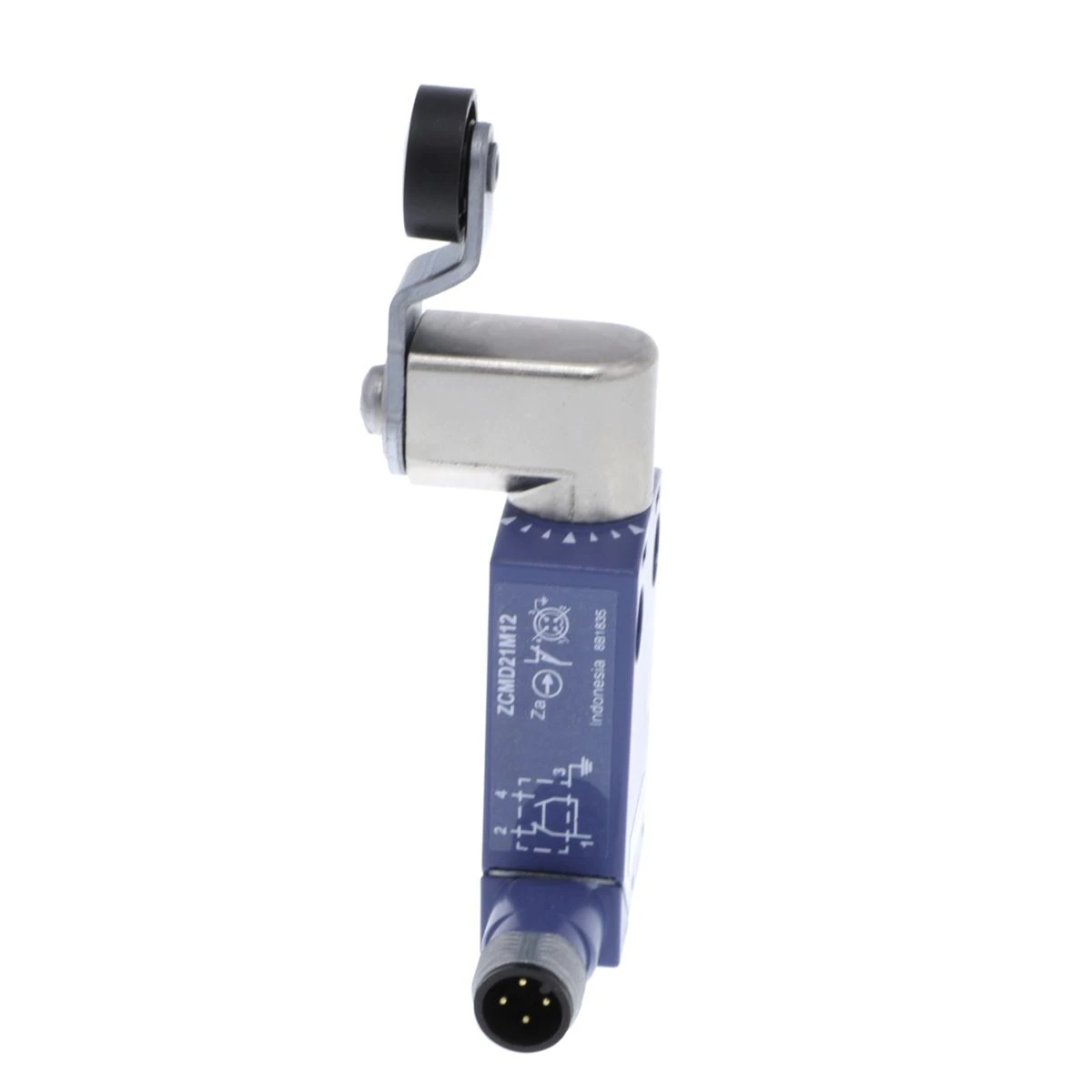

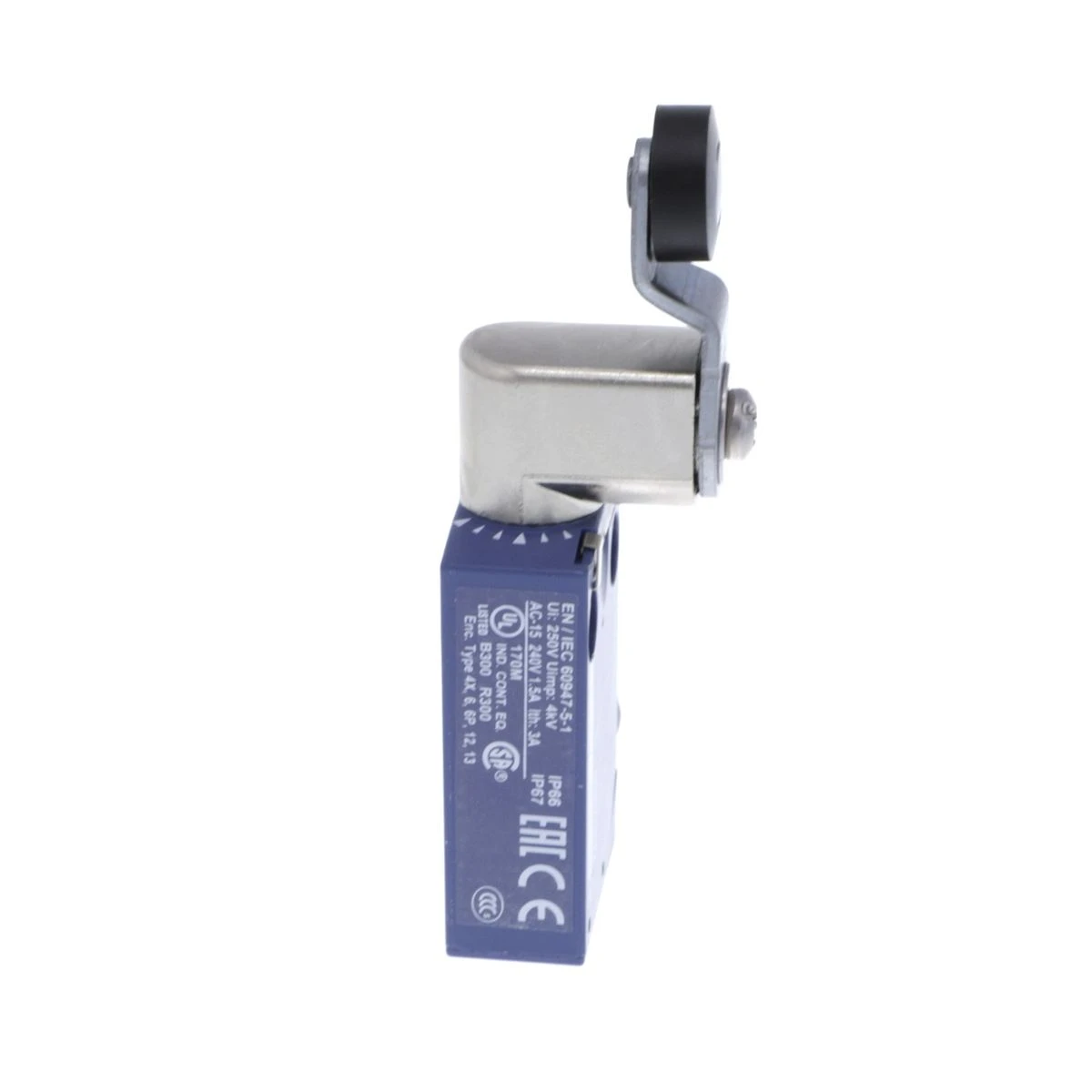

XCMD2115M12 - Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12 - Schneider Electric

Expected in 2-4 weeks
XCMD2115M12 - Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12 - Schneider Electric - Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12 - Schneider Electric - 0
XCMD2115M12 - Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12 - Schneider Electric - Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12 - Schneider Electric - 1
XCMD2115M12 - Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12 - Schneider Electric - Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12 - Schneider Electric - 2
XCMD2115M12 - Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12 - Schneider Electric - Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12 - Schneider Electric - 3
XCMD2115M12 - Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12 - Schneider Electric - Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12 - Schneider Electric - 4
XCMD2115M12 - Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12 - Schneider Electric
50,16 € excl. VAT
62,20 € incl. VAT
Text About:
Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12 - Schneider Electric
62,20 €
SPECIFICATIONS
Main
Body type Plug-in body
Device short name XCMD
[ithe] thermal current under enclosure 3 A
[ui] rated insulation voltage 250 V (pollution degree 3) conforming to IEC 60947-5-1
Series name Standard format
head type Rotary head
Complementary
[ie] rated operational current 1.5 A at 240 V, AC-15 conforming to EN/IEC 60947-5-1 appendix A
0.1 A at 250 V, DC-13 conforming to EN/IEC 60947-5-1 appendix A
Product certifications CSA
CCC
UL
Handle front plate colour 50 mm
Product or component type Limit switch
[uimp] rated impulse withstand voltage 2.5 kV conforming to IEC 60664
2.5 kV conforming to IEC 60947-1
Contacts insulation form Za
contact operation Snap action
Contacts type and composition 1 C/O
Electrical shock protection class Class I conforming to IEC 61140
Class I conforming to NF C 20-030
Fixing mode By the body
body material Zamak
Material Metal
width (w) 30 mm
Type of operator Spring return roller lever thermoplastic
Ik degree of protection IK06 conforming to EN 62262
Net weight 0.125 kg
head material Zamak
depth 16 mm
mechanical durability 10000000 cycles
electrical durability 5000000 cycles, DC-13, 24 V, 3 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 48 V, 2 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 120 V, 1 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Maximum actuation speed 1.5 m/s
Positive opening Without
electrical connection Male connector M12, 4 pins
Maximum resistance across terminals 25 mOhm conforming to IEC 60255-7 category 3
Minimum force for tripping 0.1 N
Movement of operating head Rotary
Switch actuation By 30° cam
Type of approach Lateral approach, 2 directions
Shock resistance 25 gn for 18 ms conforming to IEC 60068-2-27
Poles description 1
Sensor design Miniature
Short-circuit protection 4 A cartridge fuse, type gG
Tracks 24/31 mm
Environment
Ambient air temp for storage/transportation -40…70 °C
ip degree of protection IP66 conforming to IEC 60529
IP67 conforming to IEC 60529
IP68 conforming to IEC 60529
Range of product Telemecanique Limit switches XC Standard
ambient air temperature for operation -25…70 °C
standards CSA C22.2 No 14
UL 508
EN/IEC 60204-1
EN/IEC 60947-5-1
vibration resistance 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
protective treatment TC
About this product

The XCMD2115M12 - Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12 is engineered to meet the wants of technical experts, such as electrical contractors, electrical technicians, management services, and industry fabricators. XCMD2115M12 yields outstanding excellence and advantages for engineers in the electromechanical industry. This Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12 and other Limit Switches XC from Schneider Electric can be obtained at the most economical price and fulfillment period through BALTELEC online store, a well-known retailer supporting technicians in their acquisition needs.

Professionals who have adopted Schneider Electric Limit Switches XC have invariably admired the brand's stability. It has been indicated that the remarkable effectiveness of XCMD2115M12 - Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12 extends to a broad spectrum of scenarios. Its first-rate traits make it well-suited solution to satisfy a wide array of needs. Your developed solution will excel in quality, energy-efficiency and price.

BALTELEC commits in meeting industrial and tertiary professionals’ needs. We appreciate the particular needs and demands of our customers in the domain. By collaborating with BaltElec, your enterprise receive access to the optimal rates and availability of top-tier products like XCMD2115M12 - Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12 from Schneider Electric at a budget-friendly price. Authorized buyers receive extra discounts and priority service.

Make a move and grab XCMD2115M12 - Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12 at our verified and intuitive digital marketplace. Don't delay in making this shrewd pick that affirms the finest quality and achieves the distinct needs of contractors like your firm.

In the event of any issues or concerns about XCMD2115M12 - Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12 or any other Schneider Electric products, get in touch with us or refer to our Support section section below. We have consolidated answers to popular requests for information to back you further in making an informed decision about industrial and tertiary electrical components.

Remember, XCMD2115M12 - Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12 from Schneider Electric is trustworthy, value-priced, and first-rate to alternative suppliers in the Limit Switches XC category. Feel free to make it a part of your network this moment. Purchase at Baltelec webstore, your dependable vendor for all your professional electrical equipment and automation needs.

In our Baltelec.eu dot-com store you will find Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12 - XCMD2115M12 worth 61.19 €, which will be a reliable and cutting-edge solution for your desires. This item is fabricated by the Schneider Electric brand using the latest technologies and satisfies the optimal standards of guarding and effectiveness. We present goods from the Limit Switches XC category that combine longevity and functionality, which is an superior decision for various tasks. Notwithstanding of whether you need apparatus for small output or for professional industrial application, Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12 will be a constant adjunct in your assignment.

Baltelec labors to make the acquiring process as convenient and fast as viable for our purchasers. We offer detailed accounts and high-quality depictions of Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12 so that you can make an informed choice. A team of connoisseurs is always ready to help you with any concerns in the Limit Switches XC section relevant to the picking and use of goods. We are persuaded that Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12 will meet your demands and become an vital element of your gear for just 61.19 €.

Frequently Raised Questions about XCMD2115M12 - Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12:
