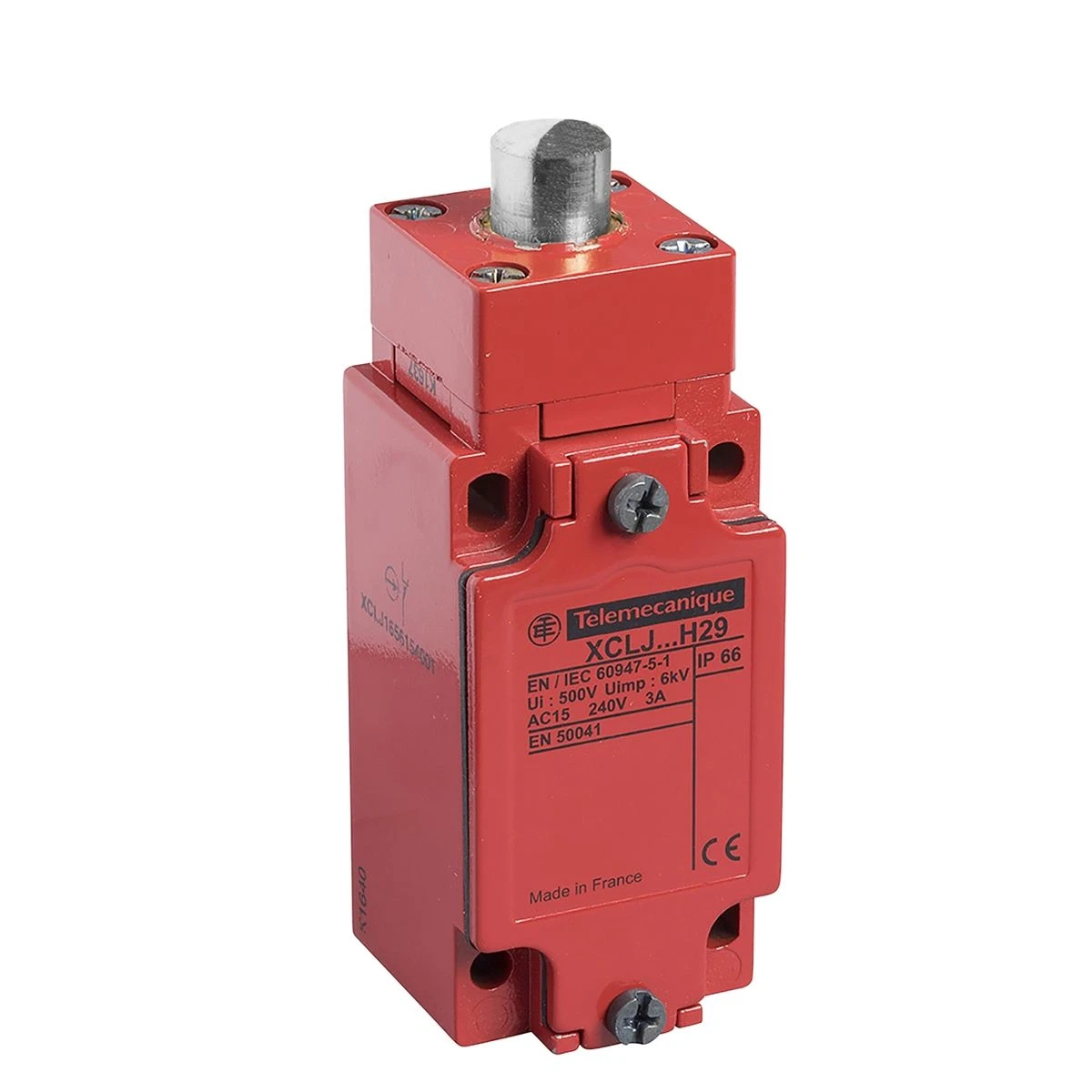

XCLJ561H29 - Limit switch, Limit switches XC Standard, XCLJ, red body steel, steel end plunger, NC and NC slow contacts - Schneider Electric

Expected in 2-4 weeks

112,18 € excl. VAT

136,86 € incl. VAT

Text About:

Limit switch, Limit switches XC Standard, XCLJ, red body steel, steel end plunger, NC and NC slow contacts - Schneider Electric

In cart

136,86 €

SPECIFICATIONS

Main

Body type Fixed

Device short name XCLJ

[ithe] thermal current under enclosure 10 A

[ui] rated insulation voltage 500 V (pollution degree 3) conforming to IEC 60947-1

Series name Standard format

head type Plunger head

Complementary

[ie] rated operational current 3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A

Handle front plate colour 77 mm

Product or component type Limit switch

[uimp] rated impulse withstand voltage 6 kV conforming to IEC 60664
6 kV conforming to IEC 60947-1

cable entry 1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7…13 mm

Contacts insulation form Zb

contact operation Slow-break, break before make

Contacts type and composition 1 NC + 1 NO

Fixing mode By the body

body material Zamak

Material Metal

width (w) 40 mm

Type of operator Spring return roller plunger metal

Ik degree of protection IK07 conforming to IEC 62262

Net weight 0.455 kg

head material Zamak

depth 44 mm

mechanical durability 30000000 cycles

electrical durability 5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, inductive load type, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, inductive load type, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Maximum actuation speed 0.5 m/s

Number of steps 1

Positive opening With

electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²

Maximum resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3

Minimum force for tripping 18 N

Movement of operating head Linear

Switch actuation On end

Positive opening minimum force 35 N

Type of approach Vertical approach, 1 direction

Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27

Poles description 2

Sensor design Form B conforming to CENELEC EN 50041

Short-circuit protection 10 A cartridge fuse, type gG

Terminals description iso n°1 (21-22)NC
(13-14)NON

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP66 conforming to IEC 60529

Range of product Telemecanique Limit switches XC Standard

ambient air temperature for operation -25…70 °C

overvoltage category Class I conforming to IEC 61140

standards EN 60204-1
CENELEC EN 50041
EN/IEC 60947-5-1

vibration resistance 25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
