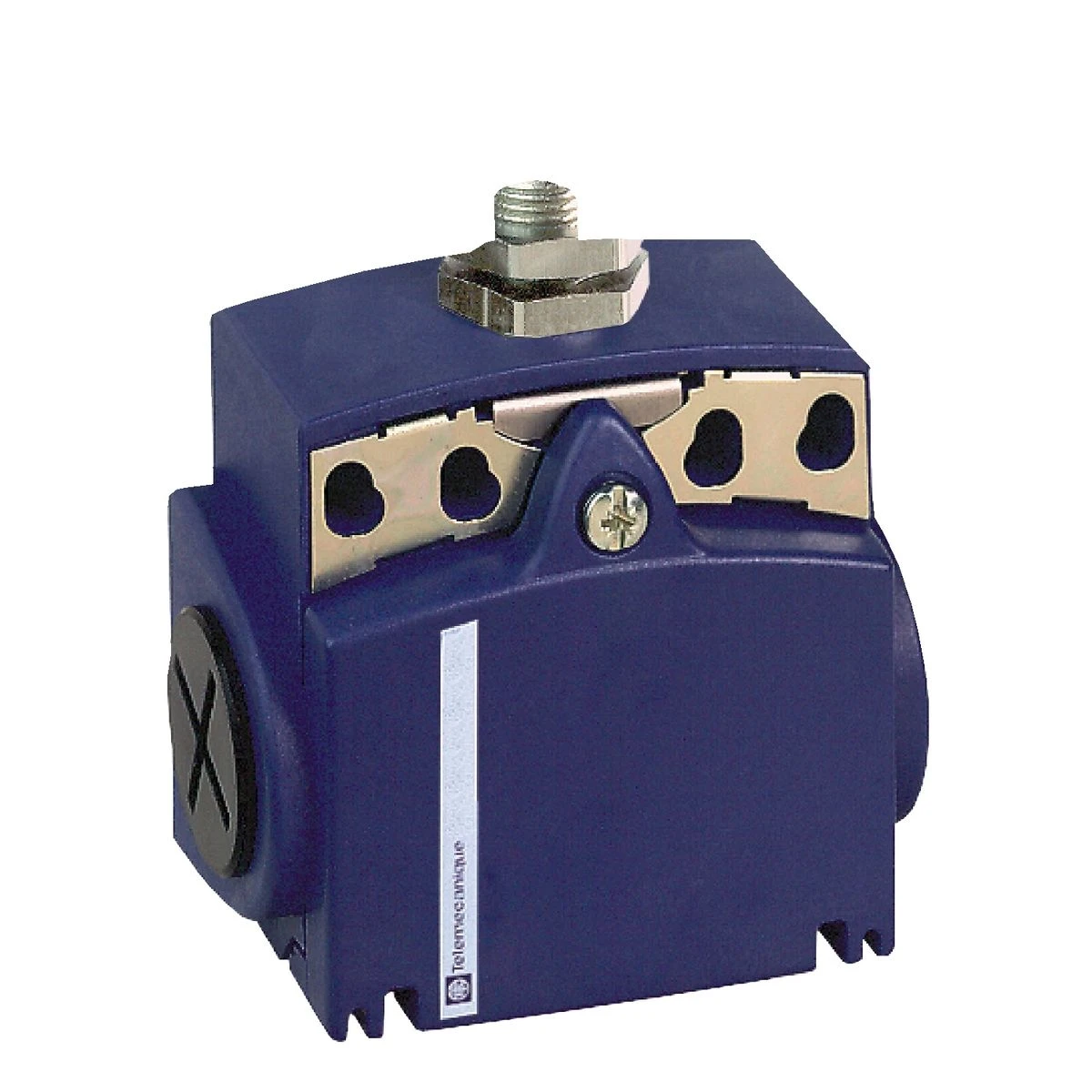

XCKT21H0G11 - Limit switch, Limit switches XC Standard, XCKT, M18 metal end plunger, 1NC+1 NO, snap, Pg11 - Schneider Electric

Upon request only
XCKT21H0G11 - Limit switch, Limit switches XC Standard, XCKT, M18 metal end plunger, 1NC+1 NO, snap, Pg11 - Schneider Electric - Limit switch, Limit switches XC Standard, XCKT, M18 metal end plunger, 1NC+1 NO, snap, Pg11 - Schneider Electric - 0
XCKT21H0G11 - Limit switch, Limit switches XC Standard, XCKT, M18 metal end plunger, 1NC+1 NO, snap, Pg11 - Schneider Electric
excl. VAT
incl. VAT
Text About:
Limit switch, Limit switches XC Standard, XCKT, M18 metal end plunger, 1NC+1 NO, snap, Pg11 - Schneider Electric
SPECIFICATIONS
Main
Body type Fixed
Device short name XCKT
[ui] rated insulation voltage 300 V conforming to UL 508
500 V (pollution degree 3) conforming to IEC 60947-1
300 V conforming to CSA C22.2 No 14
Series name Standard format
head type M18 plunger head
Complementary
Product certifications CCC
CSA
UL
Handle front plate colour 51 mm
Product or component type Limit switch
[uimp] rated impulse withstand voltage 6 kV conforming to IEC 60664
6 kV conforming to IEC 60947-1
cable entry 2 entries tapped for Pg 11 cable gland
Contacts insulation form Zb
contact operation Snap action
Contacts type and composition 1 NC + 1 NO
Electrical shock protection class Class II conforming to IEC 61140
Class II conforming to NF C 20-030
Fixing mode By the head
body material Plastic
Material Plastic
width (w) 58 mm
Type of operator Spring return plunger metal
Ik degree of protection IK04 conforming to EN 50102
contact code designation A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A
Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A
Net weight 0.145 kg
head material Zamak
depth 30 mm
mechanical durability 10000000 cycles
electrical durability 5000000 cycles, DC-13, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
repeat accuracy 0.1 mm on the tripping points with 1 million operating cycles
Maximum actuation speed 0.5 m/s
Positive opening With
electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Maximum resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3
Minimum actuation speed 0.01 m/min
Minimum force for tripping 15 N
Movement of operating head Linear
Switch actuation On end
Positive opening minimum force 45 N
Type of approach Vertical approach, 1 direction
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
Poles description 2
Sensor design Compact
Short-circuit protection 10 A cartridge fuse, type gG
Terminals description iso n°1 (13-14)NON !@ !(21-22)NC
Environment
Ambient air temp for storage/transportation -40…70 °C
ip degree of protection IP66 conforming to IEC 60529
IP67 conforming to IEC 60529
Range of product Telemecanique Limit switches XC Standard
ambient air temperature for operation -25…70 °C
standards CSA C22.2 No 14
EN 60204-1
IEC 60204-1
UL 508
EN 60947-5-1
IEC 60947-5-1
vibration resistance 25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
protective treatment TC
About this product

The XCKT21H0G11 - Limit switch, Limit switches XC Standard, XCKT, M18 metal end plunger, 1NC+1 NO, snap, Pg11 is fashioned to respond to the wants of sector experts, such as circuit designers, electricians, facility upkeep providers, and original producers. XCKT21H0G11 presents first-rate standards and advantages for experts in the automation and control industry. This Limit switch, Limit switches XC Standard, XCKT, M18 metal end plunger, 1NC+1 NO, snap, Pg11 and other Limit Switches XC from Schneider Electric are available at the optimal price and shipment duration through BALTELEC online store, a well-regarded dealer supplying practitioners in their purchasing needs.

Professionals who have adopted Schneider Electric Limit Switches XC have steadily lauded the manufacturer’s sturdiness. It has been indicated that the excellent operation of XCKT21H0G11 - Limit switch, Limit switches XC Standard, XCKT, M18 metal end plunger, 1NC+1 NO, snap, Pg11 extends to a extensive scope of purposes. Its first-rate properties make it fitting to suit a variety of needs, ensuring the success of your industrial, tertiary, and automation projects.

Our professionals devotes in catering industrial and tertiary professionals’ needs. We appreciate the specific needs and demands of our customers in the field. By aligning with us, your enterprise secure access to the premier charges and delivery schedule of high-quality products like XCKT21H0G11 - Limit switch, Limit switches XC Standard, XCKT, M18 metal end plunger, 1NC+1 NO, snap, Pg11 from Schneider Electric at a value-for-money price. Baltelec account members take advantage of exclusive discounts and priority service.

Take action and procure XCKT21H0G11 - Limit switch, Limit switches XC Standard, XCKT, M18 metal end plunger, 1NC+1 NO, snap, Pg11 at our protected and straightforward online portal. Don't delay in making this intelligent option that promises the supreme quality and satisfies the individual prerequisites of contractors like your firm.

Should you have any questions or concerns about XCKT21H0G11 - Limit switch, Limit switches XC Standard, XCKT, M18 metal end plunger, 1NC+1 NO, snap, Pg11 or any other Schneider Electric products, send us a note or refer to our Common Questions section below. We have provided answers to typical uncertainties to aid you further in making an considered decision about industrial and tertiary electrical components.

Remember, XCKT21H0G11 - Limit switch, Limit switches XC Standard, XCKT, M18 metal end plunger, 1NC+1 NO, snap, Pg11 from Schneider Electric is safe, wallet-friendly, and premier to alternative suppliers in the Limit Switches XC category. Feel free to make it a part of your inventory at once. Acquire at baltele.eu, your faithful dealer for all your professional electrical equipment and automation needs.

In our Baltelec.eu virtual store you will discover Limit switch, Limit switches XC Standard, XCKT, M18 metal end plunger, 1NC+1 NO, snap, Pg11 - XCKT21H0G11 worth 103.81 €, which will be a safe and current solution for your preferences. This goods is invented by the Schneider Electric brand using the current technologies and meets the uppermost standards of assurance and effectiveness. We extend commodities from the Limit Switches XC category that unite sturdiness and usability, which is an outstanding decision for various roles. Not minding of whether you seek equipment for small fabrication or for proficient industrial utilization, Limit switch, Limit switches XC Standard, XCKT, M18 metal end plunger, 1NC+1 NO, snap, Pg11 will be a steadfast partner in your project.

Baltelec efforts to make the getting process as effortless and fast as attainable for our clients. We offer detailed summaries and high-quality visuals of Limit switch, Limit switches XC Standard, XCKT, M18 metal end plunger, 1NC+1 NO, snap, Pg11 so that you can make an well-informed choice. A team of experts is always ready to help you with any doubts in the Limit Switches XC section relevant to the nomination and use of items. We are positive that Limit switch, Limit switches XC Standard, XCKT, M18 metal end plunger, 1NC+1 NO, snap, Pg11 will meet your hopes and become an significant element of your kit for just 103.81 €.
