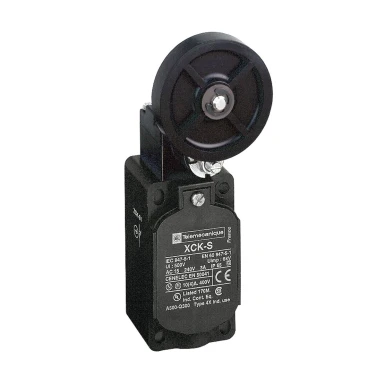

XCKS731H50 - Limit switch, Limit switches XC Standard, XCKS, thermoplastic roller lever, 2NC, slow break - Schneider Electric

Upon request only
XCKS731H50 - Limit switch, Limit switches XC Standard, XCKS, thermoplastic roller lever, 2NC, slow break - Schneider Electric - Limit switch, Limit switches XC Standard, XCKS, thermoplastic roller lever, 2NC, slow break - Schneider Electric - 0
XCKS731H50 - Limit switch, Limit switches XC Standard, XCKS, thermoplastic roller lever, 2NC, slow break - Schneider Electric
excl. VAT
incl. VAT
Text About:
Limit switch, Limit switches XC Standard, XCKS, thermoplastic roller lever, 2NC, slow break - Schneider Electric
SPECIFICATIONS
Main
Body type Fixed
Device short name XCKS
[ithe] thermal current under enclosure 10 A AC
[ui] rated insulation voltage 300 V conforming to UL 508
500 V (pollution degree 3) conforming to IEC 60947-1
300 V conforming to CSA C22.2 No 14
Series name Standard format
head type Rotary head
Complementary
Product certifications CSA
UL
CCC
Handle front plate colour 129 mm
Product or component type Limit switch
[uimp] rated impulse withstand voltage 6 kV conforming to IEC 60664
6 kV conforming to IEC 60947-1
cable entry 1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7…13 mm
Contacts insulation form Zb
contact operation Slow-break, simultaneous
Contacts type and composition 2 NC
Electrical shock protection class Class II conforming to IEC 61140
Class II conforming to NF C 20-030
Fixing mode By the body
body material Plastic
Material Plastic
width (w) 40 mm
Type of operator Spring return roller lever thermoplastic
Ik degree of protection IK03 conforming to EN 50102
contact code designation A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to EN/IEC 60947-5-1 appendix A
Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A
Net weight 0.145 kg
head material Plastic
depth 60 mm
mechanical durability 20000000 cycles
electrical durability 5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, inductive load type, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, inductive load type, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Maximum actuation speed 1.5 m/s
Number of steps 1
Positive opening With
electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Maximum resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3
Minimum actuation speed 6 m/min
Minimum torque for tripping 0.1 N.m
Movement of operating head Rotary
Switch actuation By 30° cam
Positive opening minimum torque 0.3 N.m
Type of approach Lateral approach, 1 or 2 programmable direction
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
Poles description 2
Sensor design Form A conforming to CENELEC EN 50041
Short-circuit protection 10 A cartridge fuse, type gG
Terminals description iso n°1 (21-22)NC
(11-12)NC
Environment
Ambient air temp for storage/transportation -40…70 °C
ip degree of protection IP65 conforming to IEC 60529
Range of product Telemecanique Limit switches XC Standard
ambient air temperature for operation -25…70 °C
overvoltage category Class II conforming to IEC 61140
Class II conforming to NF C 20-030
standards EN 60947-5-1
EN 60204-1
UL 508
CENELEC EN 50041
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
vibration resistance 25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
protective treatment TC
About this product

The XCKS731H50 - Limit switch, Limit switches XC Standard, XCKS, thermoplastic roller lever, 2NC, slow break is created to serve the prerequisites of industry specialists, such as electrical installers, wiremen, maintenance companies, and manufacturing originators. XCKS731H50 provides unmatched standards and beneficence for technicians in the power systems industry. This Limit switch, Limit switches XC Standard, XCKS, thermoplastic roller lever, 2NC, slow break and other Limit Switches XC from Schneider Electric are on offer at the optimal price and delivery schedule through BaltElec, a well-known purveyor catering to specialists in their obtaining needs.

Customers who have procured Schneider Electric Limit Switches XC have habitually extolled the maker's soundness. It has been outlined that the superior capability of XCKS731H50 - Limit switch, Limit switches XC Standard, XCKS, thermoplastic roller lever, 2NC, slow break extends to a wide range of functions. Its exceptional qualities make it right choice to satisfy a wide array of needs, assuring the success of your industrial, tertiary, and automation ventures.

BALTELEC focuses in meeting industrial and tertiary professionals’ needs. We grasp the distinct requirements and demands of our patrons in the realm. By collaborating with our experts, your organization receive access to the finest pricing and supply timeline of high-quality products like XCKS731H50 - Limit switch, Limit switches XC Standard, XCKS, thermoplastic roller lever, 2NC, slow break from Schneider Electric at a value-for-money price. Authorized buyers take advantage of extra discounts and preferred assistance.

Move quickly and procure XCKS731H50 - Limit switch, Limit switches XC Standard, XCKS, thermoplastic roller lever, 2NC, slow break at our protected and efficient e-commerce site. Don't delay in making this shrewd investment that warrants the best quality and matches the special specifications of buyers like your organization.

Should you experience any worries or concerns about XCKS731H50 - Limit switch, Limit switches XC Standard, XCKS, thermoplastic roller lever, 2NC, slow break or any other Schneider Electric products, reach out to us or refer to our FAQs section below. We have curated answers to usual requests for information to benefit you further in making an well-considered decision about industrial and tertiary electrical components.

Remember, XCKS731H50 - Limit switch, Limit switches XC Standard, XCKS, thermoplastic roller lever, 2NC, slow break from Schneider Electric is secure, affordable, and outstanding to its counterparts in the Limit Switches XC category. Feel free to make it a part of your infrastructure right now. Purchase at Baltelec e-shop, your respected merchant for all your Schneider Electric.

In our Baltelec.eu cyber store you will locate Limit switch, Limit switches XC Standard, XCKS, thermoplastic roller lever, 2NC, slow break - XCKS731H50 worth 306.27 €, which will be a faithful and innovative solution for your requirements. This merchandise is invented by the Schneider Electric brand using the most recent technologies and follows the leading standards of guarding and capacity. We provide goods from the Limit Switches XC category that merge sturdiness and effectiveness, which is an premium possibility for various operations. Without consideration of whether you demand devices for small fabrication or for proficient industrial application, Limit switch, Limit switches XC Standard, XCKS, thermoplastic roller lever, 2NC, slow break will be a dependable facilitator in your task.

Baltelec endeavors to make the obtaining process as easy and fast as feasible for our users. We offer detailed descriptions and high-quality portrayals of Limit switch, Limit switches XC Standard, XCKS, thermoplastic roller lever, 2NC, slow break so that you can make an conscious choice. A team of connoisseurs is always ready to help you with any wonder in the Limit Switches XC section associated to the determining and use of equipment. We are trusting that Limit switch, Limit switches XC Standard, XCKS, thermoplastic roller lever, 2NC, slow break will meet your expectations and become an vital element of your inventory for just 306.27 €.

FAQ about XCKS731H50:
