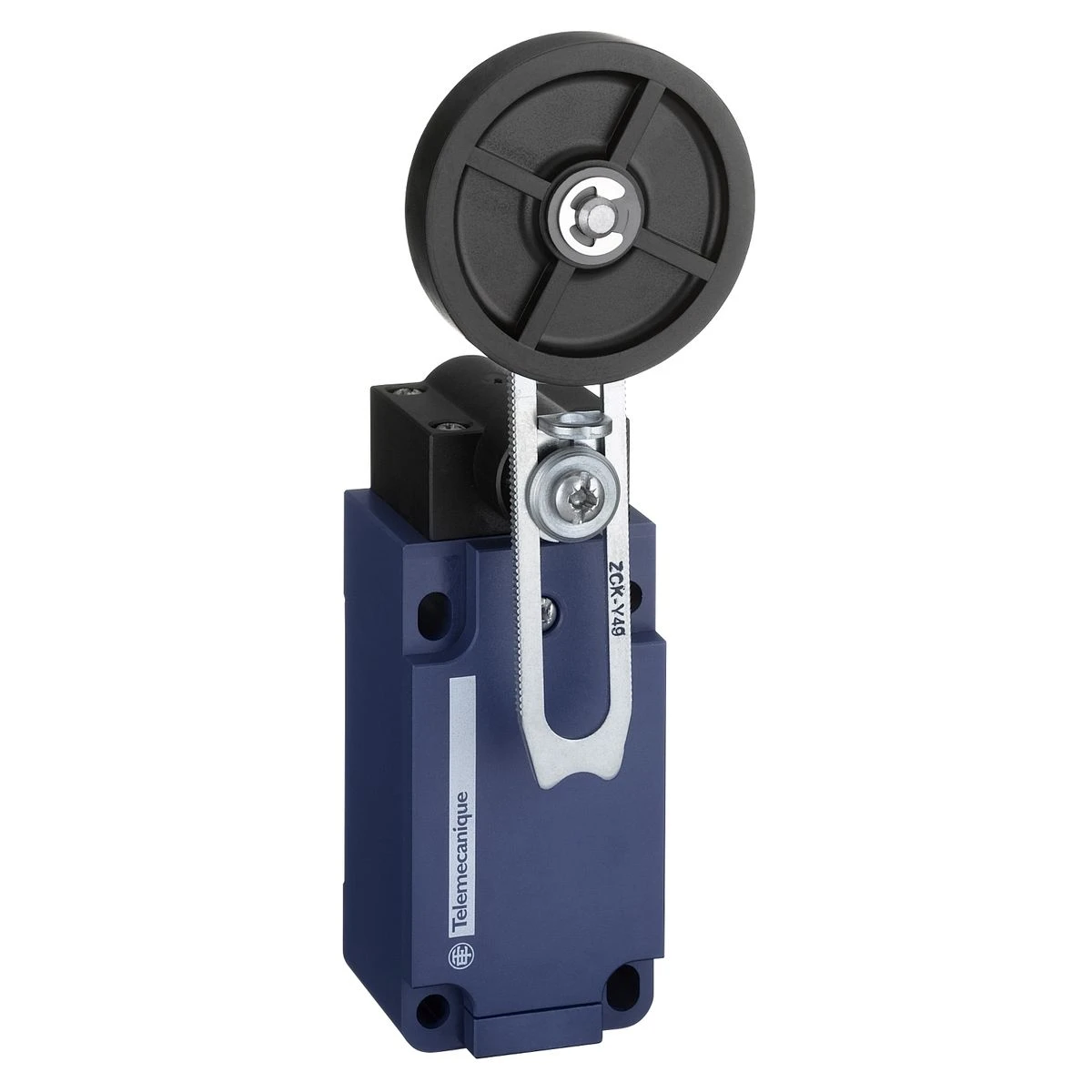

XCKS149 - Limit switch, Limit switches XC Standard, XCKS, elastomer roller lever ? 50 mm, 1NC+1 NO, snap, Pg13 - Schneider Electric

Expected in 2-4 weeks

28,06 € excl. VAT

34,24 € incl. VAT

Text About:

Limit switch, Limit switches XC Standard, XCKS, elastomer roller lever ? 50 mm, 1NC+1 NO, snap, Pg13 - Schneider Electric

In cart

34,24 €

SPECIFICATIONS

Main

Body type Fixed

Device short name XCKS

[ithe] thermal current under enclosure 10 A AC

[ui] rated insulation voltage 300 V conforming to UL 508
500 V (pollution degree 3) conforming to IEC 60947-1
300 V conforming to CSA C22.2 No 14

Series name Standard format

head type Rotary head

Complementary

Product certifications CSA
UL
CCC

Handle front plate colour 133…188 mm

Product or component type Limit switch

[uimp] rated impulse withstand voltage 6 kV conforming to IEC 60664
6 kV conforming to IEC 60947-1

cable entry 1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9…12 mm

Contacts insulation form Zb

contact operation Snap action

Contacts type and composition 1 NC + 1 NO

Electrical shock protection class Class II conforming to IEC 61140
Class II conforming to NF C 20-030

Fixing mode By the body

body material Plastic

Material Plastic

width (w) 50 mm

Type of operator Spring return roller lever elastomer variable length, roller diameter 50 mm

Ik degree of protection IK05 conforming to EN 50102

contact code designation A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to EN/IEC 60947-5-1 appendix A
Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A

Net weight 0.18 kg

head material Plastic

depth 65 mm

mechanical durability 20000000 cycles

electrical durability 5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, inductive load type, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, inductive load type, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Maximum actuation speed 1.5 m/s

Number of steps 1

Positive opening With

electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²

Maximum resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3

Minimum actuation speed 0.01 m/min

Minimum torque for tripping 0.1 N.m

Movement of operating head Rotary

Switch actuation By 30° cam

Type of approach Lateral approach, 1 or 2 programmable direction

Shock resistance 40 gn for 11 ms conforming to IEC 60068-2-27

Poles description 2

Sensor design -

Short-circuit protection 10 A cartridge fuse, type gG

Terminals description iso n°1 (21-22)NC
(13-14)NON

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP67 conforming to IEC 60529
IP66 conforming to IEC 60529

Range of product Telemecanique Limit switches XC Standard

ambient air temperature for operation -25…70 °C

overvoltage category Class II conforming to IEC 61140
Class II conforming to NF C 20-030

standards EN 60204-1
IEC 60947-5-1
UL 508
IEC 60204-1
CENELEC EN 50041
CSA C22.2 No 14
EN 60947-5-1

vibration resistance 20 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

protective treatment TC
