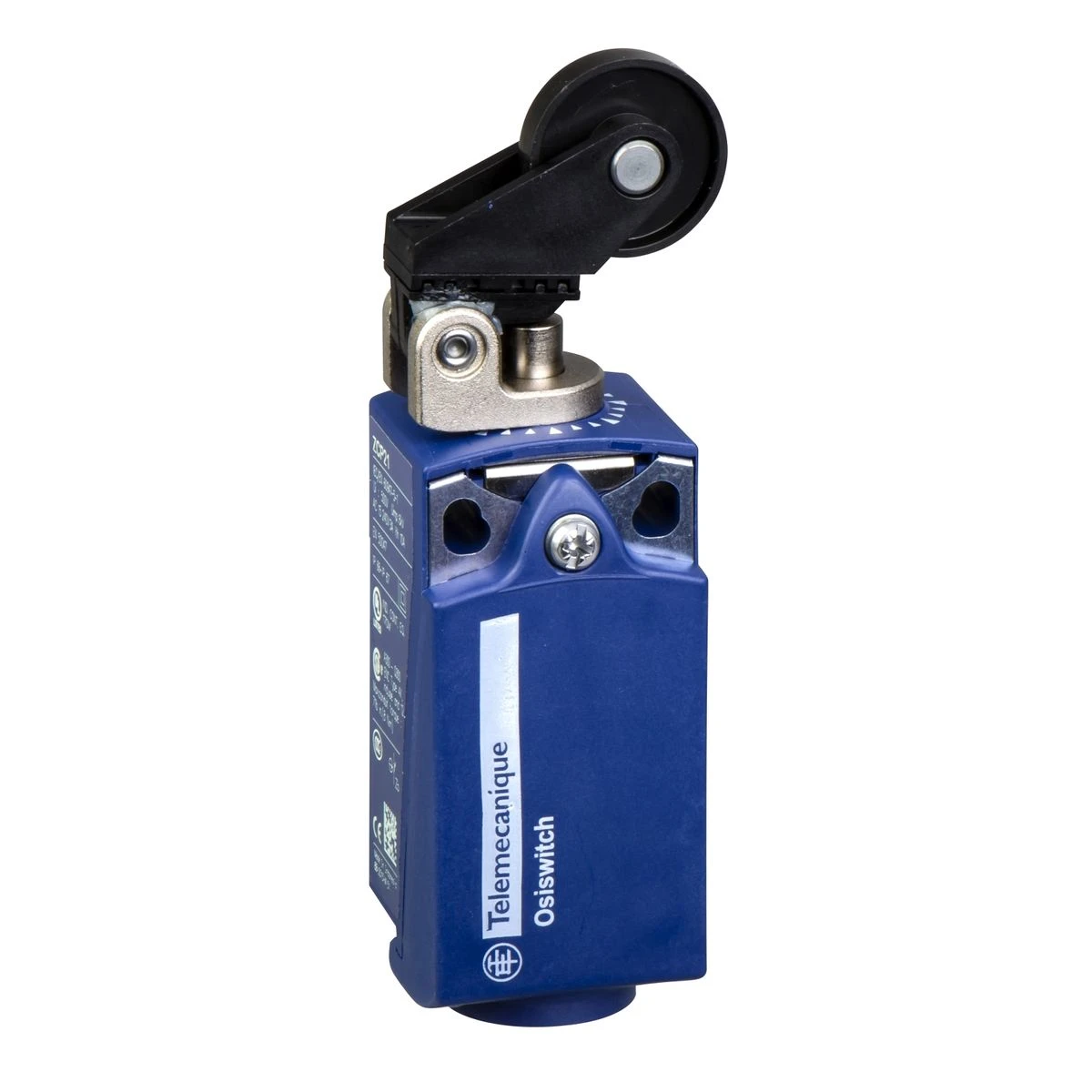

XCKP2155M12 - Limit switch, Limit switches XC Standard, XCKP, rod lever, 1NC+1 NO, snap, M12 - Schneider Electric

Expected in 2-4 weeks

38,06 € excl. VAT

46,44 € incl. VAT

Text About:

Limit switch, Limit switches XC Standard, XCKP, rod lever, 1NC+1 NO, snap, M12 - Schneider Electric

In cart

46,44 €

SPECIFICATIONS

Main

Body type Fixed

Device short name XCKP

[ithe] thermal current under enclosure 3 A

[ui] rated insulation voltage 300 V conforming to UL 508
300 V conforming to CSA C22.2 No 14
250 V (pollution degree 3) conforming to IEC 60947-1

Series name Standard format

head type Rotary head

Complementary

[ie] rated operational current 3 A at 240 V, AC-15 conforming to EN/IEC 60947-5-1 appendix A
0.27 A at 250 V, DC-13 conforming to EN/IEC 60947-5-1 appendix A

Product certifications CCC
CSA
UL

Handle front plate colour 65 mm

Product or component type Limit switch

[uimp] rated impulse withstand voltage 2.5 kV conforming to IEC 60664
2.5 kV conforming to IEC 60947-1

Contacts insulation form Zb

contact operation Snap action

Contacts type and composition 1 NC + 1 NO

Electrical shock protection class Class II conforming to IEC 61140
Class II conforming to NF C 20-030

Fixing mode By the body

body material Plastic

Material Plastic

width (w) 31 mm

Type of operator Spring return roller lever glass fiber round rod 3 mm, L = 125 mm

Ik degree of protection IK04 conforming to EN 50102

Net weight 0.16 kg

head material Zamak

depth 30 mm

mechanical durability 5000000 cycles

electrical durability 5000000 cycles, DC-13, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

repeat accuracy 0.1 mm on the tripping points with 1 million operating cycles

Maximum actuation speed 1 m/s

Positive opening Without

electrical connection Male connector M12, 4 pins

Maximum resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3

Minimum torque for tripping 0.1 N.m

Movement of operating head Rotary

Switch actuation Any direction

Type of approach Lateral approach, 2 directions

Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27

Poles description 2

Sensor design Compact

Short-circuit protection 4 A cartridge fuse, type gG

Terminals description iso n°1 (21-22)NC
(13-14)NON

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP66 conforming to IEC 60529
IP67 conforming to IEC 60529

Range of product Telemecanique Limit switches XC Standard

ambient air temperature for operation -25…70 °C

standards UL 508
IEC 60947-5-1
EN 60947-5-1
CSA C22.2 No 14
IEC 60204-1
EN 60204-1

vibration resistance 25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

protective treatment TC
