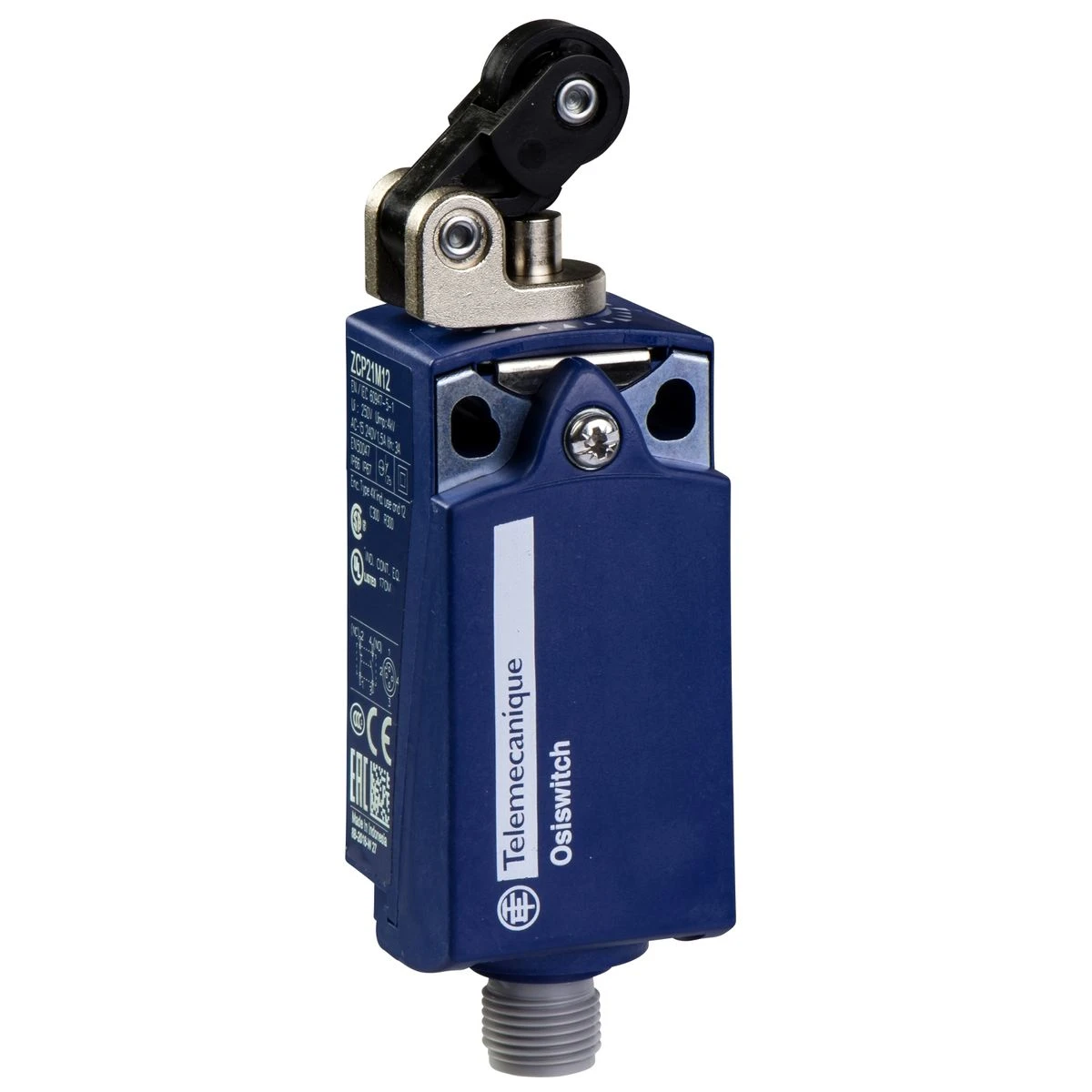

XCKP2121M12 - Limit switch, Limit switches XC Standard, XCKP, thermoplastic plastic roller lever plung. Hor, 1NC+1 NO, snap, M12 - Schneider Electric

Expected in 2-4 weeks

35,25 €

Text About:

Limit switch, Limit switches XC Standard, XCKP, thermoplastic plastic roller lever plung. Hor, 1NC+1 NO, snap, M12 - Schneider Electric

In cart

35,25 €

SPECIFICATIONS

Main

Body type Fixed

Device short name XCKP

[ithe] thermal current under enclosure 3 A

[ui] rated insulation voltage 300 V conforming to UL 508
300 V conforming to CSA C22.2 No 14
250 V (pollution degree 3) conforming to IEC 60947-1

Series name Standard format

head type Plunger head

Complementary

[ie] rated operational current 3 A at 240 V, AC-15 conforming to EN/IEC 60947-5-1 appendix A
0.27 A at 250 V, DC-13 conforming to EN/IEC 60947-5-1 appendix A

Product certifications UL
CCC
CSA

Handle front plate colour 65 mm

Product or component type Limit switch

[uimp] rated impulse withstand voltage 2.5 kV conforming to IEC 60664
2.5 kV conforming to IEC 60947-1

Contacts insulation form Zb

contact operation Snap action

Contacts type and composition 1 NC + 1 NO

Electrical shock protection class Class II conforming to IEC 61140
Class II conforming to NF C 20-030

Fixing mode By the body

body material Plastic

Material Plastic

width (w) 31 mm

Type of operator Spring return roller lever plunger thermoplastic

Ik degree of protection IK04 conforming to EN 50102

Net weight 0.11 kg

head material Zamak

depth 30 mm

mechanical durability 15000000 cycles

electrical durability 5000000 cycles, DC-13, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

repeat accuracy 0.1 mm on the tripping points with 1 million operating cycles

Maximum actuation speed 1 m/s

Positive opening With

electrical connection Male connector M12, 4 pins

Maximum resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3

Minimum force for tripping 6 N

Movement of operating head Linear

Switch actuation By 30° cam

Positive opening minimum force 18 N

Type of approach Lateral approach, 1 direction

Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27

Poles description 2

Sensor design Compact form E conforming to CENELEC EN 50047

Short-circuit protection 4 A cartridge fuse, type gG

Terminals description iso n°1 (21-22)NC
(13-14)NON

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP66 conforming to IEC 60529
IP67 conforming to IEC 60529

Range of product Telemecanique Limit switches XC Standard

ambient air temperature for operation -25…70 °C

standards CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
EN 60204-1
EN 60947-5-1
UL 508

vibration resistance 25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

protective treatment TC
