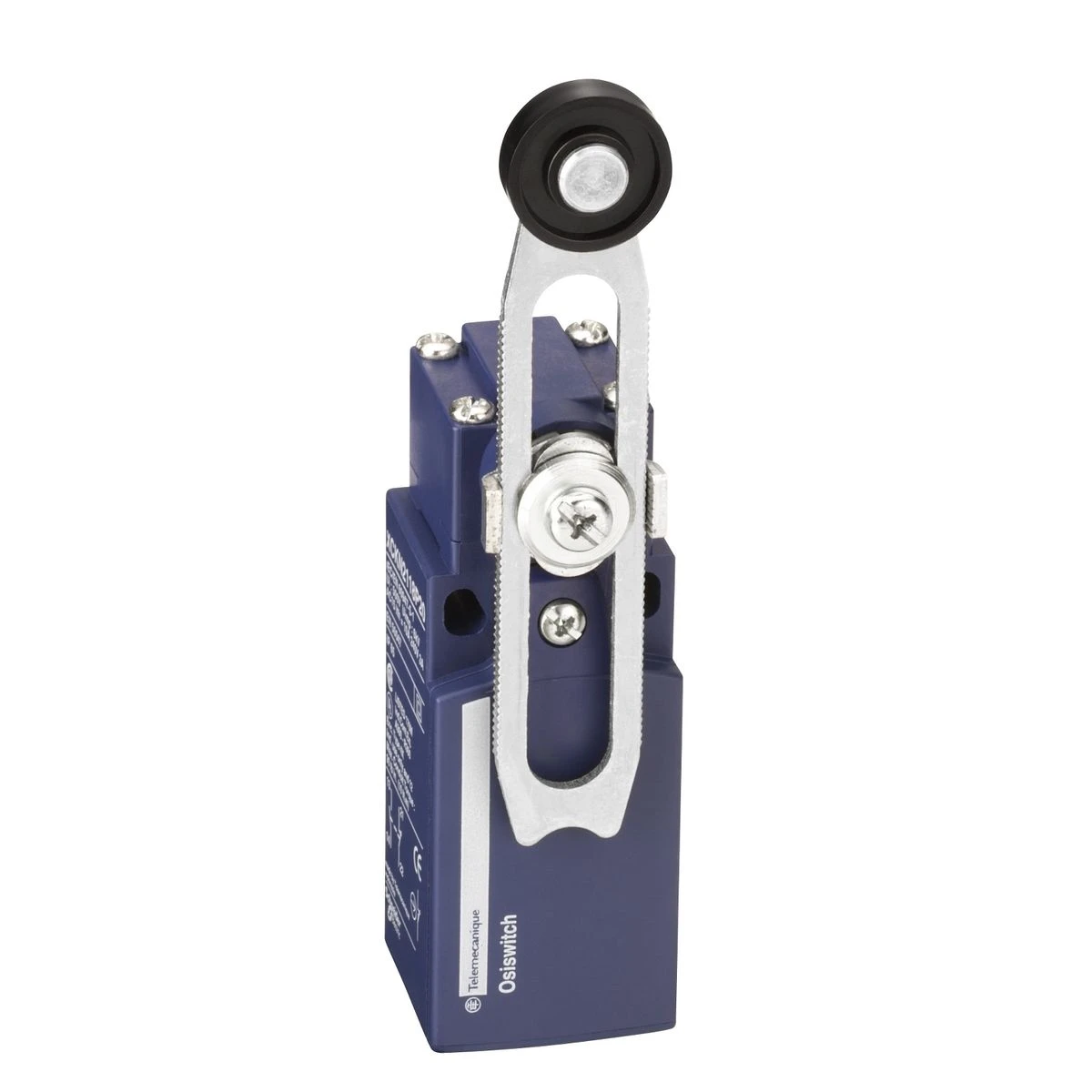

XCKN2145P20 - Limit switch, Limit switches XC Standard, XCKN, thermoplastic plastic roller lever var.length, 1NC+1 NO, snap, M20 - Schneider Electric

Expected in 2-4 weeks

15,80 € excl. VAT

19,28 € incl. VAT

Text About:

Limit switch, Limit switches XC Standard, XCKN, thermoplastic plastic roller lever var.length, 1NC+1 NO, snap, M20 - Schneider Electric

In cart

19,28 €

SPECIFICATIONS

Main

Body type Fixed

Device short name XCKN

[ui] rated insulation voltage 300 V conforming to UL 508
500 V (pollution degree 3) conforming to IEC 60947-1
300 V conforming to CSA C22.2 No 14

Series name Standard format

head type Rotary head

Complementary

Product certifications CSA
CCC
UL

Handle front plate colour 108…157 mm

Product or component type Limit switch

[uimp] rated impulse withstand voltage 6 kV conforming to IEC 60664
6 kV conforming to IEC 60947-1

cable entry 1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7…13 mm

Contacts insulation form Zb

contact operation Snap action

Contacts type and composition 1 NC + 1 NO

Fixing mode By the body

body material Plastic

Material Plastic

width (w) 30 mm

Type of operator Spring return roller lever thermoplastic variable length

Ik degree of protection IK04 conforming to EN 50102

contact code designation A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A
R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to EN/IEC 60947-5-1 appendix A

Net weight 0.18 kg

head material Plastic

depth 42 mm

mechanical durability 10000000 cycles

electrical durability 5000000 cycles, DC-13, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Maximum actuation speed 1.5 m/s

Positive opening With

electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²

Minimum torque for tripping 0.1 N.m

Movement of operating head Rotary

Switch actuation By 30° cam

Positive opening minimum torque 0.15 N.m

Type of approach Lateral approach, 2 directions

Shock resistance 45 gn for 11 ms conforming to IEC 60068-2-27

Poles description 2

Sensor design Compact

Short-circuit protection 10 A cartridge fuse, type gG

Terminals description iso n°1 (21-22)NC
(13-14)NON

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP65 conforming to IEC 60529

Range of product Telemecanique Limit switches XC Standard

ambient air temperature for operation -25…70 °C

overvoltage category Class II conforming to IEC 61140
Class II conforming to NF C 20-030

standards IEC 60947-5-1
UL 508
CSA C22.2 No 14
IEC 60204-1
EN 60204-1
EN 60947-5-1

vibration resistance 25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

protective treatment TC
