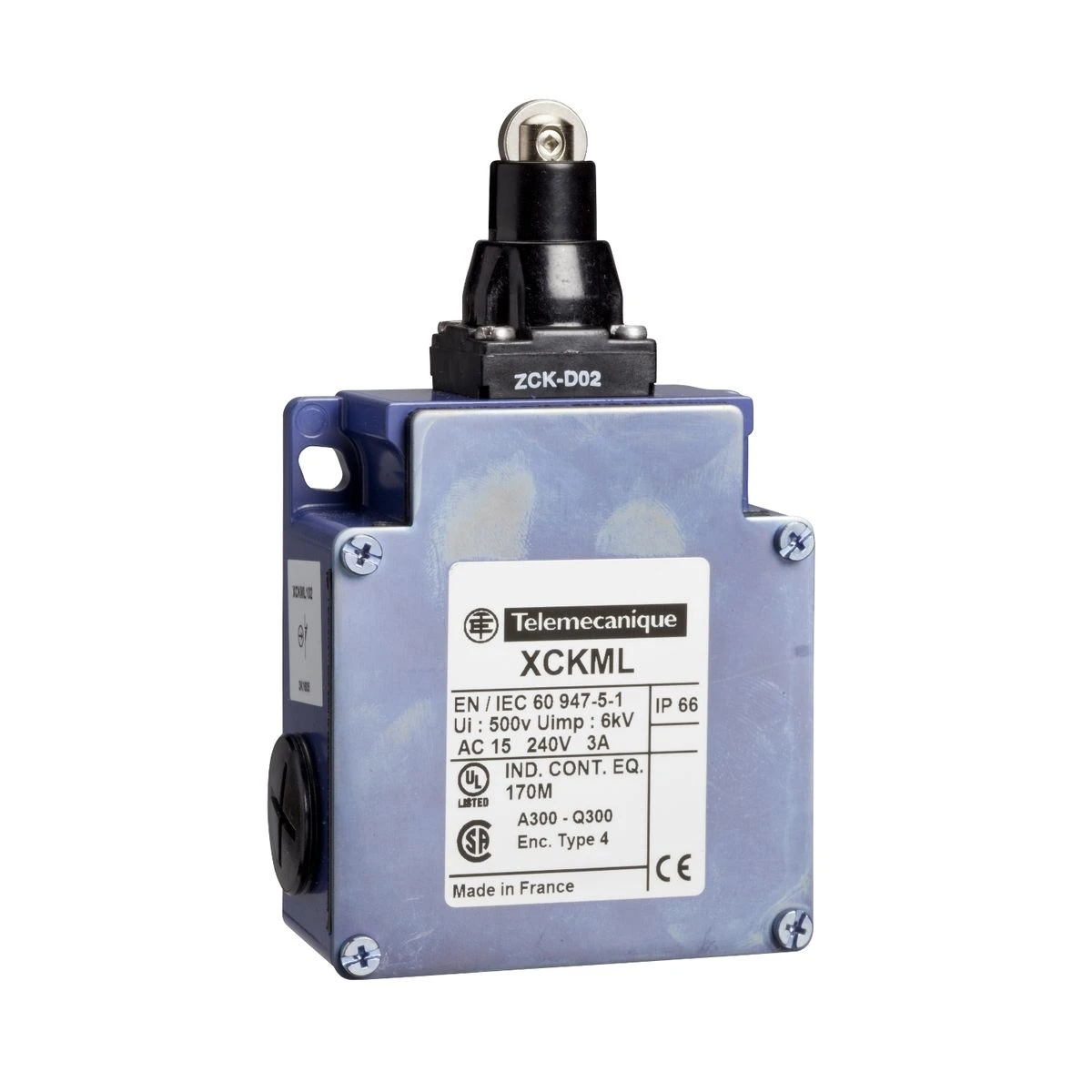

XCKML502H29 - Limit switch, Limit switches XC Standard, XCKML, steel roller plunger, 2x(1NC+1NO), slow break, M20 - Schneider Electric

Expected in 2-4 weeks

197,56 € excl. VAT

241,02 € incl. VAT

Text About:

Limit switch, Limit switches XC Standard, XCKML, steel roller plunger, 2x(1NC+1NO), slow break, M20 - Schneider Electric

In cart

241,02 €

SPECIFICATIONS

Main

Body type Fixed

Device short name XCKML

[ithe] thermal current under enclosure 10 A AC

[ui] rated insulation voltage 300 V conforming to UL 508
500 V (pollution degree 3) conforming to IEC 60947-1
300 V conforming to CSA C22.2 No 14

Series name Standard format

head type Plunger head

Complementary

Product certifications UL
CSA

Handle front plate colour 81 mm

Product or component type Limit switch

[uimp] rated impulse withstand voltage 6 kV conforming to IEC 60664
6 kV conforming to IEC 60947-1

cable entry 3 entries tapped for M20 x 1.5 cable gland, cable outer diameter: 7…13 mm

Contacts insulation form Zb

contact operation Slow-break, break before make

Contacts type and composition 2 x (1 NC + 1 NO)

Electrical shock protection class Class I conforming to IEC 61140
Class I conforming to NF C 20-030

Fixing mode By the body

body material Zamak

Material Metal

width (w) 77 mm

Type of operator Spring return roller plunger metal

Ik degree of protection IK05 conforming to EN 50102

Net weight 0.405 kg

depth 36 mm

mechanical durability 3000000 cycles

electrical durability 5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, inductive load type, 24 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, inductive load type, 48 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Maximum actuation speed 0.5 m/s

Number of steps 1

Positive opening With

electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²

Maximum resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3

Minimum actuation speed 6 m/min

Minimum force for tripping 12 N

Movement of operating head Linear

Switch actuation By 30° cam

Positive opening minimum force 50 N

Type of approach Lateral approach, 2 directions

Shock resistance 50 gn for 11 ms conforming to EN/IEC 60068-2-27

Poles description 4

Terminals description iso n°1 (13-14)NON !@ !(21-22)NC

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP66 conforming to EN/IEC 60529

Range of product Telemecanique Limit switches XC Standard

ambient air temperature for operation -25…70 °C

standards UL 508
EN 60204-1
IEC 60947-5-1
CSA C22.2 No 14
EN 60947-5-1
IEC 60204-1

vibration resistance 25 gn (f= 10…500 Hz) conforming to EN/IEC 60068-2-6

protective treatment TC
