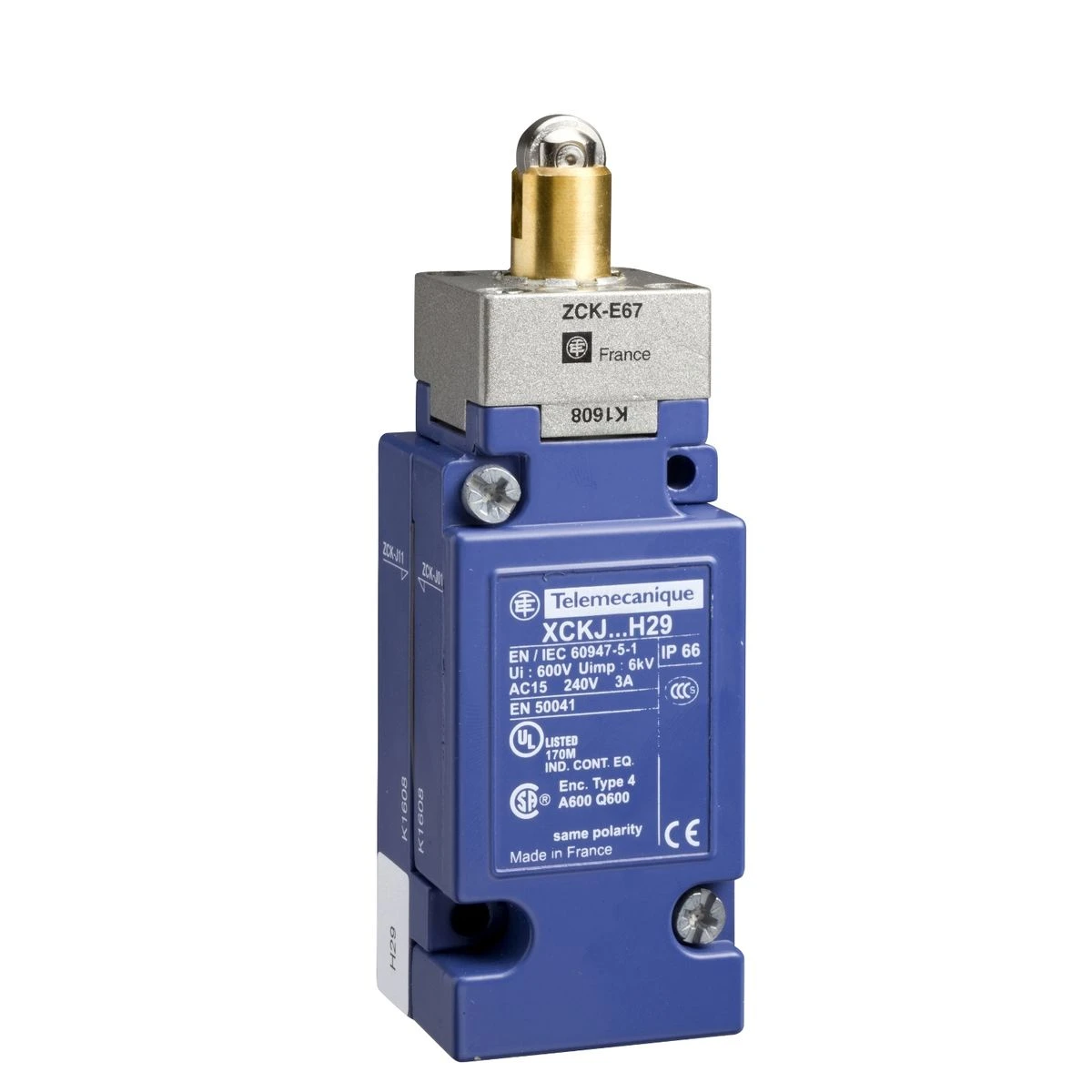

XCKJ1167H29 - Limit switch, Limit switches XC Standard, XCKJ, steel roller plunger reinforced, 1C/O, snap action, - Schneider Electric
Expected in 2-4 weeks
115,12 €
Text About:
Limit switch, Limit switches XC Standard, XCKJ, steel roller plunger reinforced, 1C/O, snap action, - Schneider Electric
SPECIFICATIONS
Main
Body type
Plug-in body
Device short name
XCKJ
[ithe] thermal current under enclosure
10 A
[ui] rated insulation voltage
300 V conforming to UL 508
500 V (pollution degree 3) conforming to IEC 60947-1
300 V conforming to CSA C22.2 No 14
500 V (pollution degree 3) conforming to IEC 60947-1
300 V conforming to CSA C22.2 No 14
Series name
Standard format
head type
Plunger head
Complementary
[ie] rated operational current
3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A
Product certifications
CSA
UL
CCC
UL
CCC
Handle front plate colour
84 mm
Product or component type
Limit switch
[uimp] rated impulse withstand voltage
6 kV conforming to IEC 60664
6 kV conforming to IEC 60947-1
6 kV conforming to IEC 60947-1
cable entry
1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7…13 mm
Contacts insulation form
Za
contact operation
Snap action
Contacts type and composition
1 C/O
Fixing mode
By the body
body material
Zamak
Material
Metal
width (w)
43 mm
Type of operator
Spring return roller plunger metal reinforced
Ik degree of protection
IK07 conforming to EN 50102
Net weight
0.455 kg
head material
Zamak
depth
36 mm
mechanical durability
25000000 cycles
electrical durability
5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, inductive load type, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, inductive load type, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, inductive load type, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, inductive load type, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Maximum actuation speed
1 m/s
Number of steps
1
Positive opening
Without
electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.75...2 x 1.5 mm²
Maximum resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Minimum force for tripping
16 N
Movement of operating head
Linear
Switch actuation
By 30° cam
Type of approach
Lateral approach, 2 directions
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Poles description
1
Sensor design
Form C conforming to CENELEC EN 50041
Short-circuit protection
10 A cartridge fuse, type gG
Terminals description iso n°1
(13-14)NON !@ !(11-12)NC
Environment
Ambient air temp for storage/transportation
-40…70 °C
ip degree of protection
IP66 conforming to IEC 60529
Range of product
Telemecanique Limit switches XC Standard
ambient air temperature for operation
-25…70 °C
overvoltage category
Class I conforming to IEC 61140
Class I conforming to NF C 20-030
Class I conforming to NF C 20-030
standards
IEC 60947-5-1
UL 508
EN 60947-5-1
IEC 60204-1
CENELEC EN 50041
EN 60204-1
CSA C22.2 No 14
UL 508
EN 60947-5-1
IEC 60204-1
CENELEC EN 50041
EN 60204-1
CSA C22.2 No 14
vibration resistance
25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
protective treatment
TH
