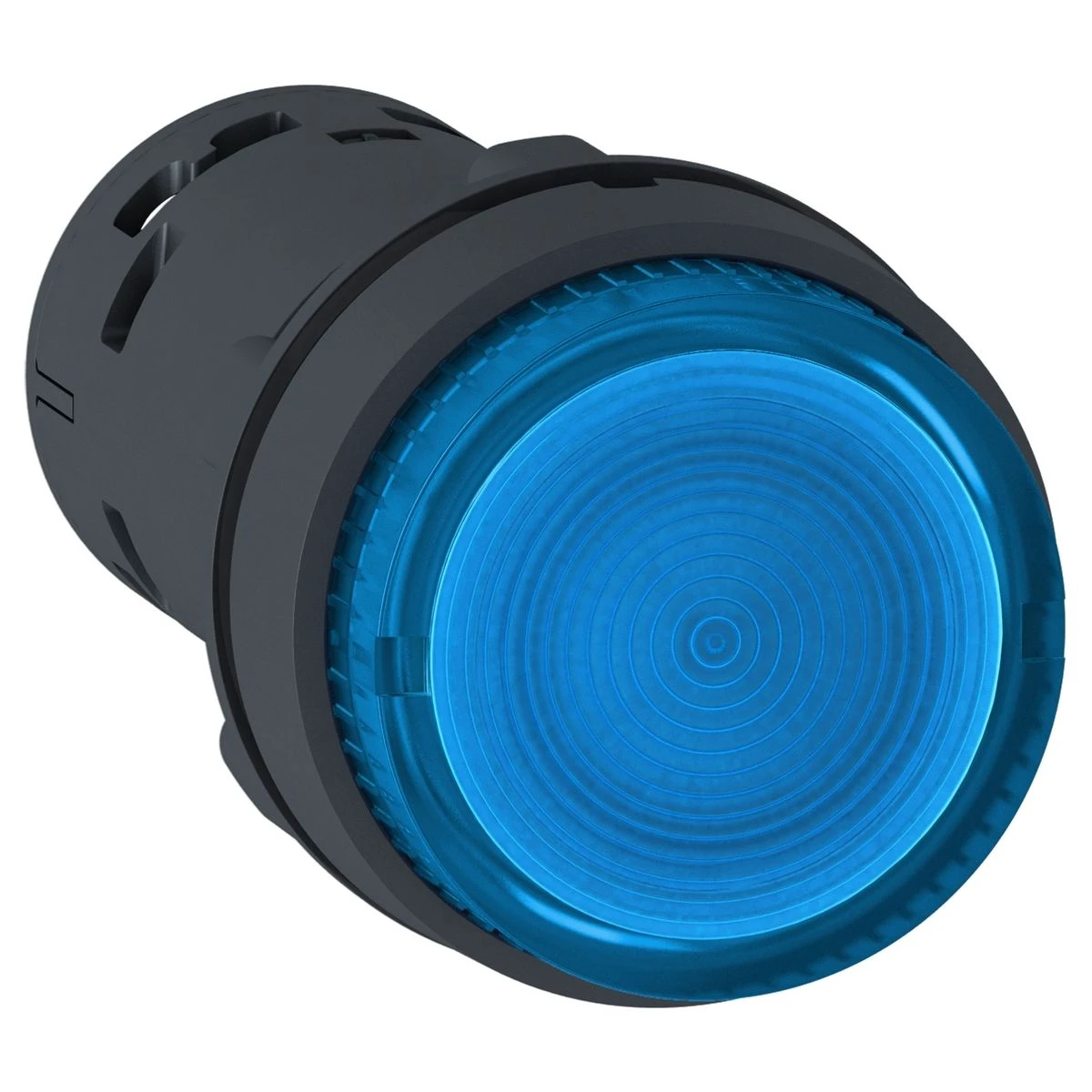

XB7NJ06G1 - Illuminated push button, Harmony XB7, blue projecting, 22mm, integral LED, push and push to release, 1NO, 120V AC - Schneider Electric

Expected in 2-4 weeks
XB7NJ06G1 - Illuminated push button, Harmony XB7, blue projecting, 22mm, integral LED, push and push to release, 1NO, 120V AC - Schneider Electric - Illuminated push button, Harmony XB7, blue projecting, 22mm, integral LED, push and push to release, 1NO, 120V AC - Schneider Electric - 0
XB7NJ06G1 - Illuminated push button, Harmony XB7, blue projecting, 22mm, integral LED, push and push to release, 1NO, 120V AC - Schneider Electric
9,54 € excl. VAT
11,84 € incl. VAT
Text About:
Illuminated push button, Harmony XB7, blue projecting, 22mm, integral LED, push and push to release, 1NO, 120V AC - Schneider Electric
11,84 €
SPECIFICATIONS
Main
Device short name XB7
device mounting Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-1
service life 70000 h at rated voltage and 25 °C
[ui] rated insulation voltage 250 V (pollution degree 3) conforming to EN/IEC 60947-1
Complementary
[ie] rated operational current 0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1
0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1
0.3 A at 240 V, AC-14, D300 conforming to EN/IEC 60947-5-1
0.6 A at 120 V, AC-14, D300 conforming to EN/IEC 60947-5-1
Product certifications CCC
GOST
mounting diameter 22 mm
Product or component type Illuminated push-button
tightening torque 0.8…1.2 N.m conforming to EN 60947-1
[uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 60947-1
[us] rated supply voltage 120 V AC at 50/60 Hz
Current consumption 12...17 mA
nema degree of protection NEMA 12 conforming to UL 50 E
Bulb base Integral LED
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
Cad overall depth 57.5 mm
Operator additional information With plain lens
Cad overall height 29 mm
contact operation Slow-break
Contacts type and composition 1 NO
Electrical shock protection class Class II conforming to IEC 61140
Fixing mode Fixing nut beneath head: 2…2.4 N.m
Cad overall width 29 mm
Sale per indivisible quantity 10
electrical reliability Λ <= 10exp(-6) at 17 V and 5 mA conforming to EN/IEC 60947-5-4
Signalling type Steady
supply voltage limits 100…132 V AC
Type of operator push and push-to-release
Net weight 0.023 kg
Fixing center >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm
>= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm
mechanical durability 300000 cycles
electrical durability 1000000 cycles, DC-13, 0.3 A at 24 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 0.03 A at 230 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 0.09 A at 240 V, operating rate <108000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
Device presentation Monolithic product
Positive opening With (only NO)
Shape of signaling unit head Round
Operator profile Blue projecting, unmarked
light source LED
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
30 gn (duration = 18 ms) for half sine wave acceleration
Shape of screw head Cross compatible with JIS No 1 screwdriver
Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
Short-circuit protection 4 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
Terminals description iso n°1 (13-14)NON
Environment
Ambient air temp for storage/transportation -40…70 °C
ip degree of protection IP20 (rear face) conforming to IEC 60529
IP65 (front face) conforming to IEC 60529
Range of product Harmony XB7
ambient air temperature for operation -25…70 °C
standards EN/IEC 60947-1
CSA C22.2 No 14
UL 508
JIS C8201-5-1
EN/IEC 60947-5-1
JIS C8201-1
electromagnetic emission Class B conforming to EN 55011
vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
protective treatment TH
About this product

The XB7NJ06G1 - Illuminated push button, Harmony XB7, blue projecting, 22mm, integral LED, push and push to release, 1NO, 120V AC is fashioned to cater to the conditions of sector experts, such as installers, circuit experts, management services, and OEMs. XB7NJ06G1 provides exceptional capability and gain for contractors in the energy management industry. This Illuminated push button, Harmony XB7, blue projecting, 22mm, integral LED, push and push to release, 1NO, 120V AC and other Metal Modular XB7 from Schneider Electric can be obtained at the lowest cost and delivery schedule through BaltElec online store, a reputable purveyor fulfilling the needs of tradesmen in their procurement needs.

Professionals who have acquired Schneider Electric Metal Modular XB7 have invariably extolled the manufacturer’s durability. It has been emphasized that the outstanding energy-efficiency of XB7NJ06G1 - Illuminated push button, Harmony XB7, blue projecting, 22mm, integral LED, push and push to release, 1NO, 120V AC extends to a extensive scope of deployments. Its supreme components make it great solution for various requirements, ensuring your industrial, tertiary and automation projects success.

Our experts specializes in serving industrial and tertiary professionals’ needs. We get the unique demands and requirements of our stakeholders in the sector. By cooperating with our specialists, your enterprise receive access to the top costs and delivery period of top-tier products like XB7NJ06G1 - Illuminated push button, Harmony XB7, blue projecting, 22mm, integral LED, push and push to release, 1NO, 120V AC from Schneider Electric at an economical price. Authorized buyers benefit from more savings and preferred assistance.

Don't wait and procure XB7NJ06G1 - Illuminated push button, Harmony XB7, blue projecting, 22mm, integral LED, push and push to release, 1NO, 120V AC at our dependable and easy-to-use e-commerce site. Don't delay in making this clever pick that secures the best quality and fulfills the unique demands of clients like your company.

Should you experience any uncertainties or concerns about XB7NJ06G1 - Illuminated push button, Harmony XB7, blue projecting, 22mm, integral LED, push and push to release, 1NO, 120V AC or any other Schneider Electric products, drop us a line or refer to our Common Questions section below. We have put together answers to frequent questions to help you further in making an considered decision about industrial and tertiary electrical components.

Remember, XB7NJ06G1 - Illuminated push button, Harmony XB7, blue projecting, 22mm, integral LED, push and push to release, 1NO, 120V AC from Schneider Electric is unfailing, affordable, and superior to other manufacturers in the Metal Modular XB7 category. Make it a part of your installation instantly. Take advantage of at Baltelec e-shop, your faithful dealer for all your Schneider Electric.

In our Baltelec.eu internet store you will discover Illuminated push button, Harmony XB7, blue projecting, 22mm, integral LED, push and push to release, 1NO, 120V AC - XB7NJ06G1 worth 11.64 €, which will be a dependable and up-to-date solution for your necessities. This commodity is invented by the Schneider Electric brand using the most recent technologies and obeys the pinnacle standards of assurance and efficacy. We propose goods from the Metal Modular XB7 category that associate durability and utility, which is an superb preference for various objectives. Regardless of whether you want instruments for small output or for competent industrial application, Illuminated push button, Harmony XB7, blue projecting, 22mm, integral LED, push and push to release, 1NO, 120V AC will be a trustworthy assistant in your occupation.

Baltelec efforts to make the securing process as manageable and fast as achievable for our patrons. We offer detailed summaries and high-quality photos of Illuminated push button, Harmony XB7, blue projecting, 22mm, integral LED, push and push to release, 1NO, 120V AC so that you can make an versed choice. A team of adepts is always ready to help you with any questions in the Metal Modular XB7 section connected to the preferment and use of supplies. We are affirmed that Illuminated push button, Harmony XB7, blue projecting, 22mm, integral LED, push and push to release, 1NO, 120V AC will meet your standards and become an important element of your hardware for just 11.64 €.
