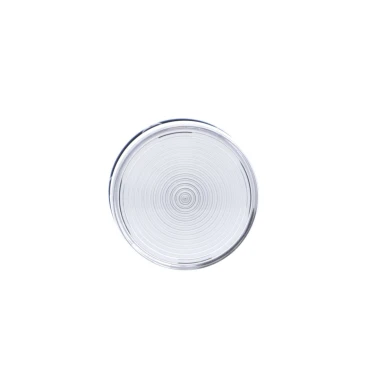

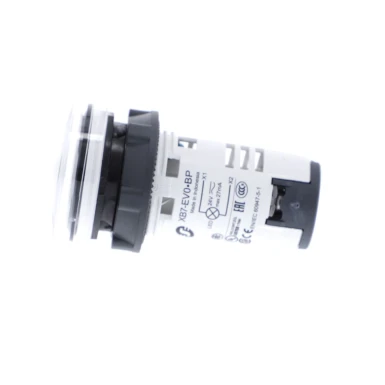

XB7EV07BP - Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC - Schneider Electric

In stock EAN: 3389119041201
XB7EV07BP - Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC - Schneider Electric - Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC - Schneider Electric - 0
XB7EV07BP - Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC - Schneider Electric - Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC - Schneider Electric - 1
XB7EV07BP - Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC - Schneider Electric - Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC - Schneider Electric - 2
XB7EV07BP - Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC - Schneider Electric - Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC - Schneider Electric - 3
XB7EV07BP - Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC - Schneider Electric - Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC - Schneider Electric - 4
EAN: 3389119041201
XB7EV07BP - Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC - Schneider Electric
5,49 € excl. VAT
6,81 € incl. VAT
Text About:
Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC - Schneider Electric
6,81 €
SPECIFICATIONS
Main
product range Harmony XB7
name of the device XB7
type of product or equipment Voyant lumineux
device mounting Trou de fixation - (diamètre: 22,5 mm 22,3 +0.4/0 se conformer à EN/CEI 60947-5-1
[ui] rated insulation voltage 250 V (degré de pollution 3) se conformer à EN/CEI 60947-1
type of signage Fixe
sale by indivisible quantity 10
Complementary
lamp base Tout LED
[un] rated nominal voltage 24 V CA/CC 50/60 Hz
capsule color Transparent
power consumption 20…27 mA
Handle front plate colour 29 mm
mounting diameter 22 mm
tightening torque 0,8…1,2 N.m se conformer à EN 60947-1
[uimp] rated impulse withstand voltage 6 kV se conformer à EN/CEI 60947-1
product weight 0,02 kg
description of iso n°1 terminals (X1-X2)PL
fixing method Écrou de fixation sous la tête: 2…2,4 N.m
signaling unit head shape Rond
fixing center distance >= 30 x 40 mm (support) métal - épaisseur: 1…6 mm
>= 30 x 40 mm (support) plastique - épaisseur: 2…6 mm
connection mode Borniers à vis-étrier, <= 2 x 1,5mm² avec embout se conformer à EN/CEI 60947-1
Borniers à vis-étrier, 1 x 0,22 à 2 x 2,5 mm² sans embout se conformer à EN/CEI 60947-1
lifetime 70000 H à la tension nominale et à 25 °C
width (w) 29 mm
supply voltage limits 19,2…30 V CC
21,6…26,4 V CA
screw head shape Transversal compatible avec JIS N°1 tournevis
Transversal compatible avec cruciforme Philips n° 1 tournevis
Transversal compatible avec pozidriv n°1 tournevis
Perforé compatible avec plat Ø 4 mm tournevis
Perforé compatible avec plat Ø 5,5 mm tournevis
product presentation Produit monolithique
depth 54 mm
light source LED
Environment
ip degree of protection IP20 se conformer à CEI 60529 (face arrière)
IP65 se conformer à CEI 60529 (face avant)
electromagnetic compatibility Émission de champ de perturbationclasse B se conformer à EN 55011
operating ambient temperature -25…55 °C
overvoltage category Classe II se conformer à CEI 60536
standards EN/CEI 60947-5-1
CSA C22.2 No 14
UL 508
EN/CEI 60947-1
JIS C8201-5-1
JIS C8201-1
storage room temperature -40…70 °C
mechanical shock resistance 50 gn (durée = 11 ms) pour accélération sur 1/2 sinusoïde se conformer à CEI 60068-2-27
vibration resistance 5 gn (f= 2…500 Hz) se conformer à CEI 60068-2-6
resistance to nema environment NEMA 4 se conformer à UL 50 E
NEMA 12 se conformer à UL 50 E
protective treatment TH
About this product

The XB7EV07BP - Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC is produced to match the requirements of industry experts, such as installers, electrical fitters, service organizations, and OEMs. XB7EV07BP furnishes extraordinary efficiency and value for specialists in the energy management industry. This Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC and other Metal Modular XB7 from Schneider Electric are accessible at the optimal price and fulfillment period through BaltElec, a credible distributor helping practitioners in their collection needs.

Buyers who have purchased Schneider Electric Metal Modular XB7 have steadily lauded the maker's durability. It has been mentioned that the superior efficiency of XB7EV07BP - Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC extends to a broad spectrum of applications. Its excellent features make it well-suited solution for assorted uses, ensuring the success of your industrial, tertiary, and automation projects.

BALTELEC concentrates in addressing industrial and tertiary professionals’ needs. We get the distinct standards and demands of our patrons in the domain. By cooperating with BaltElec, our partners secure access to the superior rates and availability of the top-of-the-line products like XB7EV07BP - Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC from Schneider Electric at the lowest price. Authorized buyers enjoy further discounts and preferred assistance.

Act now and get XB7EV07BP - Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC at our trusted and hassle-free digital marketplace. Don't delay in making this prudent move that promises the top quality and fulfills the targeted demands of traders like yourselves.

Should you experience any doubts or concerns about XB7EV07BP - Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC or any other Schneider Electric products, email us or refer to our Support section section below. We have compiled answers to typical queries to serve you further in making an well-informed decision about industrial and tertiary electrical components.

Remember, XB7EV07BP - Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC from Schneider Electric is credible, thrifty, and superior to industry peers in the Metal Modular XB7 category. Make it a part of your configuration right now. Snap up at Baltelec webstore, your preferred supplier for all your Schneider Electric.

In our Baltelec.eu electronic store you will discover Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC - XB7EV07BP worth 6.70 €, which will be a safe and current solution for your requirements. This item is formulated by the Schneider Electric brand using the newest technologies and follows the premier standards of well-being and productivity. We present merchandise from the Metal Modular XB7 category that merge strength and operability, which is an superb selection for various functions. Independent of whether you crave devices for small generation or for adept industrial implementation, Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC will be a secure associate in your undertaking.

Baltelec tries to make the shopping process as accessible and fast as workable for our users. We offer detailed reports and high-quality snapshots of Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC so that you can make an advised choice. A team of specialists is always ready to help you with any concerns in the Metal Modular XB7 section associated to the deciding and use of articles. We are assured that Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC will meet your prospects and become an significant element of your tools for just 6.70 €.

Popular Questions about Schneider Electric Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC:

  • What are the benefits of ordering XB7EV07BP from baltelec.eu?

    When you buy Schneider Electric Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC from BALTELEC, you obtain authentic quality Schneider Electric Metal Modular XB7 products at the finest pricing and delivery schedule. Furthermore, returning customersget further discounts and expedited requests handling.

  • How can I determine if Schneider Electric Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC is suitable for my contract?

    To confirm that XB7EV07BP meets the requirements of your drawings, we provide comprehensive information concerning product's technical specifications, features, and compatibility. You can access this information on the specific page of the product name. If you require further assistance, our customer support team is prepared to aid you in making an well-informed choice.

  • Which warranty coverage is offered for XB7EV07BP?

    BaltElec online store emphasizes the quality of the items we sell. The default warranty coverage for Schneider Electric Metal Modular XB7 including Schneider Electric Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC is 1 year. However, it varies depending on the particular item, product category, and might be longer. You can discover detailed guarantee information on the Schneider Electric Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC dedicated page or by getting in touch with our customer support team.

  • Can you arrange international shipping for Schneider Electric XB7EV07BP and other Schneider Electric items?

    Absolutely. Apart from catering to Estonia, Latvia, Lithuania and other European Union countries, we offer global shipping for Schneider Electric Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC. However that shipping options, costs, and shipping times may vary depending on the destination. For bulk acquisitions, please consult Baltelec.eu sales representatives.

  • Do Schneider Electric MBC offered by BaltElec meet global norms for safety and reliability?

    Completely. All Schneider Electric items provided at Baltelec.eu web store adhere to global norms such as IEC 60898-1 and carry the CE mark. Such norms guarantee that the items fulfill strict safety, technical, dependability, and functional requirements.

  • Can BaltElec offer assistance on integrating renewable energy solutions, such as solar energy systems or wind energy converters, into my projects?

    Yes!  Baltelec.eu understands the relevance of sustainable energy incorporation within projects. Our group of experts can assist you in selecting the right Schneider Electric items, to integrate them into your renewable energy projects}. We can offer guidance on integrating solar power systems, wind power converters, and other eco-friendly options to optimize power generation and effectiveness.

  • Do you have energy-efficient options available within the Metal Modular XB7 category to encourage environmental sustainability?

    Certainly! BaltElec offers various green solutions in the category of Metal Modular XB7 that are in line with environmental sustainability objectives. Our brand's Schneider Electric products, such as the XB7EV07BP, are designed with energy conservation in mind. By using these products into your electrical system, you can enhance energy usage and reduce environmental impact. Additionally, we offer competitive pricing for our green Schneider Electric products,, making them an economical choice for advocating sustainability.

  • Are XB7EV07BP offered by Baltelec.eu legitimate?

    Yes, we solely offer authentic Schneider Electric products, such as Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 24V AC DC. We source our products only through official distribution channels to guarantee their genuineness and excellent quality.
