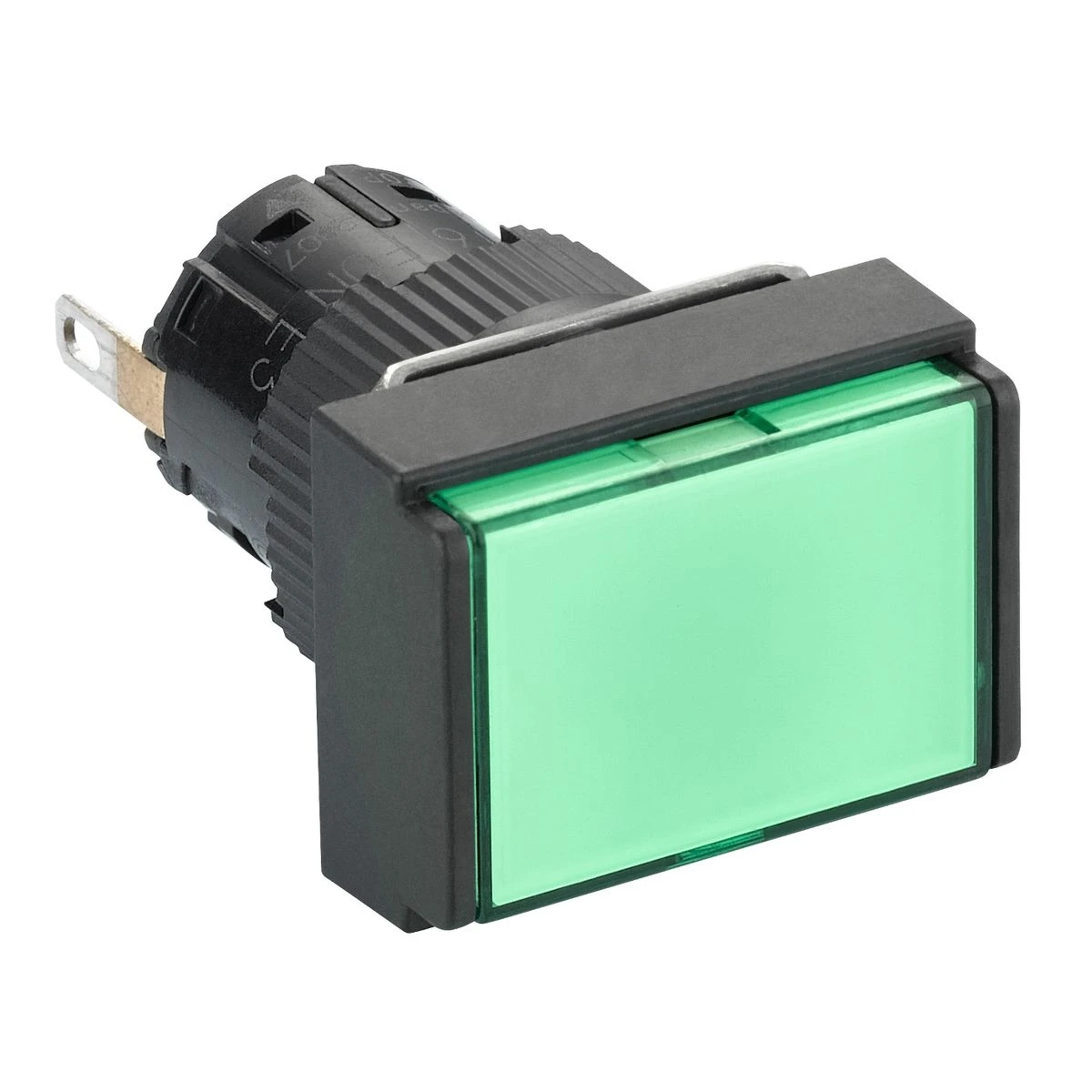

XB6EDV3BP - Monolithic pilot light, Harmony XB6E, rectangular Ш 16 IP65 green, integral LED 24VDCpolarised connector - Schneider Electric

Expected in 2-4 weeks

19,41 € excl. VAT

23,69 € incl. VAT

Text About:

Monolithic pilot light, Harmony XB6E, rectangular Ш 16 IP65 green, integral LED 24VDCpolarised connector - Schneider Electric

In cart

23,69 €

SPECIFICATIONS

Main

Device short name XB6E

service life 30000 h

[ui] rated insulation voltage 250 V (pollution degree 3) conforming to IEC 60947-1

Complementary

Cap/operator or lens colour Green

Product certifications CCC
cURus

mounting diameter 16 mm

Product or component type Monolithic pilot light

tightening torque 0.6…1 N.m

[uimp] rated impulse withstand voltage 2.5 kV conforming to IEC 60947-1

[us] rated supply voltage 24 V DC polarised

Current consumption 10 mA

Connections - terminals Insulated faston, connection size: 2.8 x 0.5 mm
Solder terminal, clamping capacity: <= 0.75 mm² AWG 19
Fast connector socket

Light block supply Direct

marking CE

bezel material Plastic

Sale per indivisible quantity 5

Signalling type Steady

Net weight 0.006 kg

Operating position Any position

Shape of signaling unit head Rectangular

light source Integral LED

Shock resistance 10 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP65 conforming to IEC 60529

Range of product Harmony XB6E

ambient air temperature for operation -10…55 °C

overvoltage category II conforming to IEC 60536

standards JIS C 852
IEC 60947-5-1
UL 508
IEC 60947-1
JIS C8201-5-1
CSA C22.2 No 14
JIS C8201-1

vibration resistance 1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6
