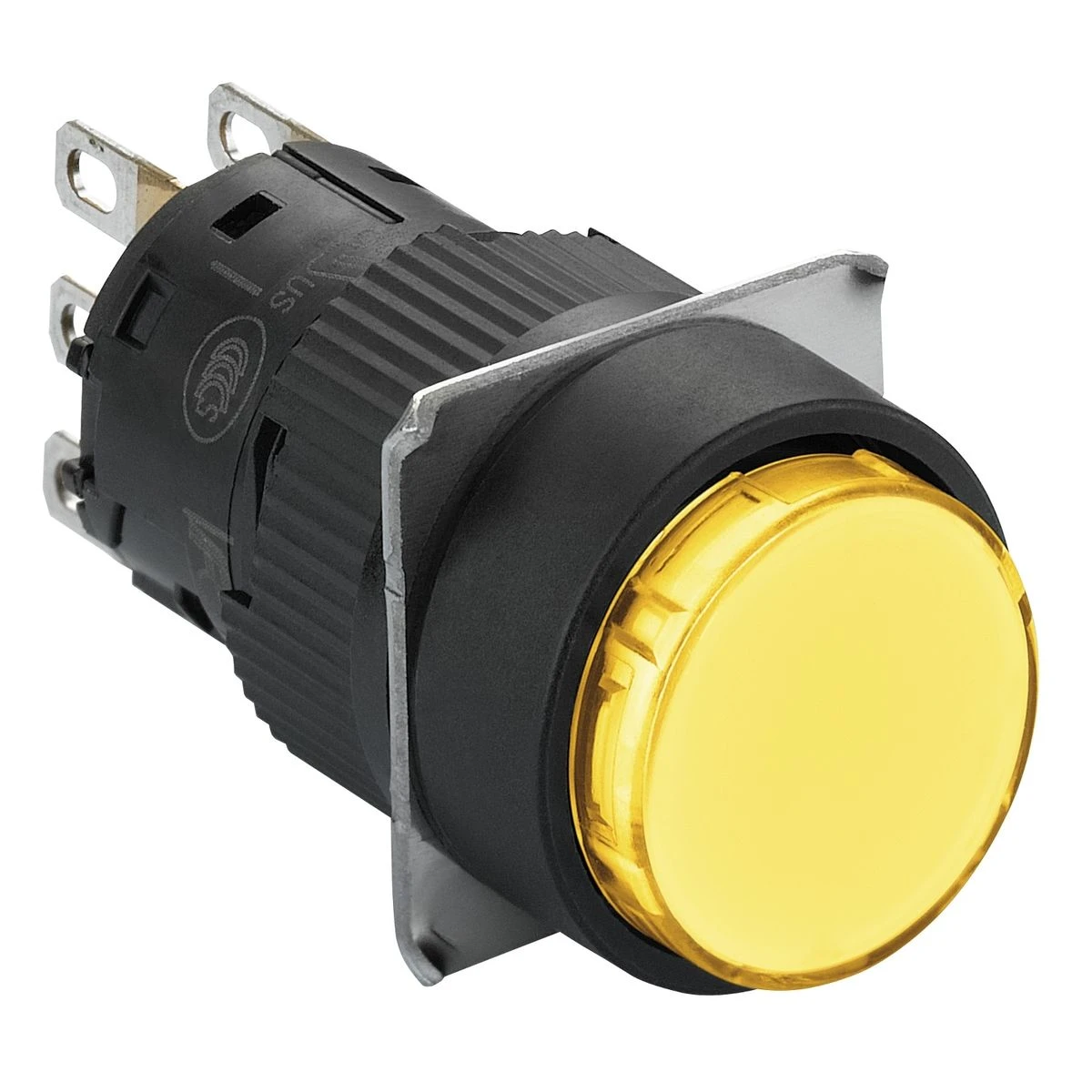

XB6EAW5J1P - Illuminated monolithic push button, Harmony XB6E, round yellow pushbutton Ш 16 flush spring return 12 VDC polarised 1CO - Schneider Electric

Upon request only
XB6EAW5J1P - Illuminated monolithic push button, Harmony XB6E, round yellow pushbutton Ш 16 flush spring return 12 VDC polarised 1CO - Schneider Electric - Illuminated monolithic push button, Harmony XB6E, round yellow pushbutton Ш 16 flush spring return 12 VDC polarised 1CO - Schneider Electric - 0
XB6EAW5J1P - Illuminated monolithic push button, Harmony XB6E, round yellow pushbutton Ш 16 flush spring return 12 VDC polarised 1CO - Schneider Electric
excl. VAT
incl. VAT
Text About:
Illuminated monolithic push button, Harmony XB6E, round yellow pushbutton Ш 16 flush spring return 12 VDC polarised 1CO - Schneider Electric
SPECIFICATIONS
Main
Device short name XB6E
service life 30000 h
Complementary
[ie] rated operational current 1.5 A at 120 V, AC-12 conforming to EN/IEC 60947-5-1
1 A at 240 V, AC-12 conforming to EN/IEC 60947-5-1
1 A at 24 V, DC-12 conforming to EN/IEC 60947-5-1
0.7 A at 24 V, DC-13 conforming to EN/IEC 60947-5-1
0.2 A at 125 V, DC-12 conforming to EN/IEC 60947-5-1
0.15 A at 125 V, DC-13 conforming to EN/IEC 60947-5-1
[ith] conventional thermal current 3 A (fast connector socket)
5 A
Product certifications cURus
CCC
mounting diameter 16 mm
Product or component type Illuminated monolithic push-button
[us] rated supply voltage 12 V DC polarised
Current consumption 10 mA
Connections - terminals Insulated faston, connection size: 2.8 x 0.5 mm
Solder terminal, clamping capacity: <= 0.75 mm² AWG 19
Fast connector socket
marking CE
bezel material Plastic
Contacts material Gold-flashed silver
contact operation Snap action
Contacts type and composition 1 C/O
Sale per indivisible quantity 5
Signalling type Steady
Type of operator spring return
Net weight 0.006 kg
Operating position Any position
contact resistance 50 mOhm at 1/6 V
mechanical durability 1000000 cycles
electrical durability 100000 cycles, AC, 0.7 A at 220 V conforming to EN/IEC 60947-5-1 appendix C
Shape of signaling unit head Round
Operator profile Yellow flush
light source Integral LED
Shock resistance 10 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Short-circuit protection 2 A cartridge fuse type gG
Environment
Ambient air temp for storage/transportation -40…70 °C
ip degree of protection IP65 conforming to IEC 60529
Range of product Harmony XB6E
ambient air temperature for operation -10…55 °C
standards IEC 60947-5-1
JIS C 4520
JIS C 852
CSA C22.2 No 14
UL 508
IEC 60947-1
vibration resistance 1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6
About this product

The XB6EAW5J1P - Illuminated monolithic push button, Harmony XB6E, round yellow pushbutton Ш 16 flush spring return 12 VDC polarised 1CO is produced to cater to the expectations of sector experts, such as switchboard fabricators, electricians, upkeep firms, and OEMs. XB6EAW5J1P offers impressive integrity and merit for designers in the power management industry. This Illuminated monolithic push button, Harmony XB6E, round yellow pushbutton Ш 16 flush spring return 12 VDC polarised 1CO and other Plastic Modular XB6 from Schneider Electric are procurable at the most economical price and delivery schedule through BALTELEC online store, a reliable purveyor supplying contractors in their obtaining needs.

Users who have acquired Schneider Electric Plastic Modular XB6 have consistently acclaimed the producer's reliability. It has been emphasized that the superlative competence of XB6EAW5J1P - Illuminated monolithic push button, Harmony XB6E, round yellow pushbutton Ш 16 flush spring return 12 VDC polarised 1CO extends to a collection of use. Its superior aspects make it suitable for wide-ranging specifications, securing success in your industrial, tertiary, and automation endeavors.

Our experts dedicates in fulfilling industrial and tertiary professionals’ needs. We grasp the specific criteria and anticipations of our partners in the domain. By cooperating with our experts, your company acquire access to the finest charges and supply timeline of the top-of-the-line products like XB6EAW5J1P - Illuminated monolithic push button, Harmony XB6E, round yellow pushbutton Ш 16 flush spring return 12 VDC polarised 1CO from Schneider Electric at a reasonable price. Our registered accounts benefit from special savings and priority service.

Don't wait and grab XB6EAW5J1P - Illuminated monolithic push button, Harmony XB6E, round yellow pushbutton Ш 16 flush spring return 12 VDC polarised 1CO at our trusted and efficient webshop. Don't delay in making this thoughtful plan that secures the highest quality and fulfills the distinct necessities of buyers like your company.

In case you have any queries or concerns about XB6EAW5J1P - Illuminated monolithic push button, Harmony XB6E, round yellow pushbutton Ш 16 flush spring return 12 VDC polarised 1CO or any other Schneider Electric products, communicate with us or refer to our Frequently Asked Queries section below. We have consolidated answers to regular concerns to serve you further in making an smart decision about industrial and tertiary electrical components.

Remember, XB6EAW5J1P - Illuminated monolithic push button, Harmony XB6E, round yellow pushbutton Ш 16 flush spring return 12 VDC polarised 1CO from Schneider Electric is secure, wallet-friendly, and outstanding to other vendors in the Plastic Modular XB6 category. Don't hesitate to make it a part of your solution at once. Obtain at Baltelec webstore, your reliable retailer for all your professional electrical equipment and automation needs.

In our Baltelec.eu digital store you will find Illuminated monolithic push button, Harmony XB6E, round yellow pushbutton Ш 16 flush spring return 12 VDC polarised 1CO - XB6EAW5J1P worth 22.08 €, which will be a reliable and new solution for your desires. This product is formulated by the Schneider Electric brand using the up-to-the-minute technologies and complies with the highest standards of defense and capacity. We provide objects from the Plastic Modular XB6 category that blend strength and practicality, which is an first-rate choice for various functions. Not minding of whether you need hardware for small production or for proficient industrial exertion, Illuminated monolithic push button, Harmony XB6E, round yellow pushbutton Ш 16 flush spring return 12 VDC polarised 1CO will be a constant adjunct in your job.

Baltelec attempts to make the attaining process as comfortable and fast as accomplishable for our buyers. We offer detailed outlines and high-quality shots of Illuminated monolithic push button, Harmony XB6E, round yellow pushbutton Ш 16 flush spring return 12 VDC polarised 1CO so that you can make an aware choice. A team of experts is always ready to help you with any concerns in the Plastic Modular XB6 section associated to the choosing and use of items. We are affirmed that Illuminated monolithic push button, Harmony XB6E, round yellow pushbutton Ш 16 flush spring return 12 VDC polarised 1CO will meet your standards and become an indispensable element of your device for just 22.08 €.

Popular Questions about Schneider Electric Illuminated monolithic push button, Harmony XB6E, round yellow pushbutton Ш 16 flush spring return 12 VDC polarised 1CO:
