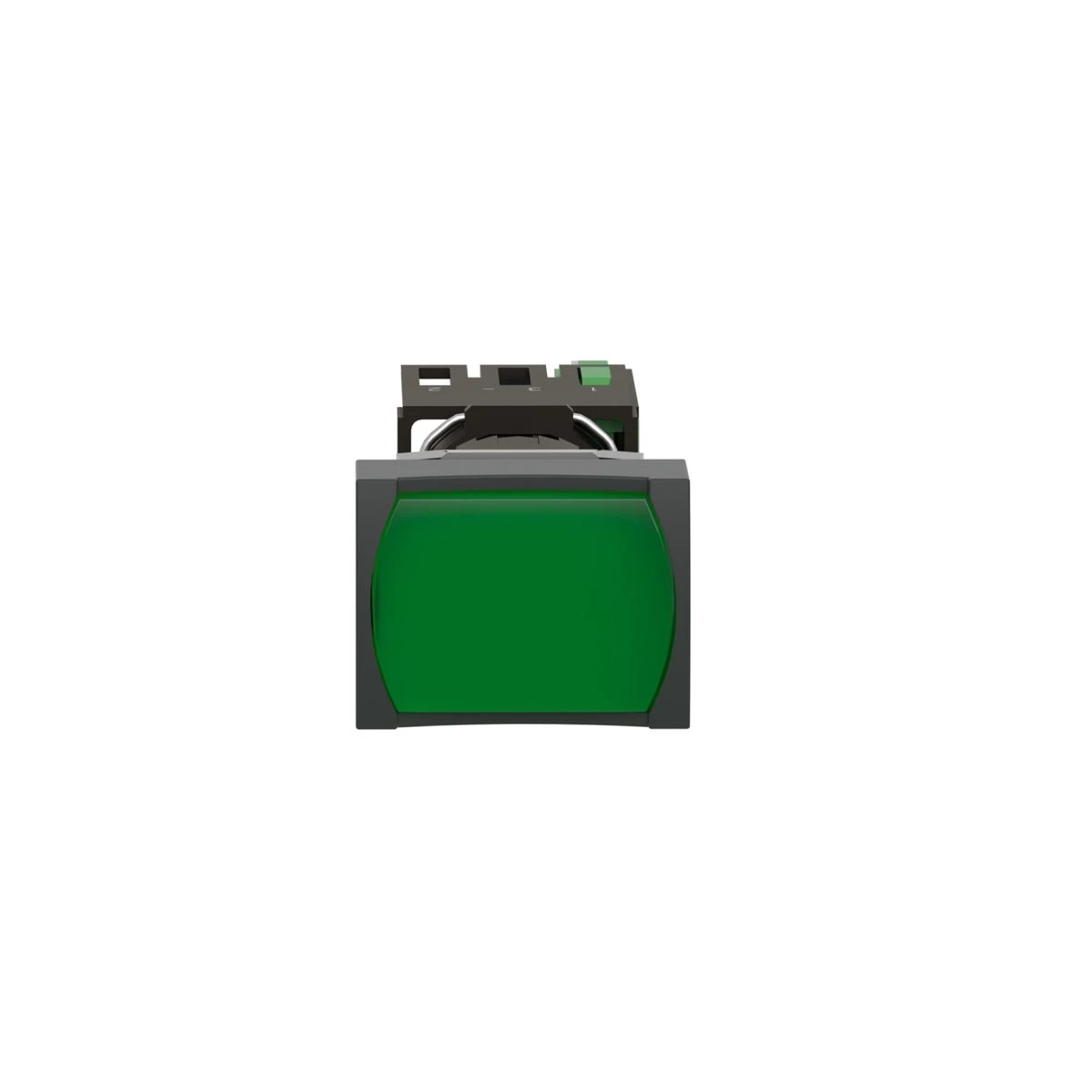

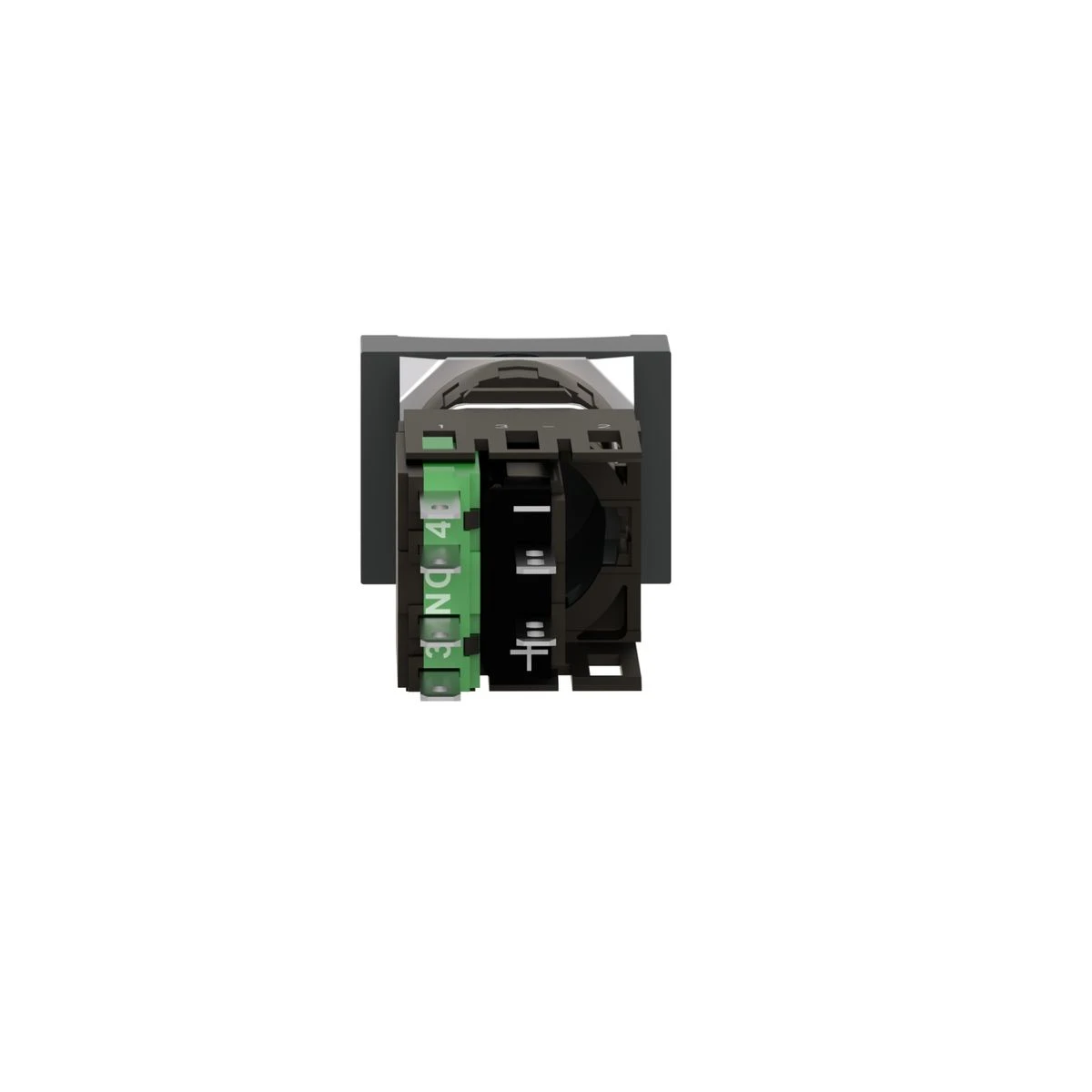

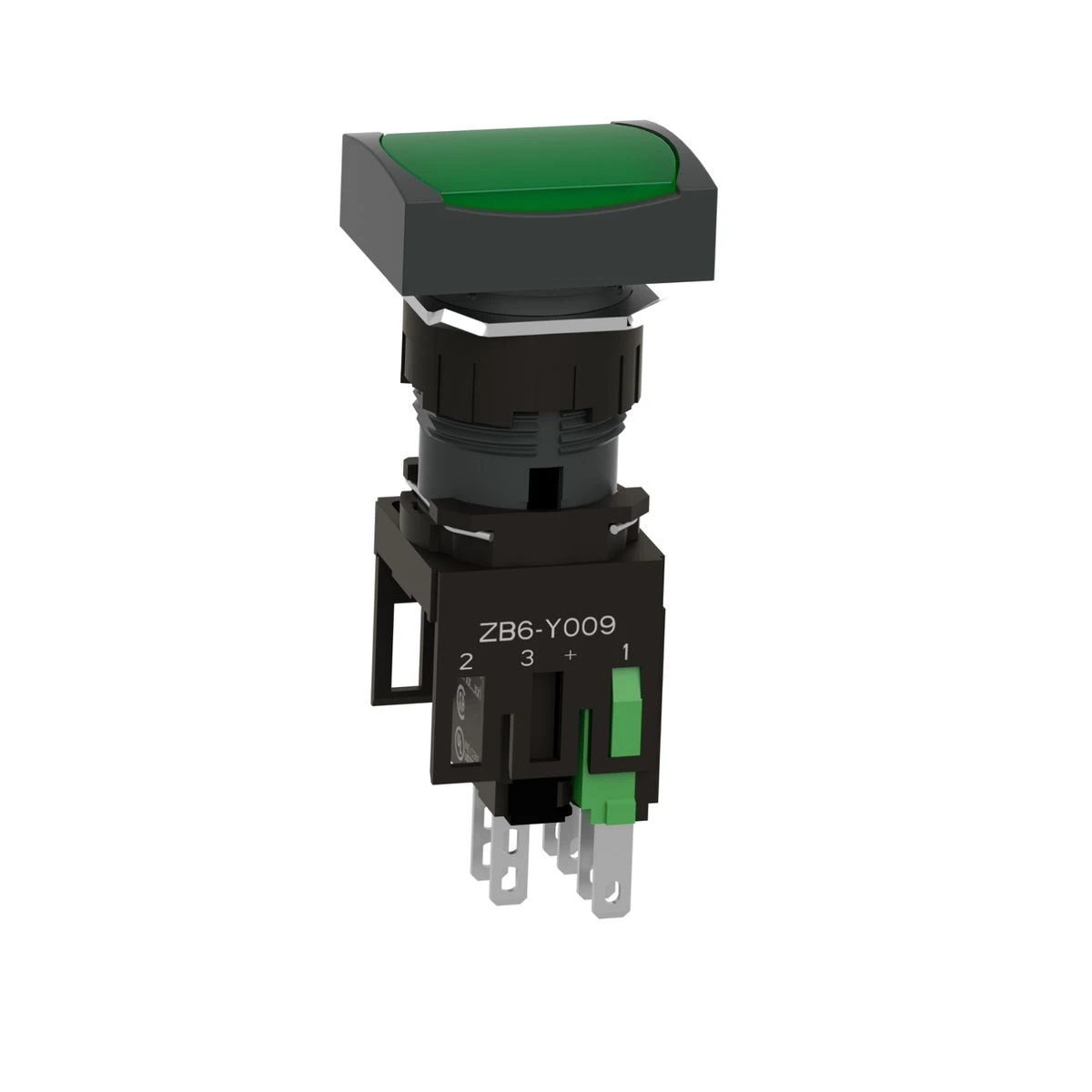

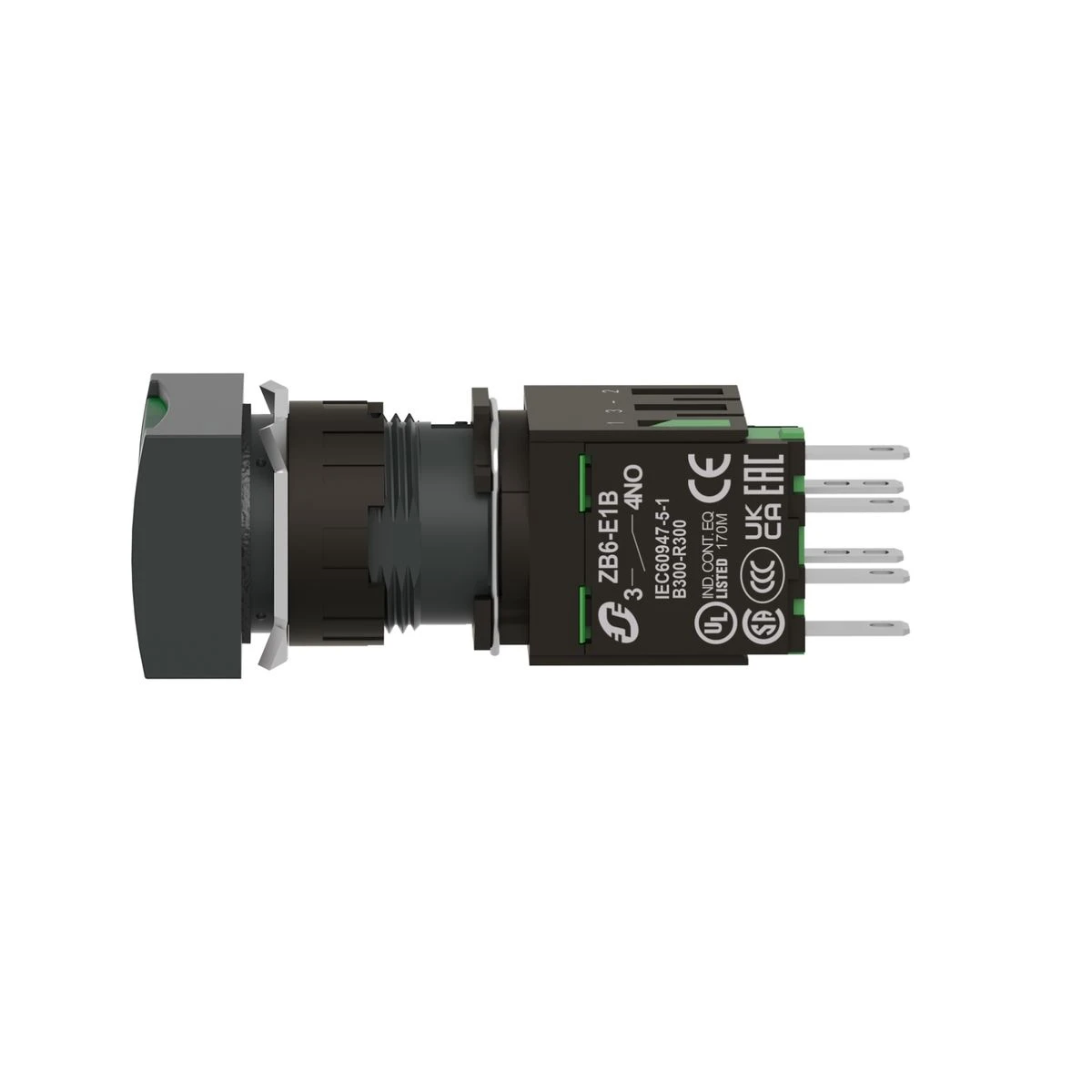

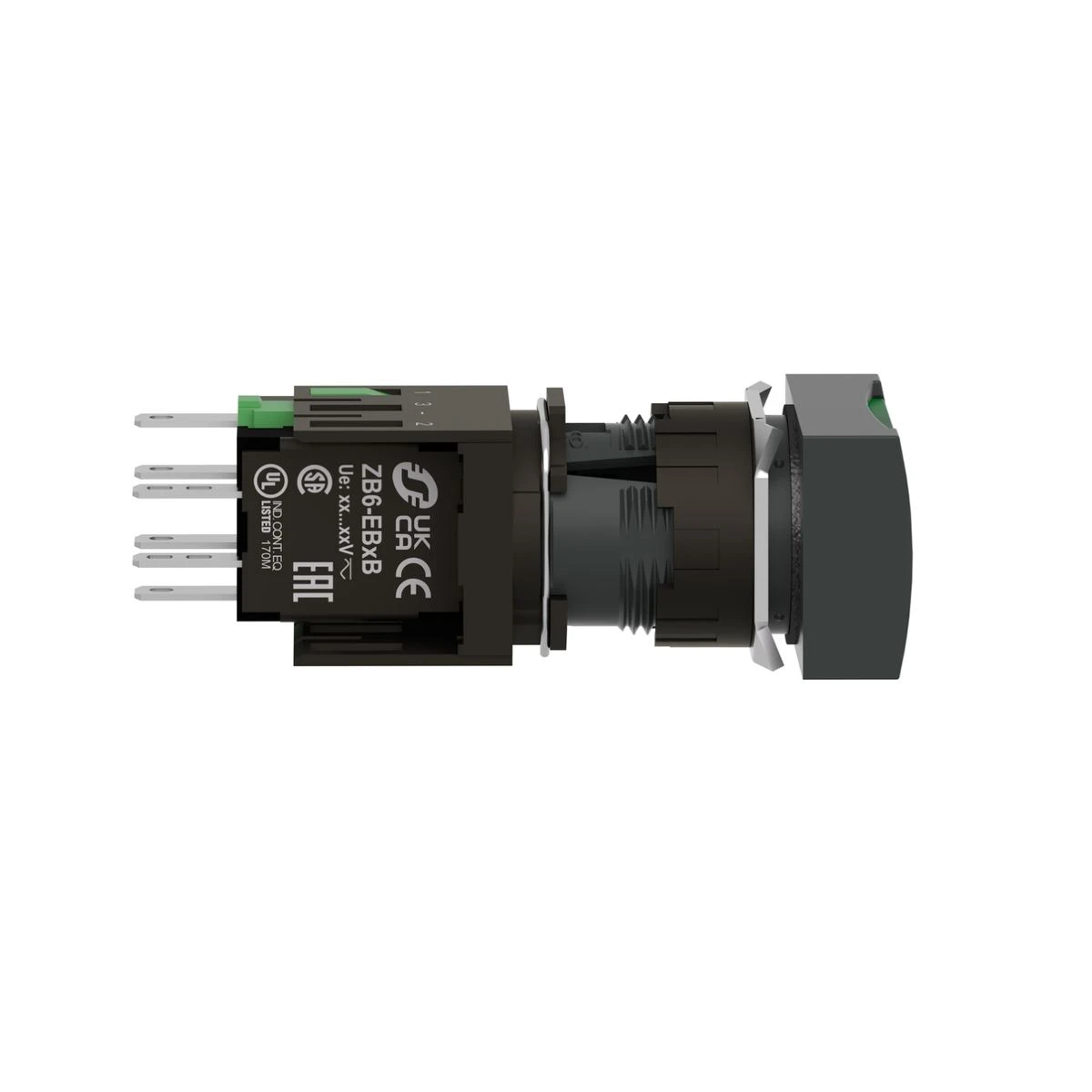

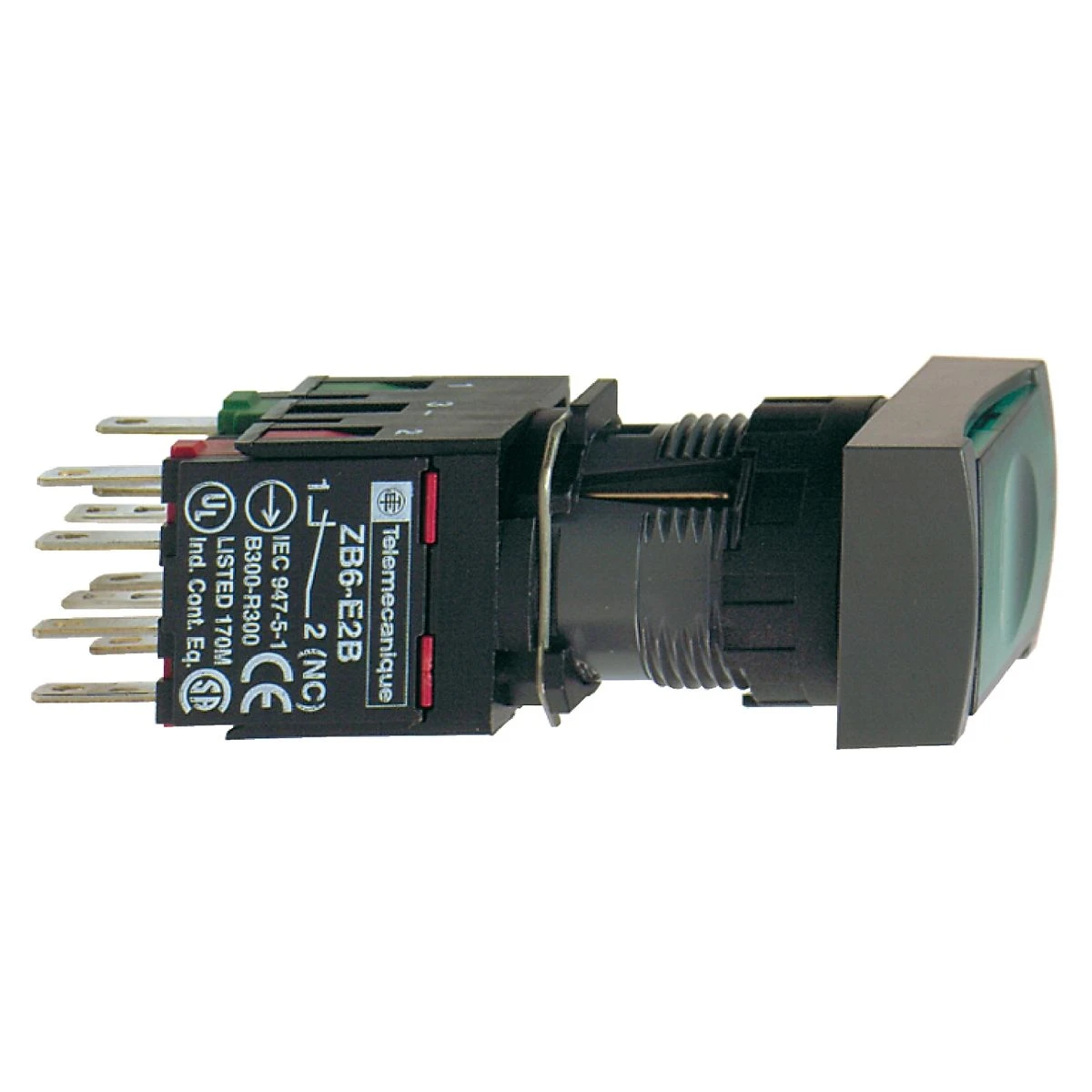

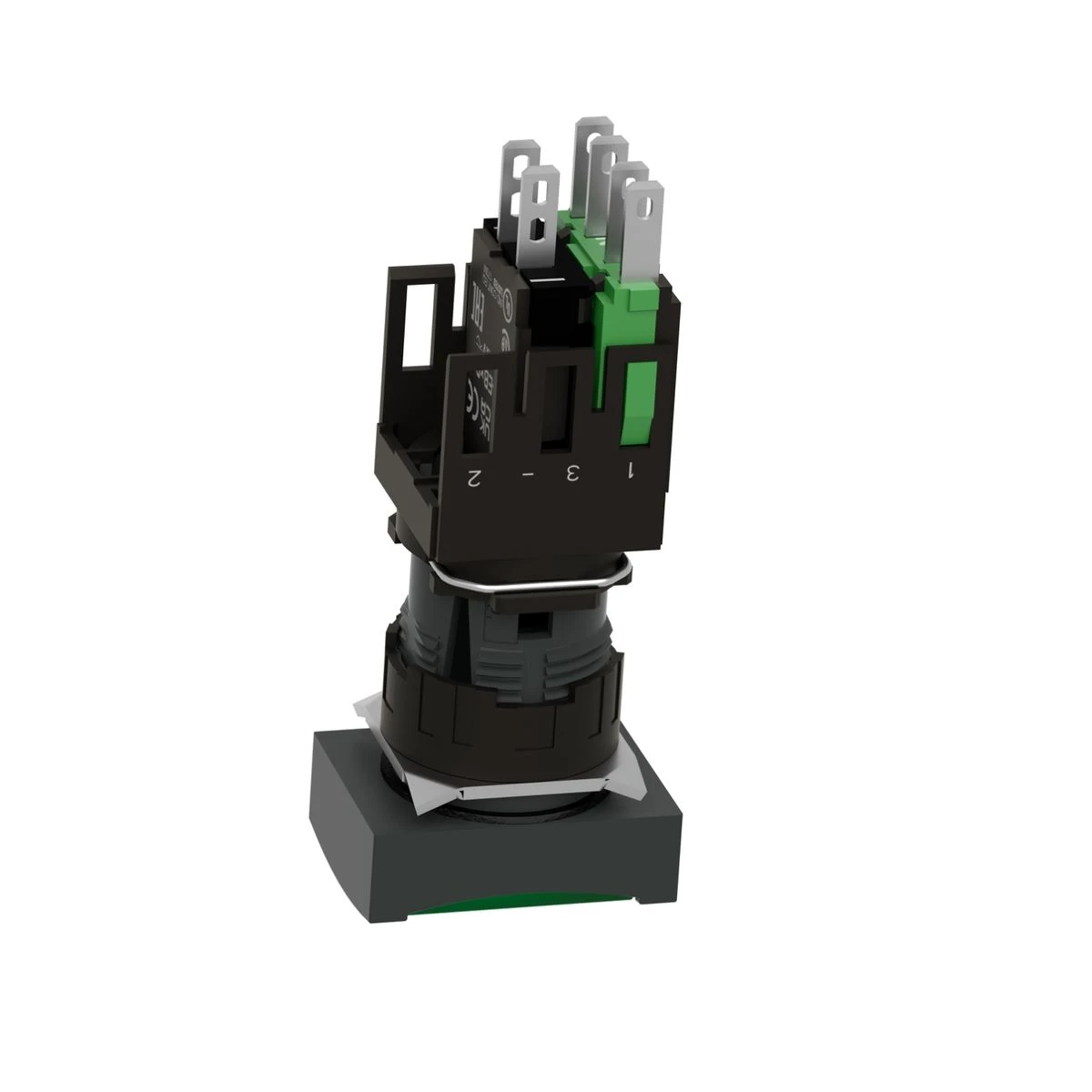

XB6DW3B1B - Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu - Schneider Electric

Pending restock
XB6DW3B1B - Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu - Schneider Electric - Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu - Schneider Electric - 0
XB6DW3B1B - Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu - Schneider Electric - Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu - Schneider Electric - 1
XB6DW3B1B - Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu - Schneider Electric - Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu - Schneider Electric - 2
XB6DW3B1B - Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu - Schneider Electric - Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu - Schneider Electric - 3
XB6DW3B1B - Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu - Schneider Electric - Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu - Schneider Electric - 4
XB6DW3B1B - Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu - Schneider Electric - Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu - Schneider Electric - 5
XB6DW3B1B - Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu - Schneider Electric - Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu - Schneider Electric - 6
XB6DW3B1B - Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu - Schneider Electric
19,01 € excl. VAT
23,57 € incl. VAT
Text About:
Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu - Schneider Electric
23,57 €
SPECIFICATIONS
Main
Device short name XB6
[ui] rated insulation voltage 250 V (pollution degree 3) conforming to EN/IEC 60947-1
Complementary
[ie] rated operational current 3 A at 120 V, AC-15, B300 conforming to EN/IEC 60947-5-1
1.5 A at 240 V, AC-15, B300 conforming to EN/IEC 60947-5-1
0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1
0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1
Product certifications UL
CCC
GOST
CSA
mounting diameter 16 mm
Product or component type Complete illuminated push-button
[uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 60947-1
[us] rated supply voltage 12...24 V AC/DC
Current consumption 15 mA
nema degree of protection NEMA 13 conforming to UL 50
NEMA 4 conforming to UL 50
NEMA 4X conforming to UL 50
NEMA 13 conforming to CSA C22.2 No 94
NEMA 4 conforming to CSA C22.2 No 94
NEMA 4X conforming to CSA C22.2 No 94
Bulb base Integral LED
Connections - terminals Faston connectors, connection size: 2.8 x 0.5 mm
bezel material Plastic
Cad overall depth 57 mm
Contacts material Silver alloy (Ag/Ni)
Cad overall height 18 mm
contact operation Slow-break
Contacts type and composition 1 NO
Electrical shock protection class Class II conforming to IEC 61140
Operating travel 1 mm (NO changing electrical state)
3.5 mm (total travel)
Cad overall width 24 mm
Sale per indivisible quantity 1
electrical reliability Λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4
Signalling type Steady
supply voltage limits 6…30 V AC/DC
Type of operator spring return
Net weight 0.022 kg
Operating position Any position
electrical durability 1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
Positive opening With conforming to EN/IEC 60947-5-1 appendix K
Shape of signaling unit head Rectangular
Operating force 3.5 N NO changing electrical state
Operator profile Green flush, unmarked
light source LED
Resistance to electrostatic discharge 6 kV on contact (on metal parts) conforming to IEC 61000-4-2
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
Surge withstand 1 kV direct contact conforming to IEC 61000-4-5
2 kV in free air conforming to IEC 61000-4-5
Short-circuit protection 6 A cartridge fuse type gG
Terminals description iso n°1 (13-14)NON
Environment
Ambient air temp for storage/transportation -40…70 °C
ip degree of protection IP65 conforming to IEC 60529
Range of product Harmony XB6
ambient air temperature for operation -25…70 °C
standards JIS C 852
EN/IEC 60947-5-5
EN/IEC 60947-5-1
JIS C 4520
EN/IEC 60947-1
CSA C22.2 No 14
electromagnetic emission Class B conforming to IEC 55011
vibration resistance +/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
protective treatment TC
resistance to fast transients 2 kV conforming to IEC 61000-4-4
About this product

The XB6DW3B1B - Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu is crafted to respond to the conditions of trade professionals, such as switchboard fabricators, wiring specialists, maintenance service providers, and Industry suppliers. XB6DW3B1B delivers superb capability and advantages for engineers in the electrotechnical industry. This Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu and other Plastic Modular XB6 from Schneider Electric can be acquired at the most competitive price and delivery schedule through baltelec.eu, a reputable dealer assisting engineers in their buying needs.

Contractors who have secured Schneider Electric Plastic Modular XB6 have continuously extolled the creator's dependability. It has been outlined that the superior competence of XB6DW3B1B - Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu extends to a collection of applications. Its premium specifications make it proper pick to suit a variety of needs. Your developed solution will excel in quality, energy-efficiency and price.

Our professionals specializes in addressing industrial and tertiary professionals’ needs. We appreciate the specific specifications and standards of our patrons in the realm. By teaming up with our team, your organization gain access to the leading fees and delivery period of excellent products like XB6DW3B1B - Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu from Schneider Electric at a competitive price. Account holders take advantage of exclusive discounts and first-class attention.

Start immediately and buy XB6DW3B1B - Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu at our protected and intuitive online portal. Don't delay in making this astute move that secures the paramount quality and satisfies the particular specifications of contractors like your firm.

In the event of any inquiries or concerns about XB6DW3B1B - Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu or any other Schneider Electric products, get in touch with us or refer to our FAQ section section below. We have gathered answers to standard requests for information to guide you further in making an informed decision about industrial and tertiary electrical components.

Remember, XB6DW3B1B - Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu from Schneider Electric is steady, low-cost, and premier to alternative suppliers in the Plastic Modular XB6 category. Don't hesitate to make it a part of your setup at once. Purchase at Baltelec e-shop, your esteemed seller for all your Schneider Electric.

In our Baltelec.eu internet store you will identify Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu - XB6DW3B1B worth 23.19 €, which will be a constant and innovative solution for your needs. This goods is formulated by the Schneider Electric brand using the up-to-the-minute technologies and adheres to the pinnacle standards of security and capacity. We propose produce from the Plastic Modular XB6 category that fuse longevity and workability, which is an outstanding possibility for various tasks. Notwithstanding of whether you desire apparatus for small generation or for adept industrial application, Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu will be a constant aid in your assignment.

Baltelec strives to make the procuring process as accessible and fast as realizable for our consumers. We offer detailed reports and high-quality visuals of Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu so that you can make an versed choice. A team of professionals is always ready to help you with any concerns in the Plastic Modular XB6 section affiliated to the selection and use of goods. We are guaranteed that Complete illuminated push button, Harmony XB6, green rectang flush illum pushbutton ? 16 spring retu will meet your expectations and become an significant element of your hardware for just 23.19 €.
