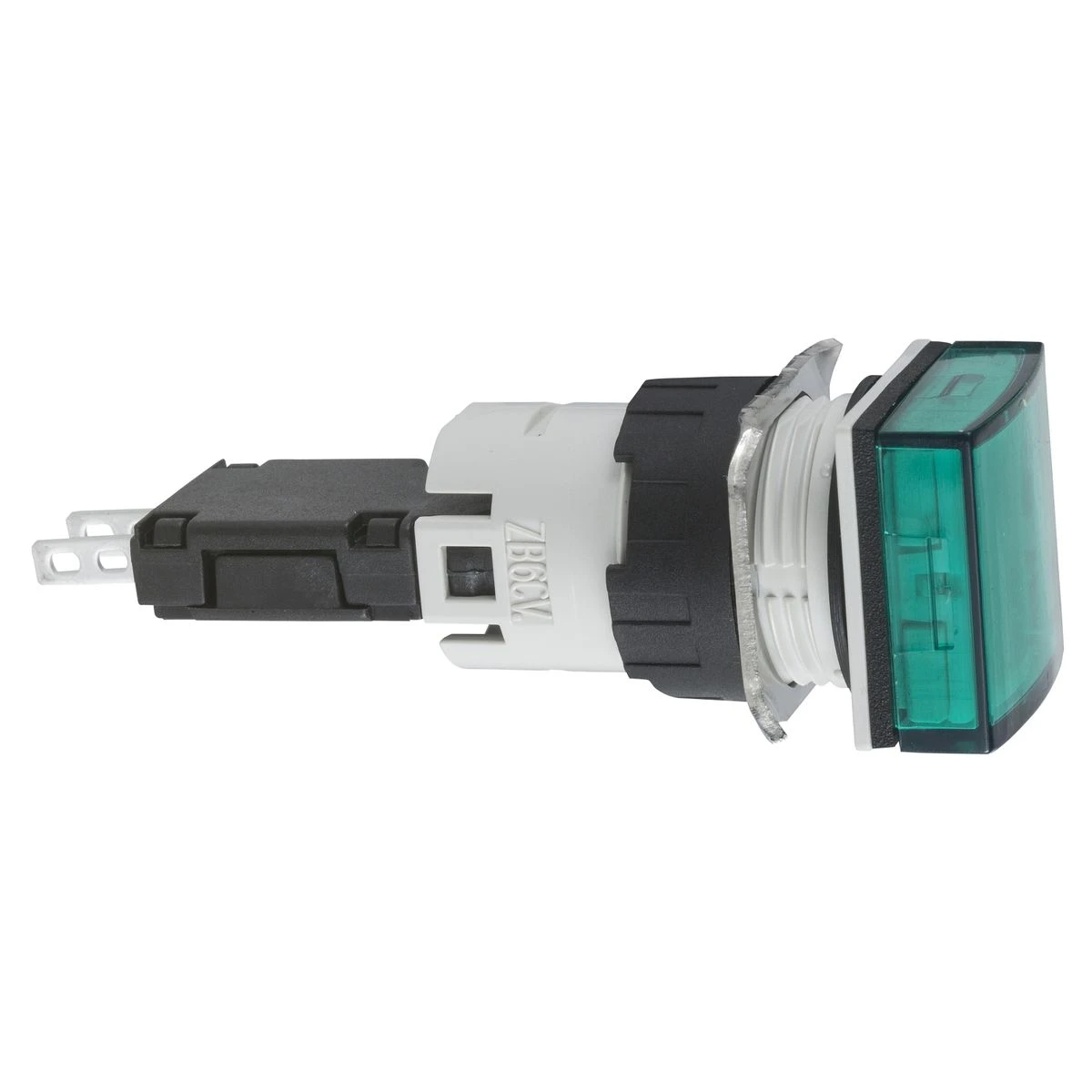

XB6CV3BB - Complete pilot light, Harmony XB6, square green, plastic, 16mm, integral LED, 12...24V - Schneider Electric

Pending restock
XB6CV3BB - Complete pilot light, Harmony XB6, square green, plastic, 16mm, integral LED, 12...24V - Schneider Electric - Complete pilot light, Harmony XB6, square green, plastic, 16mm, integral LED, 12...24V - Schneider Electric - 0
XB6CV3BB - Complete pilot light, Harmony XB6, square green, plastic, 16mm, integral LED, 12...24V - Schneider Electric
11,53 € excl. VAT
14,30 € incl. VAT
Text About:
Complete pilot light, Harmony XB6, square green, plastic, 16mm, integral LED, 12...24V - Schneider Electric
14,30 €
SPECIFICATIONS
Main
Device short name XB6
[ui] rated insulation voltage 250 V (pollution degree 2) conforming to EN/IEC 60947-1
Complementary
Cap/operator or lens colour Green
Product certifications CCC
UL
GOST
CSA
Handle front plate colour 18 mm
mounting diameter 16 mm
Product or component type Complete pilot light
[uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 60947-1
[us] rated supply voltage 12...24 V AC/DC
Current consumption 15 mA
nema degree of protection NEMA 13 conforming to UL 50
NEMA 4 conforming to UL 50
NEMA 4X conforming to UL 50
NEMA 13 conforming to CSA C22.2 No 94
NEMA 4 conforming to CSA C22.2 No 94
NEMA 4X conforming to CSA C22.2 No 94
Bulb base Integral LED
Connections - terminals Faston connectors, connection size: 2.8 x 0.5 mm
Light block supply Direct
bezel material Plastic
Electrical shock protection class Class II conforming to IEC 61140
Sale per indivisible quantity 1
width (w) 18 mm
Signalling type Steady
supply voltage limits 6…30 V AC/DC
Net weight 0.015 kg
Operating position Any position
depth 57 mm
Shape of signaling unit head Square
light source LED
Resistance to electrostatic discharge 6 kV on contact (on metal parts) conforming to IEC 61000-4-2
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
Surge withstand 1 kV direct contact conforming to IEC 61000-4-5
2 kV in free air conforming to IEC 61000-4-5
Terminals description iso n°1 (+ -)PL
Environment
Ambient air temp for storage/transportation -40…70 °C
ip degree of protection IP65 conforming to IEC 60529
Range of product Harmony XB6
ambient air temperature for operation -25…70 °C
standards EN/IEC 60947-5-1
EN/IEC 60947-5-5
UL 508
JIS C 852
JIS C8201-5-1
CSA C22.2 No 14
EN/IEC 60947-1
JIS C8201-1
electromagnetic emission Class B conforming to EN 55011
vibration resistance +/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
protective treatment TC
resistance to fast transients 2 kV conforming to IEC 61000-4-4
About this product

The XB6CV3BB - Complete pilot light, Harmony XB6, square green, plastic, 16mm, integral LED, 12...24V is conceived to cater to the necessities of technical experts, such as electrical contractors, electric engineers, service organizations, and original producers. XB6CV3BB provides first-rate performance and merit for engineers in the power management industry. This Complete pilot light, Harmony XB6, square green, plastic, 16mm, integral LED, 12...24V and other Plastic Modular XB6 from Schneider Electric can be bought at the most affordable rate and shipment duration through BALTELEC online store, a well-regarded distributor attending to practitioners in their sourcing needs.

Consumers who have selected Schneider Electric Plastic Modular XB6 have repeatedly praised the producer's sturdiness. It has been specified that the unmatched competence of XB6CV3BB - Complete pilot light, Harmony XB6, square green, plastic, 16mm, integral LED, 12...24V extends to a collection of utilizations. Its ideal properties make it appropriate to suit a variety of needs, securing success in your industrial, tertiary, and automation endeavors.

Our team specializes in meeting industrial and tertiary professionals’ needs. We appreciate the customized needs and demands of our partners in the sector. By joining forces with Baltelec.eu, your enterprise obtain access to the finest costs and delivery period of top-tier products like XB6CV3BB - Complete pilot light, Harmony XB6, square green, plastic, 16mm, integral LED, 12...24V from Schneider Electric at an economical price. Account holders take pleasure in more savings and first-class attention.

Make a move and get XB6CV3BB - Complete pilot light, Harmony XB6, square green, plastic, 16mm, integral LED, 12...24V at our protected and streamlined web store. Don't delay in making this savvy choice that ensures the finest quality and complies with the unique standards of vendors like your organization.

In the event of any uncertainties or concerns about XB6CV3BB - Complete pilot light, Harmony XB6, square green, plastic, 16mm, integral LED, 12...24V or any other Schneider Electric products, email us or refer to our Common Questions section below. We have compiled answers to standard inquiries to back you further in making an enlightened decision about industrial and tertiary electrical components.

Remember, XB6CV3BB - Complete pilot light, Harmony XB6, square green, plastic, 16mm, integral LED, 12...24V from Schneider Electric is unfailing, budget-friendly, and elite to other vendors in the Plastic Modular XB6 category. Feel free to make it a part of your inventory straight away. Obtain at BALTELEC, your preferred supplier for all your Schneider Electric.

In our Baltelec.eu dot-com store you will find Complete pilot light, Harmony XB6, square green, plastic, 16mm, integral LED, 12...24V - XB6CV3BB worth 14.07 €, which will be a constant and up-to-date solution for your wishes. This article is constructed by the Schneider Electric brand using the up-to-the-minute technologies and fulfills the pinnacle standards of well-being and capability. We extend things from the Plastic Modular XB6 category that unite robustness and operability, which is an top-notch preference for various tasks. Notwithstanding of whether you seek hardware for small formation or for experienced industrial utilization, Complete pilot light, Harmony XB6, square green, plastic, 16mm, integral LED, 12...24V will be a sure adjunct in your occupation.

Baltelec tries to make the procuring process as uncomplicated and fast as viable for our clients. We offer detailed depictions and high-quality photos of Complete pilot light, Harmony XB6, square green, plastic, 16mm, integral LED, 12...24V so that you can make an aware choice. A team of experts is always ready to help you with any inquiries in the Plastic Modular XB6 section involved to the opting and use of merchandise. We are assured that Complete pilot light, Harmony XB6, square green, plastic, 16mm, integral LED, 12...24V will meet your criteria and become an vital element of your device for just 14.07 €.
