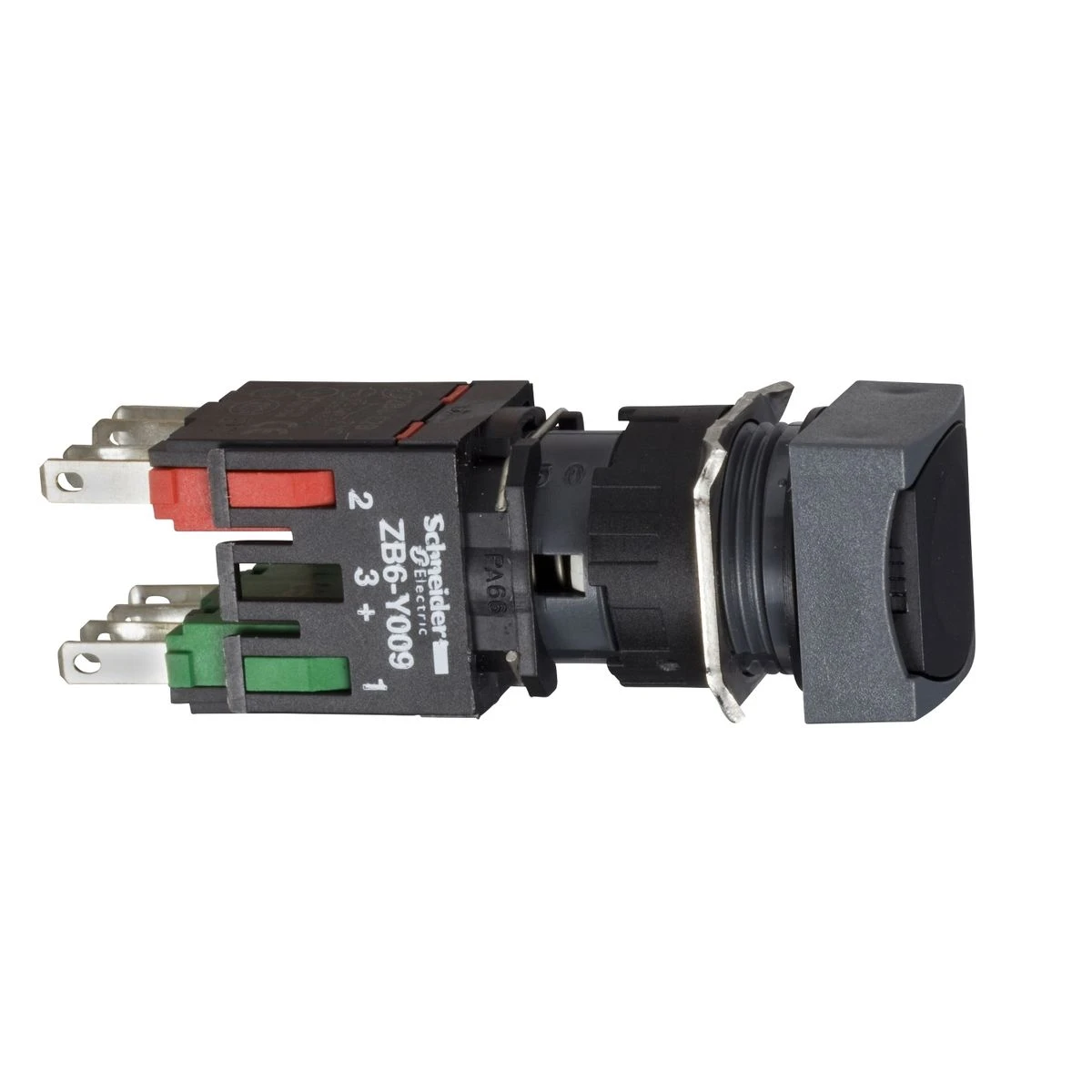

XB6CA25B - Complete push button, Harmony XB6, black square flush pushbutton, 16mm, spring return, 1NO + 1NC, unmarked - Schneider Electric

Pending restock
XB6CA25B - Complete push button, Harmony XB6, black square flush pushbutton, 16mm, spring return, 1NO + 1NC, unmarked - Schneider Electric - Complete push button, Harmony XB6, black square flush pushbutton, 16mm, spring return, 1NO + 1NC, unmarked - Schneider Electric - 0
XB6CA25B - Complete push button, Harmony XB6, black square flush pushbutton, 16mm, spring return, 1NO + 1NC, unmarked - Schneider Electric
14,21 € excl. VAT
17,62 € incl. VAT
Text About:
Complete push button, Harmony XB6, black square flush pushbutton, 16mm, spring return, 1NO + 1NC, unmarked - Schneider Electric
17,62 €
SPECIFICATIONS
Main
Device short name XB6
[ui] rated insulation voltage 250 V (pollution degree 3) conforming to EN/IEC 60947-1
Complementary
[ie] rated operational current 3 A at 120 V, AC-15, B300 conforming to EN/IEC 60947-5-1
1.5 A at 240 V, AC-15, B300 conforming to EN/IEC 60947-5-1
0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1
0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1
Product certifications GOST
UL
CCC
CSA
mounting diameter 16 mm
Product or component type Complete push-button
[uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 60947-1
nema degree of protection NEMA 13 conforming to UL 50
NEMA 4 conforming to UL 50
NEMA 4X conforming to UL 50
NEMA 13 conforming to CSA C22.2 No 94
NEMA 4 conforming to CSA C22.2 No 94
NEMA 4X conforming to CSA C22.2 No 94
Connections - terminals Faston connectors, connection size: 2.8 x 0.5 mm
bezel material Plastic
Cad overall depth 57 mm
Contacts material Silver alloy (Ag/Ni)
Cad overall height 18 mm
contact operation Slow-break
Contacts type and composition 1 NO + 1 NC
Electrical shock protection class Class II conforming to IEC 61140
Operating travel 1 mm (NO changing electrical state)
2 mm (NC changing electrical state)
3.5 mm (total travel)
Cad overall width 18 mm
Sale per indivisible quantity 1
electrical reliability Λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4
Type of operator spring return
Net weight 0.022 kg
Operating position Any position
mechanical durability 2000000 cycles
electrical durability 1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
Positive opening With conforming to EN/IEC 60947-5-1 appendix K
Shape of signaling unit head Square
Operating force 3.5 N NO changing electrical state
4.5 N NC changing electrical state
Operator profile Black flush, unmarked
Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Short-circuit protection 6 A cartridge fuse type gG
Terminals description iso n°1 (13-14)NON !@ !(21-22)NC
Environment
Ambient air temp for storage/transportation -40…70 °C
ip degree of protection IP65 conforming to IEC 60529
Range of product Harmony XB6
ambient air temperature for operation -25…70 °C
standards EN/IEC 60947-5-1
UL 508
EN/IEC 60947-1
JIS C 4520
JIS C 852
EN/IEC 60947-5-5
CSA C22.2 No 14
vibration resistance +/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
protective treatment TC
About this product

The XB6CA25B - Complete push button, Harmony XB6, black square flush pushbutton, 16mm, spring return, 1NO + 1NC, unmarked is developed to cover the demands of professional buyers, such as electrical installers, wiremen, service providers, and equipment creators. XB6CA25B offers first-rate robustness and asset for planners in the energy management industry. This Complete push button, Harmony XB6, black square flush pushbutton, 16mm, spring return, 1NO + 1NC, unmarked and other Plastic Modular XB6 from Schneider Electric are procurable at the finest pricing and fulfillment period through BALTELEC website, a reputable reseller fulfilling the needs of experts in their acquisition needs.

Consumers who have secured Schneider Electric Plastic Modular XB6 have regularly applauded the manufacturer’s solidity. It has been stated that the superior competence of XB6CA25B - Complete push button, Harmony XB6, black square flush pushbutton, 16mm, spring return, 1NO + 1NC, unmarked extends to a diverse range of functions. Its top-notch components make it well-suited solution for diverse needs. Your developed solution will excel in quality, energy-efficiency and price.

Our experts dedicates in fulfilling industrial and tertiary professionals’ needs. We comprehend the distinct requirements and desires of our buyers in the niche. By partnering with BALTELEC, your organization obtain access to the superior charges and availability of first-rate products like XB6CA25B - Complete push button, Harmony XB6, black square flush pushbutton, 16mm, spring return, 1NO + 1NC, unmarked from Schneider Electric at a value-for-money price. Our registered accounts enjoy more savings and dedicated support.

Seize the moment and order XB6CA25B - Complete push button, Harmony XB6, black square flush pushbutton, 16mm, spring return, 1NO + 1NC, unmarked at our dependable and user-friendly webshop. Don't delay in making this astute resolution that guarantees the paramount quality and covers the individual requirements of purchasers like your company.

If there are any doubts or concerns about XB6CA25B - Complete push button, Harmony XB6, black square flush pushbutton, 16mm, spring return, 1NO + 1NC, unmarked or any other Schneider Electric products, get in touch with us or refer to our Support section section below. We have provided answers to recurring questions to serve you further in making an smart decision about industrial and tertiary electrical components.

Remember, XB6CA25B - Complete push button, Harmony XB6, black square flush pushbutton, 16mm, spring return, 1NO + 1NC, unmarked from Schneider Electric is trustworthy, thrifty, and exceptional to other brands in the Plastic Modular XB6 category. Feel free to make it a part of your network promptly. Order at Baltelec e-shop, your dependable vendor for all your Plastic Modular XB6.

In our Baltelec.eu dot-com store you will identify Complete push button, Harmony XB6, black square flush pushbutton, 16mm, spring return, 1NO + 1NC, unmarked - XB6CA25B worth 17.34 €, which will be a dependable and new solution for your requirements. This article is invented by the Schneider Electric brand using the current technologies and follows the top standards of protection and effectiveness. We give objects from the Plastic Modular XB6 category that merge lastingness and usefulness, which is an exceptional selection for various operations. Irrespective of whether you call for apparatus for small creation or for qualified industrial implementation, Complete push button, Harmony XB6, black square flush pushbutton, 16mm, spring return, 1NO + 1NC, unmarked will be a faithful aide in your duty.

Baltelec endeavors to make the purchasing process as comfortable and fast as feasible for our clients. We offer detailed descriptions and high-quality shots of Complete push button, Harmony XB6, black square flush pushbutton, 16mm, spring return, 1NO + 1NC, unmarked so that you can make an advised choice. A team of professionals is always ready to help you with any issues in the Plastic Modular XB6 section tied to the picking and use of materials. We are positive that Complete push button, Harmony XB6, black square flush pushbutton, 16mm, spring return, 1NO + 1NC, unmarked will meet your requirements and become an indispensable element of your gear for just 17.34 €.

Frequently Raised Questions about XB6CA25B:
