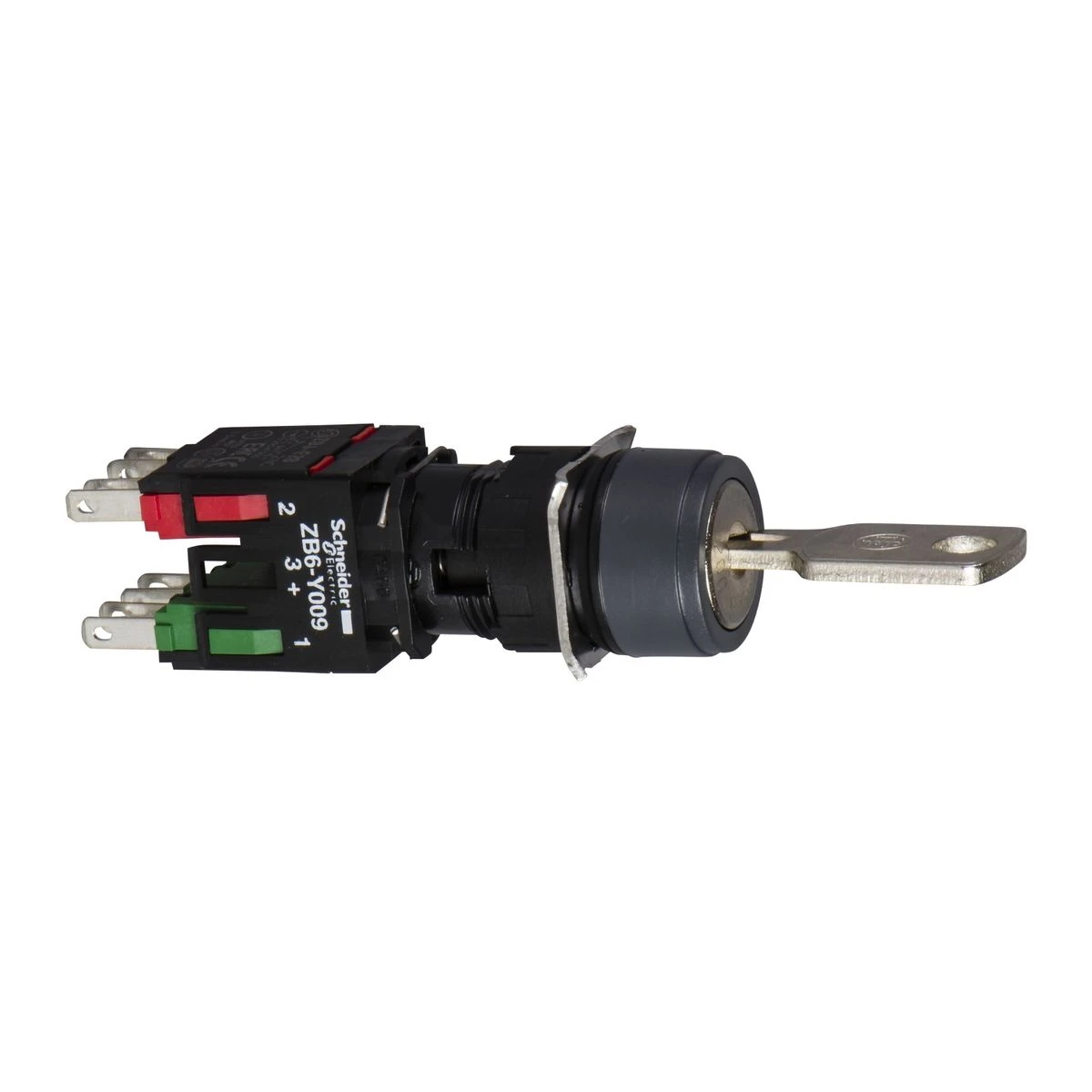

XB6AGC5B - Complete selector switch, Harmony XB6, black ? 16 2 position stay put 1NO+1NC 200 - Schneider Electric

Expected in 2-4 weeks

35,23 € excl. VAT

42,98 € incl. VAT

Text About:

Complete selector switch, Harmony XB6, black ? 16 2 position stay put 1NO+1NC 200 - Schneider Electric

In cart

42,98 €

SPECIFICATIONS

Main

Device short name XB6

[ui] rated insulation voltage 250 V (pollution degree 3) conforming to EN/IEC 60947-1

Complementary

[ie] rated operational current 3 A at 120 V, AC-15, B300 conforming to EN/IEC 60947-5-1
1.5 A at 240 V, AC-15, B300 conforming to EN/IEC 60947-5-1
0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1
0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1

Product certifications UL
CSA
GOST
CCC

mounting diameter 16 mm

Product or component type Complete selector switch

[uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 60947-1

Connections - terminals Faston connectors, connection size: 2.8 x 0.5 mm

bezel material Plastic

Cad overall depth 80 mm

Contacts material Silver alloy (Ag/Ni)

Cad overall height 18 mm

contact operation Slow-break

Contacts type and composition 1 NO + 1 NC

Electrical shock protection class Class II conforming to IEC 61140

Cad overall width 18 mm

Sale per indivisible quantity 1

electrical reliability Λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to EN 60947-5-4

Type of operator stay put

Net weight 0.036 kg

Operating position Any position

mechanical durability 200000 cycles

electrical durability 1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

key withdrawal position In any position

Positive opening With conforming to EN/IEC 60947-5-1 appendix K

Shape of signaling unit head Round

Operator position information 2 positions 70°

Operator profile key switch

Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Short-circuit protection 6 A cartridge fuse type gG

Type of keylock Key 200

Terminals description iso n°1 (13-14)NON !@ !(21-22)NC

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP65 conforming to IEC 60529

Range of product Harmony XB6

ambient air temperature for operation -25…70 °C

standards EN/IEC 60947-5-5
UL 508
JIS C8201-5-1
CSA C22.2 No 14
EN/IEC 60947-1
JIS C 852
EN/IEC 60947-5-1
JIS C8201-1

vibration resistance +/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

protective treatment TC
