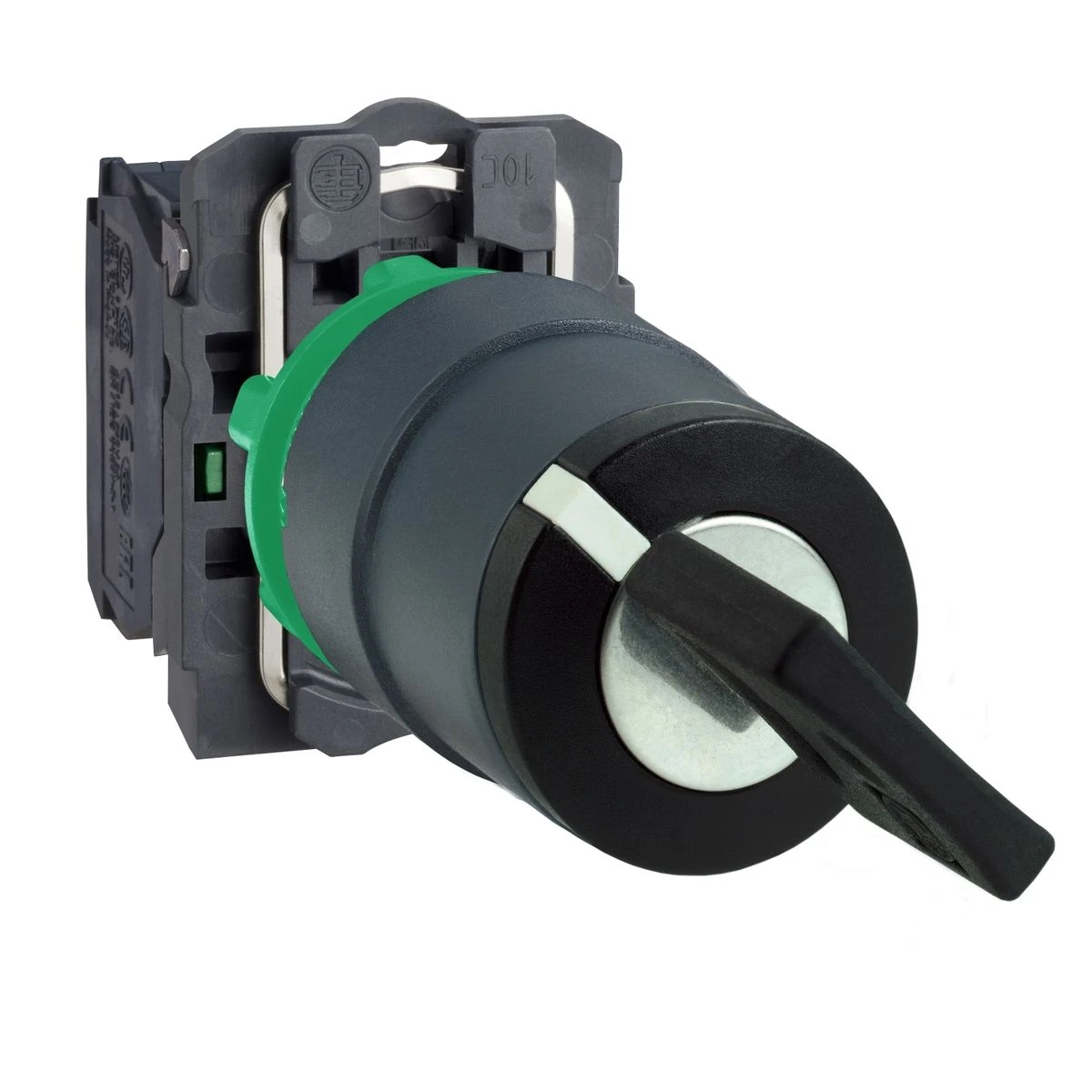

XB5AG2110 - Selector switch, Harmony XB5, black, 22mm, 2 positions, key 455, stay put, 1NO - Schneider Electric

Expected in 2-4 weeks

45,63 € excl. VAT

55,67 € incl. VAT

Text About:

Selector switch, Harmony XB5, black, 22mm, 2 positions, key 455, stay put, 1NO - Schneider Electric

In cart

55,67 €

SPECIFICATIONS

Main

Device short name XB5

[ui] rated insulation voltage 600 V (pollution degree 3) conforming to EN 60947-1

head type Standard

Complementary

[ie] rated operational current 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1

[ith] conventional thermal current 10 A conforming to EN/IEC 60947-5-1

Product certifications LROS (Lloyds register of shipping)
BV
CSA
GL
DNV
UL

Handle front plate colour 42 mm

mounting diameter 22 mm

Product or component type Selector switch

tightening torque 0.8…1.2 N.m conforming to EN 60947-1

[uimp] rated impulse withstand voltage 6 kV conforming to EN 60947-1

nema degree of protection NEMA 13
NEMA 4X

Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1

bezel material Dark grey plastic

Contacts material Silver alloy (Ag/Ni)

contact operation Slow-break

Contacts type and composition 1 NO

Electrical shock protection class Class II conforming to IEC 60536

Sale per indivisible quantity 1

width (w) 30 mm

electrical reliability Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4
Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4

Type of operator stay put

Ik degree of protection IK06 conforming to IEC 50102

Contacts usage Standard contacts

Net weight 0.831 kg

depth 96 mm

mechanical durability 1000000 cycles

electrical durability 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

key withdrawal position Left-hand

Device presentation Complete product

Positive opening Without

Shape of signaling unit head Round

Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m

Operator position information 2 positions 90°

torque value 0.14 N.m NO changing electrical state

Operator profile key switch

Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Shape of screw head Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver

Short-circuit protection 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

Type of keylock Key 455

Terminals description iso n°1 (13-14)NON

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP69
IP69K
IP66 conforming to IEC 60529
IP67

Range of product Harmony XB5

ambient air temperature for operation -40…70 °C

standards EN/IEC 60947-1
JIS C8201-5-1
EN/IEC 60947-5-4
CSA C22.2 No 14
UL 508
EN/IEC 60947-5-1
JIS C8201-1

vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

protective treatment TH
