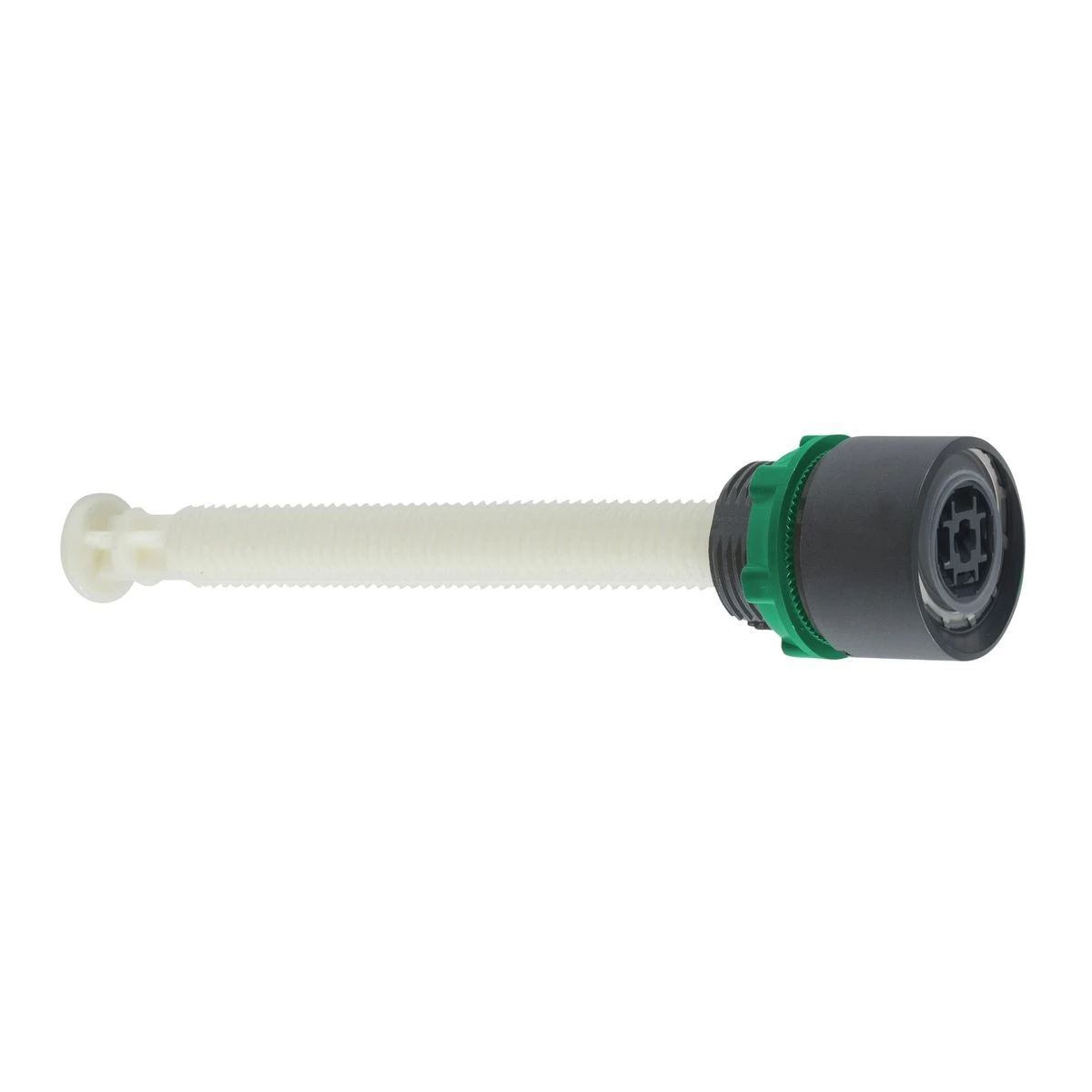

XB5AA801 - Manual overload reset push button, Harmony XB5, pushbutton ?22 mm for 17...120 mm actuation distance - Schneider Electric

Expected in 2-4 weeks

14,47 €

Text About:

Manual overload reset push button, Harmony XB5, pushbutton ?22 mm for 17...120 mm actuation distance - Schneider Electric

In cart

14,47 €

SPECIFICATIONS

Main

Activating distance 17…120 mm

Device short name XB5

head type Standard

Complementary

Product certifications UL listed

Handle front plate colour 29 mm

mounting diameter 22 mm

Product or component type Manual overload reset push-button

Fixing collar material Plastic

nema degree of protection NEMA 4X

bezel material Dark grey plastic

Operator additional information Without cap

Electrical shock protection class Class II conforming to IEC 60536

width (w) 29 mm

Ik degree of protection IK03 conforming to IEC 50102

Net weight 0.027 kg

depth 120 mm

Device presentation Complete product

Shape of signaling unit head Round

Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m

Operator profile without cap

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP66 conforming to IEC 60529

Range of product Harmony XB5

ambient air temperature for operation -40…70 °C

standards EN/IEC 60947-1

protective treatment TH
