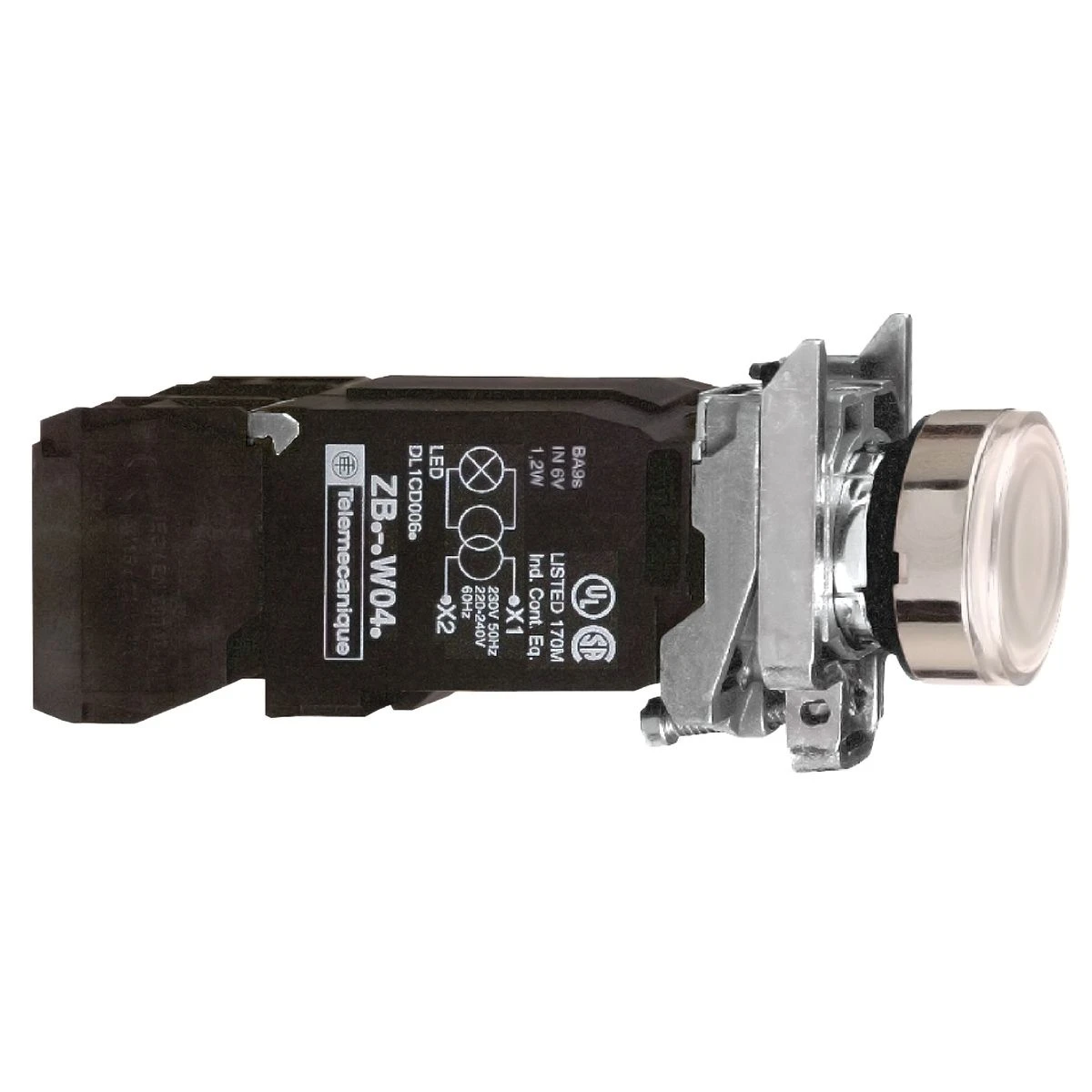

XB4BW3135 - Illuminated push button, Harmony XB4, white flush complete illum pushbutton ?22 mm spring return 1NO - Schneider Electric

Pending restock
XB4BW3135 - Illuminated push button, Harmony XB4, white flush complete illum pushbutton ?22 mm spring return 1NO - Schneider Electric - Illuminated push button, Harmony XB4, white flush complete illum pushbutton ?22 mm spring return 1NO - Schneider Electric - 0
XB4BW3135 - Illuminated push button, Harmony XB4, white flush complete illum pushbutton ?22 mm spring return 1NO - Schneider Electric
38,97 € excl. VAT
48,32 € incl. VAT
Text About:
Illuminated push button, Harmony XB4, white flush complete illum pushbutton ?22 mm spring return 1NO - Schneider Electric
48,32 €
SPECIFICATIONS
Main
Device short name XB4
[ui] rated insulation voltage 600 V (pollution degree 3) conforming to EN/IEC 60947-1
head type Standard
Complementary
[ie] rated operational current 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
[ith] conventional thermal current 10 A conforming to EN/IEC 60947-5-1
Product certifications GL
CSA
LROS (Lloyds register of shipping)
DNV
UL listed
BV
Handle front plate colour 47 mm
mounting diameter 22 mm
Product or component type Illuminated push-button
tightening torque 0.8…1.2 N.m conforming to EN 60947-1
[uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-1
[us] rated supply voltage 110...120 V AC at 50/60 Hz
Fixing collar material Zamak
nema degree of protection NEMA 13
NEMA 4X
Bulb base BA 9s
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
Light block supply Via integral transformer 1.2 VA 6 V
bezel material Chromium plated metal
Contacts material Silver alloy (Ag/Ni)
Operator additional information With plain lens
contact operation Slow-break
Contacts type and composition 1 NO + 1 NC
Electrical shock protection class Class I conforming to IEC 60536
Operating travel 1.5 mm (NC changing electrical state)
2.6 mm (NO changing electrical state)
4.3 mm (total travel)
Sale per indivisible quantity 1
width (w) 30 mm
electrical reliability Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to EN/IEC 60947-5-4
Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to EN/IEC 60947-5-4
Signalling type Steady
Type of operator spring return
Ik degree of protection IK06 conforming to IEC 50102
Contacts usage Standard contacts
Net weight 0.169 kg
depth 101 mm
mechanical durability 10000000 cycles
electrical durability 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
Device presentation Complete product
Positive opening With conforming to EN/IEC 60947-5-1 appendix K
Shape of signaling unit head Round
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Operating force 3.5 N NC changing electrical state
3.8 N
Operator profile White flush
light source Incandescent
Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Shape of screw head Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
Short-circuit protection 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
Terminals description iso n°1 (21-22)NC
(13-14)NON
Environment
Ambient air temp for storage/transportation -40…70 °C
ip degree of protection IP66 conforming to IEC 60529
IP67
IP69
IP69K
Range of product Harmony XB4
ambient air temperature for operation -40…55 °C
standards UL 508
EN/IEC 60947-1
JIS C8201-5-1
EN/IEC 60947-5-4
EN/IEC 60947-5-1
CSA C22.2 No 14
EN/IEC 60947-5-5
JIS C8201-1
vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
protective treatment TH
About this product

The XB4BW3135 - Illuminated push button, Harmony XB4, white flush complete illum pushbutton ?22 mm spring return 1NO is fashioned to cater to the prerequisites of specialized professionals, such as electrical installers, electrical installers, maintenance companies, and industry fabricators. XB4BW3135 offers impressive standards and utility for contractors in the control systems industry. This Illuminated push button, Harmony XB4, white flush complete illum pushbutton ?22 mm spring return 1NO and other Metal Modular XB4 from Schneider Electric can be bought at the most economical price and delivery period through BALTELEC.EU, a well-known merchant assisting contractors in their buying needs.

Customers who have chosen Schneider Electric Metal Modular XB4 have frequently commended the maker's reliability. It has been highlighted that the excellent capability of XB4BW3135 - Illuminated push button, Harmony XB4, white flush complete illum pushbutton ?22 mm spring return 1NO extends to a broad spectrum of deployments. Its top-notch features make it suitable to satisfy a wide array of needs, securing success in your industrial, tertiary, and automation endeavors.

Our company concentrates in accommodating industrial and tertiary professionals’ needs. We understand the customized demands and anticipations of our consumers in the domain. By aligning with our professionals, our customers receive access to the premier charges and availability of premium products like XB4BW3135 - Illuminated push button, Harmony XB4, white flush complete illum pushbutton ?22 mm spring return 1NO from Schneider Electric at the most competitive price. Registered users enjoy exclusive discounts and premium support.

Do not hesitate and procure XB4BW3135 - Illuminated push button, Harmony XB4, white flush complete illum pushbutton ?22 mm spring return 1NO at our well-established and convenient online portal. Don't delay in making this savvy move that ensures the greatest quality and matches the unique requests of users like your enterprise.

Should you experience any doubts or concerns about XB4BW3135 - Illuminated push button, Harmony XB4, white flush complete illum pushbutton ?22 mm spring return 1NO or any other Schneider Electric products, communicate with us or refer to our Assistance center section below. We have brought together answers to typical matters to guide you further in making an wise decision about industrial and tertiary electrical components.

Remember, XB4BW3135 - Illuminated push button, Harmony XB4, white flush complete illum pushbutton ?22 mm spring return 1NO from Schneider Electric is safe, value-priced, and elite to its rivals in the Metal Modular XB4 category. Don't hesitate to make it a part of your network straight away. Purchase at Baltelec webstore, your reliable source for all your Metal Modular XB4.

In our Baltelec.eu dot-com store you will spot Illuminated push button, Harmony XB4, white flush complete illum pushbutton ?22 mm spring return 1NO - XB4BW3135 worth 47.54 €, which will be a secure and innovative solution for your wishes. This produce is developed by the Schneider Electric brand using the latest technologies and adheres to the pinnacle standards of safety and productivity. We supply products from the Metal Modular XB4 category that blend resilience and utility, which is an superb alternative for various intents. Independent of whether you necessitate devices for small formation or for adept industrial operation, Illuminated push button, Harmony XB4, white flush complete illum pushbutton ?22 mm spring return 1NO will be a secure assistant in your job.

Baltelec attempts to make the buying process as uncomplicated and fast as workable for our buyers. We offer detailed descriptions and high-quality photos of Illuminated push button, Harmony XB4, white flush complete illum pushbutton ?22 mm spring return 1NO so that you can make an briefed choice. A team of professionals is always ready to help you with any wonder in the Metal Modular XB4 section linked to the opting and use of products. We are positive that Illuminated push button, Harmony XB4, white flush complete illum pushbutton ?22 mm spring return 1NO will meet your criteria and become an essential element of your hardware for just 47.54 €.
