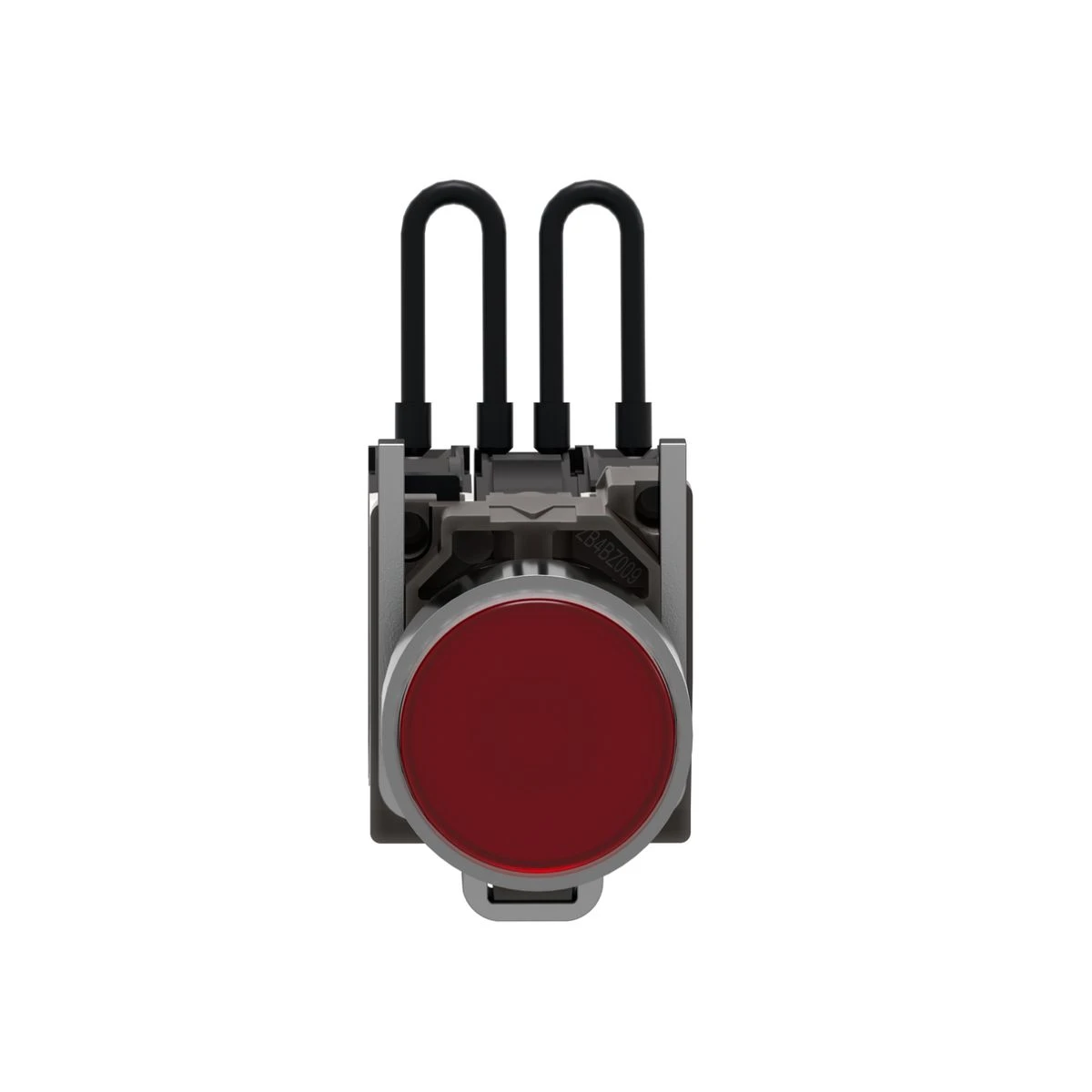

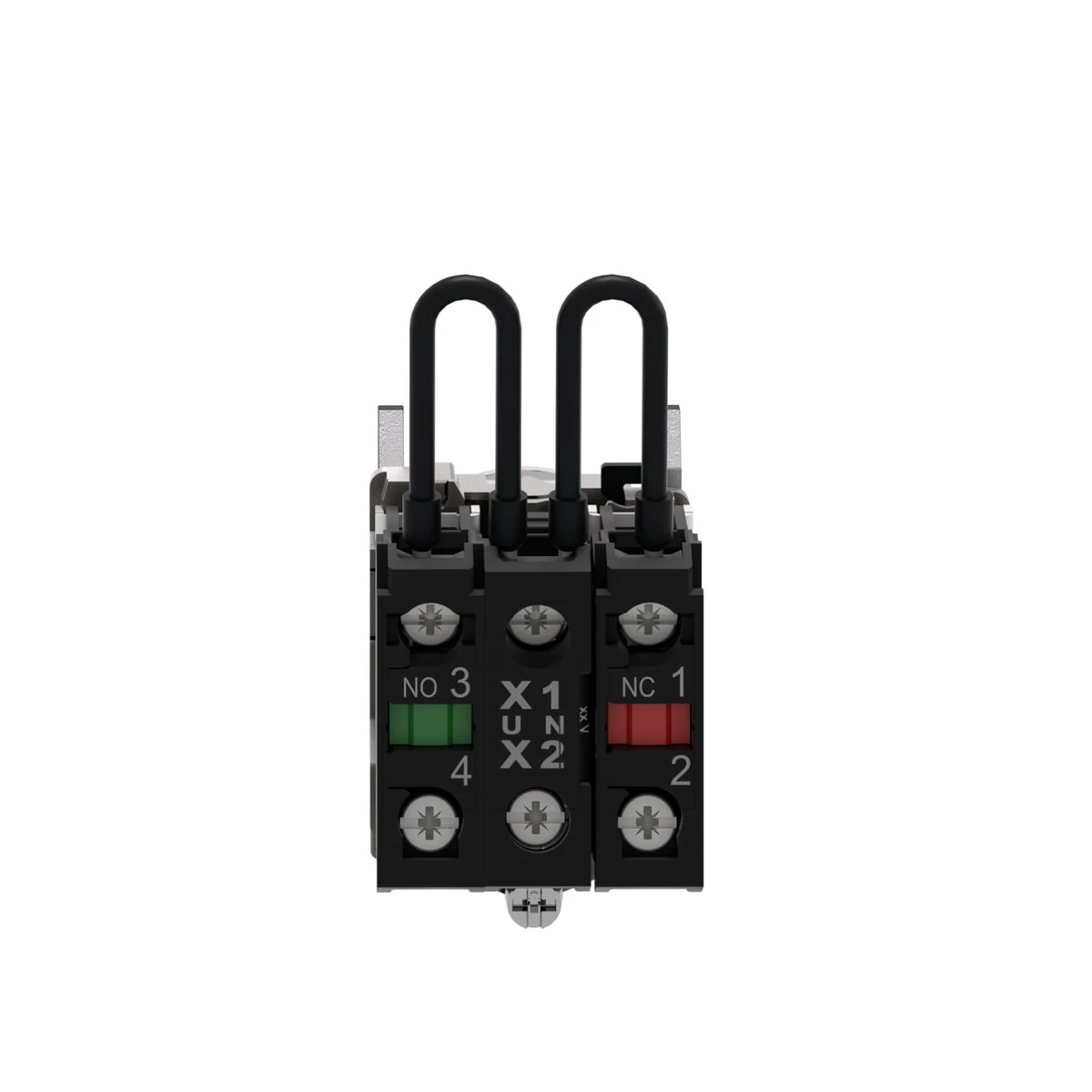

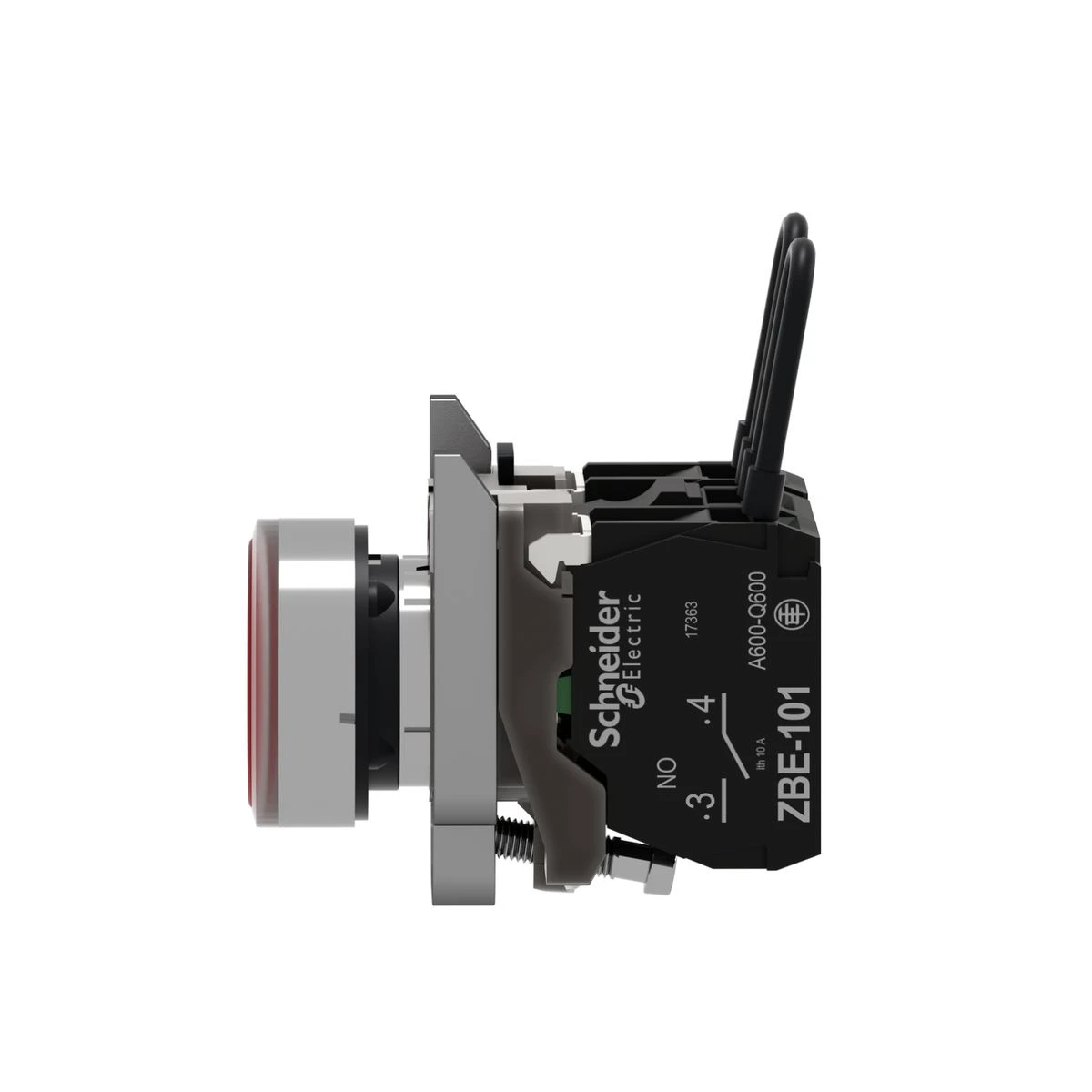

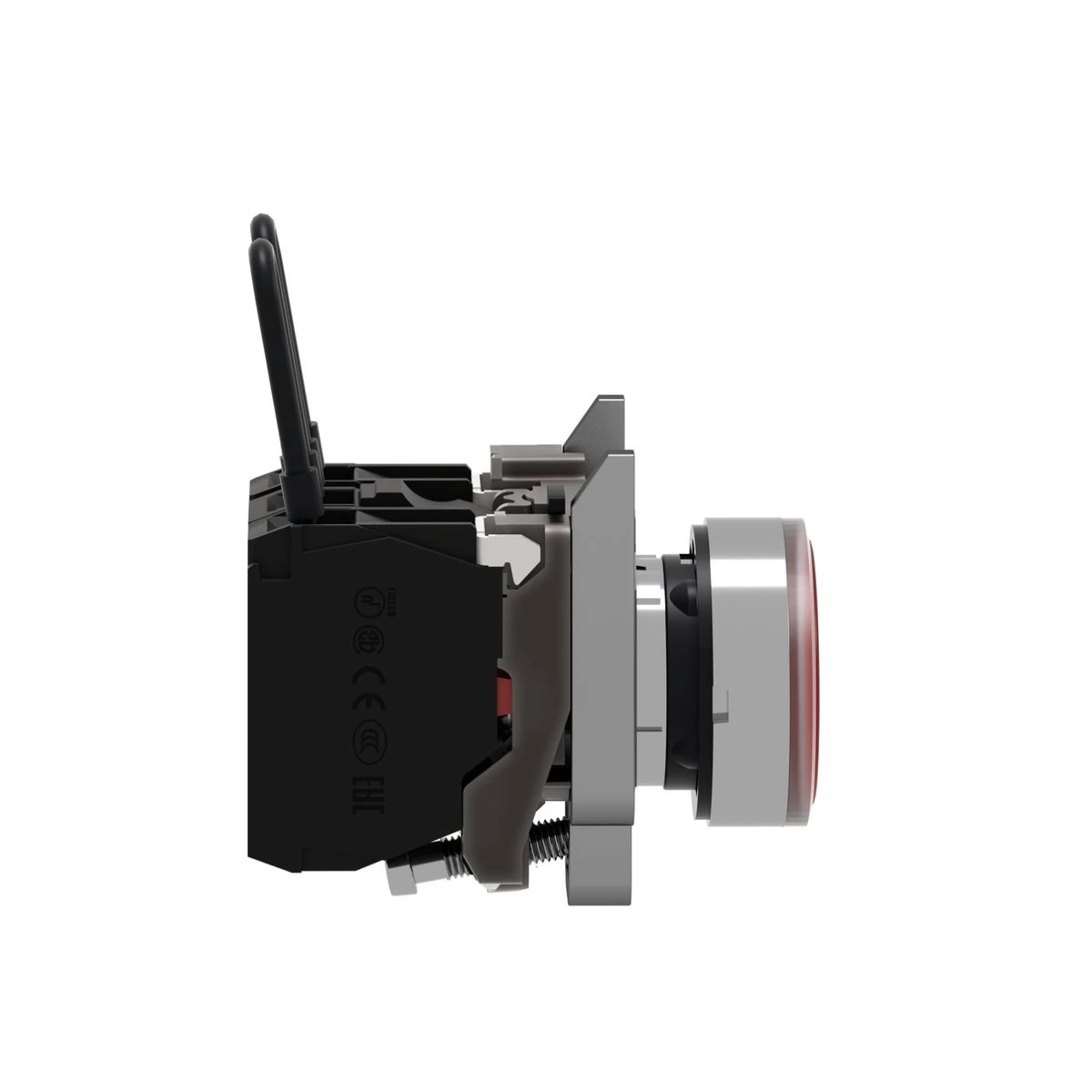

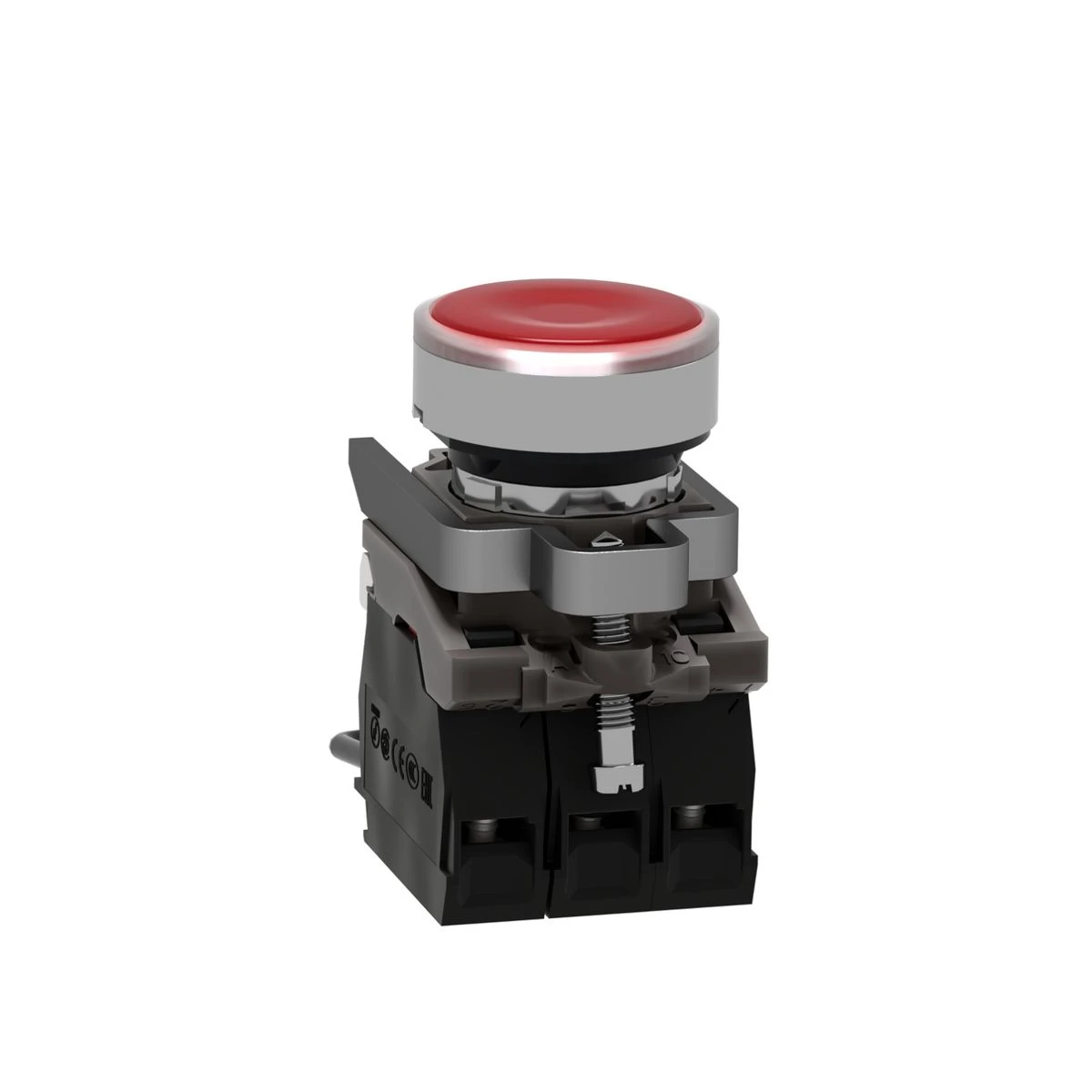

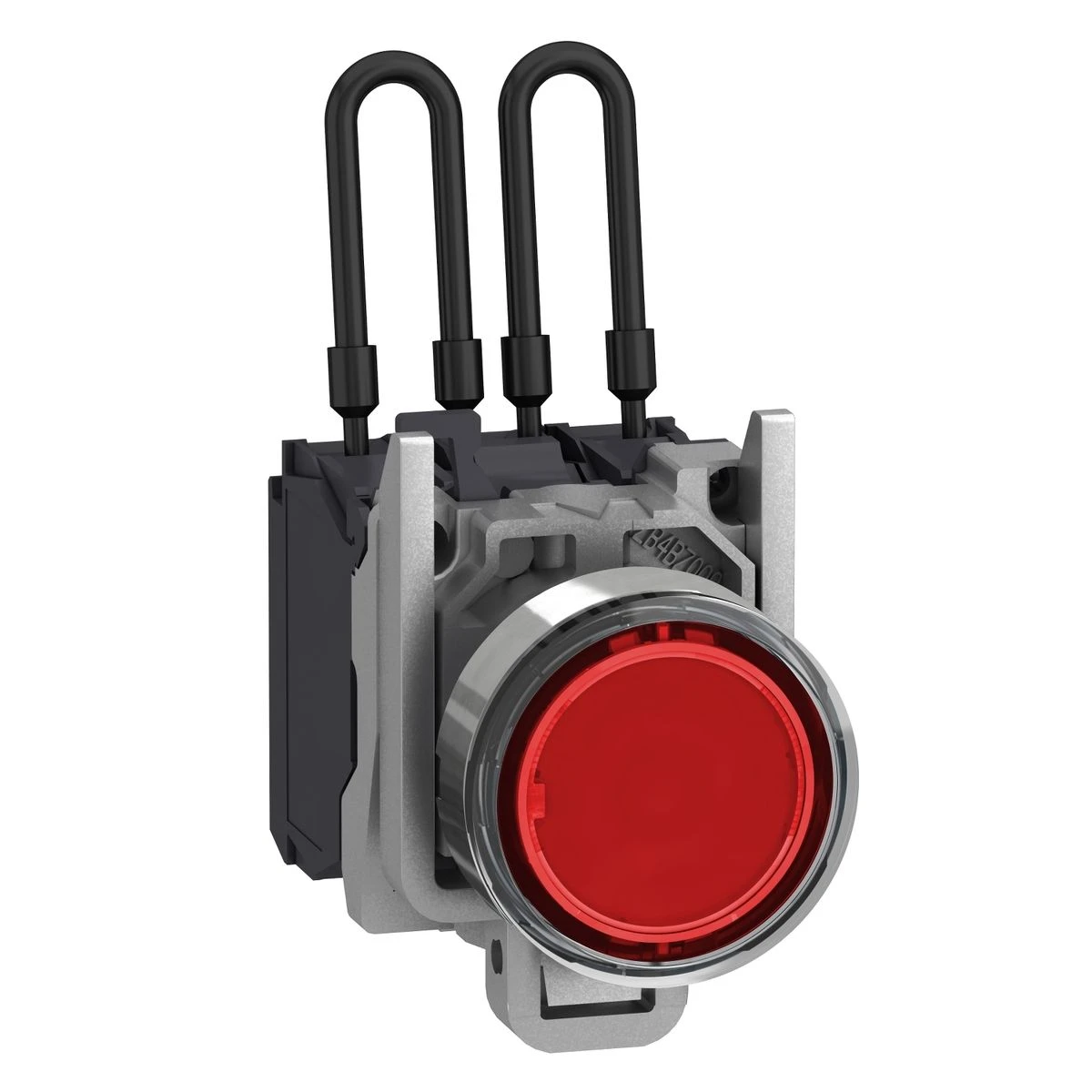

XB4BW24B5 - Push-to-test pilot light, Harmony XB4, metal, red, universal LED, screw clamp terminals, 24V - Schneider Electric

Expected in 2-4 weeks

XB4BW24B5 - Push-to-test pilot light, Harmony XB4, metal, red, universal LED, screw clamp terminals, 24V - Schneider Electric

45,13 € excl. VAT

55,06 € incl. VAT

Text About:

Push-to-test pilot light, Harmony XB4, metal, red, universal LED, screw clamp terminals, 24V - Schneider Electric

In cart

55,06 €

SPECIFICATIONS

Main

Device short name XB4

service life 1.5 year(s)

[ui] rated insulation voltage 600 V (pollution degree 3) conforming to EN 60947-1

Complementary

Cap/operator or lens colour Red

Product certifications UL listed
DNV
LROS (Lloyds register of shipping)
CSA
BV
GL

Handle front plate colour 42 mm

mounting diameter 22 mm

Product or component type Push-to-test pilot light

tightening torque 0.8…1.2 N.m conforming to EN/IEC 60947-1

[uimp] rated impulse withstand voltage 6 kV conforming to EN 60947-1

[us] rated supply voltage 24 V AC/DC at 50/60 Hz

Current consumption 18 mA

Fixing collar material Metal

nema degree of protection NEMA 13 conforming to IEC 60529
NEMA 4X

Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60068-2-27
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60068-2-27

bezel material Metal

Sale per indivisible quantity 1

width (w) 30 mm

Signalling type Steady

Ik degree of protection IK05 conforming to IEC 50102

Net weight 0.09 kg

Embedding depth 43 mm

depth 55 mm

Shape of signaling unit head Round

Light source colour Red

Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m

light source Universal LED

Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-6
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-6

Surge withstand 1 kV

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP66 conforming to IEC 60536
IP67
IP69
IP69K

Range of product Harmony XB4

ambient air temperature for operation -40…70 °C

overvoltage category Class II conforming to IEC 60536

standards CSA C22.2 No 14
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-4
GB 14048.5
JIS C8201-5-1
UL 508
JIS C8201-1

vibration resistance 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6

protective treatment TH
