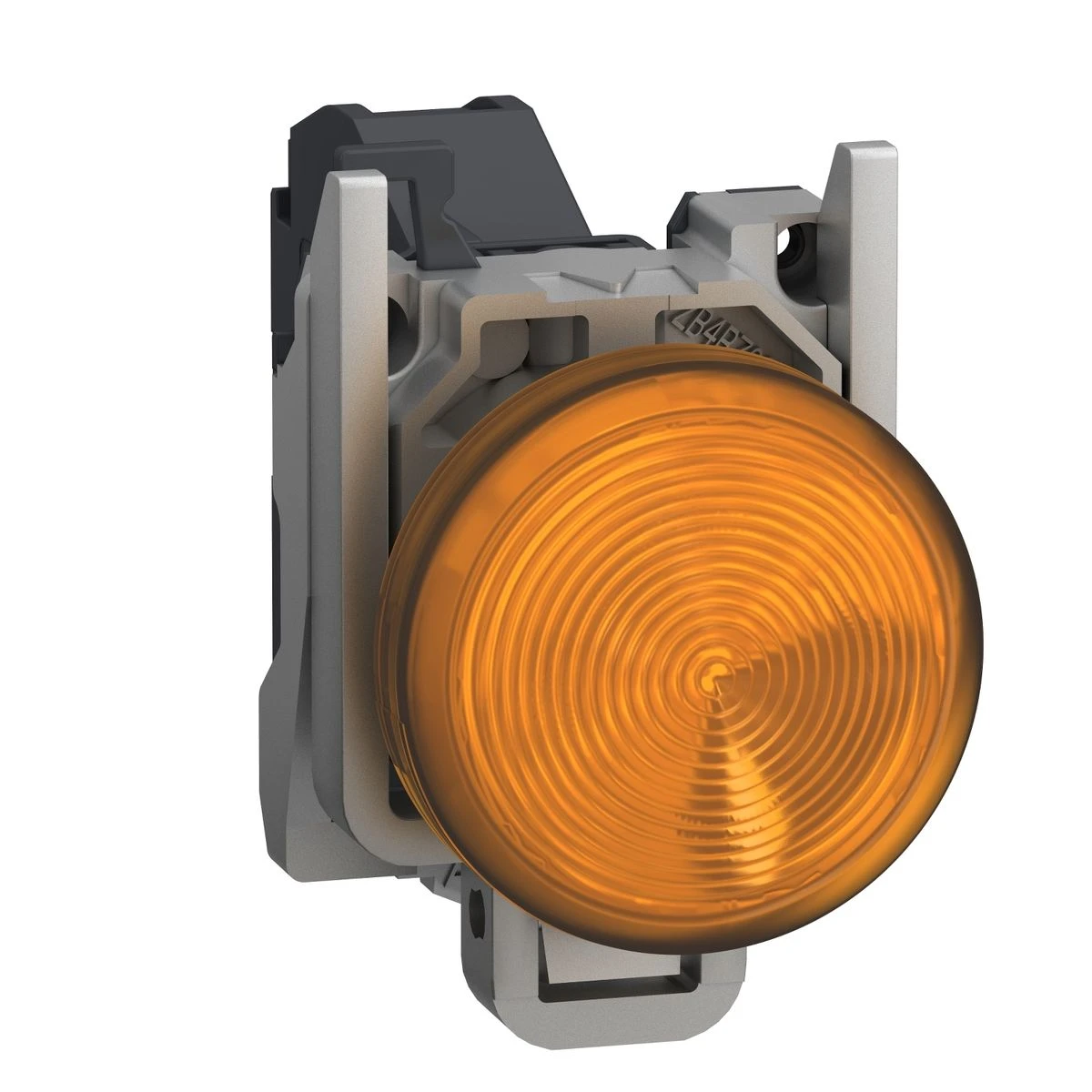

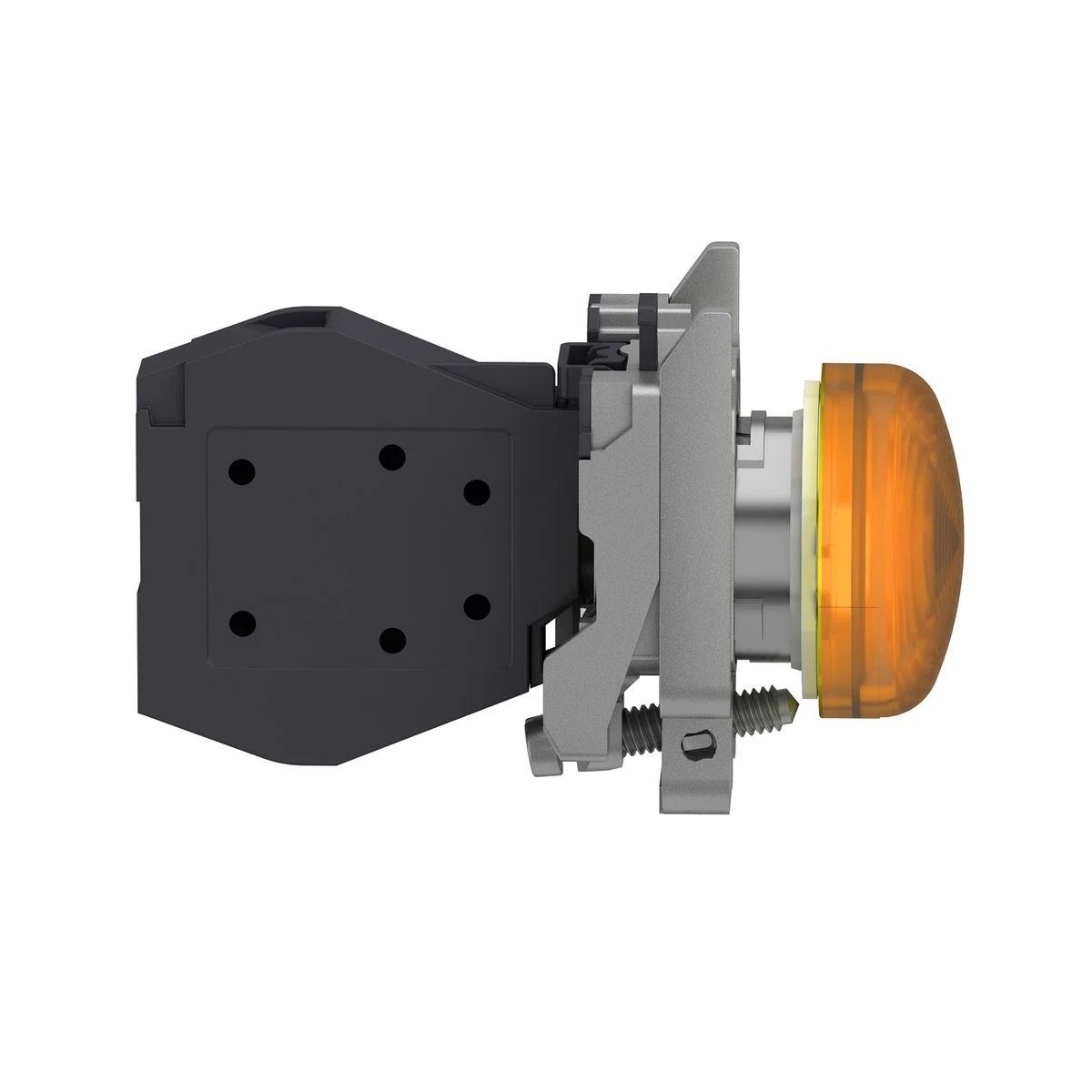

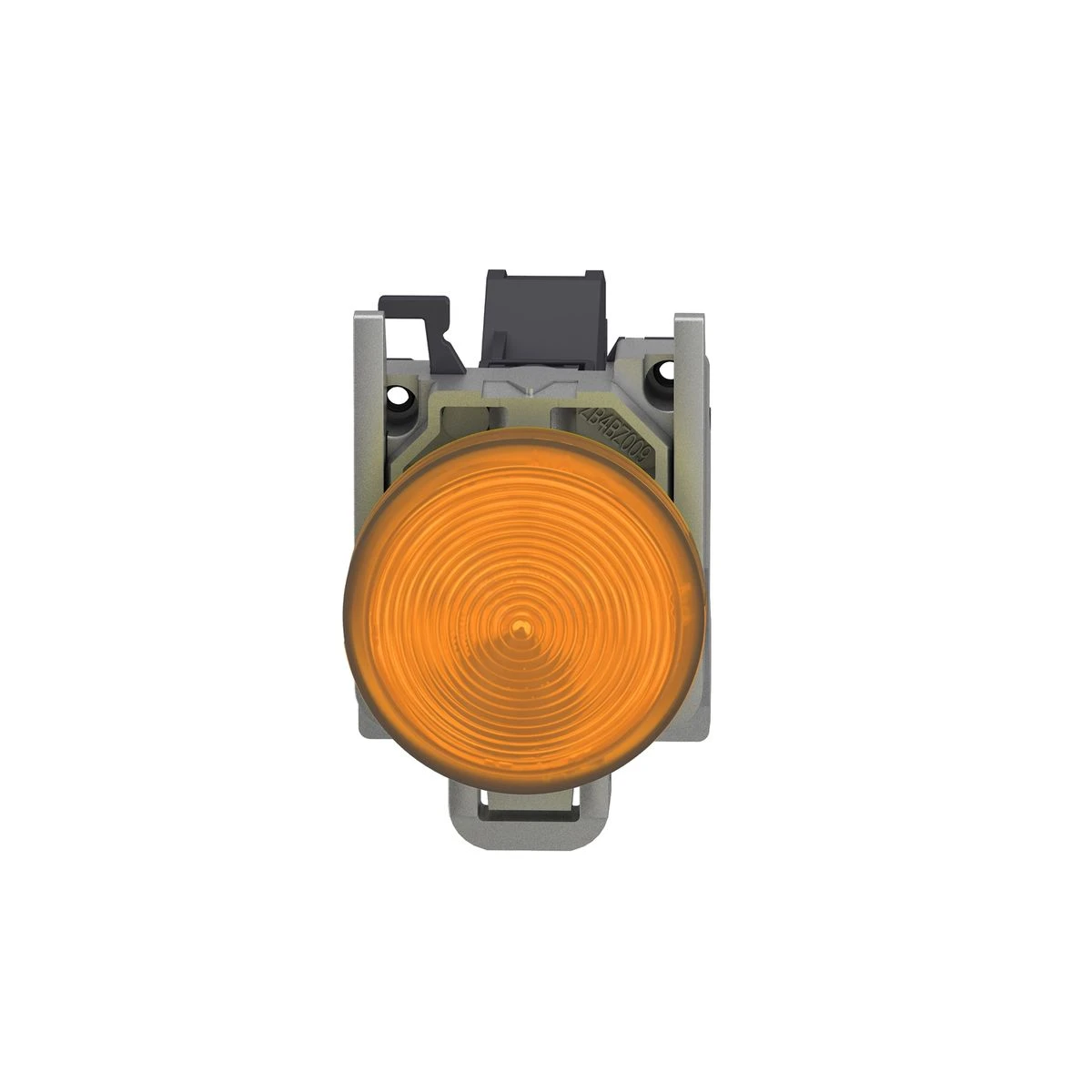

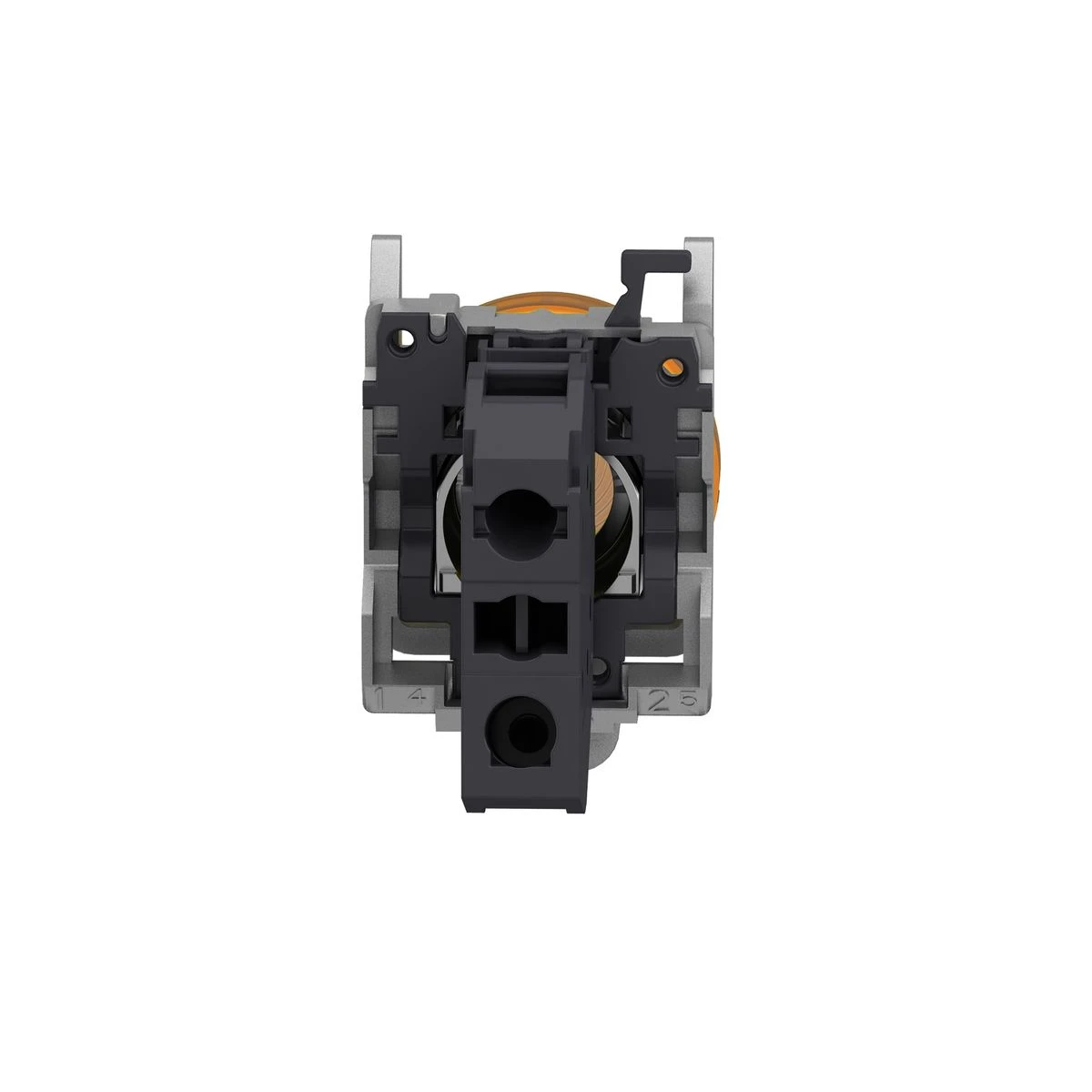

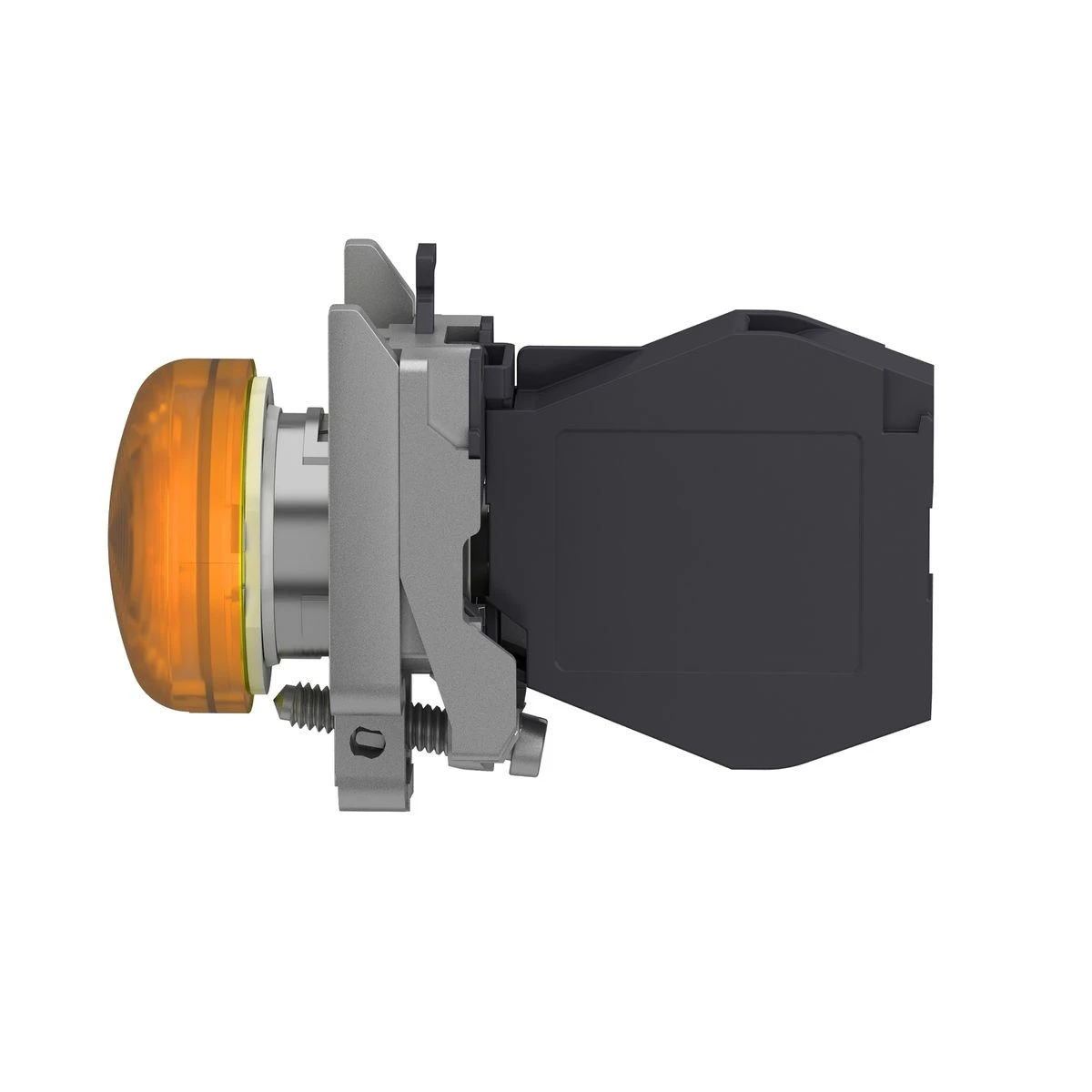

XB4BVBM5GEX - Complete pilot light, Harmony XB4, Explosive atmosphere, orange LED 24 240 V - Schneider Electric

Expected in 2-4 weeks

XB4BVBM5GEX - Complete pilot light, Harmony XB4, Explosive atmosphere, orange LED 24 240 V - Schneider Electric

143,33 € excl. VAT

174,86 € incl. VAT

Text About:

Complete pilot light, Harmony XB4, Explosive atmosphere, orange LED 24 240 V - Schneider Electric

In cart

174,86 €

SPECIFICATIONS

Main

Device short name XB4

Gas zone Zone 1 - 2

device mounting Fixing hole - diameter: 22.5 mm +/- 0.2 mm conforming to EN/IEC 60947-1

service life 100000 h

Complementary

Cap/operator or lens colour Orange

Product certifications INERIS 04ATEX9003U

Handle front plate colour 30 mm

mounting diameter 22 mm

Product or component type Complete pilot light

tightening torque 0.8…1.2 N.m conforming to EN 60947-1

[us] rated supply voltage 24...254 V AC/DC

Fixing collar material Zamak

Connections - terminals Screw clamp terminals, 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

marking Ex tb IIIC Db
II 2 GD
Ex eb mb IIC Gb

bezel material Chromium plated metal

Operator additional information With plain lens

Sale per indivisible quantity 1

width (w) 46.2 mm

Signalling type Steady

Net weight 0.083 kg

Embedding depth 58 mm

depth 69 mm

Fixing center >= 30 x 40 mm (support panel) - thickness: 1…6 mm

Shape of signaling unit head Round

Light source colour White

light source Integral LED

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP65 conforming to IEC 60529

Range of product Harmony XB4

ambient air temperature for operation -20…75 °C

Dust zone Zone 21 - 22

overvoltage category I conforming to IEC 60536

standards EN/IEC 60079-0:2009
EN/IEC 60079-7:2009
EN/IEC 60079-18:2009
EN/IEC 60079-31:2009
UL 60079-0
UL 60079-18
UL 60079-31
ANSI/ISA 12.12.01
CSA C22.2 No 213

protective treatment TH
