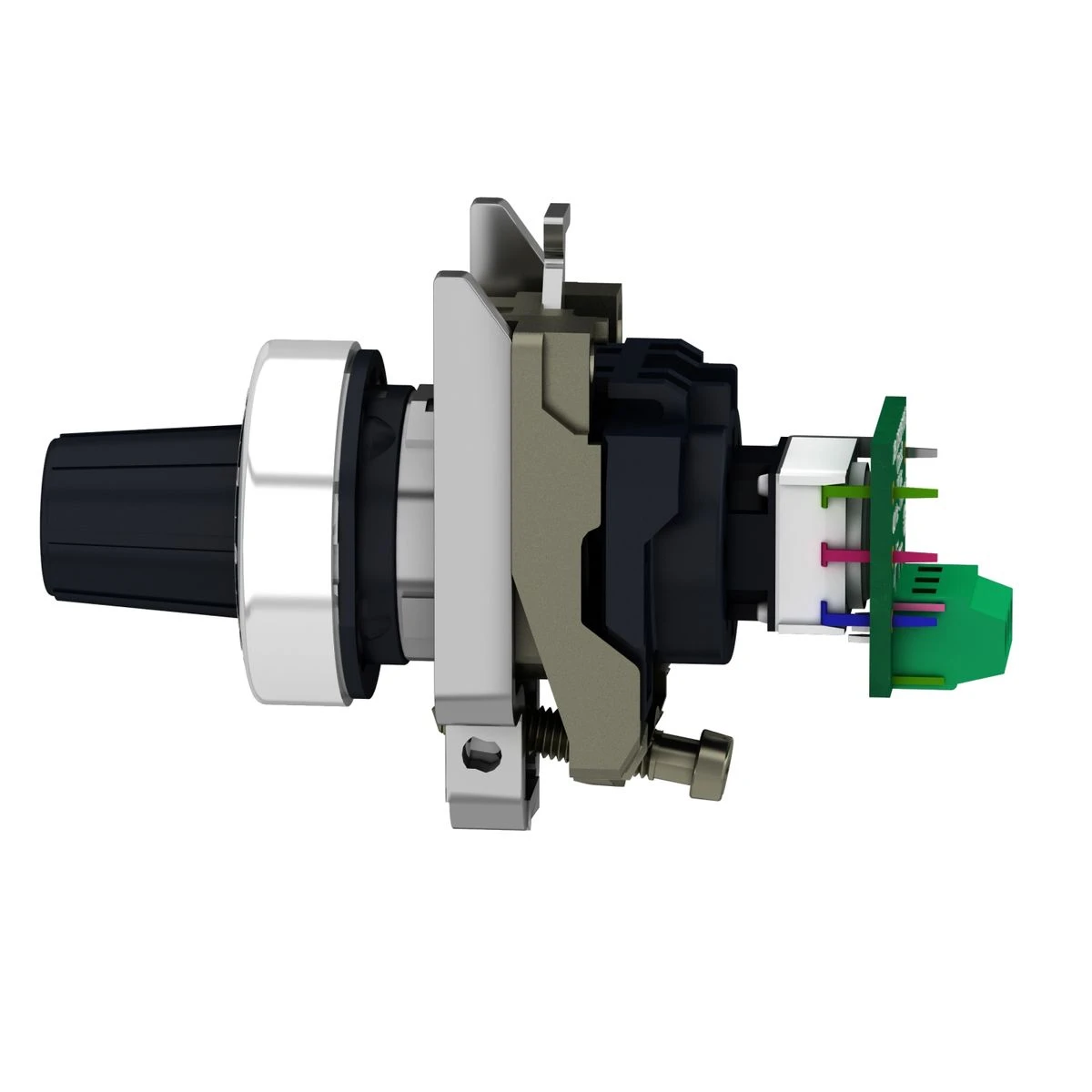

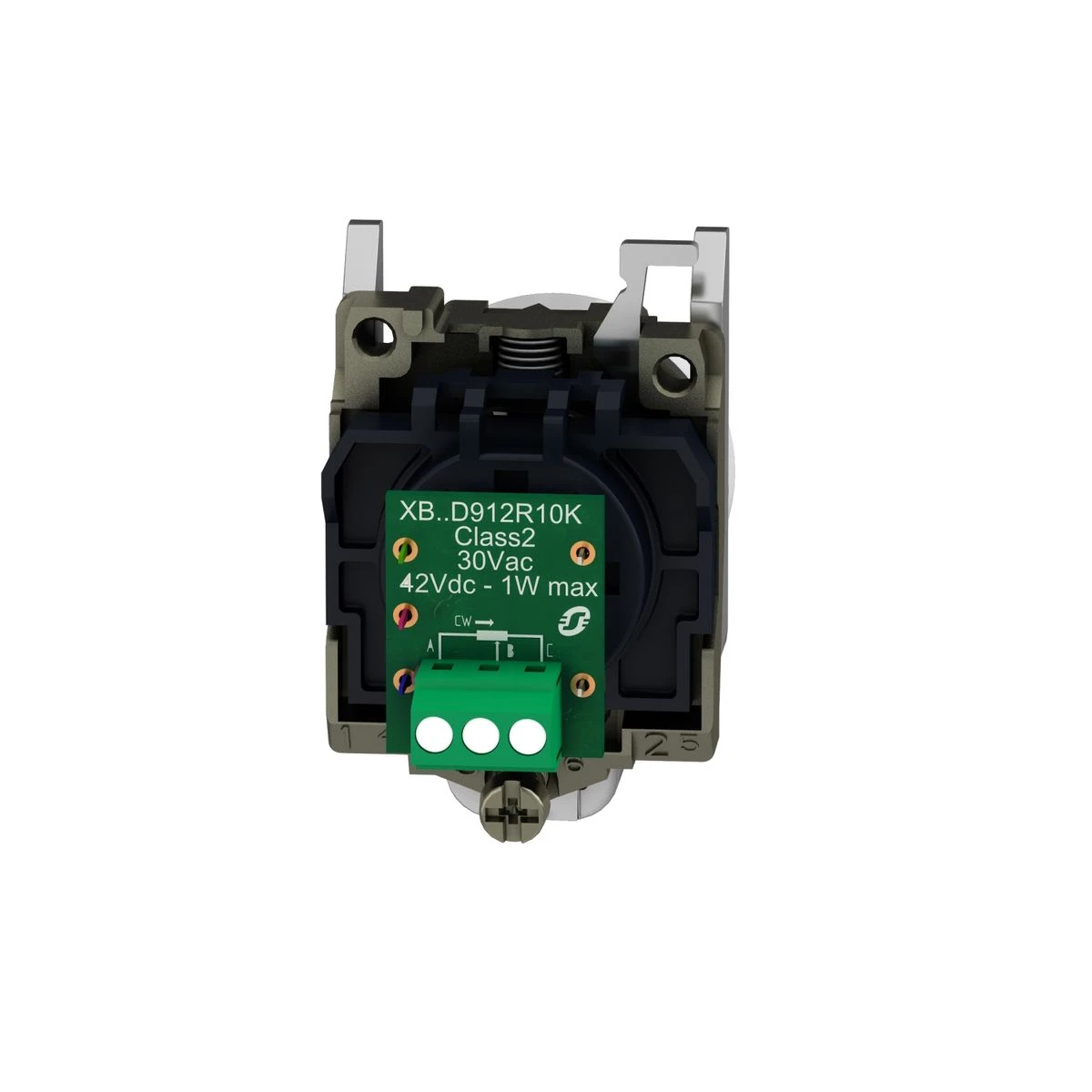

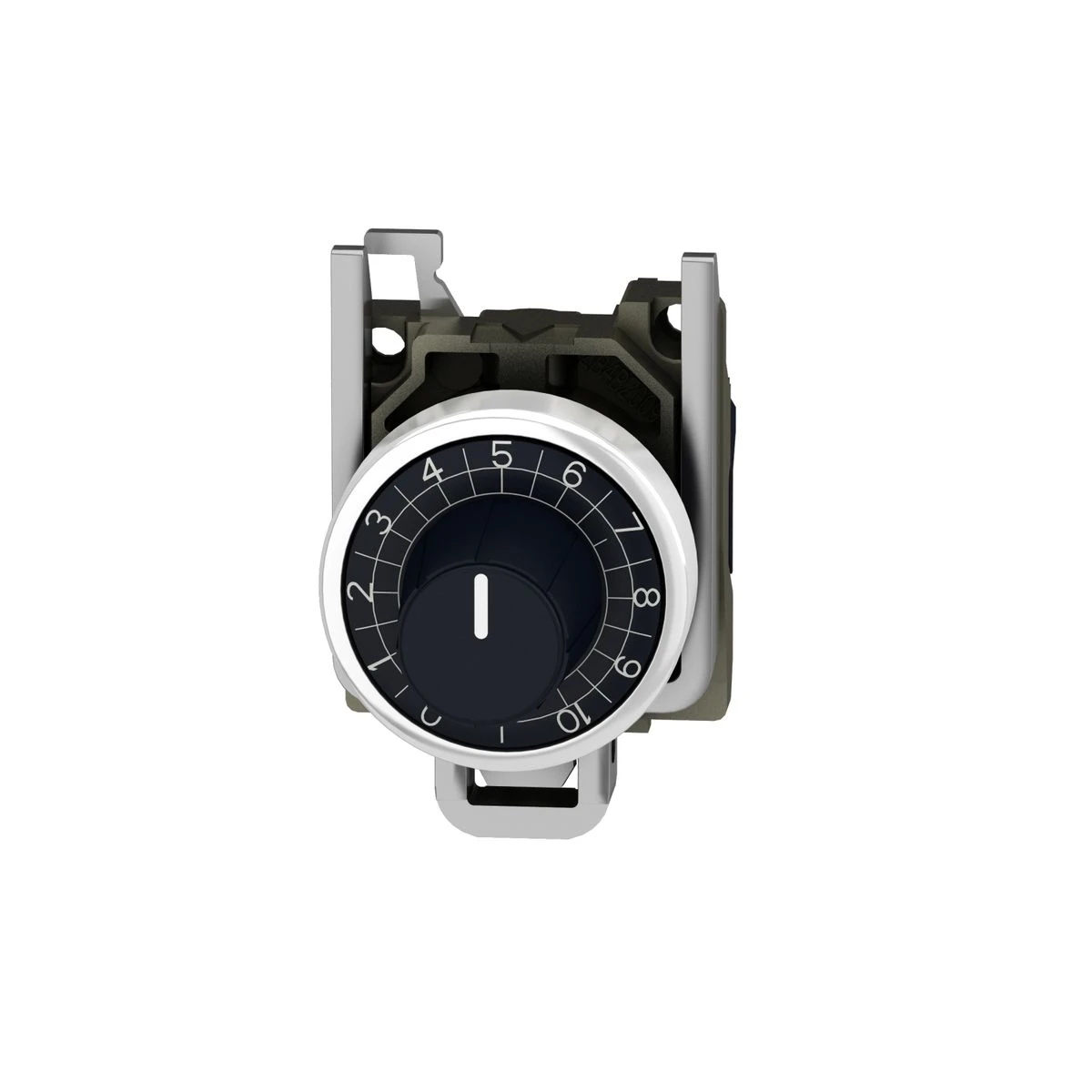

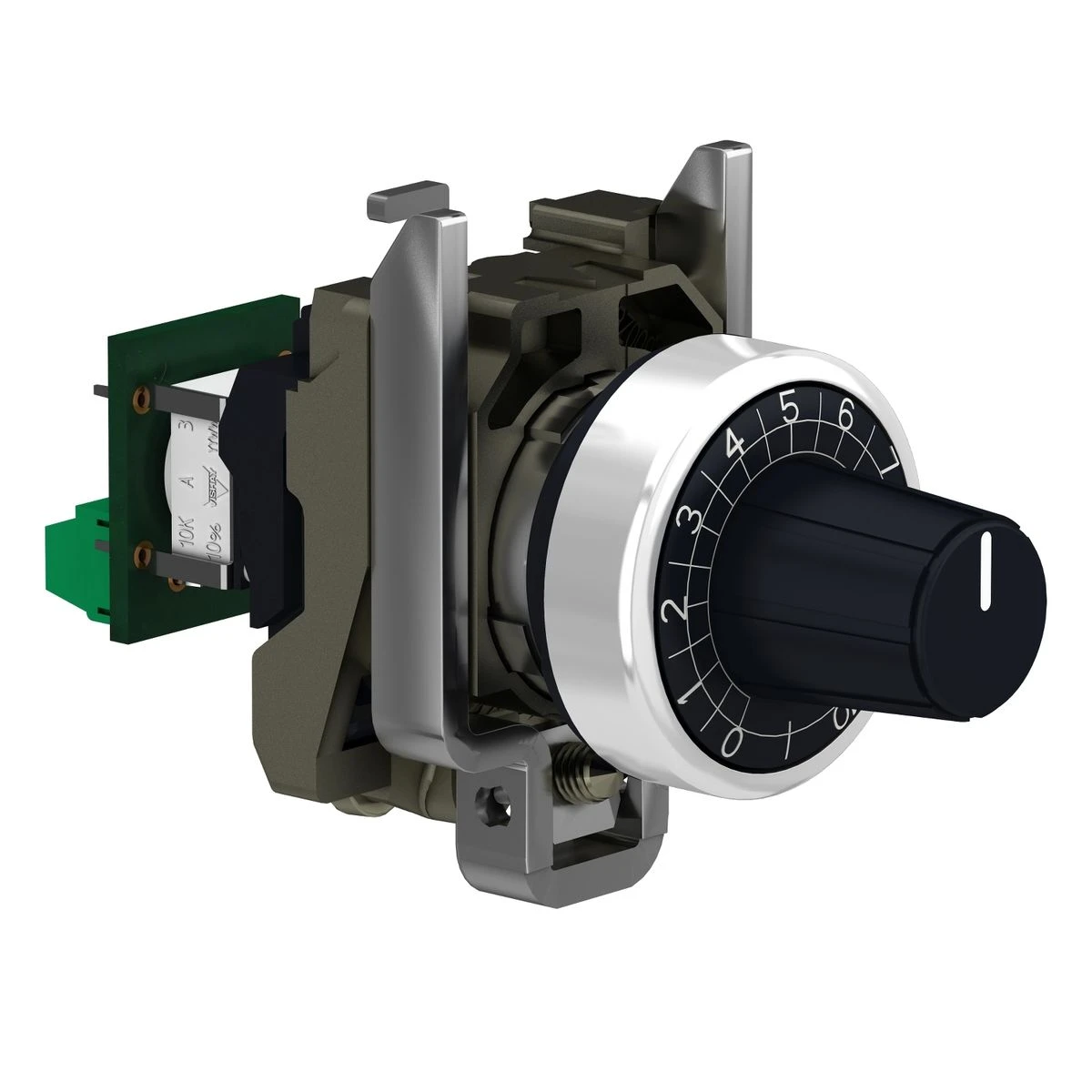

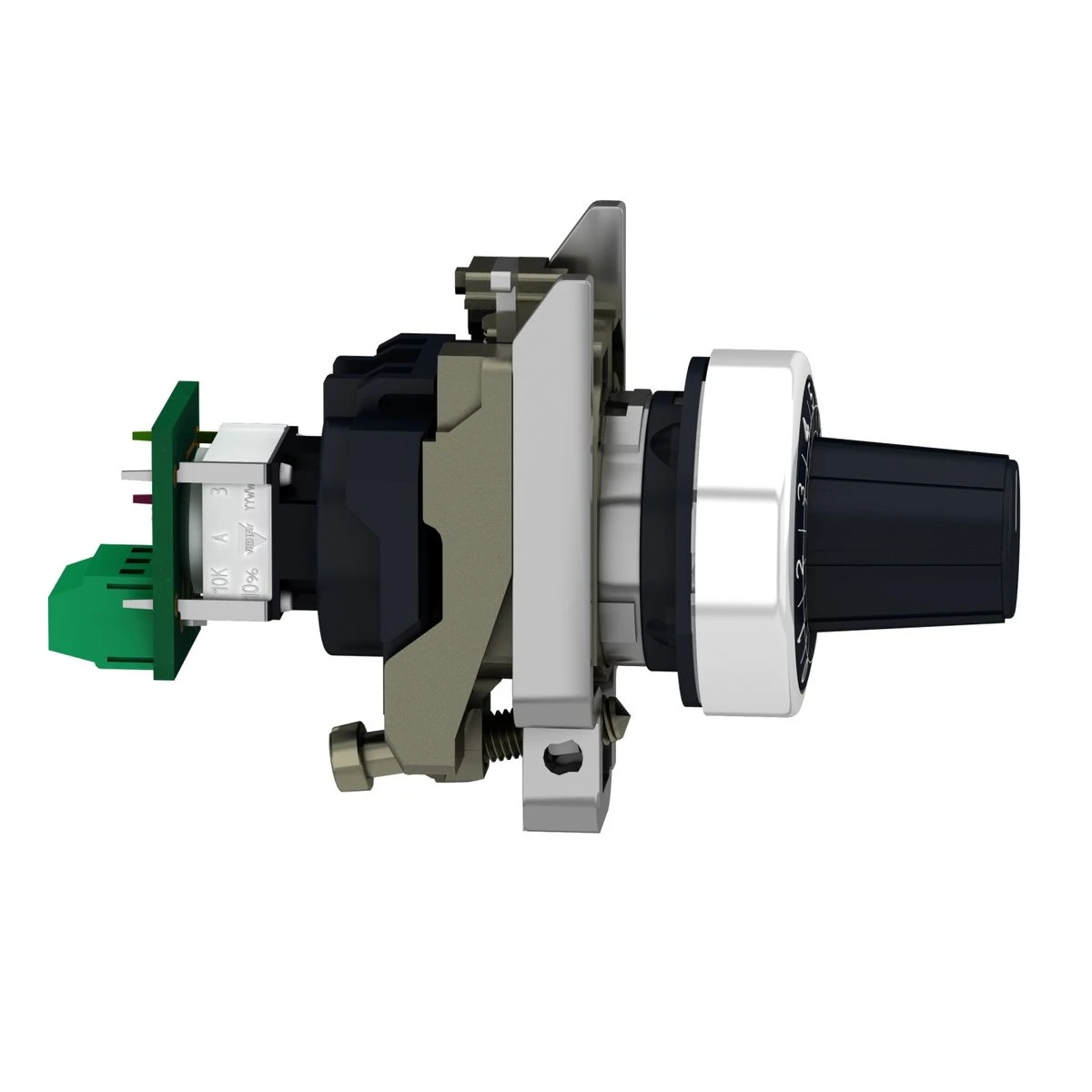

XB4BD912R10K - Harmony XB4, Complete potentiometer, metal, ?22, 10K - Schneider Electric

Expected in 2-4 weeks

XB4BD912R10K - Harmony XB4, Complete potentiometer, metal, ?22, 10K - Schneider Electric

39,32 € excl. VAT

47,97 € incl. VAT

Text About:

Harmony XB4, Complete potentiometer, metal, ?22, 10K - Schneider Electric

In cart

47,97 €

SPECIFICATIONS

Main

Device short name XB4

ohmic value 10000 Ohm

head type Standard

Complementary

product compatibility Ø 6 mm shaft

Group of product Potentiometer knurled knob

main group Potentiometer

Product certifications CSA
BV
UL listed

mounting diameter 22 mm

Product or component type Potentiometer

[us] rated supply voltage <= 30 V AC
<= 42 V DC

nema degree of protection NEMA 13
NEMA 4X

Colour of marking White

bezel material Chromium plated metal

Cad overall depth 82 mm

Cad overall height 47 mm

Electrical shock protection class Class II conforming to IEC 60536

Cad overall width 30 mm

Material Cermet

Sale per indivisible quantity 1

Ik degree of protection IK06 conforming to IEC 50102

Net weight 0.095 kg

mechanical durability 50000 cycles

Device presentation Complete product

Shape of signaling unit head Round

Potentiometer characteristic Linear

Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m

Precision of internal conversion resistor +-10%

Rated power in w 1 W at 70 °C

Operator profile knurled knob, with (white)

Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP66 conforming to IEC 60529
IP69 conforming to IEC 60529
IP69K conforming to IEC 60529

Range of product Harmony XB4

ambient air temperature for operation -40…70 °C

standards UL 508
EN/IEC 60947-1
CSA C22.2 No 14

vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

protective treatment TH
