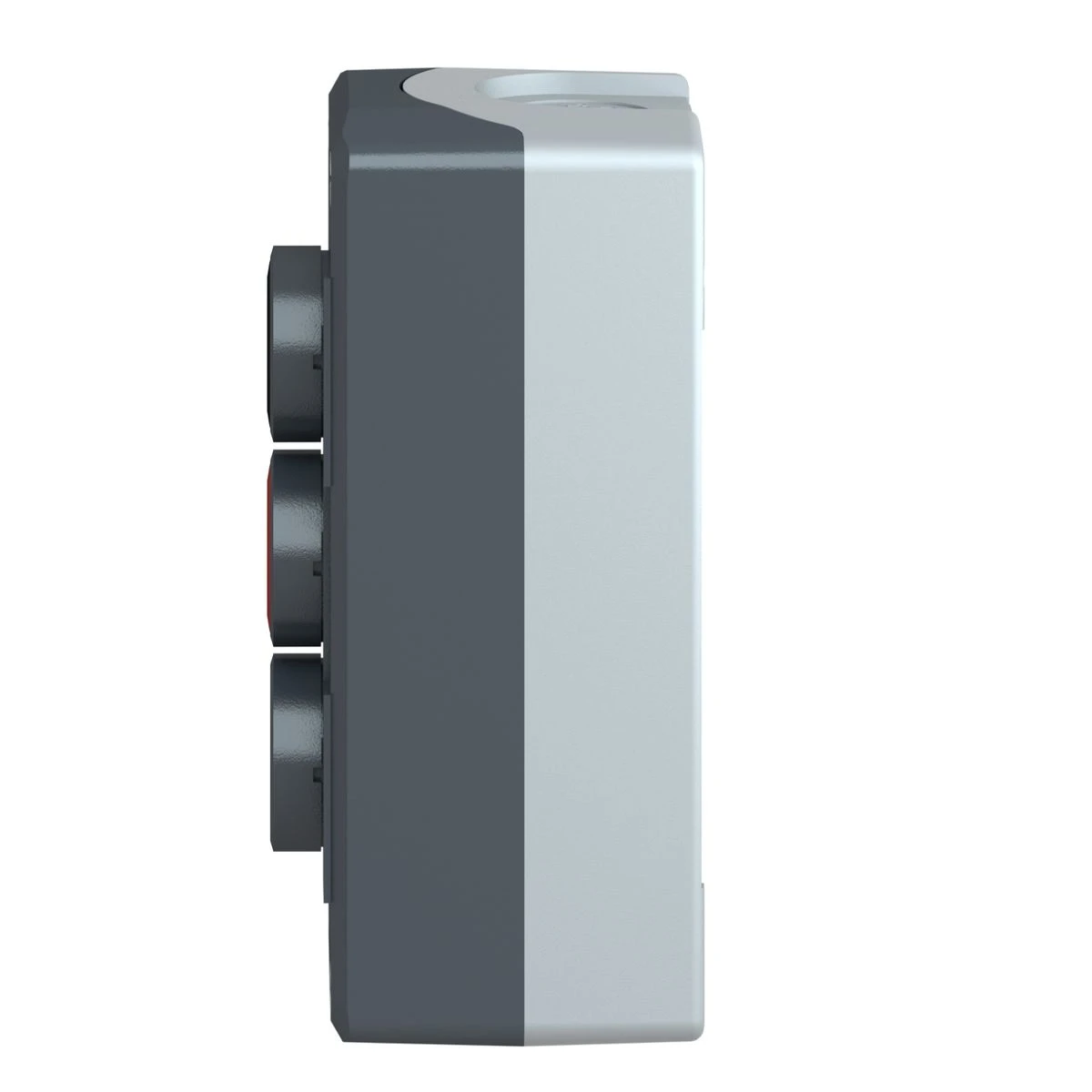

XALD334 - Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return - Schneider Electric

Expected in 2-4 weeks
XALD334 - Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return - Schneider Electric - Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return - Schneider Electric - 0
XALD334 - Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return - Schneider Electric - Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return - Schneider Electric - 1
XALD334 - Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return - Schneider Electric - Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return - Schneider Electric - 2
XALD334 - Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return - Schneider Electric - Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return - Schneider Electric - 3
XALD334 - Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return - Schneider Electric - Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return - Schneider Electric - 4
XALD334 - Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return - Schneider Electric - Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return - Schneider Electric - 5
XALD334 - Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return - Schneider Electric - Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return - Schneider Electric - 6
XALD334 - Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return - Schneider Electric
39,89 € excl. VAT
49,46 € incl. VAT
Text About:
Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return - Schneider Electric
49,46 €
SPECIFICATIONS
Main
Device short name XALD
Marking location Marking on push-button
[ui] rated insulation voltage 600 V (pollution degree 3) conforming to EN/IEC 60947-1
Complementary
[ie] rated operational current 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
[ith] conventional thermal current 10 A conforming to EN/IEC 60947-5-1
Product or component type Complete control station
tightening torque 0.8…1.2 N.m conforming to EN/IEC 60947-1
[uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-1
Colour of base of enclosure Light grey (RAL 7035)
nema degree of protection NEMA 13
NEMA 4X
cable entry 2 knock-outs for cable entry, clamping capacity: 14 mm
2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm
Colour of marking Black marking when white caps
White marking when green, red or black caps
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1
Contacts material Silver alloy (Ag/Ni)
contact operation Slow-break
Electrical shock protection class Class II conforming to IEC 60536
Operating travel 1.5 mm (NC changing electrical state)
2.6 mm (NO changing electrical state)
4.3 mm (total travel)
Material Polycarbonate
Colour of cover Dark grey (RAL 7016)
Control station application Three functions
electrical reliability Λ < 10exp(-6) at 5 V and 1 mA conforming to EN/IEC 60947-5-4
Λ < 10exp(-8) at 17 V and 5 mA conforming to EN/IEC 60947-5-4
Ik degree of protection IK03 conforming to EN 50102
Control station composition 1 flush push-button, red 1 NC O marking
1 flush push-button, black 1 NO, white left arrow marking
1 flush push-button, white 1 NO, black right arrow marking
Net weight 0.298 kg
mechanical durability 10000000 cycles
electrical durability 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
Positive opening With conforming to EN/IEC 60947-5-1 appendix K
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Operating force 3.5 N NC changing electrical state
3.8 N NO changing electrical state
Operator profile 3 flush push-buttons
Operators description White ''right arrow'' 1 NO - red ''O'' 1 NC - black ''left arrow'' 1 NO
Product destination For XB5 Ø 22 mm control and signalling units
Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Shape of screw head Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
Short-circuit protection 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
Environment
Ambient air temp for storage/transportation -40…70 °C
ip degree of protection IP66 conforming to IEC 60529
IP69
IP69K
IP67
Range of product Harmony XALD
ambient air temperature for operation -40…70 °C
standards EN/IEC 60947-5-1
CSA C22.2 No 14
EN/IEC 60947-5-5
UL 508
EN/IEC 60947-1
JIS C8201-5-1
EN/IEC 60947-5-4
JIS C8201-1
vibration resistance 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
protective treatment TH
About this product

The XALD334 - Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return is developed to meet the obligations of business buyers, such as system integrators, wiremen, service providers, and original producers. XALD334 delivers first-rate capability and benefits for professionals in the energy management industry. This Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return and other Harmony XALD from Schneider Electric can be obtained at the most favorable cost and shipment duration through BALTELEC website, a trustworthy supplier aiding specialists in their procurement needs.

Consumers who have used Schneider Electric Harmony XALD have repeatedly applauded the producer's reliability. It has been indicated that the remarkable workmanship of XALD334 - Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return extends to a collection of utilizations. Its excellent aspects make it proper pick for assorted uses, assuring the success of your industrial, tertiary, and automation ventures.

BALTELEC dedicates in providing for industrial and tertiary professionals’ needs. We understand the distinct requirements and expectations of our stakeholders in the sector. By cooperating with our specialists, our partners access access to the top rates and inventory of superior products like XALD334 - Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return from Schneider Electric at a budget-friendly price. Registered users receive additional savings and premium support.

Start immediately and buy XALD334 - Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return at our dependable and streamlined platform. Don't delay in making this wise investment that assures the highest quality and caters to the individual specifications of clients like your firm.

If you encounter any problems or concerns about XALD334 - Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return or any other Schneider Electric products, send us a note or refer to our Frequently Asked Questions section below. We have provided answers to recurring questions to assist you further in making an well-considered decision about industrial and tertiary electrical components.

Remember, XALD334 - Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return from Schneider Electric is secure, low-cost, and premier to its counterparts in the Harmony XALD category. Feel free to make it a part of your electrical system this moment. Snap up at baltele.eu, your dependable vendor for all your professional electrical equipment and automation needs.

In our Baltelec.eu electronic store you will encounter Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return - XALD334 worth 48.66 €, which will be a safe and innovative solution for your needs. This product is produced by the Schneider Electric brand using the latest technologies and meets the leading standards of well-being and capability. We extend things from the Harmony XALD category that unite endurance and utility, which is an fine election for various roles. In spite of whether you seek equipment for small assembly or for competent industrial purpose, Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return will be a trustworthy companion in your undertaking.

Baltelec strives to make the securing process as comfortable and fast as possible for our buyers. We offer detailed summaries and high-quality illustrations of Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return so that you can make an enlightened choice. A team of adepts is always ready to help you with any issues in the Harmony XALD section connected to the determining and use of merchandise. We are guaranteed that Harmony, Control station, plastic, dark grey, 1 white flush RIGHT ARROW/1 red flush O/1 black flush LEFT ARROW push buttons, Ш22 , spring return will meet your hopes and become an important element of your apparatus for just 48.66 €.
