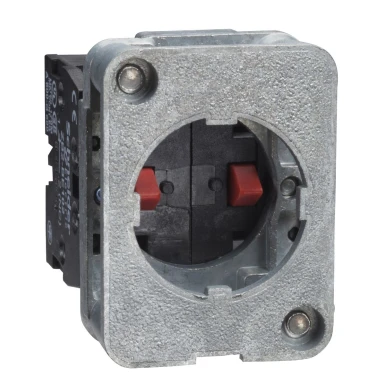

XACS414 - Contact block, Harmony XAC, single contact, spring return, front mounting, 40mm horizontal/30mmVertical fixing centres, 2NC - Schneider Electric

Expected in 2-4 weeks

20,80 € excl. VAT

25,37 € incl. VAT

Text About:

Contact block, Harmony XAC, single contact, spring return, front mounting, 40mm horizontal/30mmVertical fixing centres, 2NC - Schneider Electric

In cart

25,37 €

SPECIFICATIONS

Main

[ithe] thermal current under enclosure 10 A

[ui] rated insulation voltage 500 V (pollution degree 3) conforming to IEC 60947-1

component name XACS

contact block type Single

Complementary

product compatibility ZA2B... head
XACA

Product or component type Contact block

[uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1

Connections - terminals Screw clamp terminals, 1 x 2.5 mm² with or without cable end
Screw clamp terminals, 2 x 1.5 mm² with or without cable end

contact operation Slow-break

Contacts type and composition 2 NC

rated operational power in w 42 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
45 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
60 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C

Horizontal fixing centres 40 mm

Type of operator Spring return

Electrical circuit type Control circuit

rated operational power in va 140 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 24 V 50/60 Hz, load factor = 0.5 (inductive load)
385 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 48 V 50/60 Hz, load factor = 0.5 (inductive load)
455 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 230 V 50/60 Hz, load factor = 0.5 (inductive load)
525 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 127 V 50/60 Hz, load factor = 0.5 (inductive load)

contact code designation A300 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
Q300 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A

Mounting of block Front mounting

Net weight 0.07 kg

mechanical durability 1000000 cycles

Vertical fixing centres 30 mm

Maximum resistance across terminals 25 MOhm

Mechanical interlocking Without mechanical interlock

Shock resistance 100 gn conforming to IEC 60068-2-27

Terminal identifier (13-14)NON !@ !(11-12)NC

Short-circuit protection 10 A fuse protection by cartridge fuse type gG

Terminals description iso n°1 (21-22)NC
(11-12)NC

Environment

Ambient air temp for storage/transportation -40…70 °C

Range of product Harmony XAC

ambient air temperature for operation -25…70 °C

standards CSA C22.2 No 14
IEC 60947-5-1
EN 60947-5-1

vibration resistance 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
