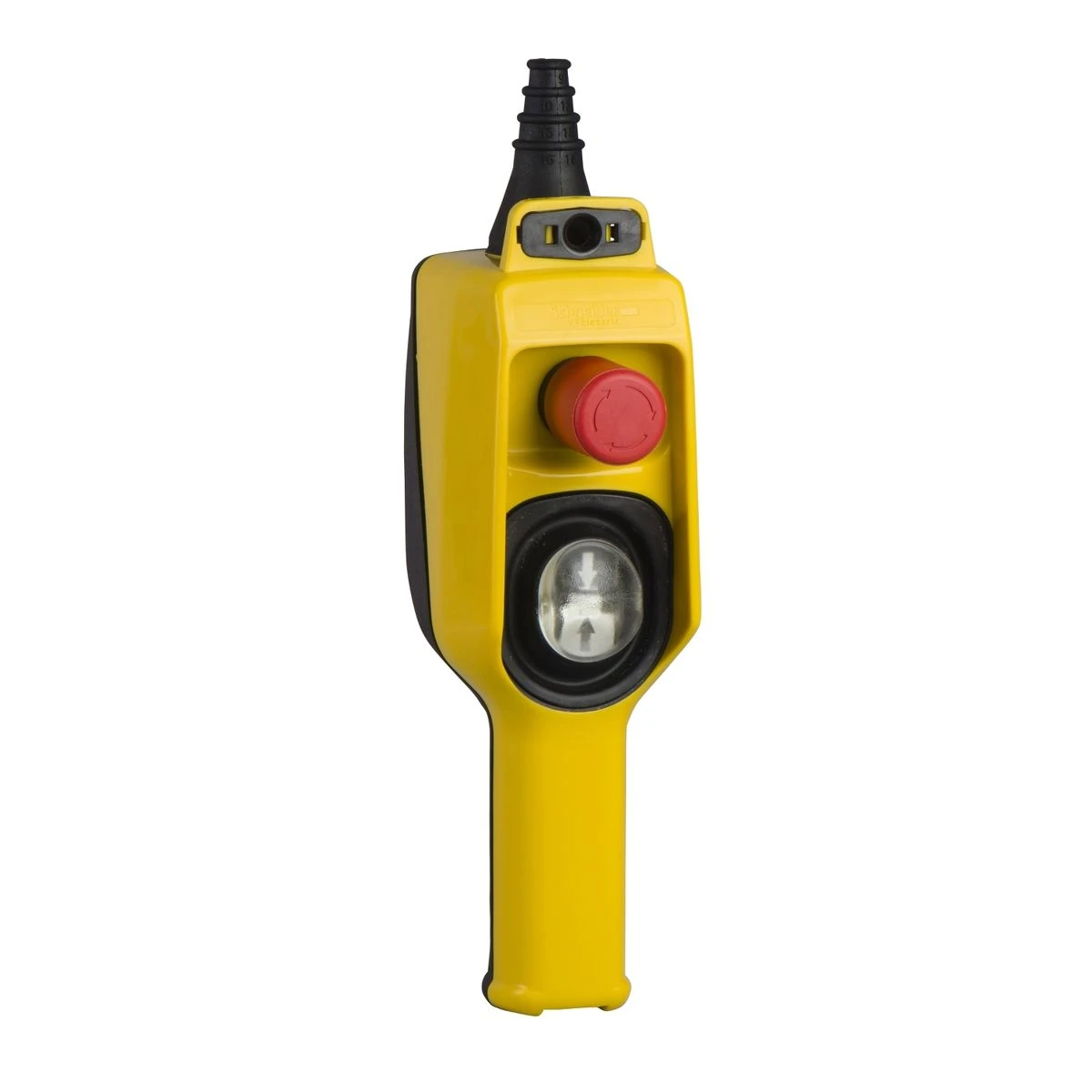

XACD22P3111 - Pendant control station, Harmony XAC, 1 speed, 1 2-directional push button, 1 emergency stop, for XEDS3111/XENT1991 - Schneider Electric

Expected in 2-4 weeks

275,23 € excl. VAT

335,78 € incl. VAT

Text About:

Pendant control station, Harmony XAC, 1 speed, 1 2-directional push button, 1 emergency stop, for XEDS3111/XENT1991 - Schneider Electric

In cart

335,78 €

SPECIFICATIONS

Main

Device short name XACD

[ithe] thermal current under enclosure 10 A XENT....
16 A XEDS....

[ui] rated insulation voltage 500 V (pollution degree 3) conforming to IEC 60947-1
Emergency stop contact: 400 V (pollution degree 3)

Complementary

product compatibility XEDS3111 for reversing operation
XENT1991 for emergency stop

Control type Intuitive

Control station colour Yellow

Enclosure type Complete ready for use

Product or component type Pendant control station

[uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
4 kV emergency stop contact

Control station type Double insulated

cable entry Rubber sleeve with stepped entry 7…18 mm

Connections - terminals Screw clamp terminals, 1 x 2.5 mm² with or without cable end
Screw clamp terminals, 2 x 1.5 mm² with or without cable end

Enclosure material Polypropylene

contact operation Snap action

rated operational power in w 2200 W AC-3 at 400 V conforming to IEC 60947-3 appendix A
2200 W AC-4 at 400 V conforming to IEC 60947-3 appendix A
3000 W AC-23B at 400 V

Control station application Control of single speed hoist motor

Electrical circuit type Power circuit

Ik degree of protection IK08 conforming to EN 50102

Control station composition 1 2-directional button + 1 emergency stop

Net weight 0.41 kg

mechanical durability 3000000 cycles

electrical durability 1000000 cycles AC-3, 2200 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A
1000000 cycles AC-4, 2200 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A

Mechanical interlocking With mechanical interlocking

control button type Stop push-button Ø 30 mm 3 NC latching
First direction button 2-pole raise, slow
Second direction button 2-pole lower, slow

Operating force 28 N

motor starter type Reversing

Shock resistance 100 gn conforming to IEC 60068-2-27

Terminal identifier (13-14)NON !@ !(11-12)NC

Terminals description iso n°2 (31-32)NC
(11-12)NC
(21-22)NC

Short-circuit protection 6 A fuse protection by cartridge fuse type aM

Terminals description iso n°1 (1-2)P
(5-6)P
(3-4)P
(7-8)P

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP65 conforming to IEC 60529

Range of product Harmony XAC

ambient air temperature for operation -25…70 °C

overvoltage category Class II conforming to IEC 61140

standards UL 508
EN/IEC 60204-32
CSA C22.2 No 14
EN/IEC 60947-5-1

vibration resistance 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

protective treatment TH
