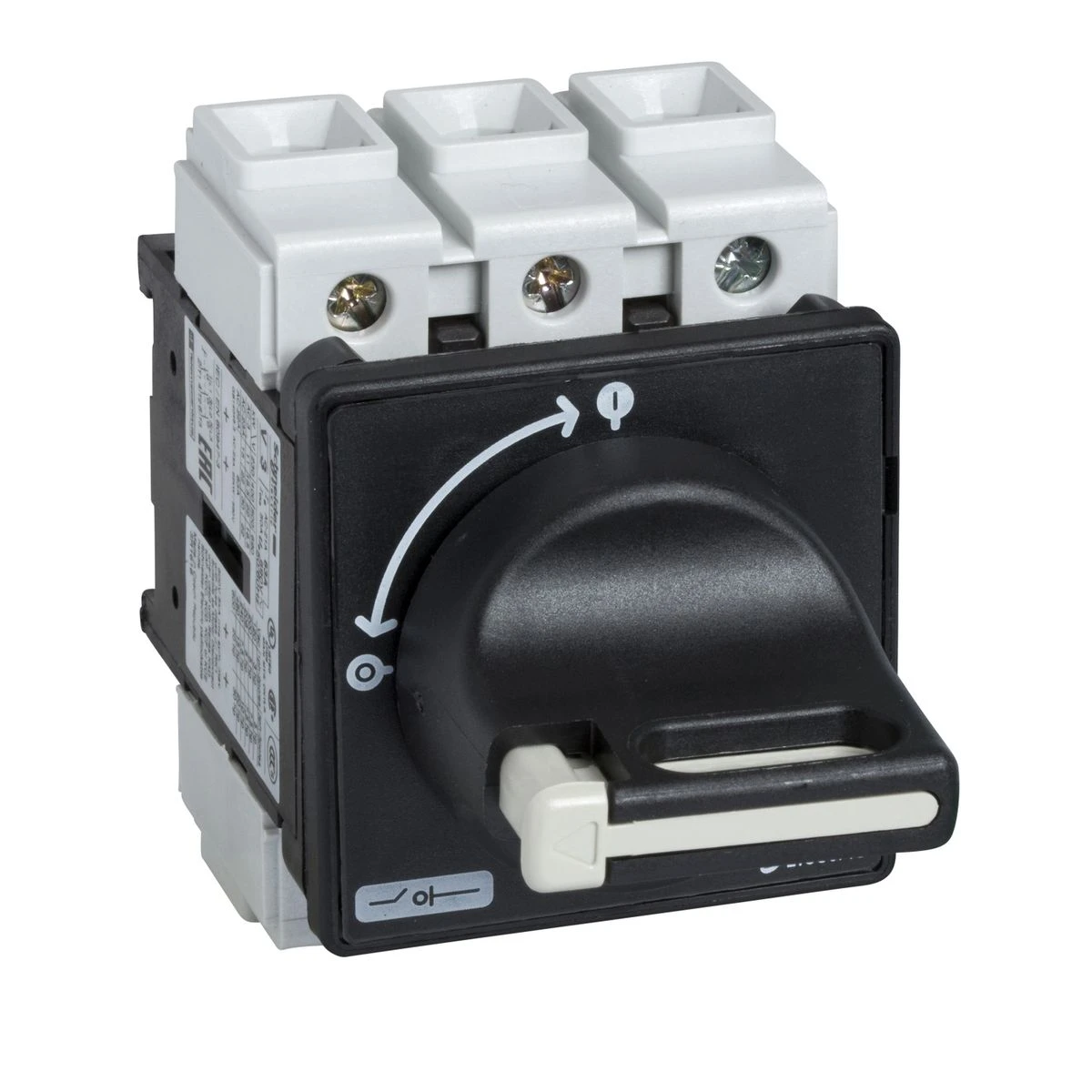

VBF1 - TeSys Vario switch disconnector 32 A on door - Schneider Electric

Expected in 2-4 weeks
VBF1 - TeSys Vario switch disconnector 32 A on door - Schneider Electric - TeSys Vario switch disconnector 32 A on door - Schneider Electric - 0
VBF1 - TeSys Vario switch disconnector 32 A on door - Schneider Electric
31,18 € excl. VAT
38,66 € incl. VAT
Text About:
TeSys Vario switch disconnector 32 A on door - Schneider Electric
38,66 €
SPECIFICATIONS
Main
Device short name VBF
[ithe] thermal current under enclosure 25 A
Range TeSys
Product Name TeSys VARIO
Product type Switch disconnector
degree of protection IP20 conforming to IEC 60529
IP65
performance level High performance
Complementary
[icm] rated short circuit making capacity 1 kA at 400 V at Ipeak
[ie] rated operational current 21.8 A AC-23 Ue: 400 V
[ue] rated operational voltage 690 V AC 50/60 Hz
compatibility code Main switch disconnector
[ics] rated service breaking capacity 250 A at 400 V (AC-21A)
250 A at 400 V (AC-22A)
250 A at 400 V (AC-23A)
[icw] rated short time withstand current 384 A at 400 V duration: 1 s
[ith] conventional thermal current 32 A
Base dimension 60 x 60 mm
Control type Rotary handle
Handle colour Black
intermittent duty class 30
Product certifications CSA
CCC
UL
GL
UKCA
Handle front plate colour Black
tightening torque Power circuit: 2.1 N.m - on screw clamp terminals
[uimp] rated impulse withstand voltage 8 kV
Device composition Handle
Switch
product weight 0.25 kg
marking 0 - 1
Device application Preventive maintenance
width (w) 60 mm
mechanical robustness Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27
Rotary handle padlocking 1 to 3 padlocks 4…8 mm
Iec rated operational power in w 11 kW at 500 V (AC-23A)
15 kW at 690 V (AC-23A)
7.5 kW at 500 V (AC-3)
7.5 kW at 690 V (AC-3)
1.5 kW at 230...240 V (AC-3)
5.5 kW at 230...240 V (AC-23A)
11 kW at 400...415 V (AC-23A)
7.5 kW at 400...415 V (AC-3)
Iec terminal connection Power circuit: screw clamp terminals10 mm² - solid
Power circuit: screw clamp terminals6 mm² - flexible - with cable end
Mounting support Handle: door
Switch: door
mechanical durability 100000 cycles
electrical durability 100000 cycles AC-21
30000 cycles DC-1...5
Network type AC
DC
Making capacity ( i rms) 320 A at 400 V AC-21A
320 A at 400 V AC-22A
320 A at 400 V AC-23A
mounting method By 4 screws for handle
Rated conditional short circuit current 10 kA at 400 V - associated fuse 35 A aM
10 kA at 400 V - associated fuse 35 A gG
rotary handle mounting style Direct
contact type and composition 3 NO
Suitability for isolation Yes
Poles description 3P
Environment
ambient air temperature for operation -20…50 °C
standards IEC 60947-3
fire resistance 960 °C conforming to IEC 60695-2-1
protective treatment TC
About this product

The VBF1 - TeSys Vario switch disconnector 32 A on door is devised to cater to the expectations of industry experts, such as electrical installers, circuit experts, service providers, and manufacturing originators. VBF1 supplies exceptional capability and beneficence for contractors in the electrotechnical industry. This TeSys Vario switch disconnector 32 A on door and other TeSys VARIO from Schneider Electric can be purchased at the optimal price and lead time through BALTELEC website, a well-regarded merchant catering to contractors in their acquisition needs.

Customers who have procured Schneider Electric TeSys VARIO have frequently admired the manufacturer’s reliability. It has been highlighted that the extraordinary productivity of VBF1 - TeSys Vario switch disconnector 32 A on door extends to a spectrum of tasks. Its top-notch properties make it appropriate to suit a variety of needs, assuring the success of your industrial, tertiary, and automation ventures.

BaltElec team devotes in meeting industrial and tertiary professionals’ needs. We comprehend the specific needs and anticipations of our consumers in the domain. By joining forces with our professionals, your organization acquire access to the superior charges and lead time of the top-of-the-line products like VBF1 - TeSys Vario switch disconnector 32 A on door from Schneider Electric at an affordable price. Professional buyers with Baltelec account receive special savings and premium support.

Seize the moment and get VBF1 - TeSys Vario switch disconnector 32 A on door at our safe and user-friendly virtual storefront. Don't delay in making this thoughtful resolution that guarantees the utmost quality and satisfies the particular demands of traders like your group.

Should you experience any issues or concerns about VBF1 - TeSys Vario switch disconnector 32 A on door or any other Schneider Electric products, call us or refer to our Help section section below. We have brought together answers to frequent questions to aid you further in making an informed decision about industrial and tertiary electrical components.

Remember, VBF1 - TeSys Vario switch disconnector 32 A on door from Schneider Electric is consistent, affordable, and premier to opposing companies in the TeSys VARIO category. Make it a part of your electrical system now. Purchase at Baltelec webstore, your dependable vendor for all your Schneider Electric.

In our Baltelec.eu web store you will encounter TeSys Vario switch disconnector 32 A on door - VBF1 worth 38.03 €, which will be a constant and cutting-edge solution for your desires. This produce is produced by the Schneider Electric brand using the most recent technologies and follows the leading standards of well-being and workmanship. We deliver produce from the TeSys VARIO category that mix robustness and utility, which is an first-rate option for various roles. Notwithstanding of whether you call for equipment for small generation or for expert industrial exertion, TeSys Vario switch disconnector 32 A on door will be a trustworthy partner in your job.

Baltelec attempts to make the attaining process as manageable and fast as workable for our clients. We offer detailed depictions and high-quality shots of TeSys Vario switch disconnector 32 A on door so that you can make an advised choice. A team of specialists is always ready to help you with any concerns in the TeSys VARIO section involved to the deciding and use of products. We are confident that TeSys Vario switch disconnector 32 A on door will meet your criteria and become an necessary element of your apparatus for just 38.03 €.
