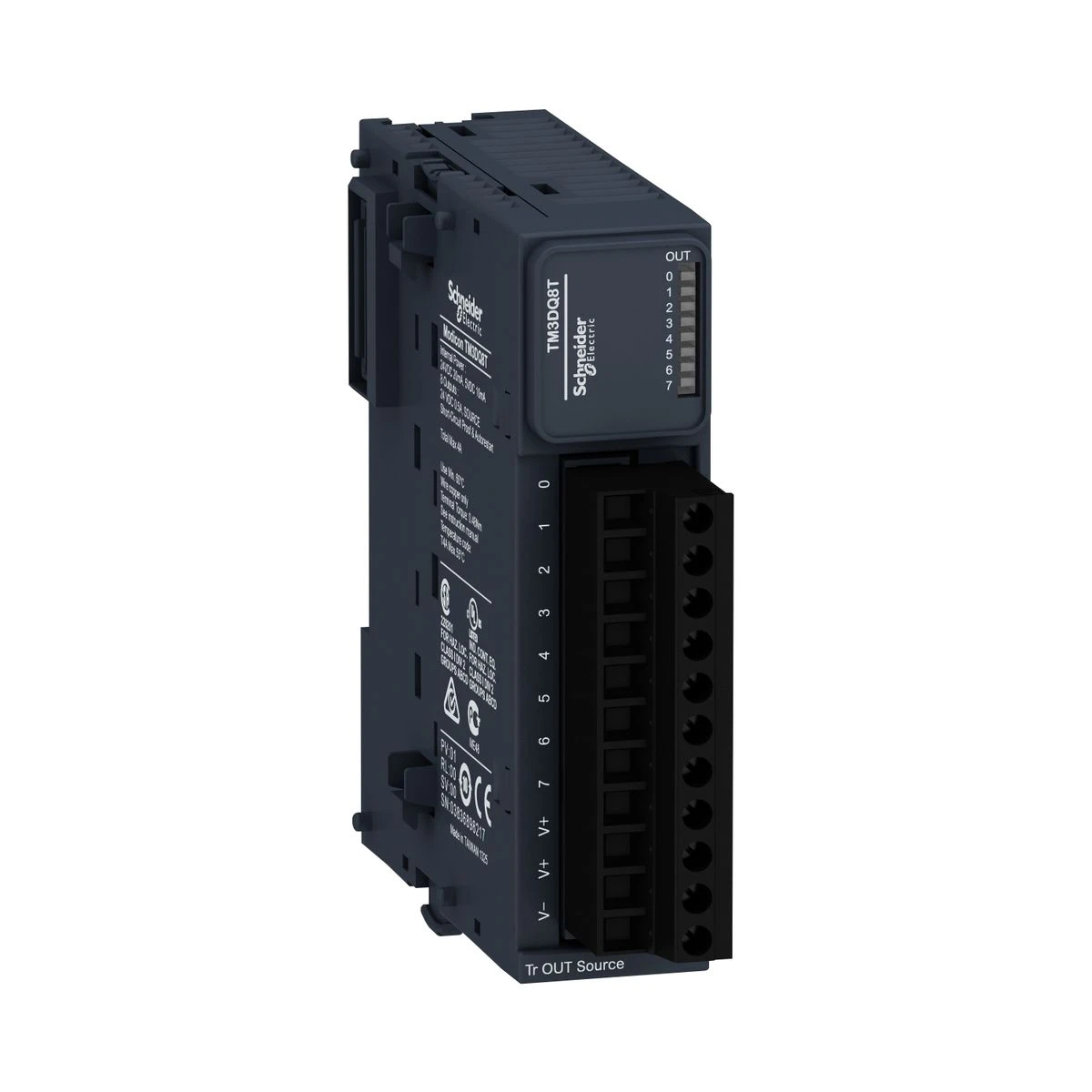

TM3DQ8T - Discrete output module, Modicon TM3, 8 outputs transistor PNP (screw) - Schneider Electric

Expected in 2-4 weeks
TM3DQ8T - Discrete output module, Modicon TM3, 8 outputs transistor PNP (screw) - Schneider Electric - Discrete output module, Modicon TM3, 8 outputs transistor PNP (screw) - Schneider Electric - 0
TM3DQ8T - Discrete output module, Modicon TM3, 8 outputs transistor PNP (screw) - Schneider Electric
77,52 € excl. VAT
96,12 € incl. VAT
Text About:
Discrete output module, Modicon TM3, 8 outputs transistor PNP (screw) - Schneider Electric
96,12 €
SPECIFICATIONS
Main
Discrete output logic Positive logic (source)
Complementary
range compatibility Modicon M241
Modicon M251
Modicon M221
Modicon M262
Product certifications C-Tick
cULus
response time 450 µs (turn-on)
450 µs (turn-off)
Handle front plate colour 90 mm
maximum leakage current 0.1 mA for transistor output
Product or component type Discrete output module
Current consumption 5 mA at 5 V DC via bus connector (at state off)
0 mA at 24 V DC via bus connector (at state off)
20 mA at 24 V DC via bus connector (at state on)
10 mA at 5 V DC via bus connector (at state on)
maximum voltage drop <0.4 V
marking CE
Discrete i/o number 8
Discrete output current 500 mA for transistor output
width (w) 27.4 mm
Local signalling 1 LED per channel (green) for output status
Net weight 0.76 kg
Discrete output type Transistor
Maximum cable distance between devices Unshielded cable: <30 m for transistor output
Discrete output voltage 24 V DC for transistor output
Discrete output number 8
Mounting support Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715
plate or panel with fixing kit
depth 84.6 mm
Pollution degree 2
electrical connection 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for outputs
Insulation Between output and internal logic at 500 V AC
Non-insulated between outputs
Maximum tungsten load <3 W for transistor output
Resistance to electrostatic discharge 8 kV in air conforming to EN/IEC 61000-4-2
4 kV on contact conforming to EN/IEC 61000-4-2
Shock resistance 15 gn for 11 ms
Resistance to electromagnetic fields 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3
3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3
1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3
Surge withstand 1 kV I/O common mode conforming to EN/IEC 61000-4-5 DC
Environment
Ambient air temp for storage/transportation -25…70 °C
ip degree of protection IP20 with protective cover in place
operating altitude 0...2000 m
Range of product Modicon TM3
ambient air temperature for operation -10…35 °C vertical installation
-10…55 °C horizontal installation
Resistance to conducted disturbances 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6
3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)
standards EN/IEC 61131-2
EN/IEC 61010-2-201
Storage altitude 0…3000 m
relative humidity 10…95 %, without condensation (in operation)
10…95 %, without condensation (in storage)
electromagnetic emission Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011
Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011
vibration resistance 3.5 mm at 5…8.4 Hz on DIN rail
3 gn at 8.4…150 Hz on DIN rail
3.5 mm at 5…8.4 Hz on panel
3 gn at 8.4…150 Hz on panel
resistance to fast transients 1 kV for I/O conforming to EN/IEC 61000-4-4
resistance to magnetic fields 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8
About this product

The TM3DQ8T - Discrete output module, Modicon TM3, 8 outputs transistor PNP (screw) is crafted to address the demands of technical experts, such as switchgear manufacturers, wiremen, upkeep firms, and equipment creators. TM3DQ8T affords superior capability and merit for experts in the power management industry. This Discrete output module, Modicon TM3, 8 outputs transistor PNP (screw) and other Modicon M221 from Schneider Electric are on offer at the most affordable rate and turnaround time through BaltElec, a dependable distributor aiding contractors in their provision needs.

Technicians who have chosen Schneider Electric Modicon M221 have persistently admired the maker's robustness. It has been pointed out that the remarkable energy-efficiency of TM3DQ8T - Discrete output module, Modicon TM3, 8 outputs transistor PNP (screw) extends to a extensive scope of use. Its high-end traits make it fitting to satisfy a wide array of needs, promoting success in your industrial, tertiary, and automation efforts.

BaltElec team commits in serving industrial and tertiary professionals’ needs. We know the individual needs and requirements of our clients in the sector. By partnering with us, our customers obtain access to the optimal charges and inventory of first-rate products like TM3DQ8T - Discrete output module, Modicon TM3, 8 outputs transistor PNP (screw) from Schneider Electric at a reasonable price. Registered customers benefit from exclusive discounts and expedited requests handling.

Take action and order TM3DQ8T - Discrete output module, Modicon TM3, 8 outputs transistor PNP (screw) at our trusted and user-friendly web store. Don't delay in making this smart choice that ensures the best quality and achieves the specific expectations of users like your group.

When you have any concerns or concerns about TM3DQ8T - Discrete output module, Modicon TM3, 8 outputs transistor PNP (screw) or any other Schneider Electric products, communicate with us or refer to our Knowledge base section below. We have consolidated answers to recurring concerns to serve you further in making an informed decision about industrial and tertiary electrical components.

Remember, TM3DQ8T - Discrete output module, Modicon TM3, 8 outputs transistor PNP (screw) from Schneider Electric is unfailing, economical, and high-quality to its rivals in the Modicon M221 category. Don't hesitate to make it a part of your inventory at once. Purchase at Baltelec webstore, your preferred supplier for all your professional electrical equipment and automation needs.

In our Baltelec.eu virtual store you will uncover Discrete output module, Modicon TM3, 8 outputs transistor PNP (screw) - TM3DQ8T worth 94.57 €, which will be a secure and current solution for your expectations. This product is invented by the Schneider Electric brand using the most recent technologies and meets the highest standards of defense and productivity. We furnish articles from the Modicon M221 category that combine resilience and functionality, which is an excellent option for various tasks. In spite of whether you require machinery for small output or for adept industrial purpose, Discrete output module, Modicon TM3, 8 outputs transistor PNP (screw) will be a trustworthy facilitator in your duty.

Baltelec efforts to make the attaining process as accessible and fast as practicable for our users. We offer detailed accounts and high-quality illustrations of Discrete output module, Modicon TM3, 8 outputs transistor PNP (screw) so that you can make an educated choice. A team of virtuosos is always ready to help you with any concerns in the Modicon M221 section associated to the electing and use of commodities. We are assured that Discrete output module, Modicon TM3, 8 outputs transistor PNP (screw) will meet your hopes and become an needed element of your gear for just 94.57 €.

Customer Queries about TM3DQ8T - Discrete output module, Modicon TM3, 8 outputs transistor PNP (screw):
