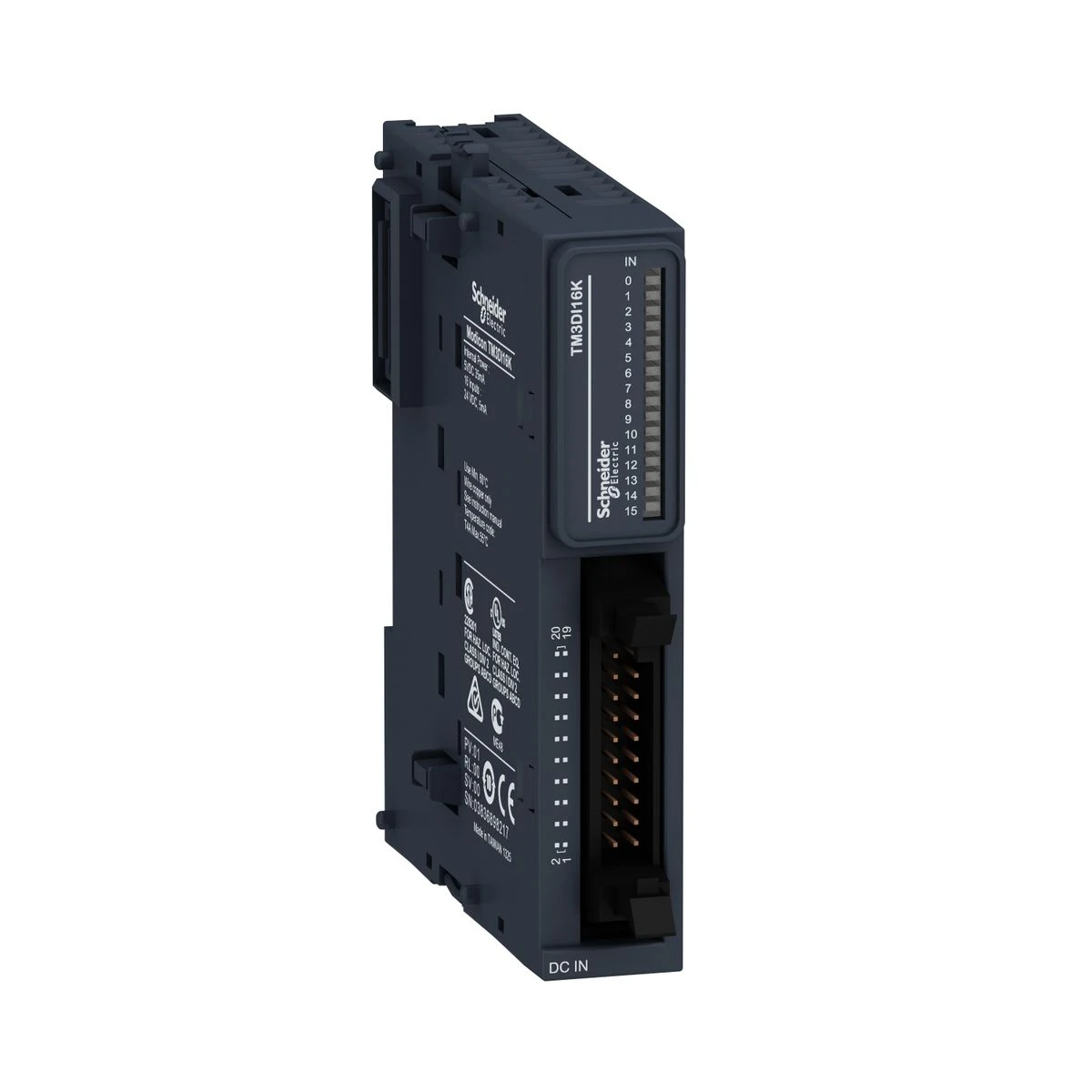

TM3DI16K - Discrete input module, Modicon TM3, 16 inputs (HE10) 24 VDC - Schneider Electric

Expected in 2-4 weeks

112,10 € excl. VAT

136,77 € incl. VAT

Text About:

Discrete input module, Modicon TM3, 16 inputs (HE10) 24 VDC - Schneider Electric

In cart

136,77 €

SPECIFICATIONS

Main

Discrete input voltage type DC

Discrete input current 5 mA for input

Complementary

range compatibility Modicon M241
Modicon M251
Modicon M221
Modicon M262

Product certifications cULus
CE
UKCA
RCM
EAC

response time 4 ms (turn-on)
4 ms (turn-off)

Handle front plate colour 90 mm

Product or component type Discrete input module

Current consumption 5 mA at 5 V DC via bus connector (at state off)
0 mA at 24 V DC via bus connector (at state on)
0 mA at 24 V DC via bus connector (at state off)
35 mA at 5 V DC via bus connector (at state on)

current state 0 guaranteed <= 1 mA (input)

marking CE

current state 1 guaranteed >= 2.5 mA (input)

Discrete i/o number 16

Discrete input logic Sink or source (positive/negative)

width (w) 21.4 mm

Discrete input voltage 24 V

Local signalling 1 LED per channel (green) for input status

Discrete input number 16 for input conforming to IEC 61131-2 type 3

Net weight 0.65 kg

Maximum cable distance between devices Unshielded cable: <50 m for regular input

voltage state 1 guaranteed 15...28.8 V for input

input impedance 4.4 kOhm

Mounting support Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715
plate or panel with fixing kit

depth 81.3 mm

voltage state 0 guaranteed 0...5 V for input

Pollution degree 2

electrical connection HE-10 connectorfor inputs

Insulation Between input and internal logic at 500 V AC
Non-insulated between inputs

Resistance to electrostatic discharge 8 kV in air conforming to EN/IEC 61000-4-2
4 kV on contact conforming to EN/IEC 61000-4-2

Shock resistance 15 gn for 11 ms

Resistance to electromagnetic fields 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3
3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3
1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3

Surge withstand 1 kV I/O common mode conforming to EN/IEC 61000-4-5 DC

Environment

Ambient air temp for storage/transportation -25…70 °C

ip degree of protection IP20 with protective cover in place

operating altitude 0...2000 m

Range of product Modicon TM3

ambient air temperature for operation -10…35 °C vertical installation
-10…55 °C horizontal installation

Resistance to conducted disturbances 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6
3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

standards EN/IEC 61010-2-201
EN/IEC 61131-2

Storage altitude 0…3000 m

relative humidity 10…95 %, without condensation (in operation)
10…95 %, without condensation (in storage)

electromagnetic emission Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011
Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011

vibration resistance 3.5 mm at 5…8.4 Hz on DIN rail
3 gn at 8.4…150 Hz on DIN rail
3.5 mm at 5…8.4 Hz on panel
3 gn at 8.4…150 Hz on panel

resistance to fast transients 1 kV for I/O conforming to EN/IEC 61000-4-4

resistance to magnetic fields 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8
