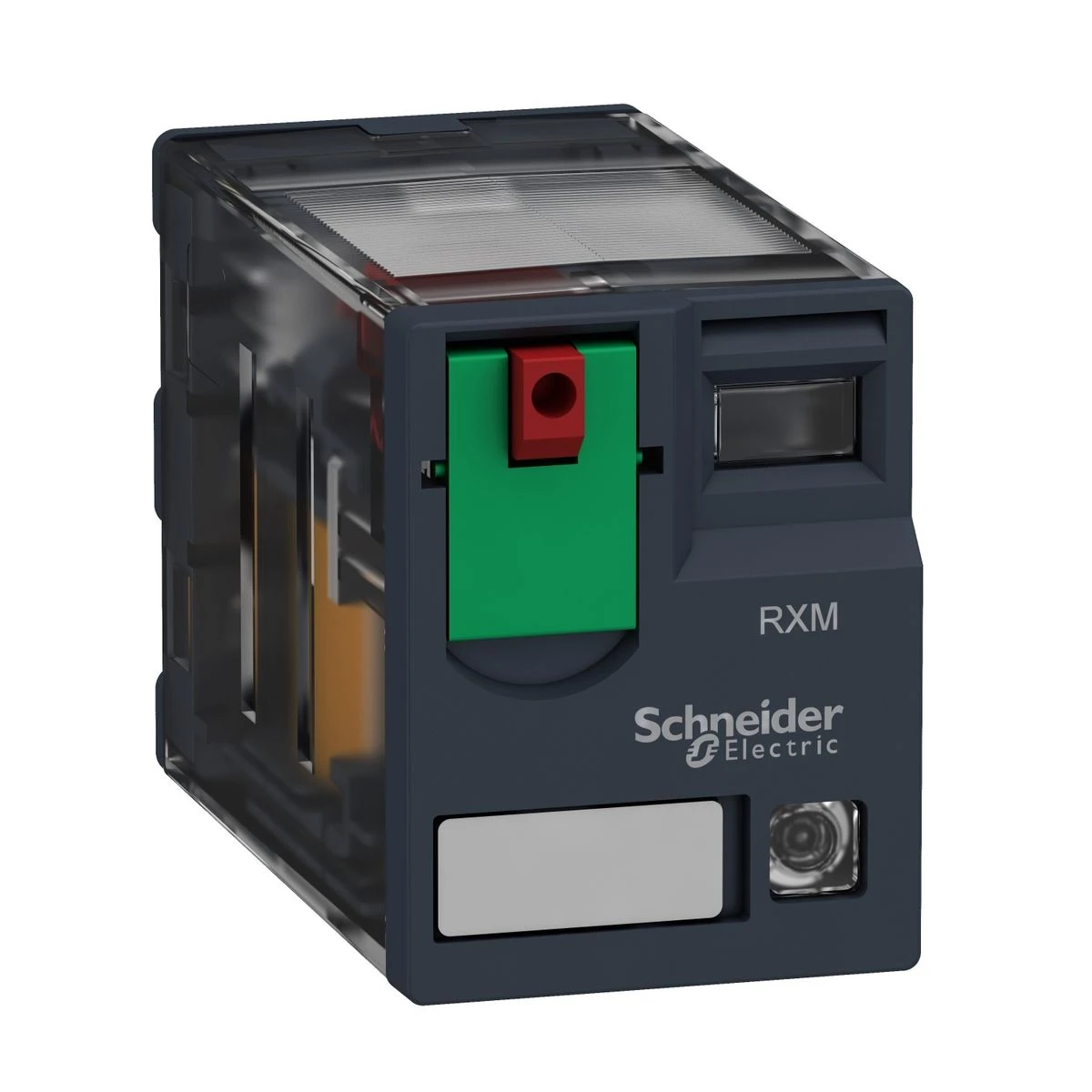

RXM4GB2F7 - Harmony, Miniature plugin relay, 3 A, 4 CO, with LED, with lockable test button, 120 V AC - Schneider Electric

Pending restock
RXM4GB2F7 - Harmony, Miniature plugin relay, 3 A, 4 CO, with LED, with lockable test button, 120 V AC - Schneider Electric - Harmony, Miniature plugin relay, 3 A, 4 CO, with LED, with lockable test button, 120 V AC - Schneider Electric - 0
RXM4GB2F7 - Harmony, Miniature plugin relay, 3 A, 4 CO, with LED, with lockable test button, 120 V AC - Schneider Electric
8,46 € excl. VAT
10,49 € incl. VAT
Text About:
Harmony, Miniature plugin relay, 3 A, 4 CO, with LED, with lockable test button, 120 V AC - Schneider Electric
10,49 €
SPECIFICATIONS
Main
Device short name RXM
[ithe] thermal current under enclosure 3 A at -40…55 °C
[uc] control circuit voltage 120 V AC 50/60 Hz
[ui] rated insulation voltage 250 V conforming to IEC
300 V conforming to CSA
300 V conforming to UL
Series name Miniature
Complementary
average consumption 1.2 VA at 60 Hz
[ie] rated operational current 2 A at 28 V (DC) NO conforming to IEC
2 A at 250 V (AC) NO conforming to IEC
1 A at 28 V (DC) NC conforming to IEC
1 A at 250 V (AC) NC conforming to IEC
3 A at 28 V (DC) conforming to UL
3 A at 277 V (AC) conforming to UL
Control type Lockable test button
Product certifications CSA
CE
Lloyd's
UL
GOST
Product or component type Plug-in relay
[uimp] rated impulse withstand voltage 2.5 kV during 1.2/50 µs
minimum switching capacity 15 mW at 3 mA, 5 V
protection category RT I
average coil consumption in va 1.2 at 60 Hz
Contacts material Gold plated bifurcated silver
Contacts type and composition 4 C/O
Net weight 0.037 kg
Operating position Any position
test levels Level A group mounting
mechanical durability 10000000 cycles
Rated operational voltage limits 96...132 V AC
electrical durability 100000 cycles for resistive load depending on mounting position and working environment
Device presentation Complete product
average coil resistance 4430 Ohm at 20 °C +/- 15 %
Pollution degree 2
drop-out voltage threshold >= 0.15 Uc
Shape of pin Flat
Maximum switching capacity 750 VA/84 W
Maximum switching voltage 250 V conforming to IEC
dielectric strength 1300 V AC between contacts with micro disconnection
2000 V AC between coil and contact
2000 V AC between poles
Operate time 20 ms
Operating rate <= 1200 cycles/hour under load
<= 18000 cycles/hour no-load
Shock resistance 10 gn for in operation
30 gn for not operating
Release time 20 ms
Resistive rated load 3 A at 250 V AC
3 A at 28 V DC
Status led With
Utilisation coefficient 20 %
Environment
Ambient air temp for storage/transportation -40…85 °C
ip degree of protection IP40 conforming to EN/IEC 60529
Range of product Harmony Electromechanical Relays
ambient air temperature for operation -40…55 °C
standards EN/IEC 61810-1
CSA C22.2 No 14
UL 508
vibration resistance 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation
5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating
About this product

The RXM4GB2F7 - Harmony, Miniature plugin relay, 3 A, 4 CO, with LED, with lockable test button, 120 V AC is fashioned to serve the requirements of technical experts, such as switchgear manufacturers, electricians, maintenance service providers, and equipment creators. RXM4GB2F7 delivers superb capability and profit for engineers in the power engineering industry. This Harmony, Miniature plugin relay, 3 A, 4 CO, with LED, with lockable test button, 120 V AC and other Harmony RP/RXM/RUM/RSB from Schneider Electric can be bought at the most favorable cost and delivery schedule through baltelec.eu, a reliable wholesaler supplying professionals in their acquisition needs.

Users who have acquired Schneider Electric Harmony RP/RXM/RUM/RSB have steadily extolled the producer's solidity. It has been mentioned that the unmatched efficiency of RXM4GB2F7 - Harmony, Miniature plugin relay, 3 A, 4 CO, with LED, with lockable test button, 120 V AC extends to a spectrum of scenarios. Its ideal specifications make it fitting for different applications, promoting success in your industrial, tertiary, and automation efforts.

Our company focuses in serving industrial and tertiary professionals’ needs. We recognize the unique requirements and demands of our patrons in the realm. By collaborating with our company, our partners secure access to the optimal price lists and availability of premium products like RXM4GB2F7 - Harmony, Miniature plugin relay, 3 A, 4 CO, with LED, with lockable test button, 120 V AC from Schneider Electric at an economical price. Baltelec account members enjoy more savings and top-tier service.

Start immediately and purchase RXM4GB2F7 - Harmony, Miniature plugin relay, 3 A, 4 CO, with LED, with lockable test button, 120 V AC at our certified and hassle-free digital marketplace. Don't delay in making this wise pick that guarantees the top quality and matches the distinct requests of suppliers like your firm.

If there are any issues or concerns about RXM4GB2F7 - Harmony, Miniature plugin relay, 3 A, 4 CO, with LED, with lockable test button, 120 V AC or any other Schneider Electric products, drop us a line or refer to our FAQ section section below. We have collected answers to standard queries to assist you further in making an thoughtful decision about industrial and tertiary electrical components.

Remember, RXM4GB2F7 - Harmony, Miniature plugin relay, 3 A, 4 CO, with LED, with lockable test button, 120 V AC from Schneider Electric is dependable, value-priced, and excellent to opposing companies in the Harmony RP/RXM/RUM/RSB category. Make it a part of your arrangement promptly. Purchase at baltele.eu, your respected merchant for all your Harmony RP/RXM/RUM/RSB.

In our Baltelec.eu digital store you will encounter Harmony, Miniature plugin relay, 3 A, 4 CO, with LED, with lockable test button, 120 V AC - RXM4GB2F7 worth 10.32 €, which will be a steadfast and new solution for your necessities. This article is developed by the Schneider Electric brand using the freshest technologies and conforms to the top standards of safety and workmanship. We offer produce from the Harmony RP/RXM/RUM/RSB category that mix durability and effectiveness, which is an superb preference for various functions. In spite of whether you call for hardware for small output or for proficient industrial exploitation, Harmony, Miniature plugin relay, 3 A, 4 CO, with LED, with lockable test button, 120 V AC will be a steadfast aid in your endeavor.

Baltelec strives to make the getting process as accessible and fast as doable for our consumers. We offer detailed outlines and high-quality illustrations of Harmony, Miniature plugin relay, 3 A, 4 CO, with LED, with lockable test button, 120 V AC so that you can make an well-informed choice. A team of adepts is always ready to help you with any uncertainties in the Harmony RP/RXM/RUM/RSB section involved to the determining and use of merchandise. We are positive that Harmony, Miniature plugin relay, 3 A, 4 CO, with LED, with lockable test button, 120 V AC will meet your anticipations and become an needed element of your hardware for just 10.32 €.
