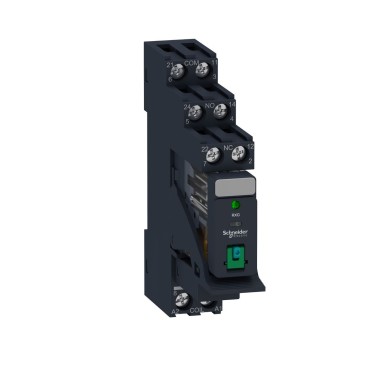

RXG22BDPV - Interface plug in relay pre assembled, Harmony, 5A, 2CO, with LED, lockable test button, 24V DC - Schneider Electric

Expected in 2-4 weeks EAN: 3606489562885
RXG22BDPV - Interface plug in relay pre assembled, Harmony, 5A, 2CO, with LED, lockable test button, 24V DC - Schneider Electric - Interface plug in relay pre assembled, Harmony, 5A, 2CO, with LED, lockable test button, 24V DC - Schneider Electric - 0
RXG22BDPV - Interface plug in relay pre assembled, Harmony, 5A, 2CO, with LED, lockable test button, 24V DC - Schneider Electric - Interface plug in relay pre assembled, Harmony, 5A, 2CO, with LED, lockable test button, 24V DC - Schneider Electric - 0
EAN: 3606489562885
RXG22BDPV - Interface plug in relay pre assembled, Harmony, 5A, 2CO, with LED, lockable test button, 24V DC - Schneider Electric
12,86 € excl. VAT
15,95 € incl. VAT
Text About:
Interface plug in relay pre assembled, Harmony, 5A, 2CO, with LED, lockable test button, 24V DC - Schneider Electric
 In cart
15,95 €
SPECIFICATIONS
Main
product range Relais électromécanique Harmony
[ithe] thermal current under enclosure 5 A
[uc] control circuit voltage 24 V CC
name of the device RXG
type of product or equipment Relais embrochable pré-assemblé avec prise
range name Relais d'interface
[ui] rated insulation voltage 250 V se conformer à CEI
Complementary
[ie] rated operational current 5 A à 30 V (DC) se conformer à UL
5 A à 30 V (DC) se conformer à CEI
5 A à 250 V (AC) se conformer à CEI
5 A à 250 V (AC) se conformer à UL
contact description 2 "O/F"
[uimp] rated impulse withstand voltage 6 kV 1,2/50 µs entre bobine et contact
4 kV 1,2/50 µs entre pôles
1,2 kV 1,2/50 µs entre contacts
2,5 kV 1,2/50 µs entre les bornes et la zone LTB
1,5 kV 1,2/50 µs entre les bornes et la base
minimum switching capacity 50 mW à 10 mA, 5 V CC
product weight 0,065 kg
protection category RT I
coil insulation class Classe F
average coil consumption 0,53 W CC
electrical life 100000 cycle résistive charge
led status Avec
connection mode Connecteur, 1 x 0,25 à 1 x 2,5 mm² (AWG 22 à AWG 14) souple avec embout
Connecteur, 2 x 0,25 à 2 x 1 mm² (AWG 22 à AWG 17) souple avec embout
Connecteur, 1 x 0,5…1 x 2,5 mm² (AWG 20 à AWG 14) rigide sans embout
Connecteur, 2 x 0,5 à 2 x 1,5 mm² (4 x 1,5 mm² + 2 x 1 mm² + 2 x 0,14 mm²) rigide sans embout
duty cycle 20 %
hood color Transparent
safety reliability data B10d = 100000
charging current 5 A
contact material Alliage d'argent (AgSnO2In2O3)
mechanical endurance 10000000 cycle
product presentation Produit complet
maximum switching power 1 250 VA CA
150 W CC
test levels Niveau A
drop-out voltage threshold >= 0,1 Uc CC
operating time 20 ms
mounting position Toutes positions
trigger time 20 ms
coil resistance 1100 Ohm +/- 10 %
max contact resistance 100 mOhm
order type Bouton de test verrouillable
torque value 0,8 N.m
0,79 N.m
dielectric strength 1000 V CA entre contacts avec microcoupure
1300 V entre les bornes et la base avec isolement de base
3000 V entre les bornes et la zone LTB avec isolement de base
3000 V CA entre pôles avec isolement de base
5000 V CA entre bobine et contact avec isolement renforcé
command speed <= 1800 cycles/heure sous-charge
<= 18000 cycles/heure sans charge
maximum cut-off voltage 250 V
Environment
degree of pollution 2
degree of protection (ip) IP20
product certificates CSA
CE
EAC
UL
DNV-GL
operating ambient temperature -40…70 °C
overvoltage category III
standards CEI 61810-1
CSA C22.2 No 14
UL 508
CEI 61984
relative humidity 10…85 %
storage room temperature -40…85 °C
mechanical shock resistance 20 gn en marche
100 gn pas en fonctionnement
vibration resistance 3 gn, amplitude = +/-1,5 mm (f = 10…150 Hz)en marche
5 gn, amplitude = +/-1,5 mm (f = 10…150 Hz)pas en fonctionnement
insulation resistance 1000 MΩ à 500 V CC
About this product

The RXG22BDPV - Interface plug in relay pre assembled, Harmony, 5A, 2CO, with LED, lockable test button, 24V DC is created to meet the conditions of sector experts, such as panel builders, electrical installers, facility management firms, and OEMs. RXG22BDPV delivers outstanding durability and gain for engineers in the power management industry. This Interface plug in relay pre assembled, Harmony, 5A, 2CO, with LED, lockable test button, 24V DC and other Harmony RP/RXM/RUM/RSB from Schneider Electric are on offer at the most favorable cost and supply period through BaltElec, an independent vendor catering to tradesmen in their procurement needs.

Customers who have selected Schneider Electric Harmony RP/RXM/RUM/RSB have regularly acclaimed the creator's robustness. It has been pointed out that the impressive energy-efficiency of RXG22BDPV - Interface plug in relay pre assembled, Harmony, 5A, 2CO, with LED, lockable test button, 24V DC extends to a array of operations. Its first-rate components make it great selection to cater to varied requirements, ensuring your industrial, tertiary and automation projects success.

Our specialists centers in providing for industrial and tertiary professionals’ needs. We know the distinct criteria and demands of our customers in the market. By cooperating with us, our partners access access to the best fees and delivery period of first-rate products like RXG22BDPV - Interface plug in relay pre assembled, Harmony, 5A, 2CO, with LED, lockable test button, 24V DC from Schneider Electric at the most competitive price. Our registered accounts receive additional savings and premium support.

Move quickly and procure RXG22BDPV - Interface plug in relay pre assembled, Harmony, 5A, 2CO, with LED, lockable test button, 24V DC at our dependable and accessible online store. Don't delay in making this thoughtful resolution that warrants the superior quality and caters to the individual criteria of vendors like your company.

Should you experience any concerns or concerns about RXG22BDPV - Interface plug in relay pre assembled, Harmony, 5A, 2CO, with LED, lockable test button, 24V DC or any other Schneider Electric products, email us or refer to our Information center section below. We have gathered answers to habitual inquiries to benefit you further in making an wise decision about industrial and tertiary electrical components.

Remember, RXG22BDPV - Interface plug in relay pre assembled, Harmony, 5A, 2CO, with LED, lockable test button, 24V DC from Schneider Electric is sure, inexpensive, and high-quality to other brands in the Harmony RP/RXM/RUM/RSB category. Don't hesitate to make it a part of your network straight away. Order at Baltelec e-shop, your reliable retailer for all your Schneider Electric.

In our Baltelec.eu dot-com store you will encounter Interface plug in relay pre assembled, Harmony, 5A, 2CO, with LED, lockable test button, 24V DC - RXG22BDPV worth 15.69 €, which will be a constant and contemporary solution for your preferences. This merchandise is designed by the Schneider Electric brand using the freshest technologies and follows the peak standards of safety and workmanship. We furnish items from the Harmony RP/RXM/RUM/RSB category that merge durability and effectiveness, which is an outstanding pick for various functions. Irrespective of whether you call for machinery for small production or for professional industrial exertion, Interface plug in relay pre assembled, Harmony, 5A, 2CO, with LED, lockable test button, 24V DC will be a secure helper in your undertaking.

Baltelec efforts to make the acquiring process as manageable and fast as viable for our clients. We offer detailed depictions and high-quality pictures of Interface plug in relay pre assembled, Harmony, 5A, 2CO, with LED, lockable test button, 24V DC so that you can make an briefed choice. A team of authorities is always ready to help you with any queries in the Harmony RP/RXM/RUM/RSB section involved to the electing and use of wares. We are assured that Interface plug in relay pre assembled, Harmony, 5A, 2CO, with LED, lockable test button, 24V DC will meet your needs and become an essential element of your tools for just 15.69 €.

Common Queries about RXG22BDPV - Interface plug in relay pre assembled, Harmony, 5A, 2CO, with LED, lockable test button, 24V DC:
