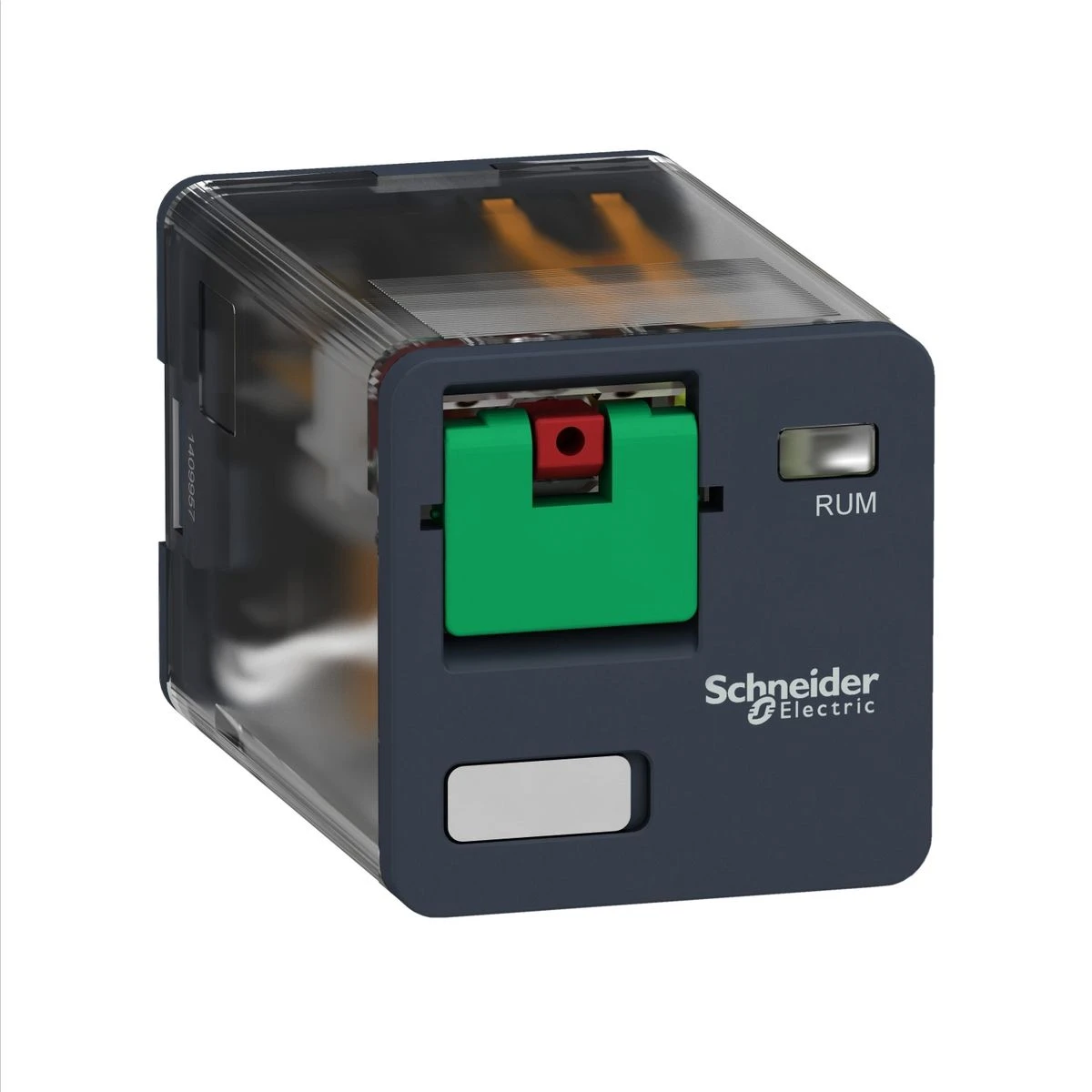

RUMF21F7 - Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 120 V AC - Schneider Electric

Expected in 2-4 weeks
RUMF21F7 - Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 120 V AC - Schneider Electric - Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 120 V AC - Schneider Electric - 0
RUMF21F7 - Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 120 V AC - Schneider Electric
9,20 € excl. VAT
11,22 € incl. VAT
Text About:
Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 120 V AC - Schneider Electric
11,22 €
SPECIFICATIONS
Main
Device short name RUM
[ithe] thermal current under enclosure 10 A at -40…55 °C
[uc] control circuit voltage 120 V AC 50/60 Hz
[ui] rated insulation voltage 250 V conforming to IEC
300 V conforming to CSA
300 V conforming to UL
Series name Universal
Complementary
[ie] rated operational current 10 A at 277 V AC conforming to UL
10 A at 30 V DC conforming to UL
10 A at 30 V DC conforming to CSA
5 A at 250 V AC (NC) conforming to IEC
5 A at 28 V DC (NC) conforming to IEC
10 A at 250 V AC (NO) conforming to IEC
10 A at 28 V DC (NO) conforming to IEC
10 A at 277 V AC conforming to CSA
Control type Lockable test button
Product certifications UL
EAC
CSA
Product or component type Plug-in relay
[uimp] rated impulse withstand voltage 4 kV (1.2/50 µs)
minimum switching capacity 170 mW at 10 mA, 17 V
protection category RT I
average coil consumption in va 3 at 60 Hz
Contacts material AgNi
Contacts type and composition 2 C/O
safety reliability data B10d = 100000
Net weight 0.086 kg
Operating position Any position
test levels Level A group mounting
mechanical durability 5000000 cycles
Rated operational voltage limits 96...132 V AC
electrical durability 100000 cycles for resistive load
Device presentation Complete product
average coil resistance 1700 Ohm at 20 °C +/- 15 %
Pollution degree 3
drop-out voltage threshold >= 0.15 Uc AC
Shape of pin Flat
Maximum switching capacity 2500 VA/280 W
Maximum switching voltage 250 V conforming to IEC
dielectric strength 1500 V AC between contacts with micro disconnection
2500 V AC between coil and contact with reinforced
2000 V AC between poles with basic
Operate time 20 ms at nominal voltage
Operating rate <= 18000 cycles/hour no-load
<= 1200 cycles/hour under load
Shock resistance 10 gn (duration = 11 ms) for in operation conforming to EN/IEC 60068-2-27
10 gn (duration = 11 ms) for not operating conforming to EN/IEC 60068-2-27
Release time 20 ms at nominal voltage
Resistive rated load 10 A at 250 V AC
10 A at 28 V DC
Status led Without
Utilisation coefficient 20 %
Environment
Ambient air temp for storage/transportation -40…85 °C
ip degree of protection IP40
Range of product Harmony Electromechanical Relays
ambient air temperature for operation -40…55 °C
standards UL 508
CSA C22.2 No 14
EN/IEC 61810-1
vibration resistance 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation
4 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating
About this product

The RUMF21F7 - Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 120 V AC is formulated to address the obligations of business buyers, such as panel builders, wiring experts, service providers, and OEMs. RUMF21F7 offers extraordinary excellence and utility for experts in the electrical and automation industry. This Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 120 V AC and other Harmony RP/RXM/RUM/RSB from Schneider Electric are on offer at the unbeatable price and delivery schedule through BaltElec, a respected dealer meeting the needs of specialists in their buying needs.

Consumers who have acquired Schneider Electric Harmony RP/RXM/RUM/RSB have habitually praised the manufacturer’s resilience. It has been emphasized that the outstanding productivity of RUMF21F7 - Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 120 V AC extends to a diverse range of applications. Its elite aspects make it suitable for different applications, promoting success in your industrial, tertiary, and automation efforts.

BALTELEC focuses in catering industrial and tertiary professionals’ needs. We grasp the special needs and requirements of our buyers in the field. By collaborating with our professionals, our partners get access to the finest price and availability of the top-of-the-line products like RUMF21F7 - Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 120 V AC from Schneider Electric at a value-for-money price. Registered users appreciate exclusive discounts and dedicated support.

Get started and get RUMF21F7 - Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 120 V AC at our well-established and streamlined e-commerce site. Don't delay in making this smart selection that assures the ultimate quality and achieves the special specifications of purchasers like your firm.

Should you experience any worries or concerns about RUMF21F7 - Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 120 V AC or any other Schneider Electric products, drop us a line or refer to our Frequently Asked Queries section below. We have put together answers to recurring inquiries to serve you further in making an thoughtful decision about industrial and tertiary electrical components.

Remember, RUMF21F7 - Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 120 V AC from Schneider Electric is safe, economical, and excellent to other producers in the Harmony RP/RXM/RUM/RSB category. Make it a part of your installation today. Shop with confidence at Baltelec webstore, your respected merchant for all your Harmony RP/RXM/RUM/RSB.

In our Baltelec.eu electronic store you will come across Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 120 V AC - RUMF21F7 worth 11.22 €, which will be a secure and innovative solution for your necessities. This article is formulated by the Schneider Electric brand using the advanced technologies and meets the optimal standards of precaution and productivity. We deliver commodities from the Harmony RP/RXM/RUM/RSB category that combine endurance and efficacy, which is an first-rate decision for various objectives. Notwithstanding of whether you want hardware for small assembly or for specialized industrial employment, Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 120 V AC will be a reliable associate in your task.

Baltelec strives to make the procuring process as uncomplicated and fast as possible for our clients. We offer detailed depictions and high-quality pictures of Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 120 V AC so that you can make an educated choice. A team of virtuosos is always ready to help you with any inquiries in the Harmony RP/RXM/RUM/RSB section affiliated to the deciding and use of materials. We are certain that Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 120 V AC will meet your hopes and become an imperative element of your apparatus for just 11.22 €.
