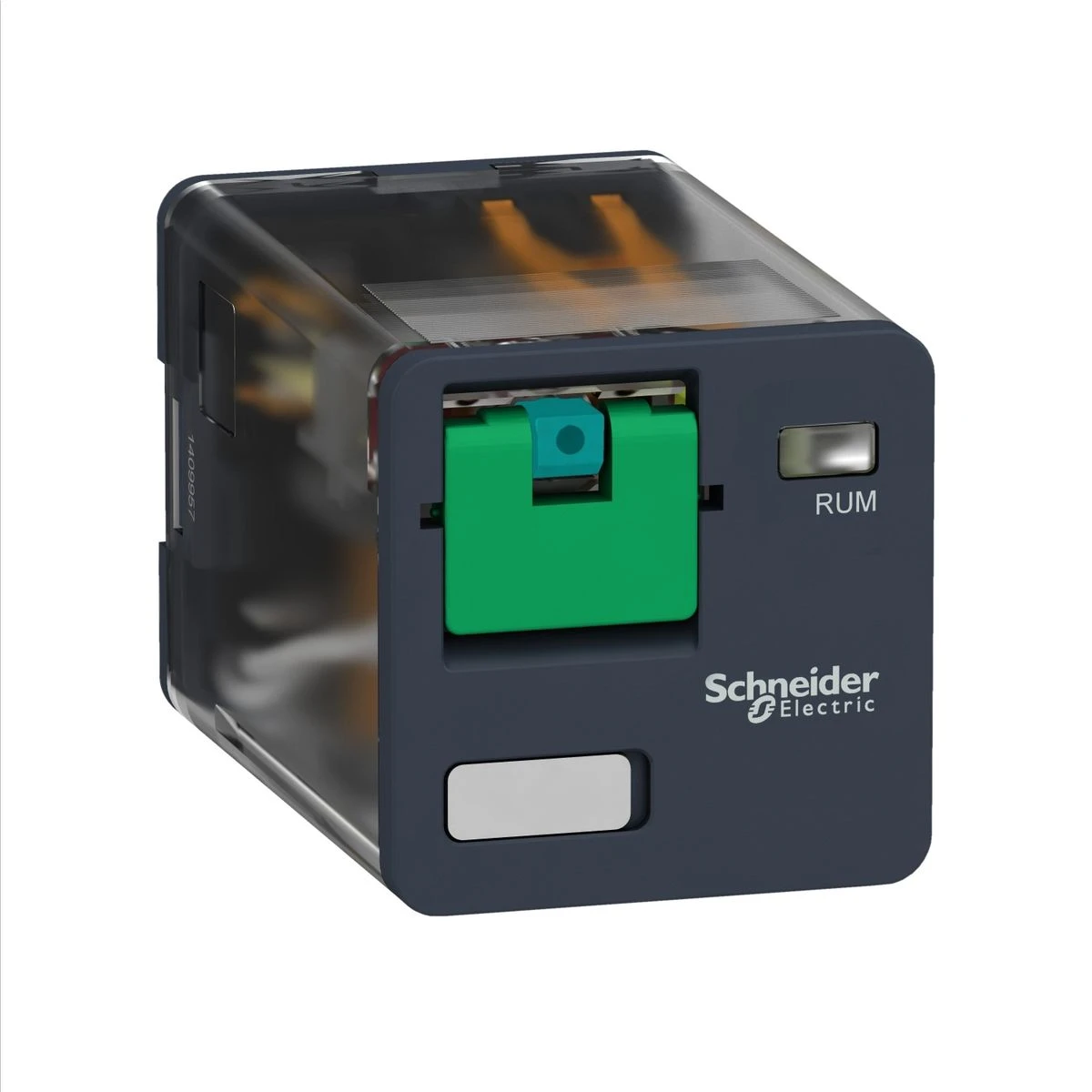

RUMF21BD - Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 24 V DC - Schneider Electric

Pending restock
RUMF21BD - Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 24 V DC - Schneider Electric - Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 24 V DC - Schneider Electric - 0
RUMF21BD - Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 24 V DC - Schneider Electric
10,57 € excl. VAT
13,11 € incl. VAT
Text About:
Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 24 V DC - Schneider Electric
13,11 €
SPECIFICATIONS
Main
Device short name RUM
[ithe] thermal current under enclosure 10 A at -40…55 °C
[uc] control circuit voltage 24 V DC
[ui] rated insulation voltage 250 V conforming to IEC
300 V conforming to CSA
300 V conforming to UL
Series name Universal
Complementary
[ie] rated operational current 10 A at 277 V AC conforming to UL
10 A at 30 V DC conforming to UL
10 A at 30 V DC conforming to CSA
5 A at 250 V AC (NC) conforming to IEC
5 A at 28 V DC (NC) conforming to IEC
10 A at 250 V AC (NO) conforming to IEC
10 A at 28 V DC (NO) conforming to IEC
10 A at 277 V AC conforming to CSA
Control type Lockable test button
Product certifications CSA
UL
EAC
Product or component type Plug-in relay
[uimp] rated impulse withstand voltage 4 kV (1.2/50 µs)
minimum switching capacity 170 mW at 10 mA, 17 V
protection category RT I
Average coil consumption in w 1.4 W
Contacts material AgNi
Contacts type and composition 2 C/O
safety reliability data B10d = 100000
Net weight 0.086 kg
Operating position Any position
test levels Level A group mounting
mechanical durability 5000000 cycles
Rated operational voltage limits 19.2...26.4 V DC
electrical durability 100000 cycles for resistive load
Device presentation Complete product
average coil resistance 470 Ohm at 20 °C +/- 15 %
Pollution degree 3
drop-out voltage threshold >= 0.1 Uc DC
Shape of pin Flat
Maximum switching capacity 2500 VA/280 W
Maximum switching voltage 250 V conforming to IEC
dielectric strength 1500 V AC between contacts with micro disconnection
2500 V AC between coil and contact with reinforced
2000 V AC between poles with basic
Operate time 20 ms at nominal voltage
Operating rate <= 18000 cycles/hour no-load
<= 1200 cycles/hour under load
Shock resistance 10 gn (duration = 11 ms) for in operation conforming to EN/IEC 60068-2-27
10 gn (duration = 11 ms) for not operating conforming to EN/IEC 60068-2-27
Release time 20 ms at nominal voltage
Resistive rated load 10 A at 250 V AC
10 A at 28 V DC
Status led Without
Utilisation coefficient 20 %
Environment
Ambient air temp for storage/transportation -40…85 °C
ip degree of protection IP40
Range of product Harmony Electromechanical Relays
ambient air temperature for operation -40…55 °C
standards CSA C22.2 No 14
EN/IEC 61810-1
UL 508
vibration resistance 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation
4 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating
About this product

The RUMF21BD - Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 24 V DC is engineered to match the necessities of trade buyers, such as installers, cable technicians, service providers, and original producers. RUMF21BD supplies remarkable standards and advantages for specialists in the power management industry. This Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 24 V DC and other Harmony RP/RXM/RUM/RSB from Schneider Electric can be ordered at the optimal price and fulfillment period through BALTELEC.EU, a trustworthy vendor catering to practitioners in their obtaining needs.

Users who have procured Schneider Electric Harmony RP/RXM/RUM/RSB have regularly commended the creator's resilience. It has been stated that the outstanding productivity of RUMF21BD - Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 24 V DC extends to a diverse range of scenarios. Its excellent elements make it perfect choice to cater to varied requirements, assuring the success of your industrial, tertiary, and automation ventures.

BALTELEC specializes in catering industrial and tertiary professionals’ needs. We grasp the distinct expectations and desires of our consumers in the sector. By collaborating with our company, your business secure access to the top fees and stock of first-rate products like RUMF21BD - Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 24 V DC from Schneider Electric at a competitive price. Registered users take advantage of exclusive discounts and top-tier service.

Seize the moment and grab RUMF21BD - Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 24 V DC at our verified and hassle-free e-commerce site. Don't delay in making this prudent choice that assures the utmost quality and fulfills the personalized expectations of customers like you.

Should you have any inquiries or concerns about RUMF21BD - Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 24 V DC or any other Schneider Electric products, get in touch with us or refer to our Knowledge base section below. We have amassed answers to common requests for information to back you further in making an considered decision about industrial and tertiary electrical components.

Remember, RUMF21BD - Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 24 V DC from Schneider Electric is secure, affordable, and exceptional to other vendors in the Harmony RP/RXM/RUM/RSB category. Make it a part of your apparatus today. Snap up at Baltelec e-shop, your steady distributor for all your Schneider Electric.

In our Baltelec.eu internet store you will uncover Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 24 V DC - RUMF21BD worth 12.90 €, which will be a trustworthy and contemporary solution for your desires. This thing is invented by the Schneider Electric brand using the freshest technologies and follows the premier standards of security and productivity. We present items from the Harmony RP/RXM/RUM/RSB category that mix sturdiness and workability, which is an outstanding possibility for various uses. Despite of whether you demand machinery for small generation or for proficient industrial use, Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 24 V DC will be a sure facilitator in your task.

Baltelec labors to make the acquiring process as convenient and fast as accomplishable for our consumers. We offer detailed portrayals and high-quality portrayals of Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 24 V DC so that you can make an versed choice. A team of virtuosos is always ready to help you with any wonder in the Harmony RP/RXM/RUM/RSB section linked to the choice and use of articles. We are positive that Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 24 V DC will meet your demands and become an important element of your gear for just 12.90 €.

Frequently Raised Questions about Schneider Electric Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 24 V DC:
