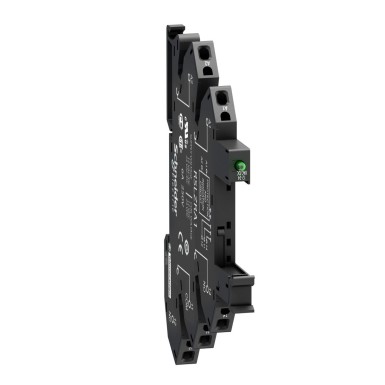

RSLZRA1 - Socket equipped with LED and protection circuit, Harmony, for RSL1 relays, spring terminals, 12...24V AC DC - Schneider Electric
Expected in 2-4 weeks
EAN: 3606480078071
10,01 € excl. VAT
12,21 € incl. VAT
Text About:
Socket equipped with LED and protection circuit, Harmony, for RSL1 relays, spring terminals, 12...24V AC DC - Schneider Electric
SPECIFICATIONS
Main
contact layout
Séparé
product range
Relais électromécanique Harmony
name of the device
RSLZ
type of product or equipment
Prise
switching voltage
12 V CA/CC
24 V CA/CC
24 V CA/CC
sale by indivisible quantity
10
Complementary
[ue] rated operational voltage
< 300 V CA
compatibility code
RSLZ
compliance
Relais enfichable RSL avec 1 F/O contact à 12 V CC
Relais enfichable RSL avec 1 F/O contact à 24 V CC
Relais enfichable RSL avec 1 F/O contact à 24 V CC
product group
RSL_SPRING_TERS_12-24
[ith] conventional thermal current
6 A
[uimp] rated impulse withstand voltage
3,6 kV
product weight
0,023 kg
fixing method
Ressort de compression plastique (rail DIN symétrique 35 mm)
marking
CE
connection mode
Bornes à ressort, 1 x 0,2…1 x 1,5 mm² (AWG 24 à AWG 16) souple avec embout
Bornes à ressort, 1 x 0,2…1 x 1,5 mm² (AWG 24 à AWG 16) rigide sans embout
Bornes à ressort, 1 x 0,2…1 x 1,5 mm² (AWG 24 à AWG 16) rigide sans embout
limits of rated operational voltage
21,6 à 28,8 V
11,4 à 14,4 V
11,4 à 14,4 V
overall height cao
78,6 mm
pin shape
Plat
product presentation
Élément de base
clamping force
10…40 N
overall width cao
6,2 mm
overall depth cao
101 mm
dielectric strength
2500 V
Environment
degree of pollution
3
ip degree of protection
IP20 se conformer à EN/CEI 60529
product certificates
GOST
CSA
CSA
operating ambient temperature
-40…70 °C
overvoltage category
III
standards
UL 508
CEI 61984
CEI 61984
storage room temperature
-40…85 °C
