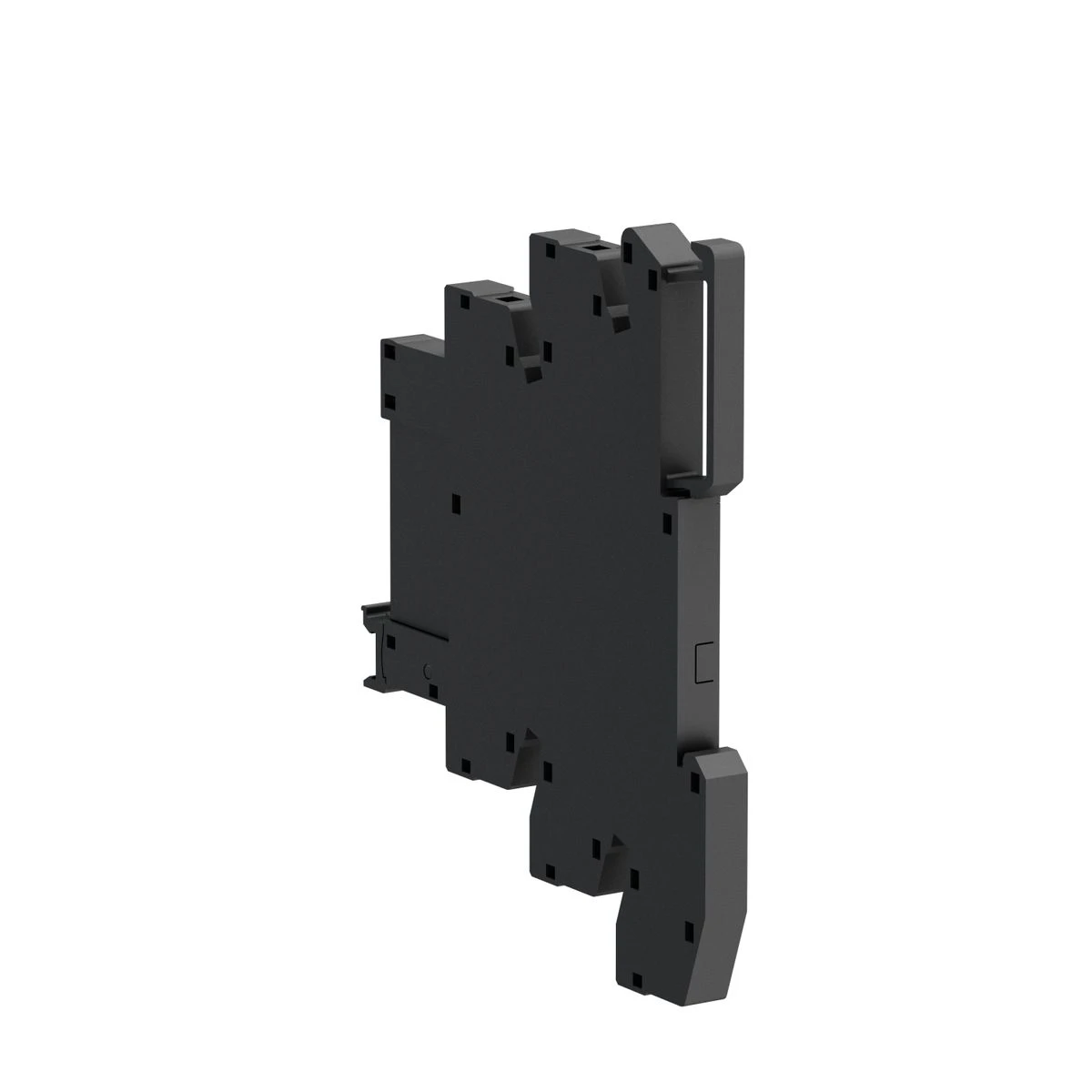

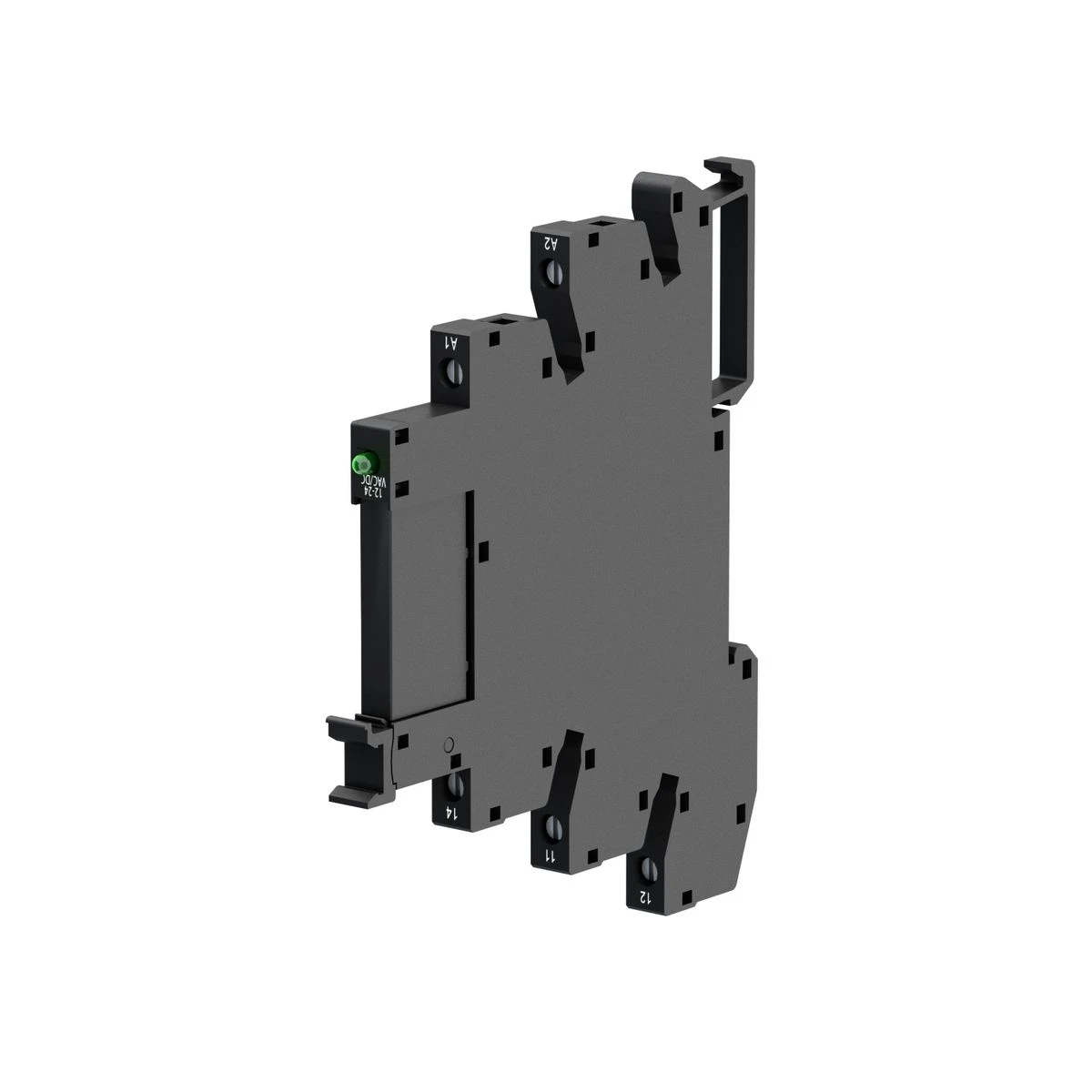

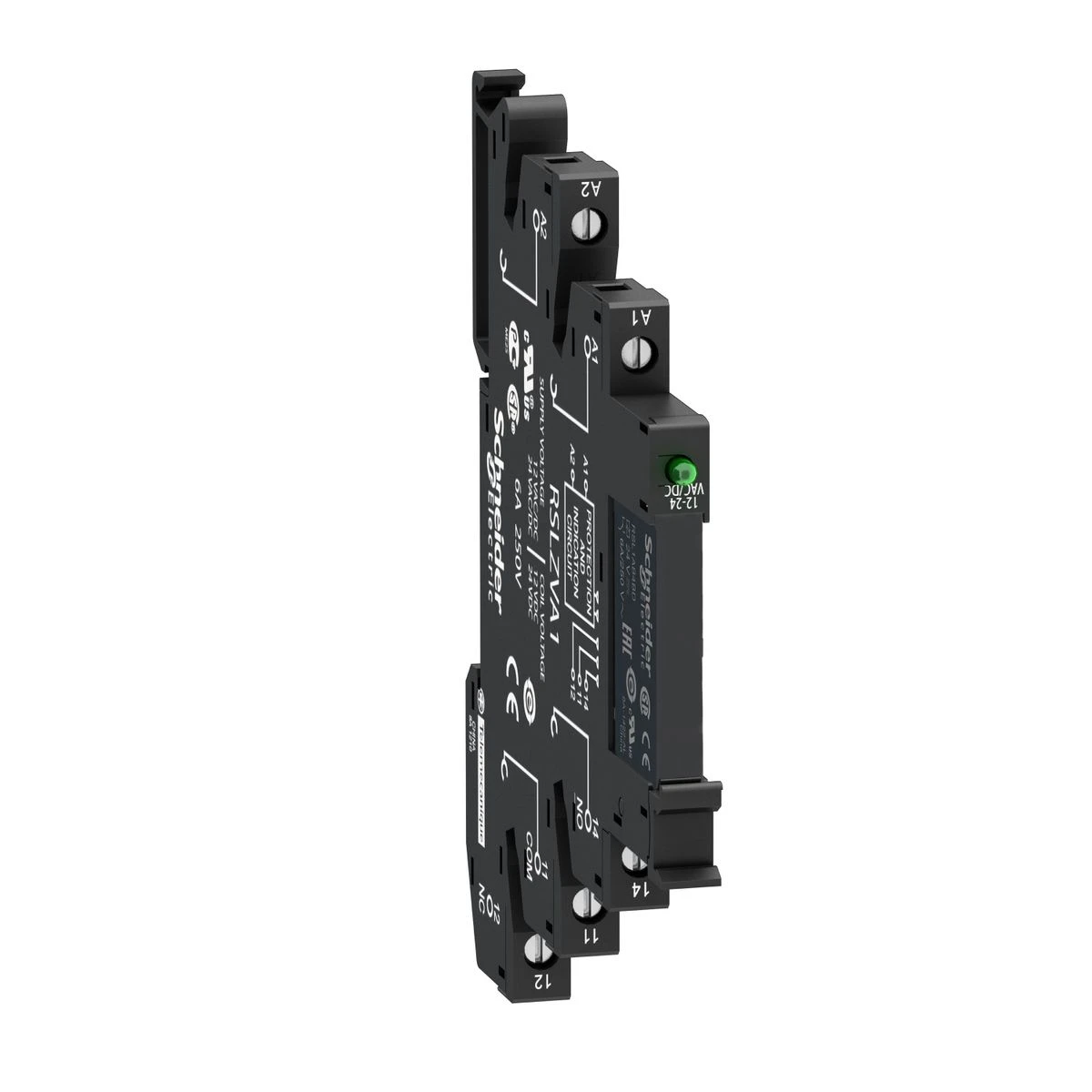

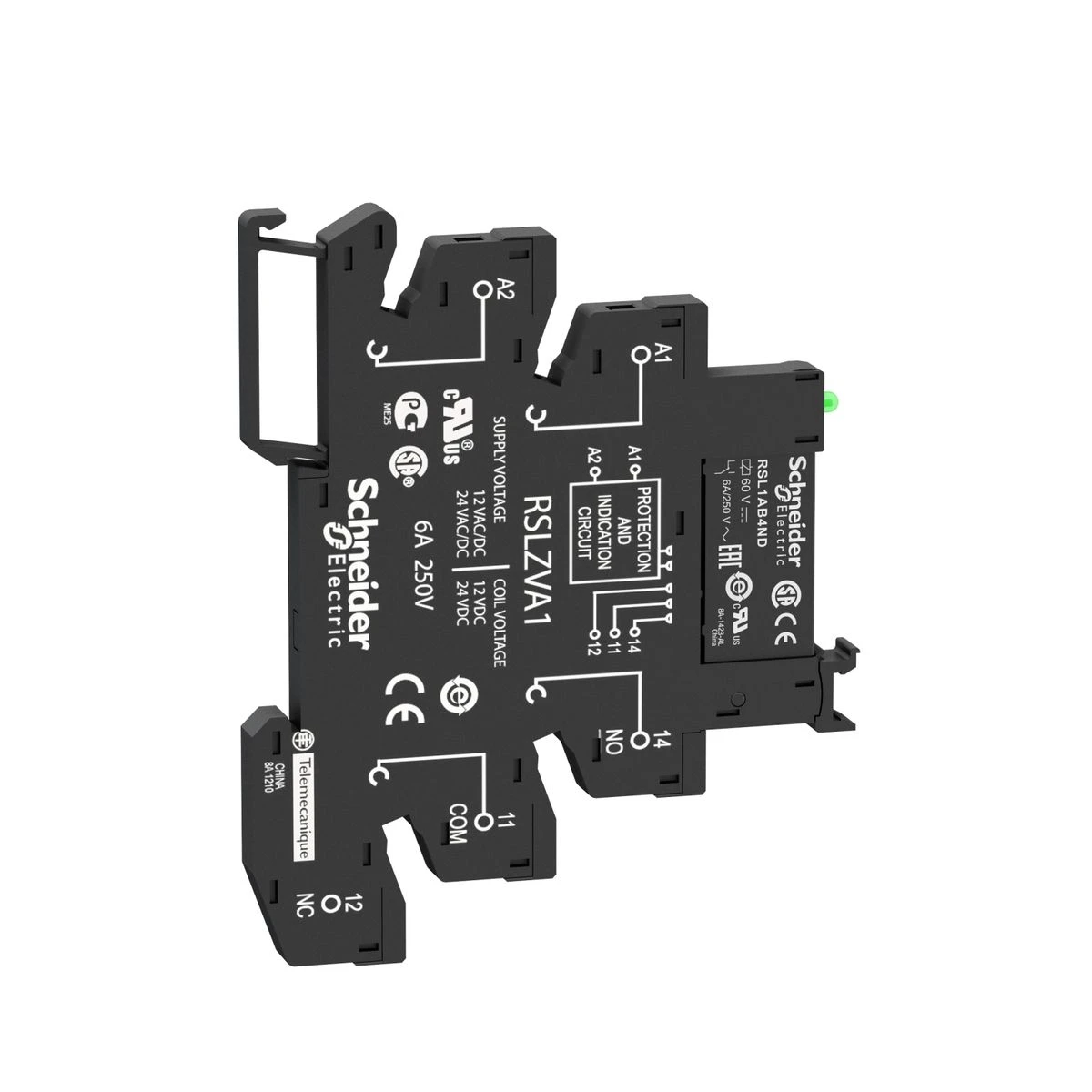

RSL1PVEU - Harmony, Slim interface relay preassembled, 6 A, 1 CO, with LED, with protection circuit, screw conn - Schneider Electric

Expected in 2-4 weeks

RSL1PVEU - Harmony, Slim interface relay preassembled, 6 A, 1 CO, with LED, with protection circuit, screw conn - Schneider Electric

14,08 € excl. VAT

17,17 € incl. VAT

Text About:

Harmony, Slim interface relay preassembled, 6 A, 1 CO, with LED, with protection circuit, screw conn - Schneider Electric

In cart

17,17 €

SPECIFICATIONS

Main

Device short name RSL

[ithe] thermal current under enclosure 6 A at -40…55 °C

[uc] control circuit voltage 48 V DC

[ui] rated insulation voltage 250 V conforming to EN/IEC
277 V conforming to cUL

Series name Interface relay

Complementary

[ie] rated operational current 6 A 1 C/O (AC-1/DC-1) conforming to IEC/UL

Average resistance 10600 Ohm network: DC at 23 °C +/- 10 %

Control type Without push-button

Product certifications GOST
CSA
UL

Handle front plate colour 78.6 mm

Product or component type Pre-assembled plug-in relay with socket

tightening torque < 0.5 N.m for M2.5 screw(s)

[uimp] rated impulse withstand voltage 6 kV conforming to IEC

minimum switching capacity 120 mW

Connections - terminals Screw connectors, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
Screw connectors, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable end

minimum switching current 100 mA

protection category RT III

marking CE

average coil consumption 0.17 W, DC

Contact terminal arrangement Separate

Contacts material Silver alloy (AgSnO2)

contact operation Standard

Contacts type and composition 1 C/O

Fixing mode Plastic compression spring

safety reliability data B10d = 60000

Load current 6 A at 250 V AC 0.5 mm mounting distance

Sale per indivisible quantity 10

width (w) 6.2 mm

Net weight 0.029 kg

Operating position Any position

test levels Level A group mounting

Mounting support 35 mm symmetrical DIN rail

depth 95 mm

mechanical durability 10000000 cycles

electrical durability 60000 cycles for resistive load, 6 A at 250 V, AC-1

Device presentation Complete product

drop-out voltage threshold >= 0.05 Uc

operating time 5 ms reset
12 ms

Shape of pin Flat (PCB type)

input voltage 48 V AC/DC (input voltage limit: 43.2...57.6 V)

Maximum switching capacity 1500 VA
150 W

minimum switching voltage 12 V

Maximum switching voltage 277 V

dielectric strength 1000 V AC between contacts
4000 V AC between coil and contact

Operating rate <= 72000 cycles/hour no-load
<= 360 cycles/hour under load

Shock resistance 10 gn (duration = 11 ms) for in operation conforming to EN/IEC 60068-2-27
5 gn (duration = 11 ms) for not operating conforming to EN/IEC 60068-2-27

Status led With

Terminals description iso n°1 (11-12-14)OC
(A1-A2)CO

Environment

Ambient air temp for storage/transportation -40…85 °C

ip degree of protection IP40 conforming to EN/IEC 60529

Range of product Harmony Electromechanical Relays

ambient air temperature for operation -40…55 °C

standards CSA C22.2 No 14
UL 508
EN/IEC 61810-1

vibration resistance 10 gn, amplitude = +/- 1 mm (f = 10…150 Hz)10 cycles not operating conforming to EN/IEC 60068-2-6
5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)10 cycles in operation conforming to EN/IEC 60068-2-6
